Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#74121) — 270 parça

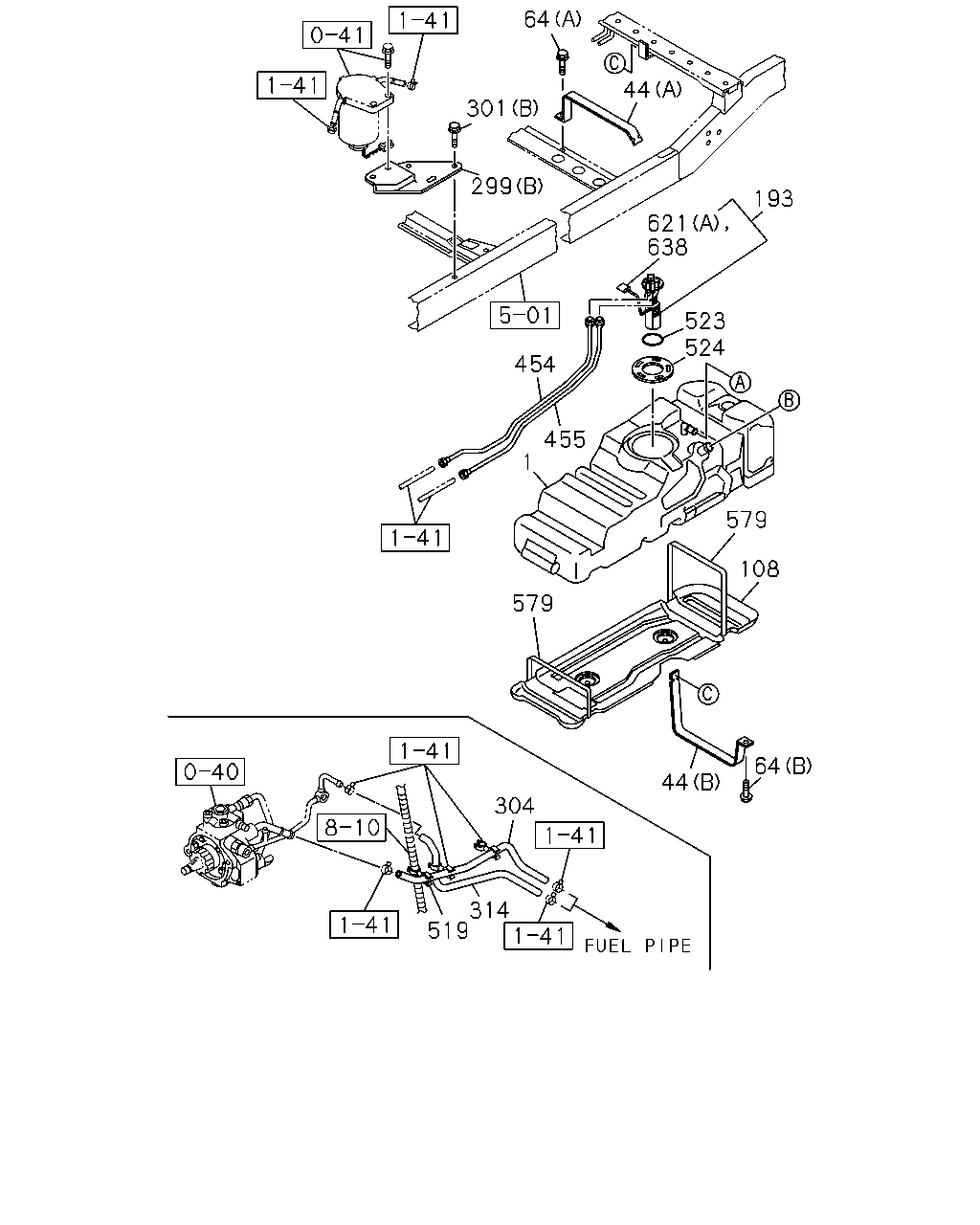

64 44 301 299 193 621 638 523 524 454 455 1 579 108 579 64 44 304 314 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL	8-97943-743-0	01	1	0306-0307	●	●
1	03.001 TANK; FUEL	8-97943-901-0	01	1	0308-0609	●	●
1	03.001 TANK; FUEL	8-97944-573-0	01	1	0610-			●	●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0306-0501	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0502-0609	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0610-			●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0306-0501	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0502-0609	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0610-			●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) (B)	8-97944-282-0	01	1	0610-				●
44	03.023 BAND; FUEL TANK A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0610-				●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0306-0609	●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0610-			●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0306-0609	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0610-			●	●
108	03.015 PROTECTOR; FUEL TANK	8-97943-300-0	01	1	0306-0609	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97943-300-0	01	1	0610-			●	●
193	03.107 PUMP; FUEL	8-97943-076-0	01	1	0306-0310	●	●
193	03.107 PUMP; FUEL	8-97943-970-0	01	1	0311-0609	●	●
193	03.107 PUMP; FUEL	8-97945-525-0	01	1	0610-1002			●	●
193	03.107 PUMP; FUEL	8-98159-357-0	01	1	1003-			●	●

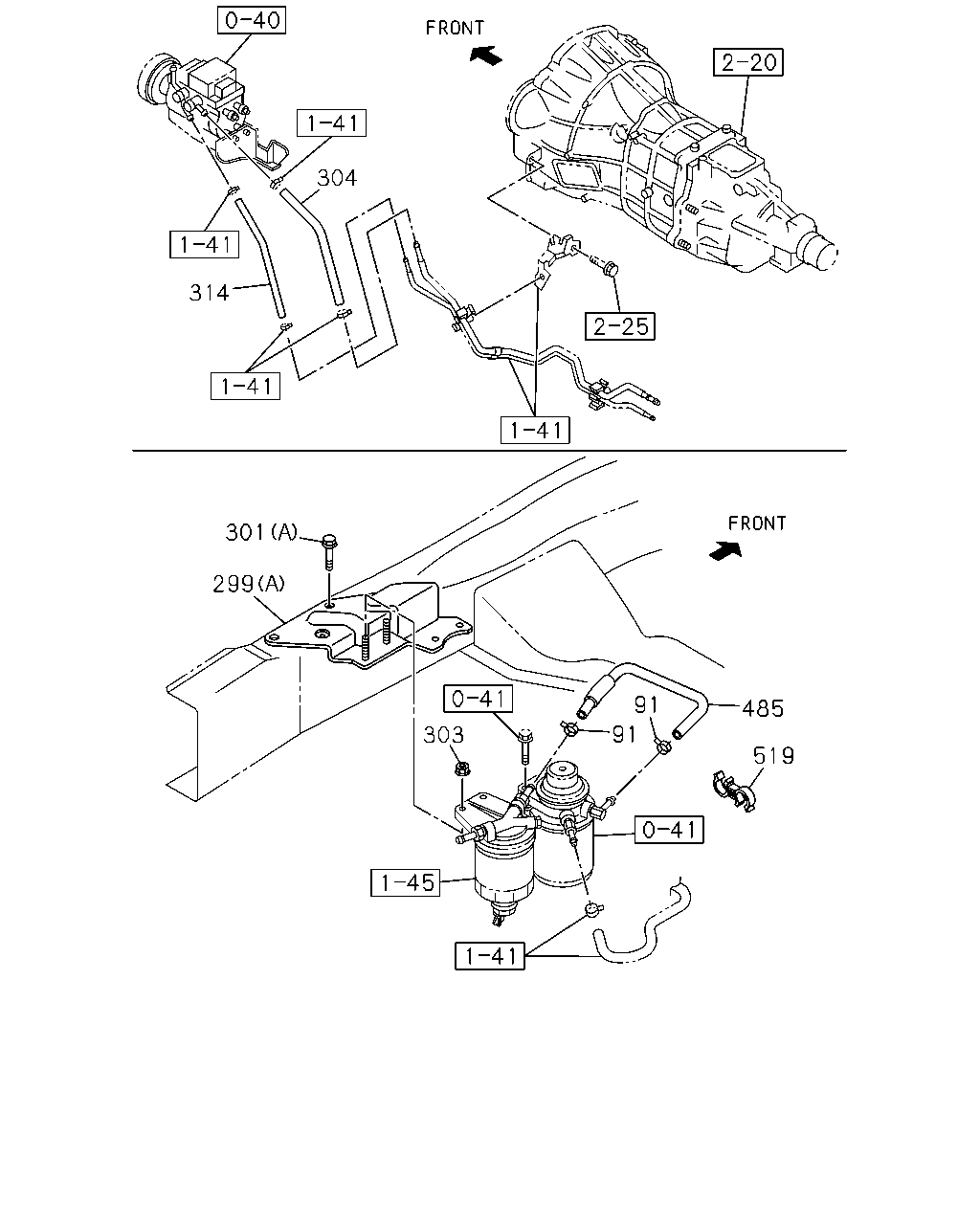

299	03.162 BRACKET; FUEL FILTER (A)	8-97943-458-0	01	1	0306-0504	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-089-0	01	1	0505-0609	●	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0610-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0306-0601	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0602-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0610-			●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97332-982-0	01	1	0306-0609	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0610-			●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-311-0	01	1	0306-0609	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0610-			●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97330-408-0	01	1	0306-0609		●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0306-0609	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0610-			●	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0306-0609	●	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0610-			●	●
519	03.107 RETAINER; FUEL PUMP 04.866 ID=18 & 18	8-94323-068-0	01	1	0306-0402	●	●
519	03.107 RETAINER; FUEL PUMP EXC. FRIGID ZONE<V10> 04.866 ID=18 & 18	8-94323-068-0	01	1	0403-0609	●	●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0610-			●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0306-0609	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0610-			●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0306-0609	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0610-			●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0306-0609	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0610-			●	●

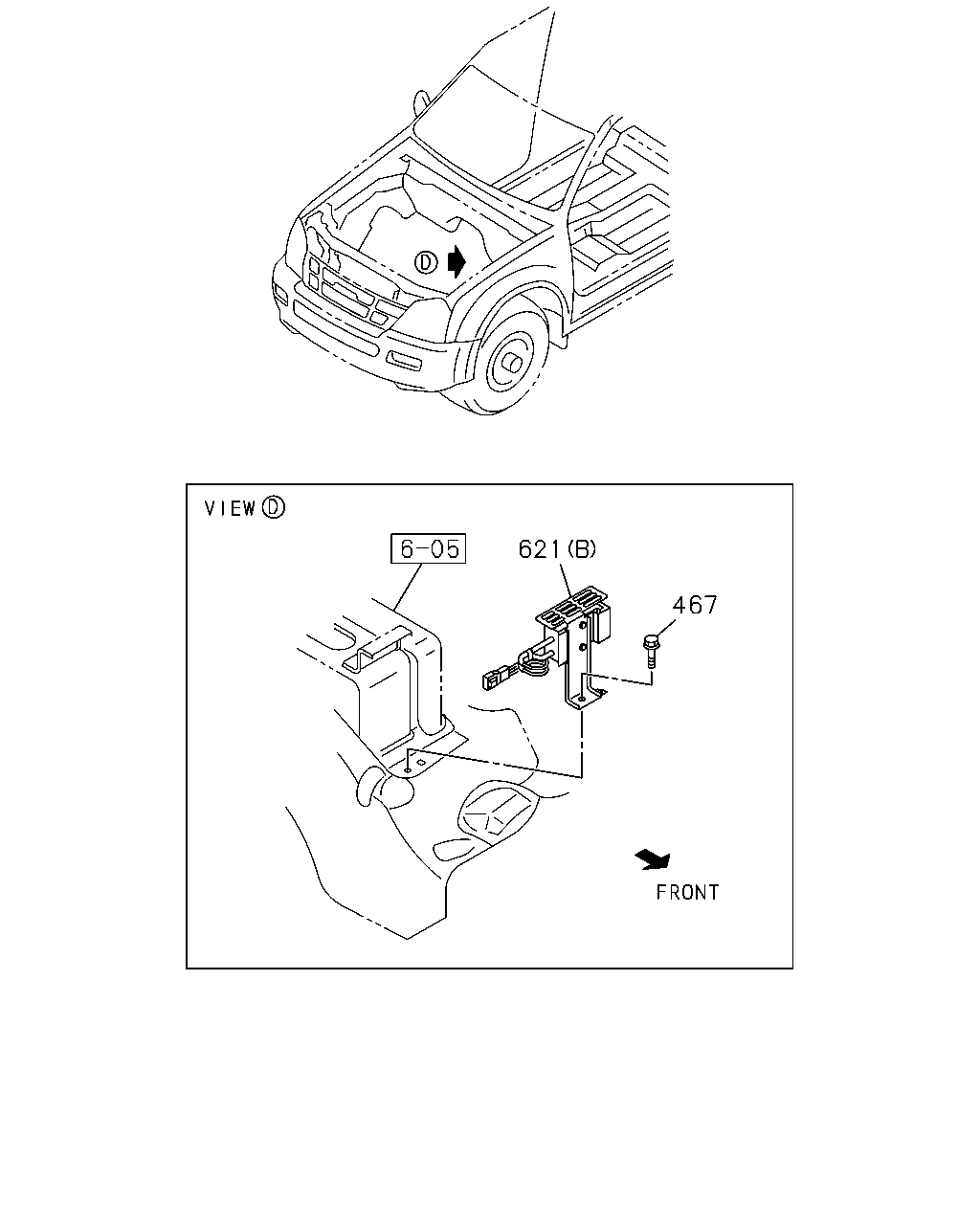

621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-180-0	01	1	0306-0310	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0311-0609	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0610-0910			●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0610-			●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0911-1002			●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-			●	●

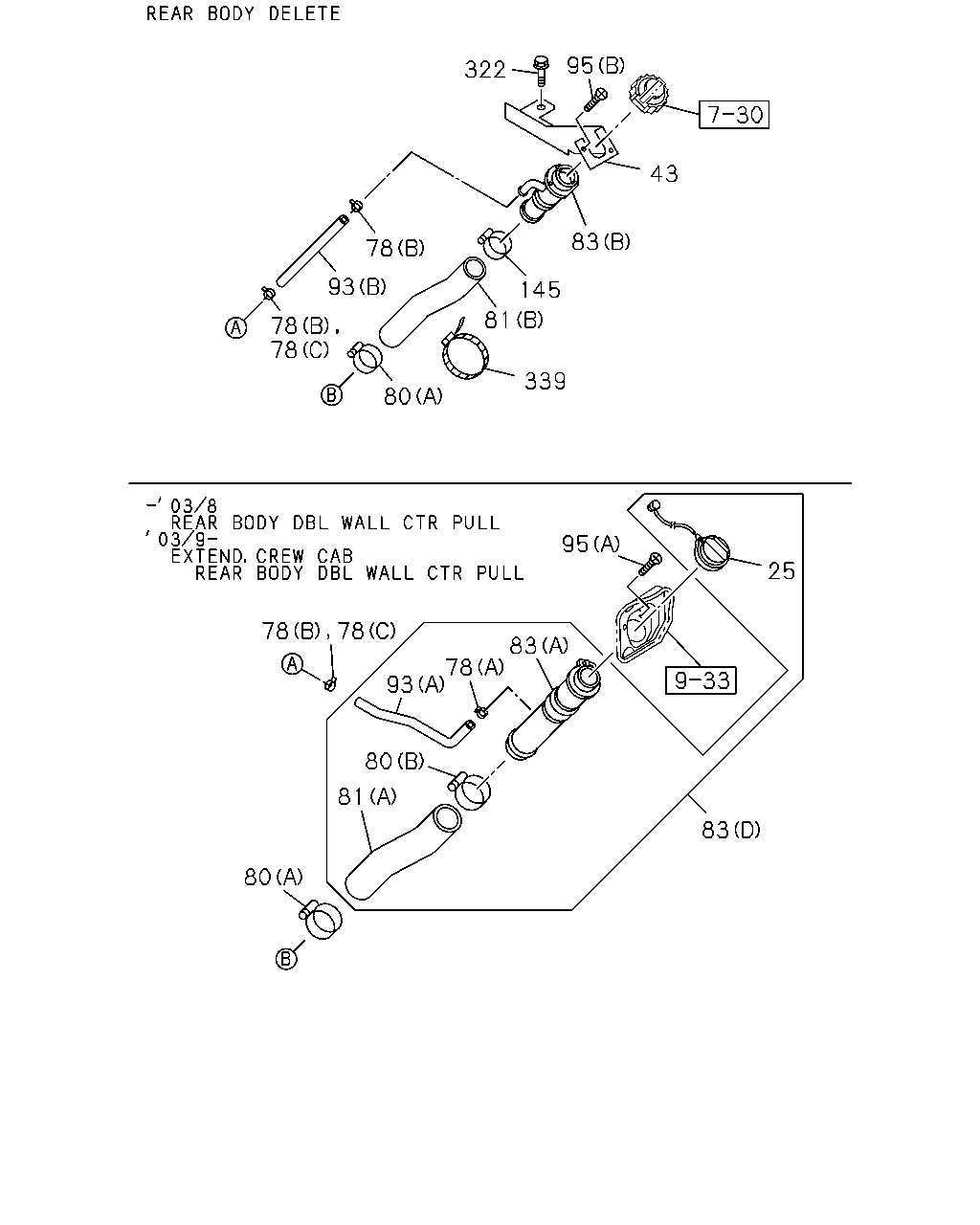

95 322 43 83 78 93 145 81 78 78 339 80 95 25 83 78 93 80 81 83 80 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	03.028 CAP; FILLER,FUEL TANK 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0309-0410	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0411-0609	●	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0610-			●	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0306-0308	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0609	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0609		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0610-			●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH)	8-97943-444-0	01	1	0306-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	0306-	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0403-0410	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0411-0609	●	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0610-			●	●
78	03.003 CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0309-0609	●	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-724-0	01	1	0610-0710			●	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0711-			●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0605-0609	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0610-			●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0605-	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0306-0308	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0403-0609	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-725-0	01	1	0610-0710			●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0711-			●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0306-0609	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0610-			●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-304-1	01	1	0306-0609	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-726-0	01	1	0610-0710			●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0711-			●	●
81	03.003 HOSE; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0309-0410	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0411-0609	●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308		●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0309-0609	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0306-0609	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97943-445-0	01	1	0306-0412	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0501-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97941-897-3	01	1	0306-0412	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0501-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98122-909-0	01	1	0810-0810			●	●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-780-1	01	1	0309-0410	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-780-1	01	1	0411-0609	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97945-351-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0306-0308	●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0306-0308		●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0309-0609	●	●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (B)	8-97942-952-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98024-001-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0309-0410	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0411-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0309-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0306-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0306-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0306-	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0306-0308	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0309-0609	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0610-	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) 12.182 (B) M6X16	8-94381-646-0	02	1	0306-0609	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0610-	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97373-560-0	01	1	0309-0609	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0610-	●	●
145	03.162 CLIP; HOSE,FILLER NECK REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0306-	●	●
322	03.895 BOLT; BRKT FIX REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0306-	●	●
339	03.162 CLIP; BAND,FUEL HOSE REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0306-	●	●

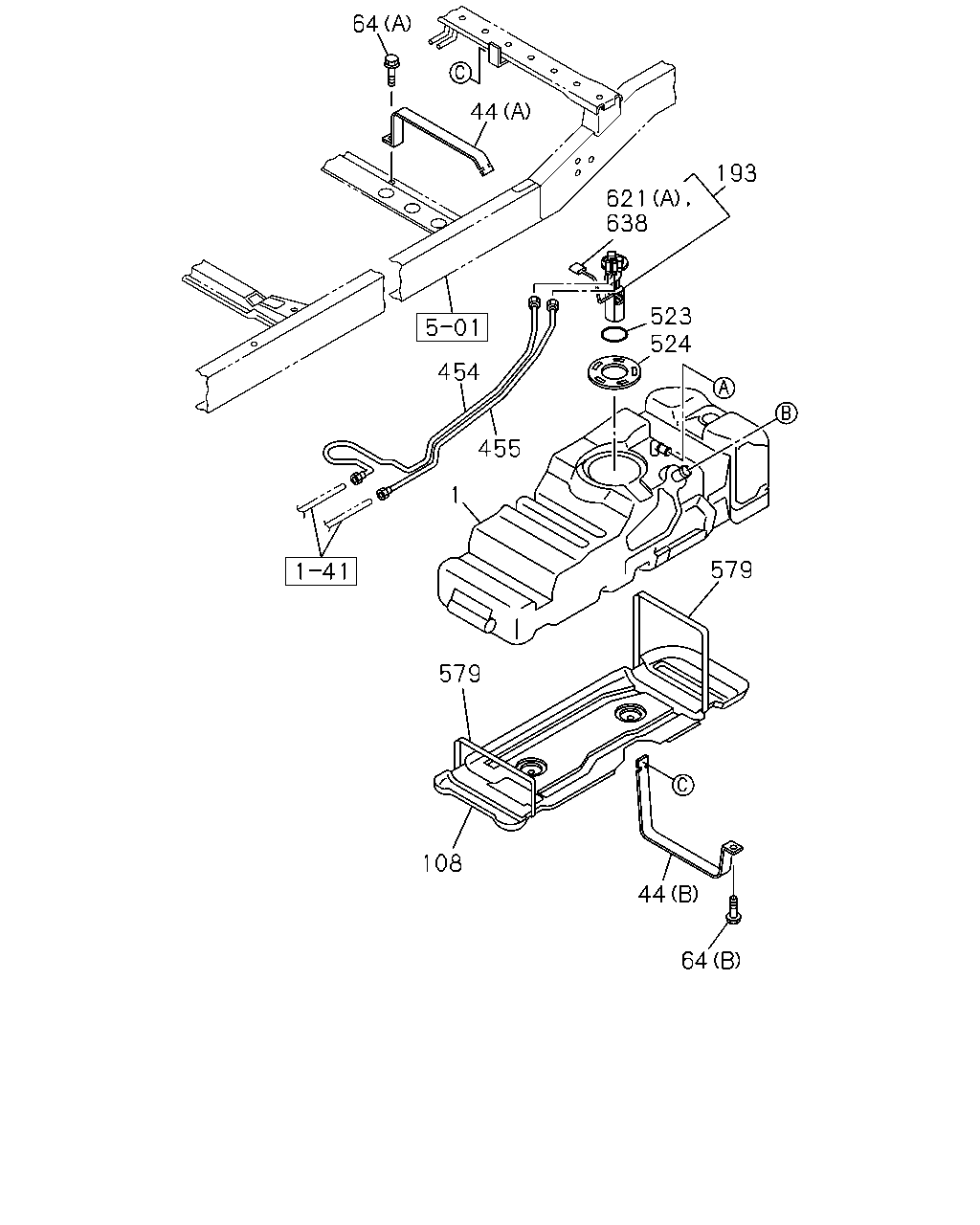

64 44 193 621 638 523 524 454 455 1 579 579 108 44 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL	8-97943-743-0	01	1	0306-0307	●	●
1	03.001 TANK; FUEL	8-97943-901-0	01	1	0308-0609	●	●
1	03.001 TANK; FUEL	8-97944-573-0	01	1	0610-			●	●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0306-0501	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0502-0609	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0610-			●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0306-0501	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0502-0609	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0610-			●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) (B)	8-97944-282-0	01	1	0610-				●
44	03.023 BAND; FUEL TANK A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0610-				●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0306-0609	●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0610-			●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0306-0609	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0610-			●	●
108	03.015 PROTECTOR; FUEL TANK	8-97943-300-0	01	1	0306-0609	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97943-300-0	01	1	0610-			●	●
193	03.107 PUMP; FUEL	8-97943-076-0	01	1	0306-0310	●	●
193	03.107 PUMP; FUEL	8-97943-970-0	01	1	0311-0609	●	●
193	03.107 PUMP; FUEL	8-97945-525-0	01	1	0610-1002			●	●
193	03.107 PUMP; FUEL	8-98159-357-0	01	1	1003-			●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0306-0609	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0610-			●	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0306-0609	●	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0610-			●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0306-0609	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0610-			●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0306-0609	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0610-			●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0306-0609	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0610-			●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-180-0	01	1	0306-0310	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0311-0609	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0610-0910			●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0610-			●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0911-1002			●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-			●	●

304 314 301 299 91 485 91 303 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	03.145 CLAMP; FUEL HOSE ID=17.2	8-97368-293-0	02	1	0306-0609	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97943-458-0	01	1	0306-0504	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-089-0	01	1	0505-0609	●	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0610-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0306-0601	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0602-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0610-			●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0306-0609	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97332-982-0	01	1	0306-0609	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0610-			●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-311-0	01	1	0306-0609	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0610-			●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97330-408-0	01	1	0306-0609		●
485	03.163 HOSE; FUEL	8-97363-675-0	01	1	0306-0609	●	●
519	03.107 RETAINER; FUEL PUMP 04.866 ID=18 & 18	8-94323-068-0	01	1	0306-0402	●	●
519	03.107 RETAINER; FUEL PUMP EXC. FRIGID ZONE<V10> 04.866 ID=18 & 18	8-94323-068-0	01	1	0403-0609	●	●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0610-			●	●

95 25 78 93 624 83 80 81 80 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	03.028 CAP; FILLER,FUEL TANK 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0309-0410	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0411-0609	●	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0610-			●	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0306-0308	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0609	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0609		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0610-			●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0403-0410	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0411-0609	●	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0610-			●	●
78	03.003 CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0309-0609	●	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-724-0	01	1	0610-0710			●	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0711-			●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0605-0609	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0610-			●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0605-	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0306-0308	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0403-0609	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-725-0	01	1	0610-0710			●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0711-			●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0306-0609	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0610-			●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-304-1	01	1	0306-0609	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-726-0	01	1	0610-0710			●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0711-			●	●
81	03.003 HOSE; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0309-0410	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0411-0609	●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308		●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0309-0609	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0306-0609	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0610-			●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97943-445-0	01	1	0306-0412	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0501-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97941-897-3	01	1	0306-0412	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0501-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98122-909-0	01	1	0810-0810			●	●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-780-1	01	1	0309-0410	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-780-1	01	1	0411-0609	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97945-351-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0306-0308	●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0306-0308		●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0309-0609	●	●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (B)	8-97942-952-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98024-001-0	01	1	0610-			●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0309-0410	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0411-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0309-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0306-0609	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0610-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0306-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 REGULAR CAB LONG(TFB6SF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0306-	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0306-0308	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0309-0609	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 EXTEND CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0610-	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) 12.182 (B) M6X16	8-94381-646-0	02	1	0306-0609	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0610-	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97373-560-0	01	1	0309-0609	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0610-	●	●
624	03.162 CLIP; BAND 4X2 REGULAR CAB(TFBS) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0309-0410	●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0411-0609	●	●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0610-			●	●

621 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
467	03.163 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0610-			●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-180-0	01	1	0306-0310	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0311-0609	●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0610-0910			●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0610-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
