◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#74119) — 53 parça

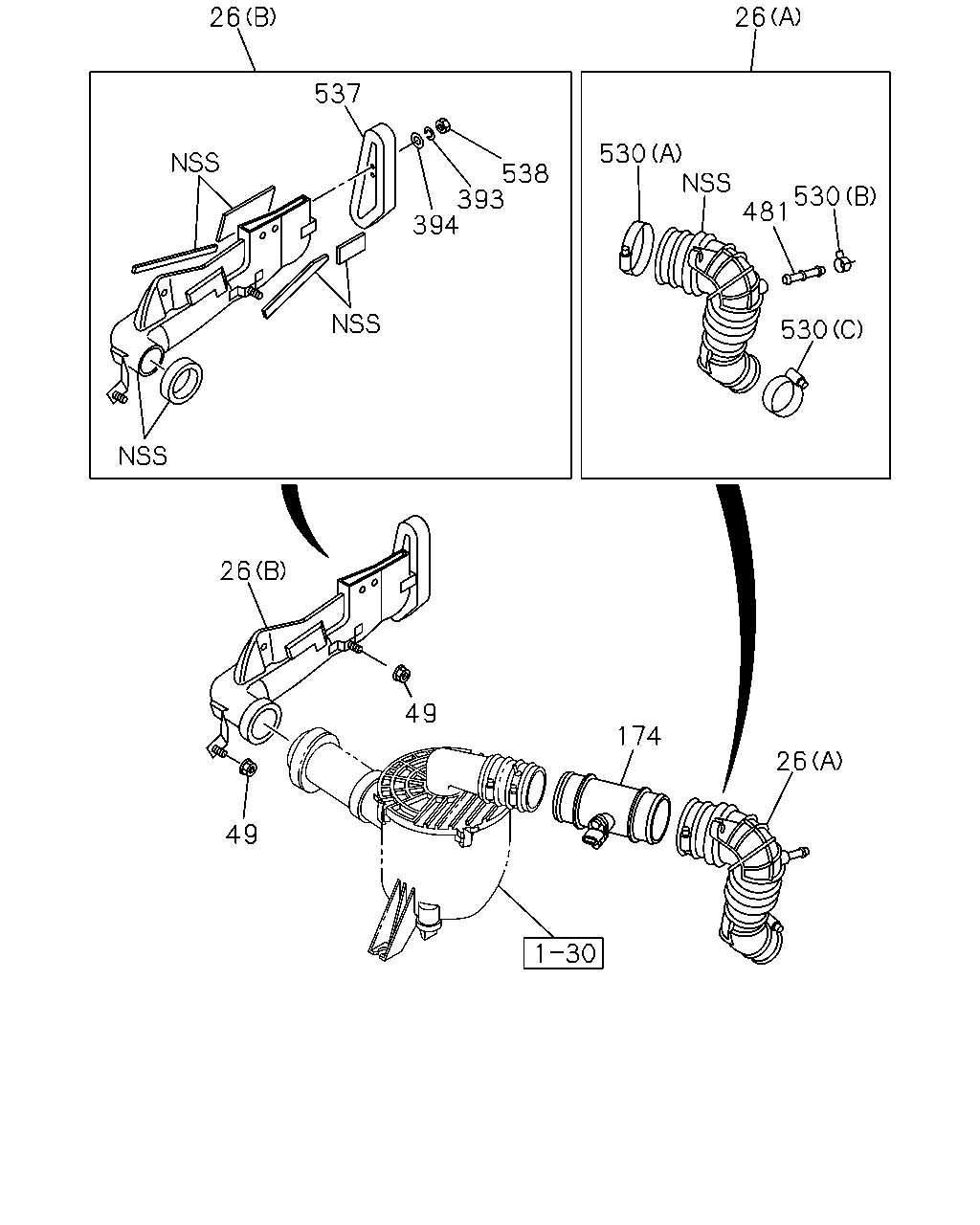

çizim 153115
26 26 537 530 530 481 538 393 394 530 26 49 174 26 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 03.417 DUCT; AIR INT
FRIGID ZONE<YL3> (D) 		8-98193-532-0 01 1 1110- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0306-0407 ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ●
26 03.417 DUCT; AIR INT
(C) 		8-98000-986-0 01 1 0610-1109 ● ●
26 03.417 DUCT; AIR INT
EXC. FRIGID ZONE<YL3> (C) 		8-98000-986-0 01 1 1110- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97943-555-0 01 1 0306-0609 ● ●
26 03.417 DUCT; AIR INT
(D) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-1 01 1 0306-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610- ● ●
393 03.417 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 0306-0609 ● ●
394 03.417 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 0306-0609 ● ●
481 03.417 PIPE; PCV 8-97943-204-0 01 1 0306-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0306-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-98052-417-0 01 1 0610-1109 ● ●
530 03.407 CLAMP; AIR DUCT
EXC. FRIGID ZONE<YL3> (D) 		8-98052-417-0 01 1 1110- ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0306-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(E) 		8-98052-418-0 01 1 0610-1109 ● ●
530 03.407 CLAMP; AIR DUCT
EXC. FRIGID ZONE<YL3> (E) 		8-98052-418-0 01 1 1110- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0306-0609 ● ●
537 03.417 PLATE; AIR DUCT
00.030 		8-97943-211-0 01 1 0306-0407 ● ●
537 03.417 PLATE; AIR DUCT 8-97367-574-1 01 1 0408-0609 ● ●
538 03.417 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 0306-0609 ● ●

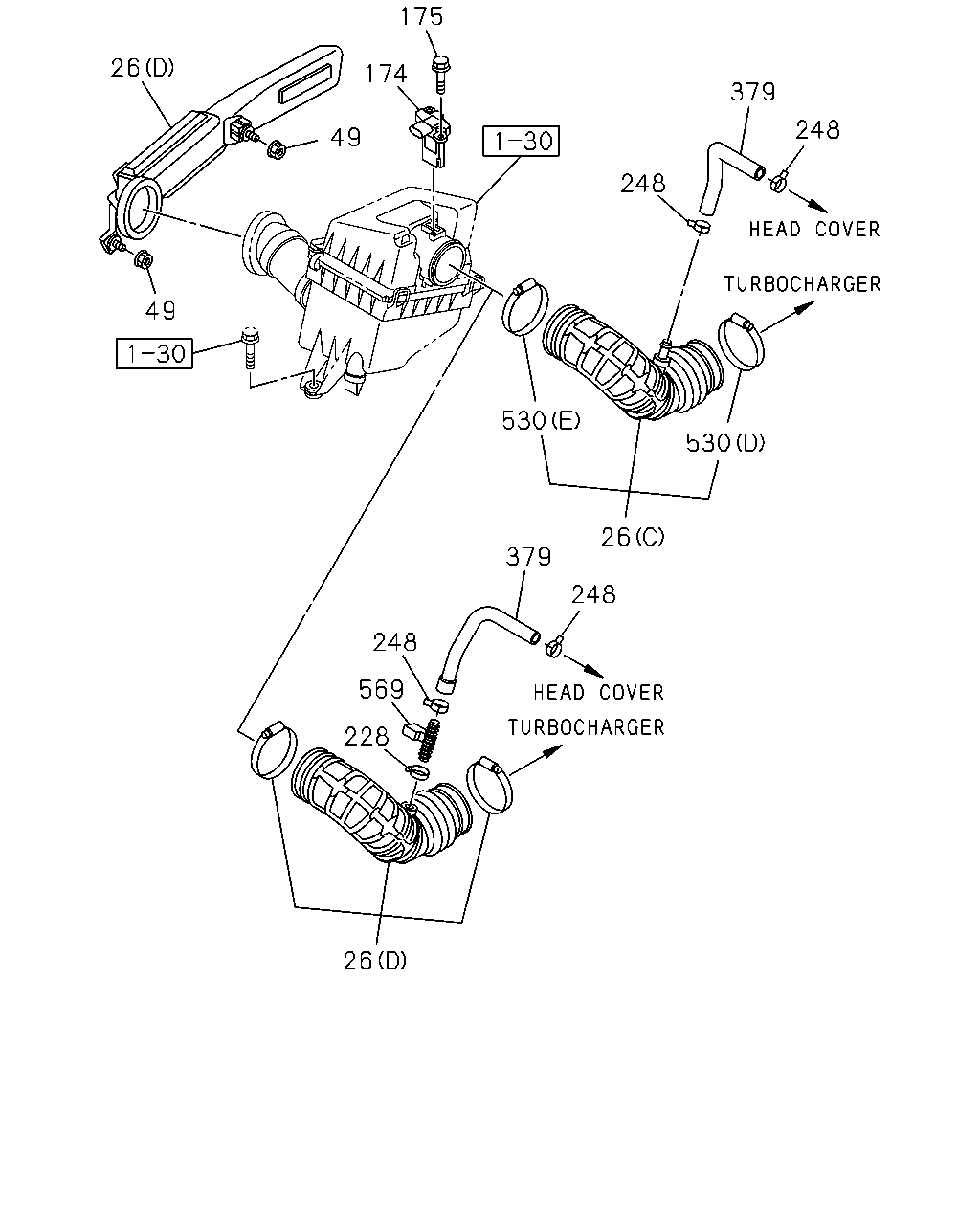

çizim 153461
175 26 174 379 248 49 248 49 530 530 26 379 248 248 569 228 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 03.417 DUCT; AIR INT
FRIGID ZONE<YL3> (D) 		8-98193-532-0 01 1 1110- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0306-0407 ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ●
26 03.417 DUCT; AIR INT
(C) 		8-98000-986-0 01 1 0610-1109 ● ●
26 03.417 DUCT; AIR INT
EXC. FRIGID ZONE<YL3> (C) 		8-98000-986-0 01 1 1110- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97943-555-0 01 1 0306-0609 ● ●
26 03.417 DUCT; AIR INT
(D) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-1 01 1 0306-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0610- ● ●
228 03.278 CLIP; PCV HOSE
FRIGID ZONE<YL3> 		8-98193-535-0 01 1 1110- ● ●
248 03.417 CLIP; RUBBER HOSE
EXC. FRIGID ZONE<YL3> 03.265 ID=20.4 		8-94121-113-0 02 1 1110- ● ●
248 03.417 CLIP; RUBBER HOSE
FRIGID ZONE<YL3> 01.097 		8-97011-095-0 01 1 1110-1110 ● ●
248 03.417 CLIP; RUBBER HOSE
FRIGID ZONE<YL3> 03.342 ID=26.2 		8-98202-540-0 01 1 1111- ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0610-1109 ● ●
248 03.417 CLIP; RUBBER HOSE
EXC. FRIGID ZONE<YL3> 03.265 ID=20.4 		8-94121-113-0 01 1 1110- ● ●
379 03.675 HOSE; RUBBER
FRIGID ZONE<YL3> 		8-98193-533-0 01 1 1110- ● ●
379 03.675 HOSE; RUBBER 8-98008-134-0 01 1 0610-1109 ● ●
379 03.675 HOSE; RUBBER
EXC. FRIGID ZONE<YL3> 		8-98008-134-0 01 1 1110- ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0306-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-98052-417-0 01 1 0610-1109 ● ●
530 03.407 CLAMP; AIR DUCT
EXC. FRIGID ZONE<YL3> (D) 		8-98052-417-0 01 1 1110- ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0306-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(E) 		8-98052-418-0 01 1 0610-1109 ● ●
530 03.407 CLAMP; AIR DUCT
EXC. FRIGID ZONE<YL3> (E) 		8-98052-418-0 01 1 1110- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0306-0609 ● ●
569 03.417 HEATER; PCV
FRIGID ZONE<YL3> 		8-98192-467-0 01 1 1110- ● ●
