1-30 — AIR CLEANER (#74118) — 66 parça

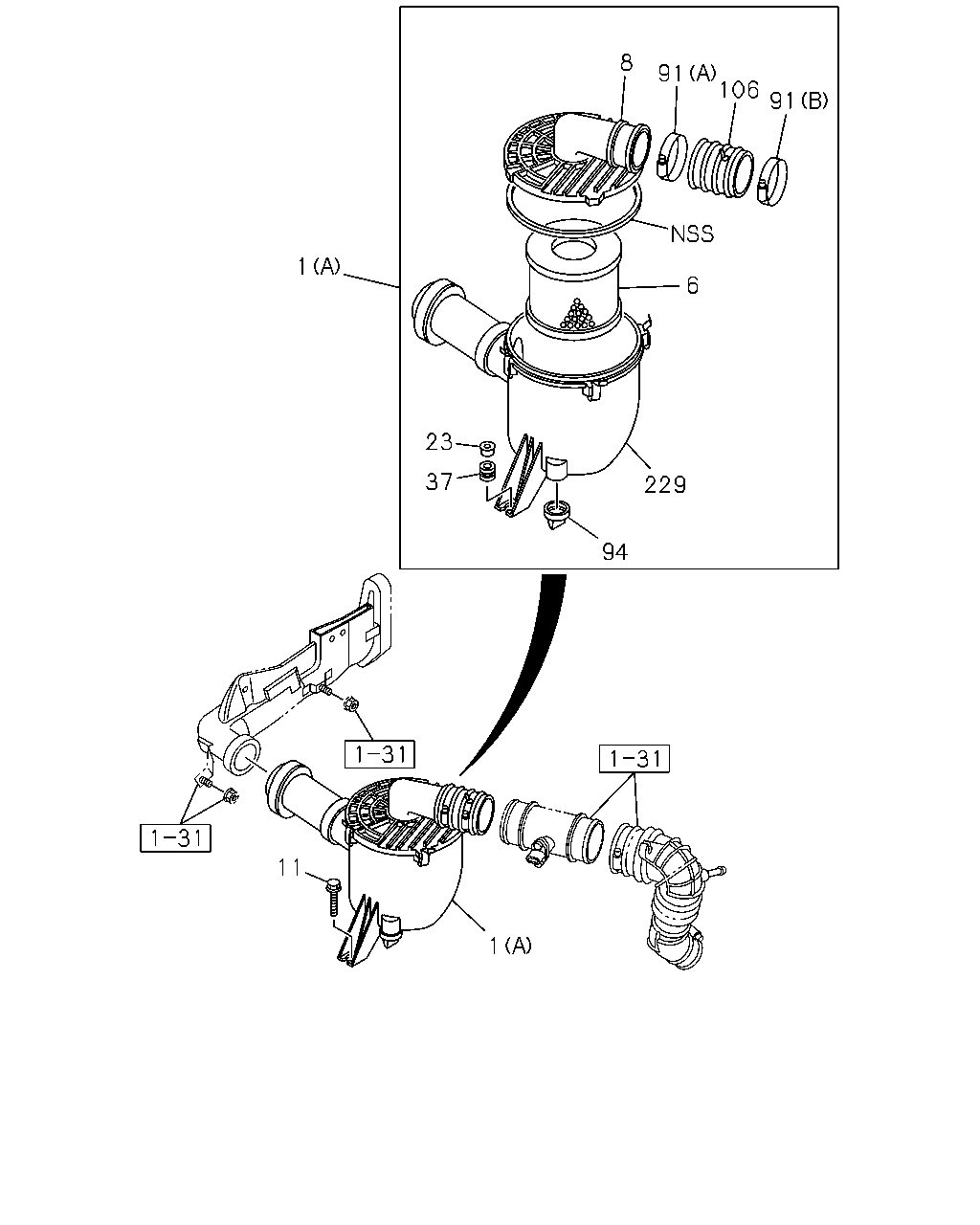

8 91 106 91 1 6 23 37 229 94 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER VISCOUS TYPE WET<8HR> (A)	8-97332-299-0	01	1	0306-0609	●	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (C)	8-98008-888-2	01	1	0610-			●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98008-889-2	01	1	0610-1007				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98008-889-2	01	1	1008-			●	●
6	03.410 FILTER; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97178-609-1	01	1	0306-0609	●	●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0610-1007			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98027-480-0	01	1	0610-1007				●
6	03.410 FILTER; ACL	8-98027-480-0	01	1	1008-			●	●
8	03.410 COVER ASM; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97367-736-0	01	1	0306-0609	●	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0610-			●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0610-1007				●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-			●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609	●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-			●	●
23	03.405 COLLAR; ACL STAY AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-932-0	03	1	0306-0609	●	●
23	03.405 COLLAR; ACL STAY AIR CLEANER DRY ELEMENT<S9R>	8-98036-127-0	03	1	0610-1007			●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98036-127-0	03	1	0610-1007				●
23	03.405 COLLAR; ACL STAY	8-98036-127-0	03	1	1008-			●	●
37	03.406 RUBBER; MTG,ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-930-0	03	1	0306-0609	●	●
37	03.406 RUBBER; MTG,ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-126-0	03	1	0610-1007			●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98036-126-0	03	1	0610-1007				●
37	03.406 RUBBER; MTG,ACL	8-98036-126-0	03	1	1008-			●	●
91	03.403 CLAMP AIR CLEANER VISCOUS TYPE WET<8HR> (A)	8-97357-105-0	01	1	0306-0609	●	●
91	03.403 CLAMP AIR CLEANER VISCOUS TYPE WET<8HR> (B)	8-97357-106-0	01	1	0306-0609	●	●
94	03.415 VALVE; VACUATOR AIR CLEANER VISCOUS TYPE WET<8HR>	8-94447-157-0	01	1	0306-0609	●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-			●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-1007				●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1008-			●	●
106	03.417 HOSE; CONN,ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97357-104-0	01	1	0306-0609	●	●
229	03.406 BODY ASM; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-929-0	01	1	0306-0609	●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-125-0	01	1	0610-			●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	0610-1007				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	1008-			●	●

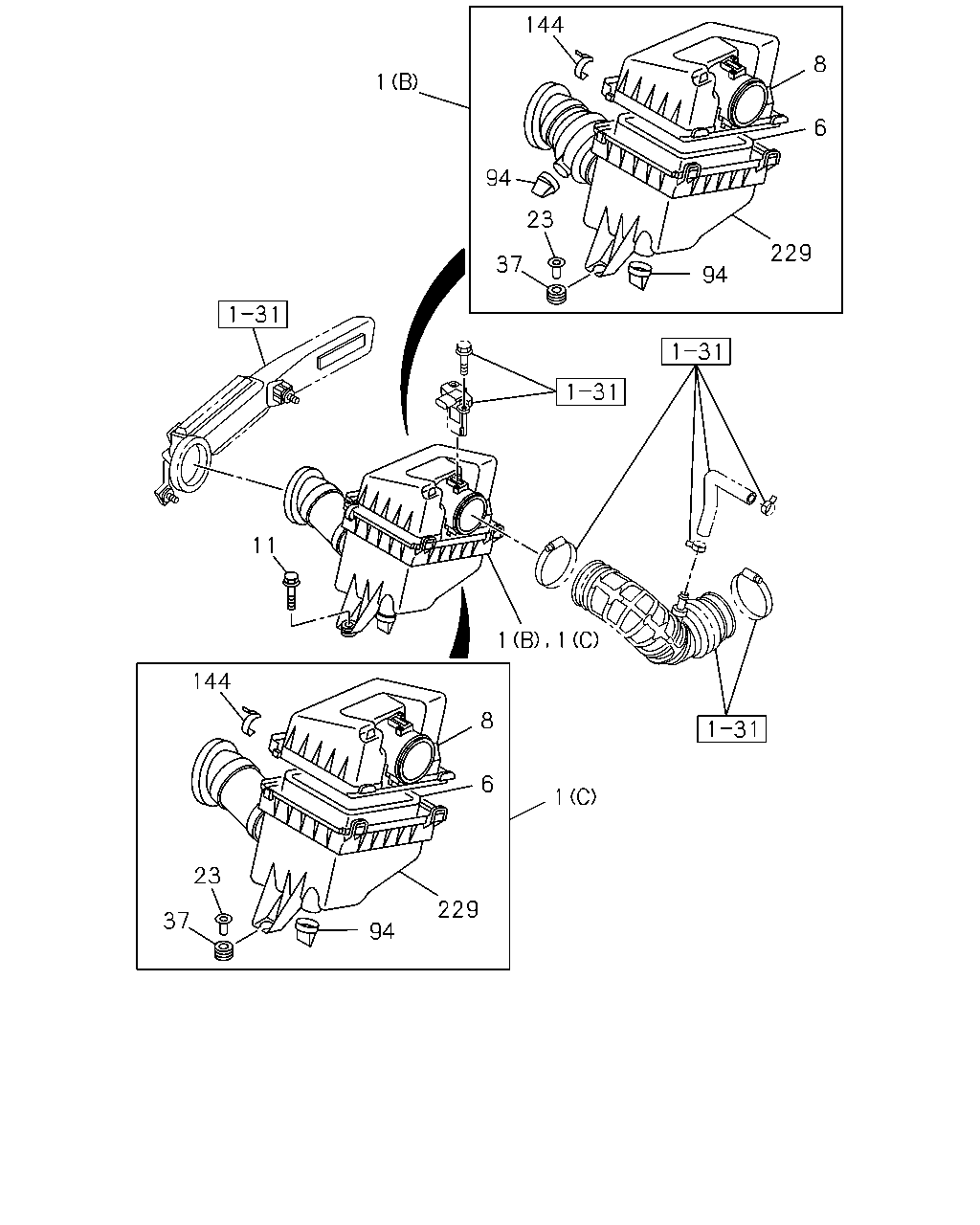

144 8 1 6 94 23 229 37 94 11 1 1 144 8 6 1 23 229 37 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER VISCOUS TYPE WET<8HR> (A)	8-97332-299-0	01	1	0306-0609	●	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (C)	8-98008-888-2	01	1	0610-			●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98008-889-2	01	1	0610-1007				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98008-889-2	01	1	1008-			●	●
6	03.410 FILTER; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97178-609-1	01	1	0306-0609	●	●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0610-1007			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98027-480-0	01	1	0610-1007				●
6	03.410 FILTER; ACL	8-98027-480-0	01	1	1008-			●	●
8	03.410 COVER ASM; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97367-736-0	01	1	0306-0609	●	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0610-			●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0610-1007				●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-			●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609	●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-			●	●
23	03.405 COLLAR; ACL STAY AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-932-0	03	1	0306-0609	●	●
23	03.405 COLLAR; ACL STAY AIR CLEANER DRY ELEMENT<S9R>	8-98036-127-0	03	1	0610-1007			●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98036-127-0	03	1	0610-1007				●
23	03.405 COLLAR; ACL STAY	8-98036-127-0	03	1	1008-			●	●
37	03.406 RUBBER; MTG,ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-930-0	03	1	0306-0609	●	●
37	03.406 RUBBER; MTG,ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-126-0	03	1	0610-1007			●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-98036-126-0	03	1	0610-1007				●
37	03.406 RUBBER; MTG,ACL	8-98036-126-0	03	1	1008-			●	●
94	03.415 VALVE; VACUATOR AIR CLEANER VISCOUS TYPE WET<8HR>	8-94447-157-0	01	1	0306-0609	●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-			●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-1007				●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1008-			●	●
144	03.403 CLIP; ACL	8-97324-624-0	02	1	1008-			●	●
144	03.403 CLIP; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97354-199-0	02	1	0610-1007			●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97354-199-0	02	1	0610-1007				●
229	03.406 BODY ASM; ACL AIR CLEANER VISCOUS TYPE WET<8HR>	8-97942-929-0	01	1	0306-0609	●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-125-0	01	1	0610-			●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	0610-1007				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	1008-			●	●
