1-11 — RADIATOR HOSE AND SUB TANK (#74117) — 60 parça

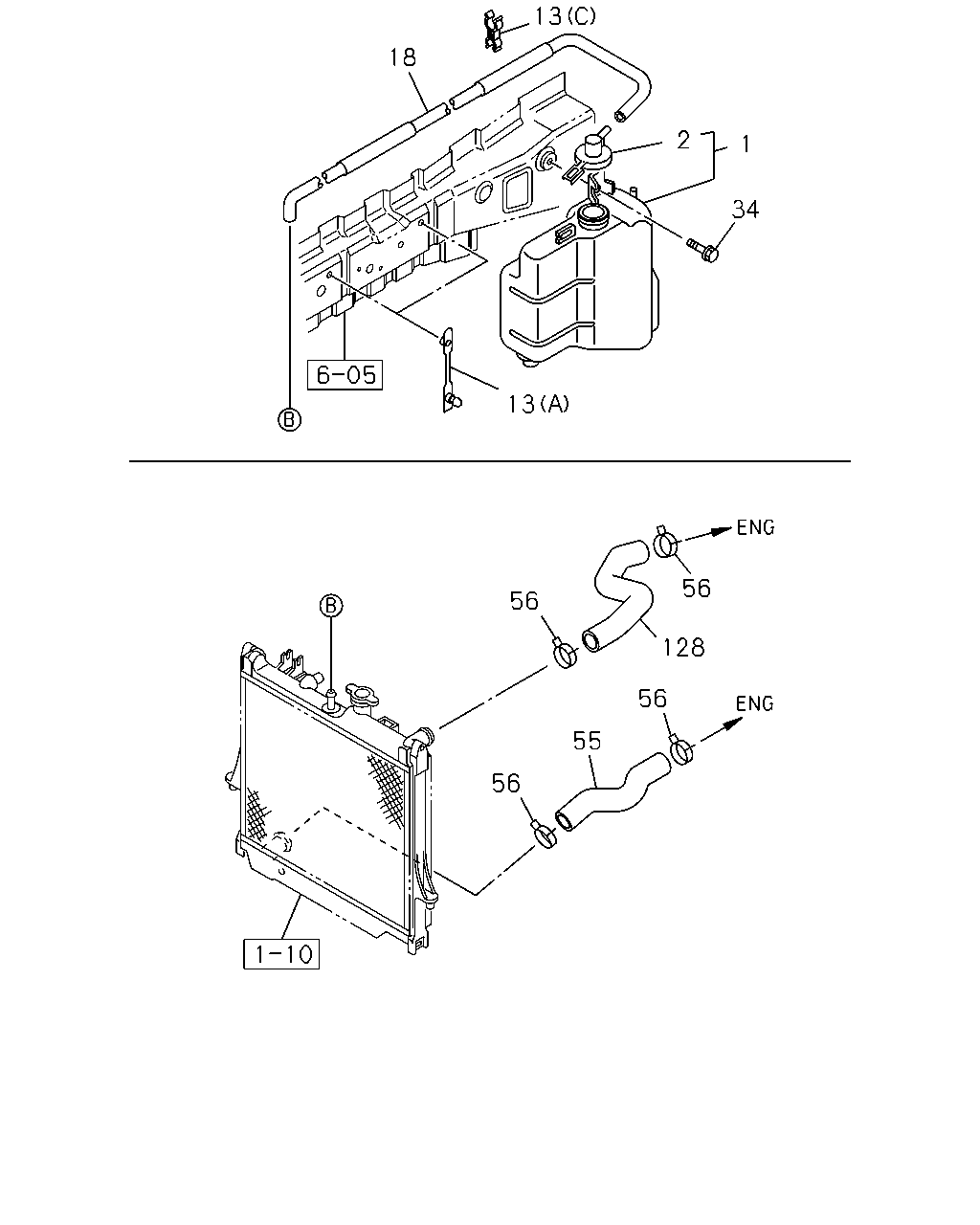

18 13 2 1 34 13 56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0306-0609	●	●
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0610-			●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0306-0609	●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0610-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0306-0609	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0610-			●	●
13	01.240 CLIP; HOSE,SURGE TANK (B)	8-94373-241-0	01	1	0306-0609	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.145 (C) ID=25 & 11	8-97068-799-0	01	1	0610-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97362-955-0	01	1	0306-0508	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97362-955-0	01	1	0306-0508		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97362-955-0	01	1	0509-0609	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97373-405-0	01	1	0610-			●	●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97941-508-3	01	1	0306-0508		●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97941-508-3	01	1	0509-0609	●	●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-98035-946-0	01	1	0610-			●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0306-0609	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0610-0611			●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	01	1	0612-			●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97248-432-2	01	1	0306-0412	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-98003-995-0	01	1	0501-0609	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97363-605-1	01	1	0610-			●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0306-0609	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0306-0609	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0610-			●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0610-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97941-505-2	01	1	0306-0412	●
128	01.159 HOSE; WATER,RAD INL	8-98003-996-0	01	1	0501-0609	●
128	01.159 HOSE; WATER,RAD INL	8-97363-604-1	01	1	0610-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97248-429-2	01	1	0306-0412		●
128	01.159 HOSE; WATER,RAD INL	8-98003-994-0	01	1	0501-0609		●

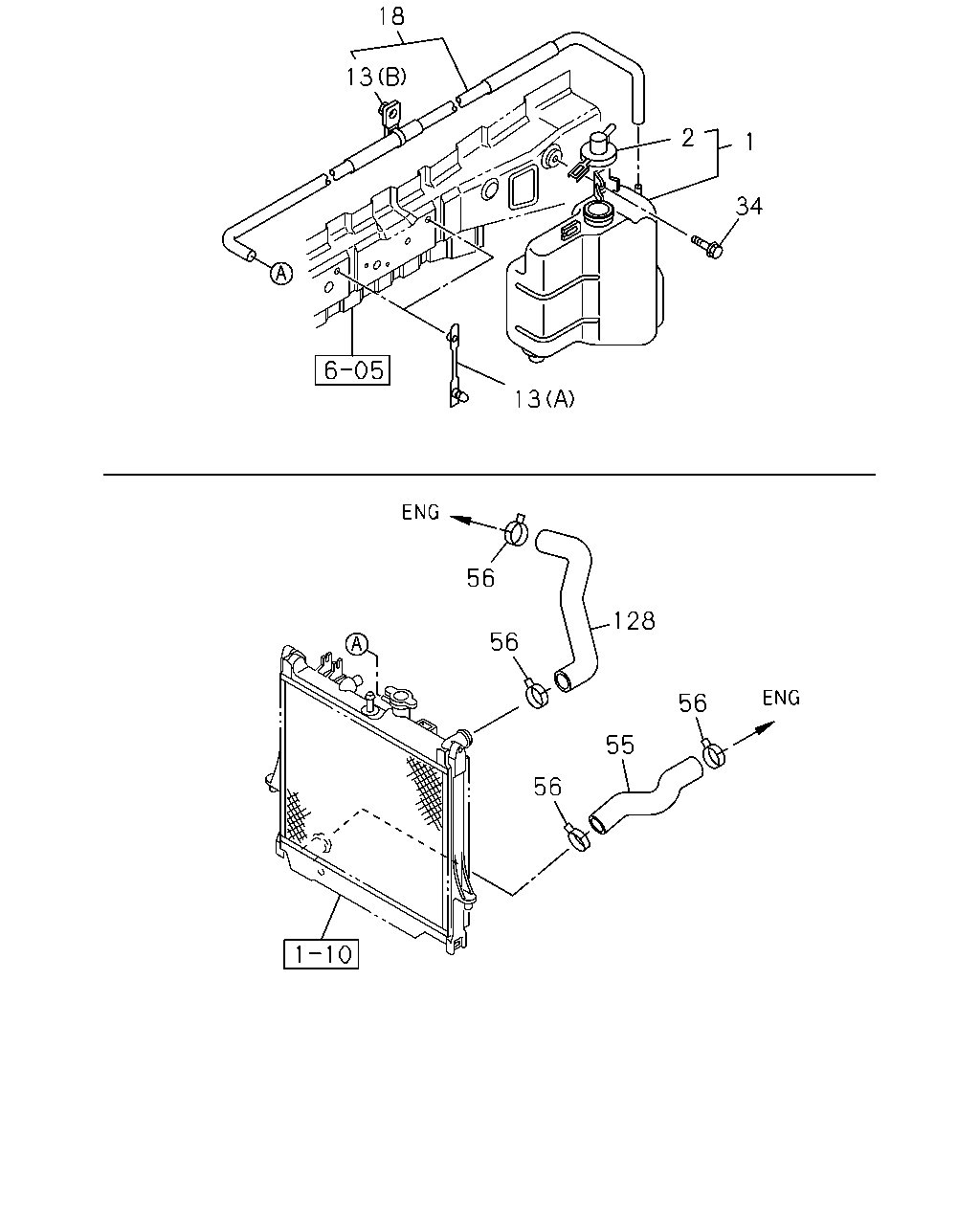

13 18 2 1 34 13 56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0306-0609	●	●
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0610-			●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0306-0609	●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0610-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0306-0609	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0610-			●	●
13	01.240 CLIP; HOSE,SURGE TANK (B)	8-94373-241-0	01	1	0306-0609	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.145 (C) ID=25 & 11	8-97068-799-0	01	1	0610-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97362-955-0	01	1	0306-0508	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97362-955-0	01	1	0306-0508		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97362-955-0	01	1	0509-0609	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97373-405-0	01	1	0610-			●	●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97941-508-3	01	1	0306-0508		●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97941-508-3	01	1	0509-0609	●	●
18	01.240 HOSE; RAD TO SURGE TANK BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-98035-946-0	01	1	0610-			●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0306-0609	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0610-0611			●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	01	1	0612-			●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97248-432-2	01	1	0306-0412	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-98003-995-0	01	1	0501-0609	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97363-605-1	01	1	0610-			●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0306-0609	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0306-0609	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0610-			●	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	0610-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97941-505-2	01	1	0306-0412	●
128	01.159 HOSE; WATER,RAD INL	8-98003-996-0	01	1	0501-0609	●
128	01.159 HOSE; WATER,RAD INL	8-97363-604-1	01	1	0610-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97248-429-2	01	1	0306-0412		●
128	01.159 HOSE; WATER,RAD INL	8-98003-994-0	01	1	0501-0609		●
