◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#74116) — 27 parça

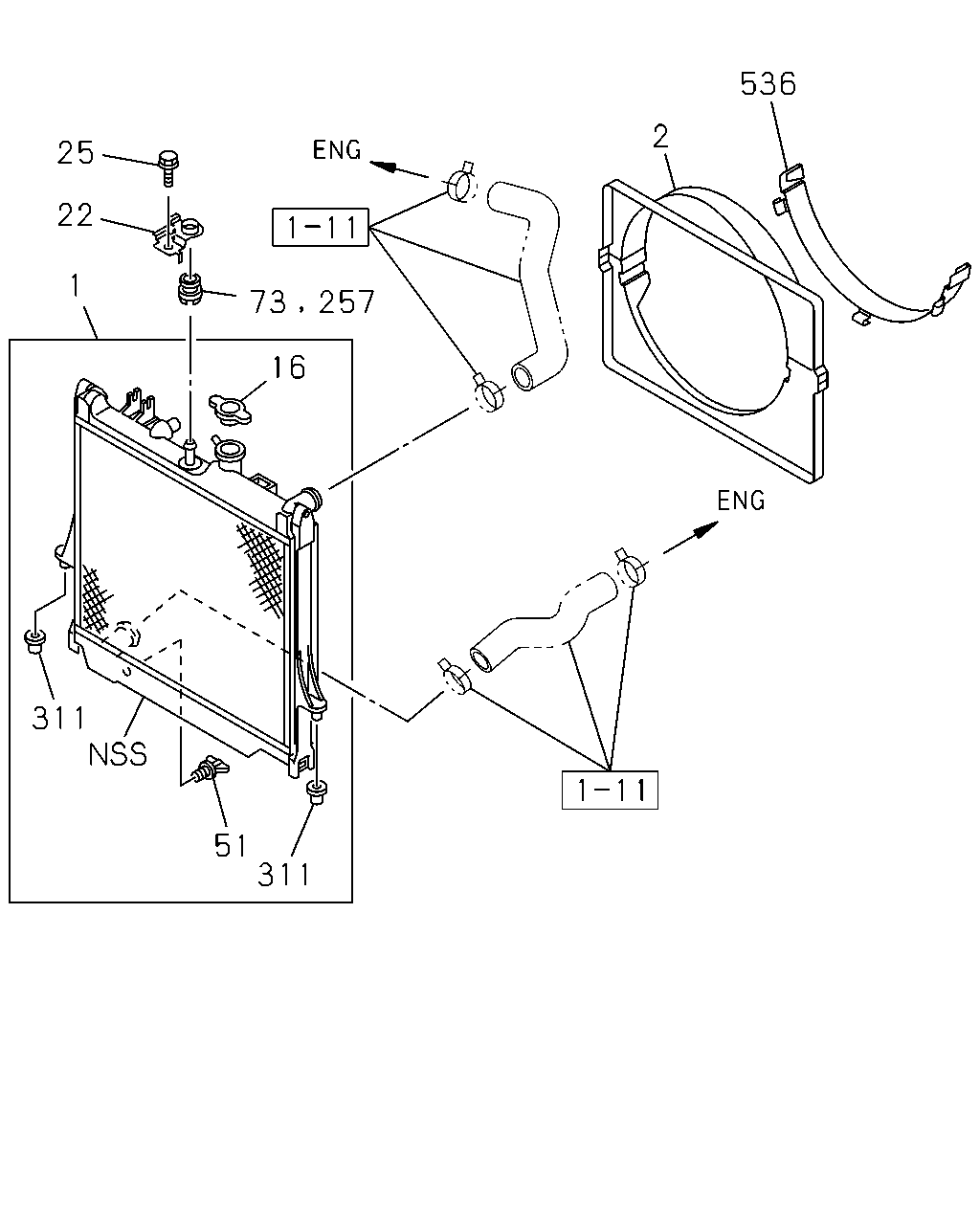

çizim 153101
536 2 25 22 1 16 311 51 311 73 257
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM 8-97333-351-2 01 1 0306-0609 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98047-674-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98164-748-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98164-748-0 01 1 1003- ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-97333-352-2 01 1 0306-0609 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98047-679-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98164-747-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97333-353-2 01 1 0306-0609 ●
2 01.277 GUIDE; FAN 8-97333-348-1 01 1 0306-0609 ● ●
2 01.277 GUIDE; FAN 8-97371-447-2 01 1 0610- ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0306-0609 ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0610- ● ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 0306-0609 ● ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 0610- ● ●
25 01.271 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0306-0601 ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0602-0609 ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0306-0609 ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0610- ● ●
73 01.270 RUBBER; CUSHION,RAD MTG 8-97249-541-1 01 1 0306-0504 ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0505-0609 ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0610- ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0306-0609 ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0610- ● ●
536 01.020 SHROUD; FAN 8-97941-533-0 01 1 0306-0609 ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0610- ● ●
