50966 - TFR/TFS(EUROPE)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#74115) — 21 parça
Tümü
A - 4JA1-TC ENG
B - 4JH1-TC ENG
C - 4JK1-TCX ENG
D - 4JJ1-TCX ENG
◀

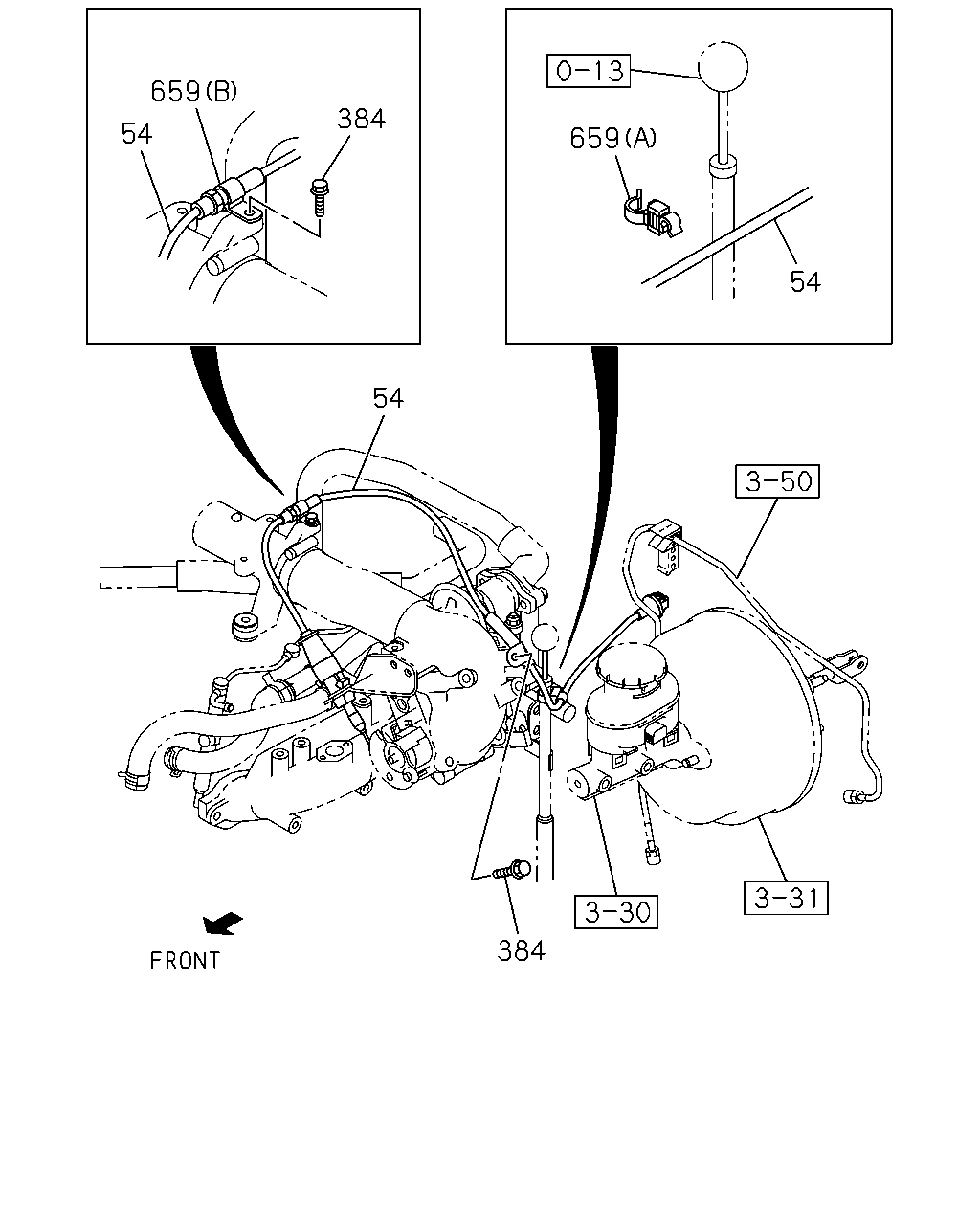

[101A] 4JA1-TC,4JH1-TC(NO.2) (4 parça)
[101A] 4JA1-TC,4JH1-TC(NO.1) (10 parça)
[101A] 4JJ1-TCX,4JK1-TCX (7 parça)
▶
659
384
54
659
54
54
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
54
03.430 CABLE; ENG CONT
8-97315-968-2
01
1
0306-0609
●
●
384
03.483 BOLT; CLIP,CONT CABLE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0306-0609
●
●
659
03.483 CLIP; ACCEL CONT CABLE
(B) ID=16 L=28
8-97367-951-0
01
1
0306-0609
●
●
659
03.483 CLIP; ACCEL CONT CABLE
(A) ID=6 & 11
8-97368-292-0
01
1
0306-0609
●
●

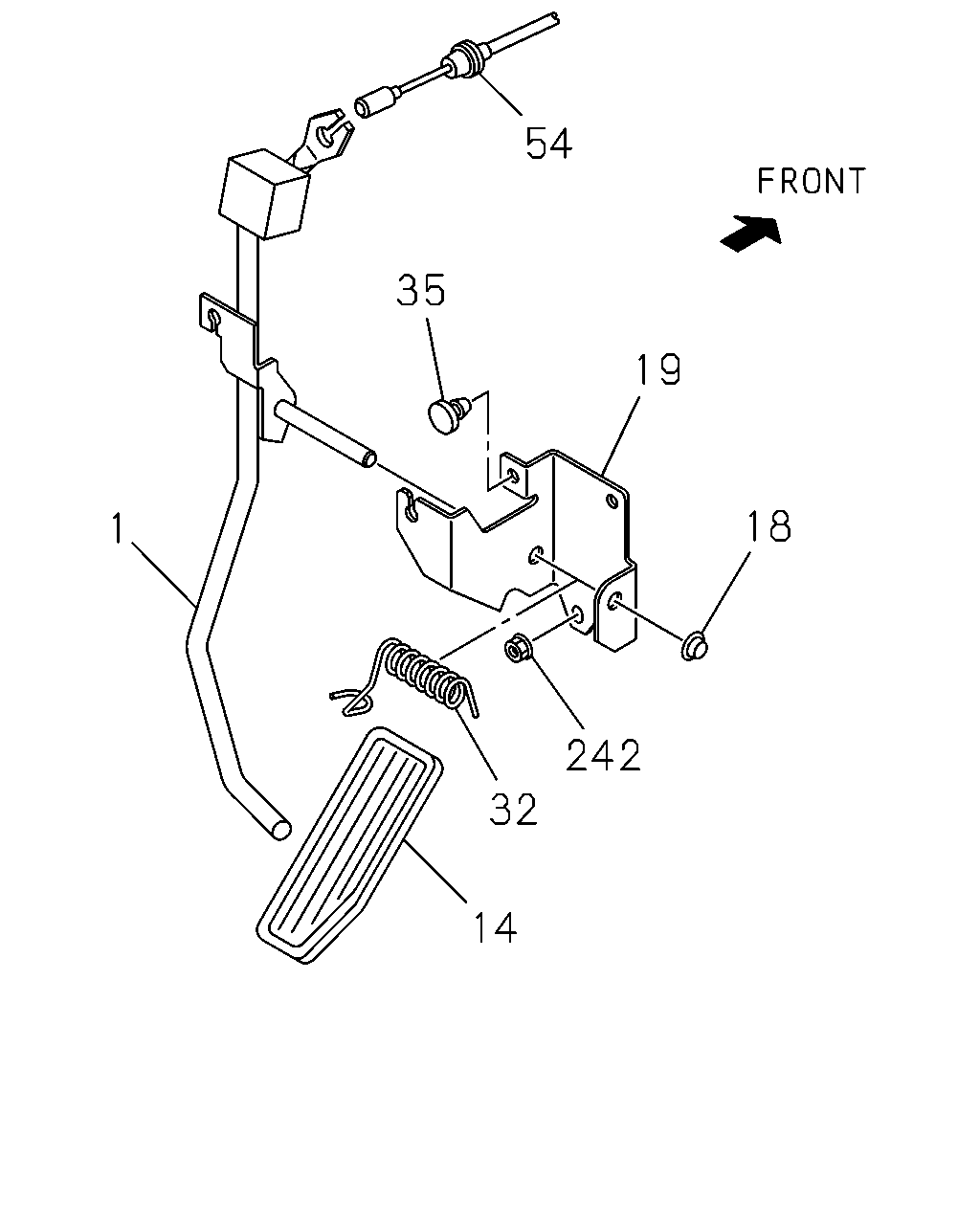

54
35
19
18
1
242
32
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.451 LEVER; PEDAL SIDE
8-97355-962-1
01
1
0306-0609
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97257-598-0
01
1
0306-0609
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97257-598-0
01
1
0610-
●
●
18
03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT
8-94368-617-0
01
1
0306-0609
●
●
19
03.452 BRACKET; ACCEL PEDAL
8-97332-614-1
01
1
0306-0609
●
●
32
03.459 SPRING; RETURN,ACCEL PEDAL
8-97332-618-1
01
1
0306-0609
●
●
35
03.459 STOPPER; ACCEL PEDAL
04.634
8-97302-035-0
01
1
0306-0609
●
●
54
03.430 CABLE; ENG CONT
8-97315-968-2
01
1
0306-0609
●
●
242
03.483 NUT; ACCEL PEDAL
01.062 M6 FLANGE
0-91180-106-0
02
1
0306-0609
●
●
242
03.483 NUT; ACCEL PEDAL
01.062 M6 FLANGE
0-91180-106-0
02
1
0610-
●
●
10
243
14
242
850
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
03.451 PEDAL ASM; ACCEL
8-98055-654-0
01
1
0610-
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97257-598-0
01
1
0306-0609
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97257-598-0
01
1
0610-
●
●
242
03.483 NUT; ACCEL PEDAL
01.062 M6 FLANGE
0-91180-106-0
02
1
0306-0609
●
●
242
03.483 NUT; ACCEL PEDAL
01.062 M6 FLANGE
0-91180-106-0
02
1
0610-
●
●
243
03.425 SENSOR; ACCEL
8-97193-713-0
01
1
0610-
●
●
850
03.425 PLUG; HOLE
12.804
8-94147-164-1
01
1
0610-
●
●
