Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#7411) — 324 parça

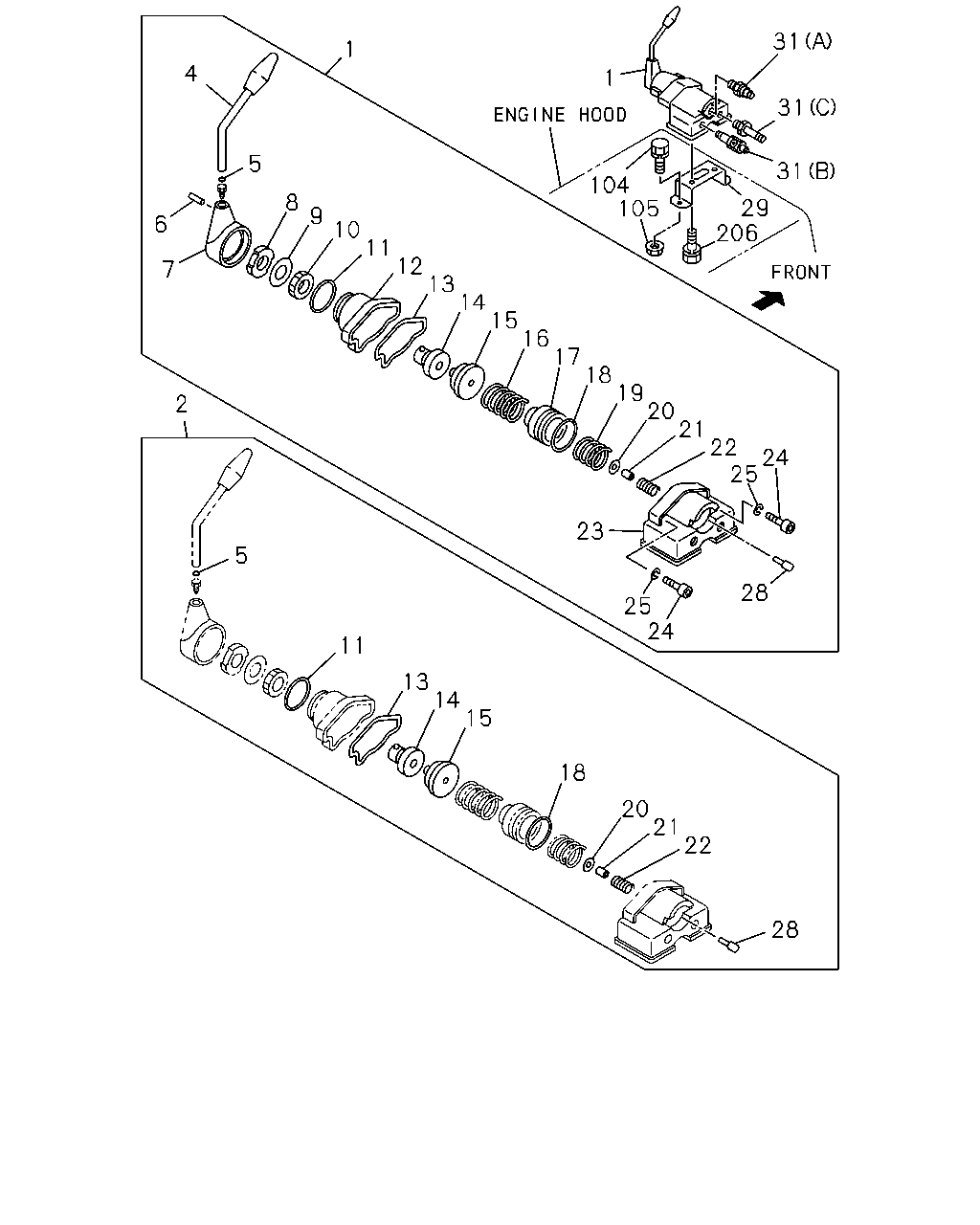

31 1 4 1 31 5 31 104 105 8 29 206 9 6 10 11 12 13 14 15 16 17 18 19 20 21 22 24 25 7 2 23 5 28 25 24 11 13 14 15 18 20 21 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-761-1	01	1	9812-9901
1	VALVE ASM; HAND BRK TRAILER BRAKE CONTROL<J91>	1-48100-761-1	01	1	9902-
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	9812-9901
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE CONTROL<J91>	1-85576-180-0	01	1	9902-
4	HANDLE ASM; BRK VLV	1-48119-360-0	01	1	9812-9901
4	HANDLE ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-360-0	01	1	9902-
5	GASKET; HANDLE	1-48119-128-0	01	1	9812-9901
5	GASKET; HANDLE TRAILER BRAKE CONTROL<J91>	1-48119-128-0	01	1	9902-
6	PIN; SPR	1-48119-143-0	01	1	9812-9901
6	PIN; SPR TRAILER BRAKE CONTROL<J91>	1-48119-143-0	01	1	9902-
7	HEAD; BRK VLV	1-48119-131-0	01	1	9812-9901
7	HEAD; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-131-0	01	1	9902-
8	STOPPER; BRK VLV	1-48119-136-0	01	1	9812-9901
8	STOPPER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-136-0	01	1	9902-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9812-9901
9	WASHER; LK,ADJ TRAILER BRAKE CONTROL<J91>	1-48119-123-0	01	1	9902-
10	RING; ADJ	1-48119-122-0	01	1	9812-9901
10	RING; ADJ TRAILER BRAKE CONTROL<J91>	1-48119-122-0	01	1	9902-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9812-9901
11	GASKET; HD TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-130-0	01	1	9902-
12	COVER; BRK VLV	1-48129-097-0	01	1	9812-9901
12	COVER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-097-0	01	1	9902-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9812-9901
13	GASKET; BODY TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-120-0	01	1	9902-
14	FOLLOWER; CAM	1-48129-109-0	01	1	9812-9901
14	FOLLOWER; CAM TRAILER BRAKE CONTROL<J91>	1-48129-109-0	01	1	9902-
15	CAM; FOLLOWER	1-48129-110-0	01	1	9812-9901
15	CAM; FOLLOWER TRAILER BRAKE CONTROL<J91>	1-48129-110-0	01	1	9902-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9812-9901
16	SPRING; GRUDUATING TRAILER BRAKE CONTROL<J91>	1-48129-101-0	01	1	9902-
17	PISTON; SPR	1-48129-095-0	01	1	9812-9901
17	PISTON; SPR TRAILER BRAKE CONTROL<J91>	1-48129-095-0	01	1	9902-
18	GASKET; BODY	1-48129-096-0	01	1	9812-9901
18	GASKET; BODY TRAILER BRAKE CONTROL<J91>	1-48129-096-0	01	1	9902-
19	SPRING; PISTON	1-48129-094-0	01	1	9812-9901
19	SPRING; PISTON TRAILER BRAKE CONTROL<J91>	1-48129-094-0	01	1	9902-
20	GUIDE; VLV	1-48129-090-0	01	1	9812-9901
20	GUIDE; VLV TRAILER BRAKE CONTROL<J91>	1-48129-090-0	01	1	9902-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9812-9901
21	VALVE; IN & EXH TRAILER BRAKE CONTROL<J91>	1-48121-017-0	01	1	9902-
22	SPRING; VLV	1-48123-024-0	01	1	9812-9901
22	SPRING; VLV TRAILER BRAKE CONTROL<J91>	1-48123-024-0	01	1	9902-
23	BODY; BRK VLV	1-48111-061-0	01	1	9812-9901
23	BODY; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48111-061-0	01	1	9902-
24	BOLT; EXH VLV	1-48129-092-0	02	1	9812-9901
24	BOLT; EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-092-0	02	1	9902-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	9812-9901
25	WASHER; LK,EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-093-0	02	1	9902-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9812-9901
28	STEM ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-089-0	01	1	9902-
29	BRACKET; HAND BRK	1-79996-131-1	01	1	9812-9812
29	BRACKET; HAND BRK TRAILER BRAKE CONTROL<J91>	1-79996-131-1	01	1	9902-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9812-9901
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9812-9901
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9812-9901
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (B) M14	1-09656-391-2	01	1	9902-
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (C) L=45	8-94338-874-0	01	1	9902-
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9902-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9812-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-9901
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9812-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9902-
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	9902-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9812-9901
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9812-9901
206	BOLT; HAND BRK VALVE TRAILER BRAKE CONTROL<J91> M10X20 W/LK WASHER	0-50041-020-0	02	1	9902-0003
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9902-0003
206	BOLT; HAND BRK VALVE TRAILER BRAKE CONTROL<J91> M10X20 W/LK WASHER	0-50041-020-0	02	1	0004-

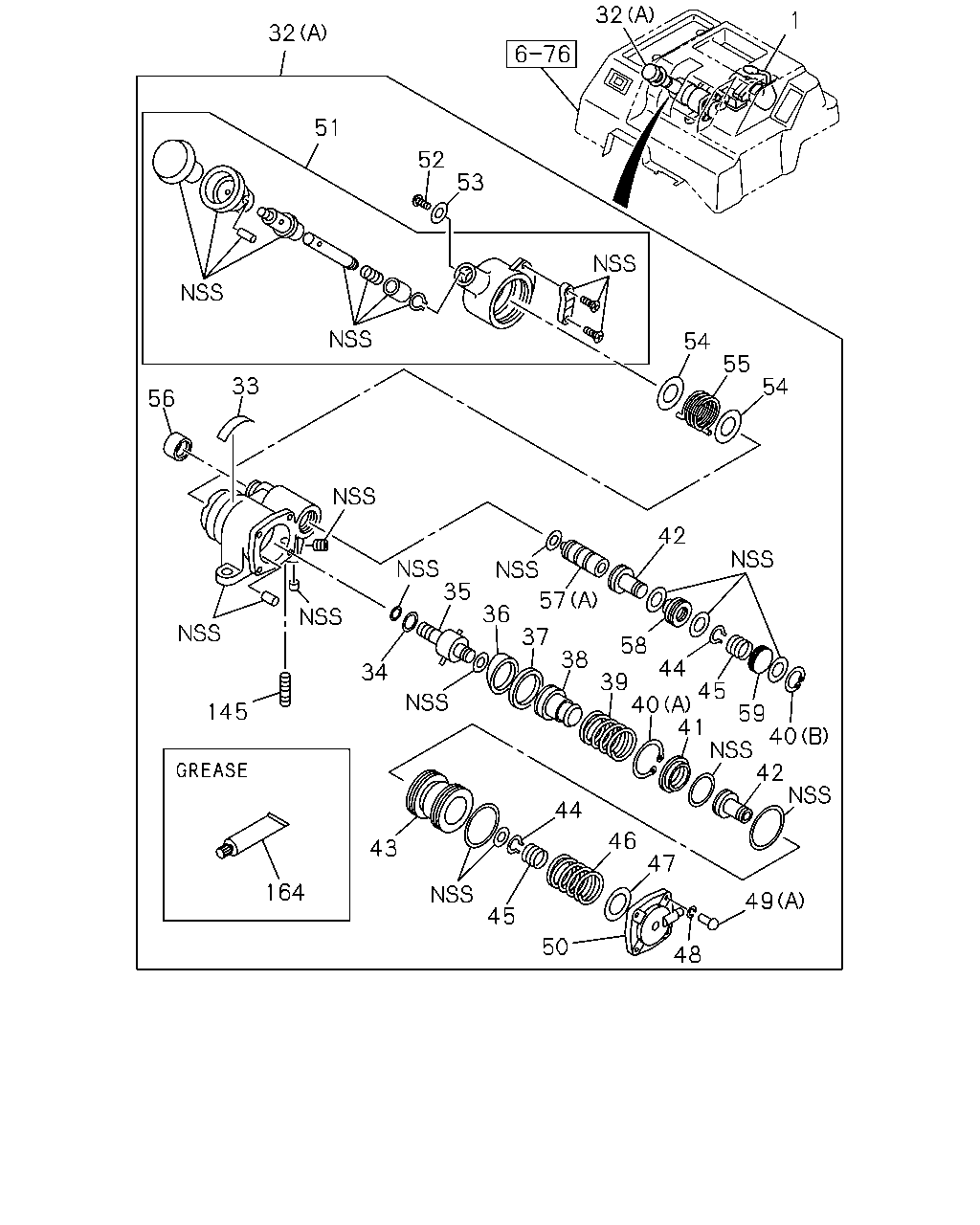

32 1 32 51 52 53 54 55 33 54 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-761-1	01	1	9812-9901
1	VALVE ASM; HAND BRK TRAILER BRAKE CONTROL<J91>	1-48100-761-1	01	1	9902-

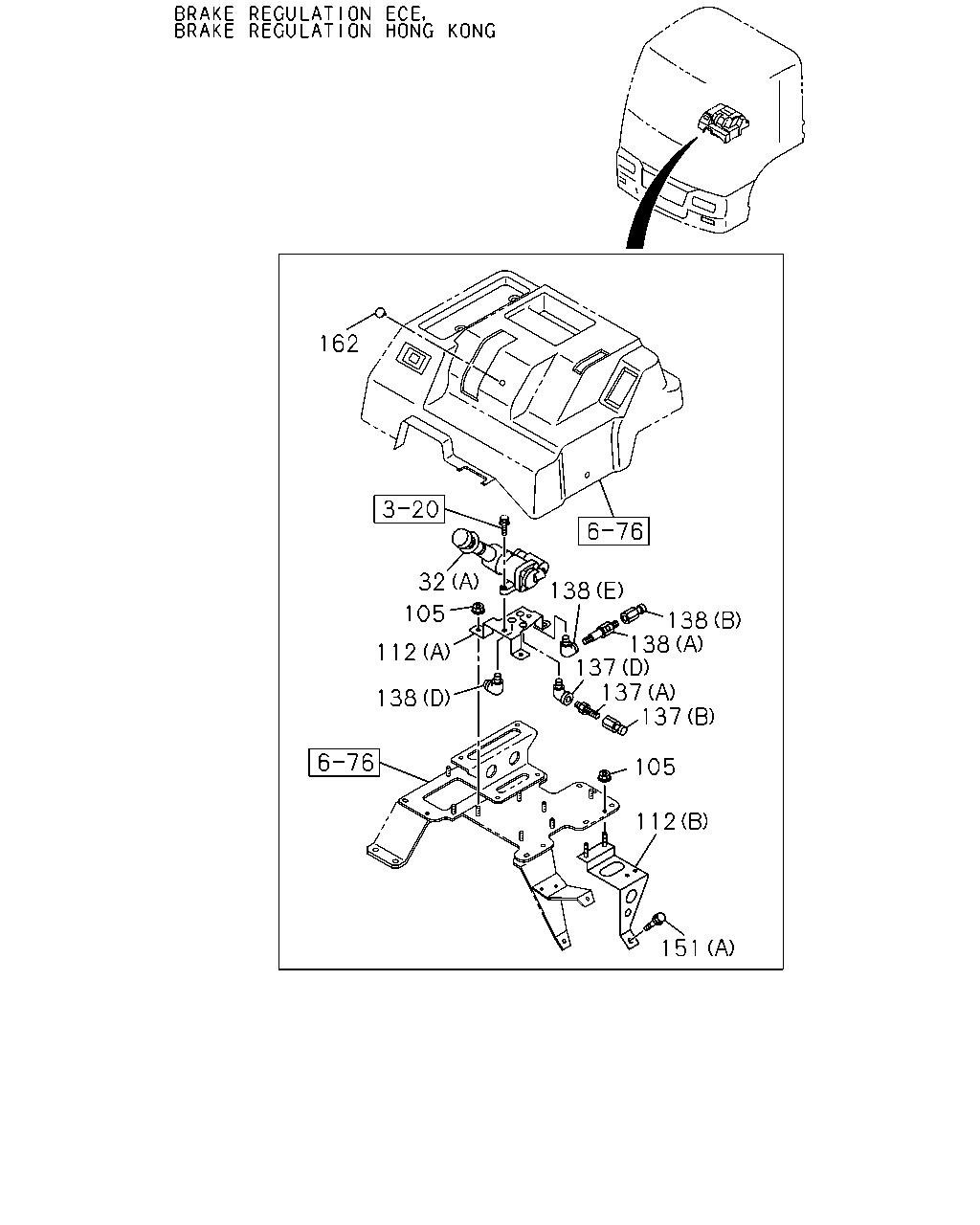

32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (A)	1-48460-316-0	01	1	9902-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-315-0	01	1	9812-

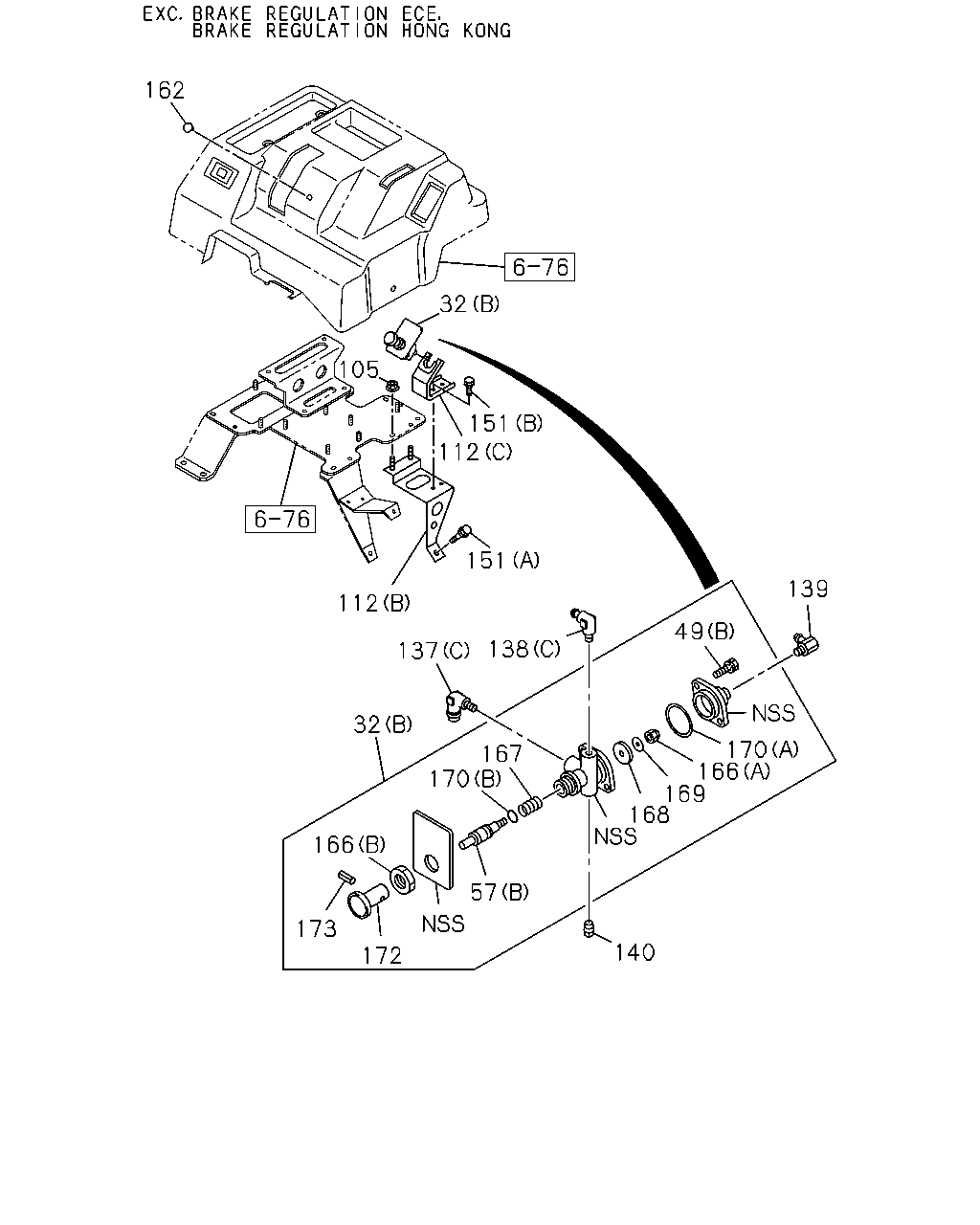

32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48460-184-0	01	1	9902-
33	PLATE; CAUTION BRAKE REGULATION ECE<TDV>	1-48469-121-0	01	1	9902-
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	9812-
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48469-055-0	AR	1	9812-9901
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-055-0	AR	1	9902-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-054-0	01	1	9812-9901
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-054-0	01	1	9902-
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-056-0	01	1	9812-9901
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-056-0	01	1	9902-
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-058-0	01	1	9812-9901
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-058-0	01	1	9902-
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-057-0	01	1	9812-9901
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-057-0	01	1	9902-
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-063-0	01	1	9812-9901
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-063-0	01	1	9902-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-067-0	01	1	9812-9901
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-067-0	01	1	9902-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-079-0	01	1	9812-9901
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-079-0	01	1	9902-
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-066-0	01	1	9812-9901
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-066-0	01	1	9902-
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>	1-48469-065-0	02	1	9812-9901
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-065-0	02	1	9902-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-064-0	01	1	9812-9901
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-064-0	01	1	9902-
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-068-0	02	1	9812-9901
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-068-0	02	1	9902-
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-070-0	02	1	9812-9901
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-070-0	02	1	9902-
46	SPRING; MAIN,PISTON BRAKE REGULATION ECE<TDV>	1-48469-119-0	01	1	9902-
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	9812-
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-072-0	AR	1	9812-9901
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-072-0	AR	1	9902-
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	9812-
49	SCREW; COVER BRAKE REGULATION ECE<TDV> (A)	1-48469-120-0	04	1	9902-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9812-
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-52139-005-0	02	1	9902-
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-073-0	01	1	9812-9901
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-073-0	01	1	9902-
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-060-0	01	1	9812-9901
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-060-0	01	1	9902-
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-062-0	01	1	9812-9901
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-062-0	01	1	9902-
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-061-0	01	1	9812-9901
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-061-0	01	1	9902-
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-082-0	02	1	9812-9901
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-082-0	02	1	9902-
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-059-0	01	1	9812-9901
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-059-0	01	1	9902-
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>	1-48469-080-0	01	1	9812-9901
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-080-0	01	1	9902-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9812-9901
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-076-0	01	1	9902-
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-097-0	01	1	9902-
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-077-0	01	1	9812-9901
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-077-0	01	1	9902-
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-078-0	01	1	9812-9901
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-078-0	01	1	9902-
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-069-0	01	1	9812-9901
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-069-0	01	1	9902-
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-084-0	01	1	9812-9901
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-084-0	01	1	9902-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

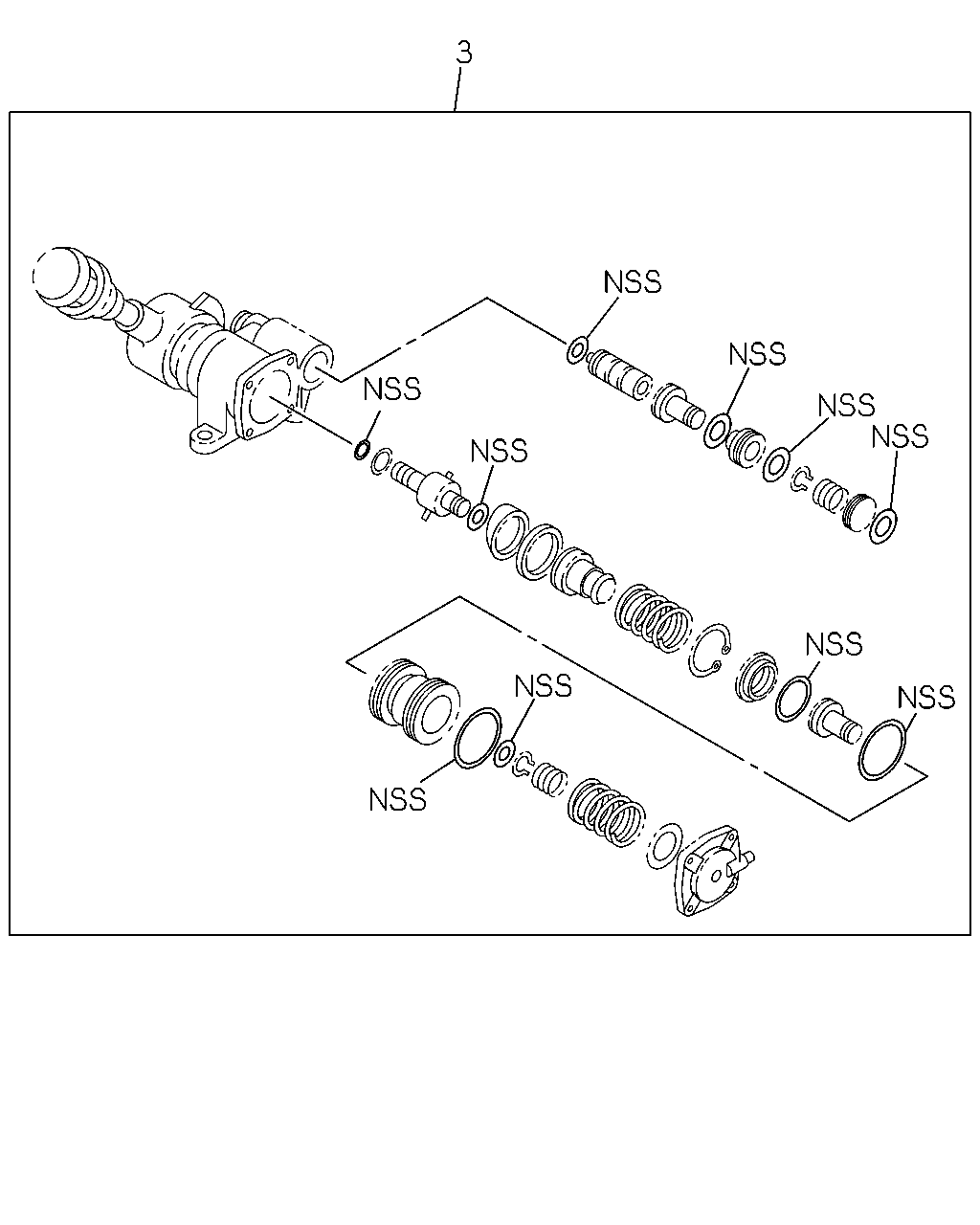

	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-083-0	01	1	9812-9901
	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-083-0	01	1	9902-

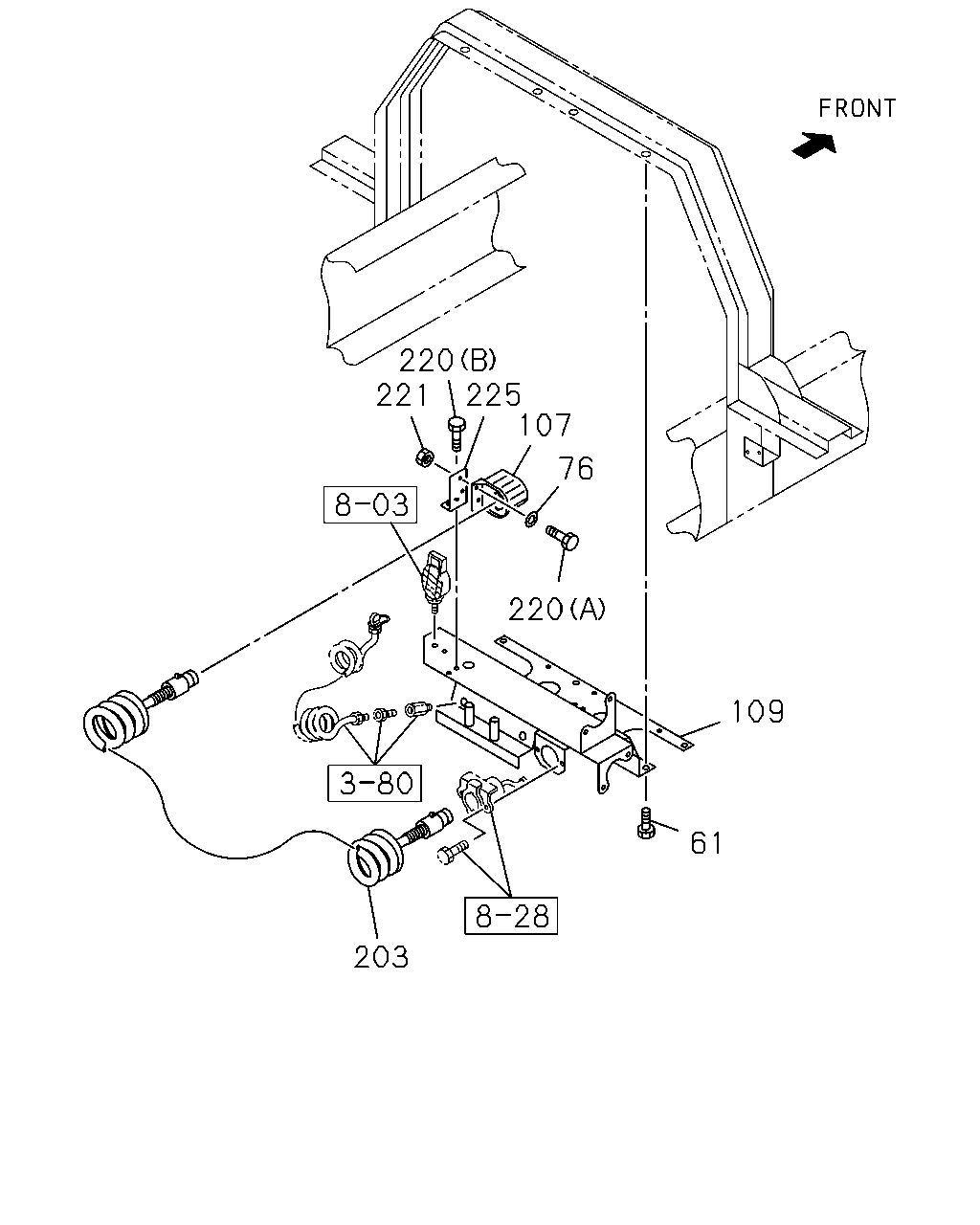

220 221 225 107 76 220 109 61 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	9812-
76	WASHER; PL,HANGER ID=17 OD=32	9-09160-616-0	02	1	9812-9903
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	9812-
109	BRACKET; HOSE HANGER	1-53497-619-2	01	1	9812-9904
109	BRACKET; HOSE HANGER	1-53497-642-0	01	1	9905-0002
109	BRACKET; HOSE HANGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-53497-657-0	01	1	0003-0105
109	BRACKET; HOSE HANGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-53497-672-0	01	1	0106-
203	CABLE; JUMPER L=4000	1-82659-186-1	01	1	9812-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	9812-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	9812-
225	BRACKET; HANGER	1-82698-002-0	01	1	9812-

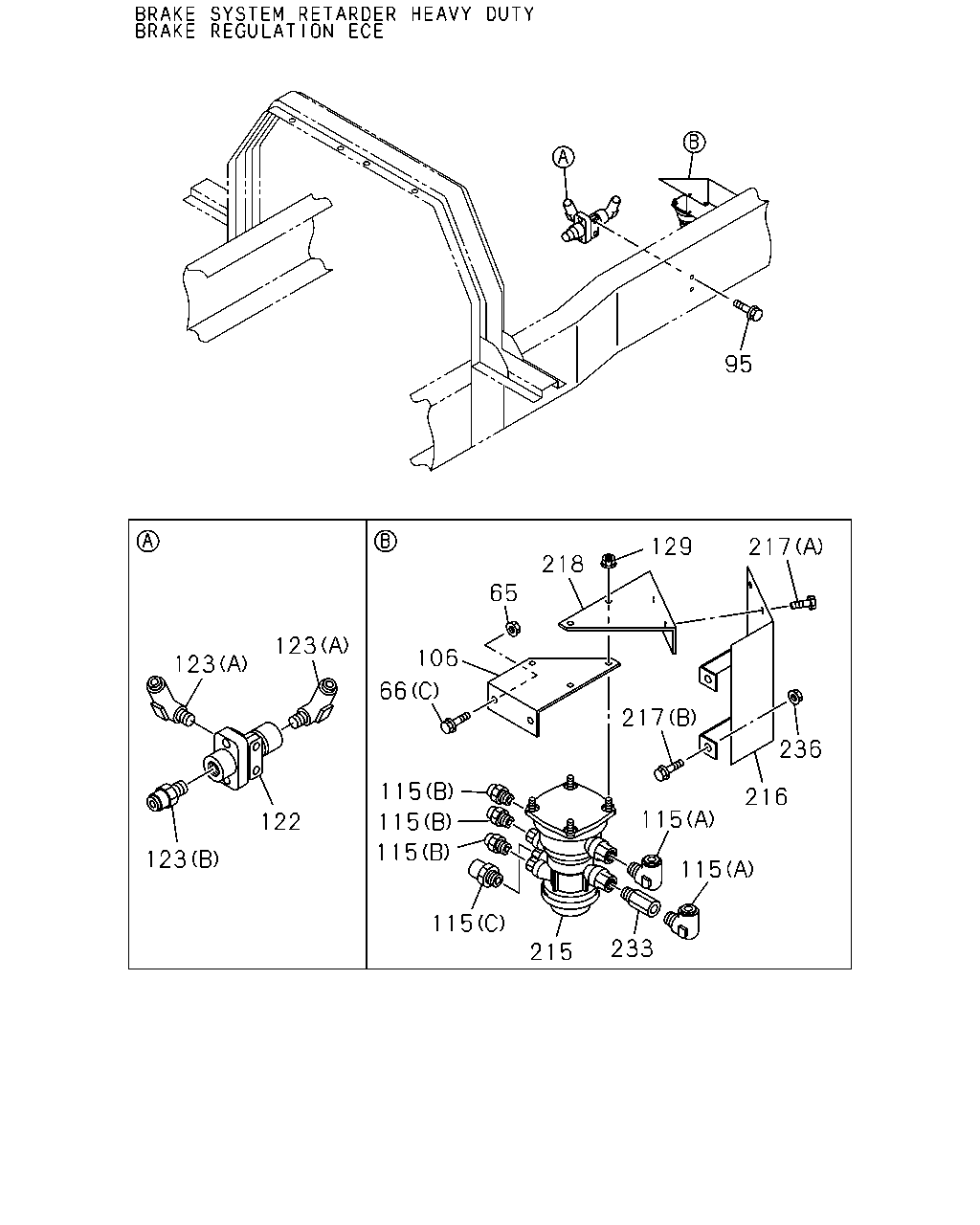

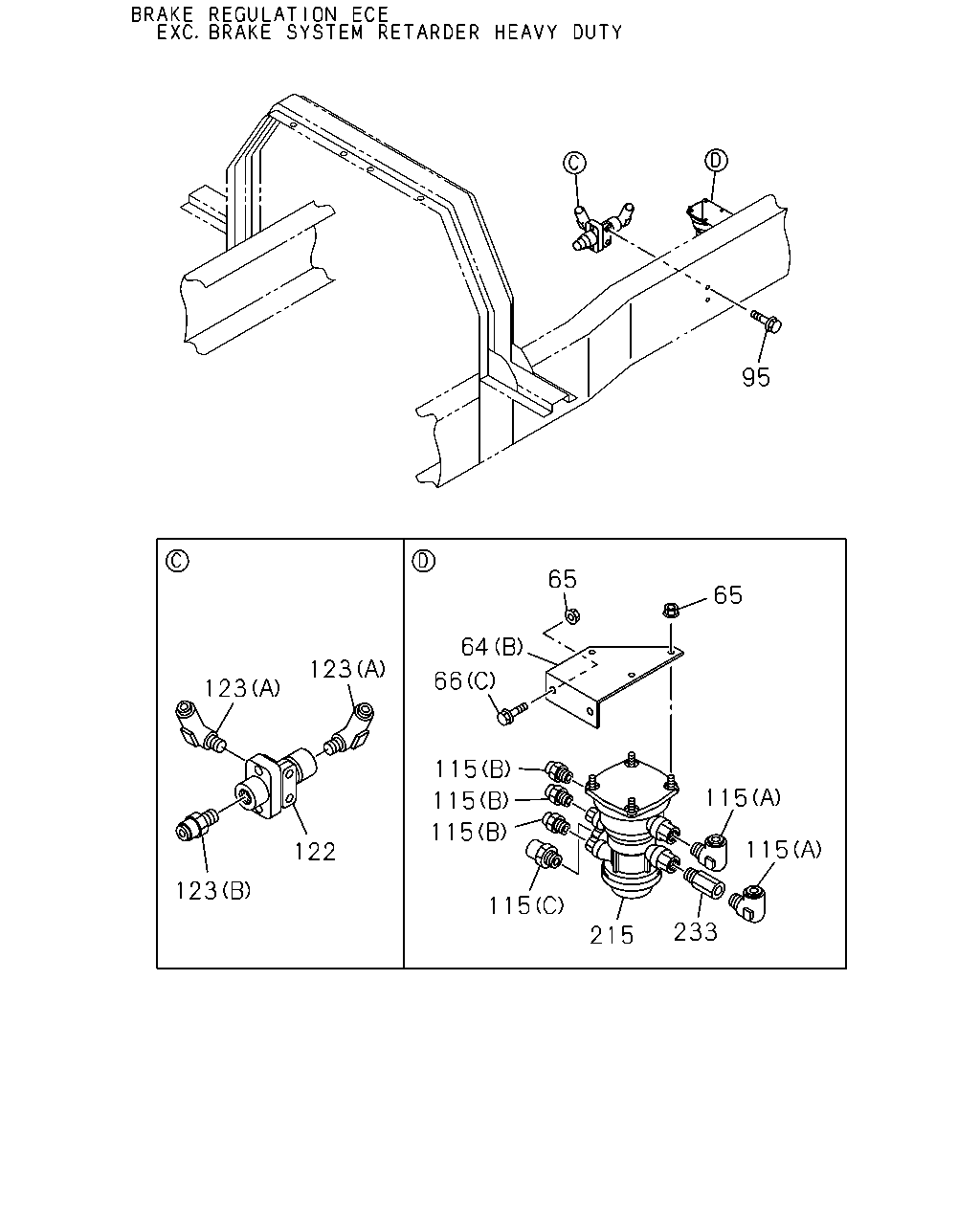

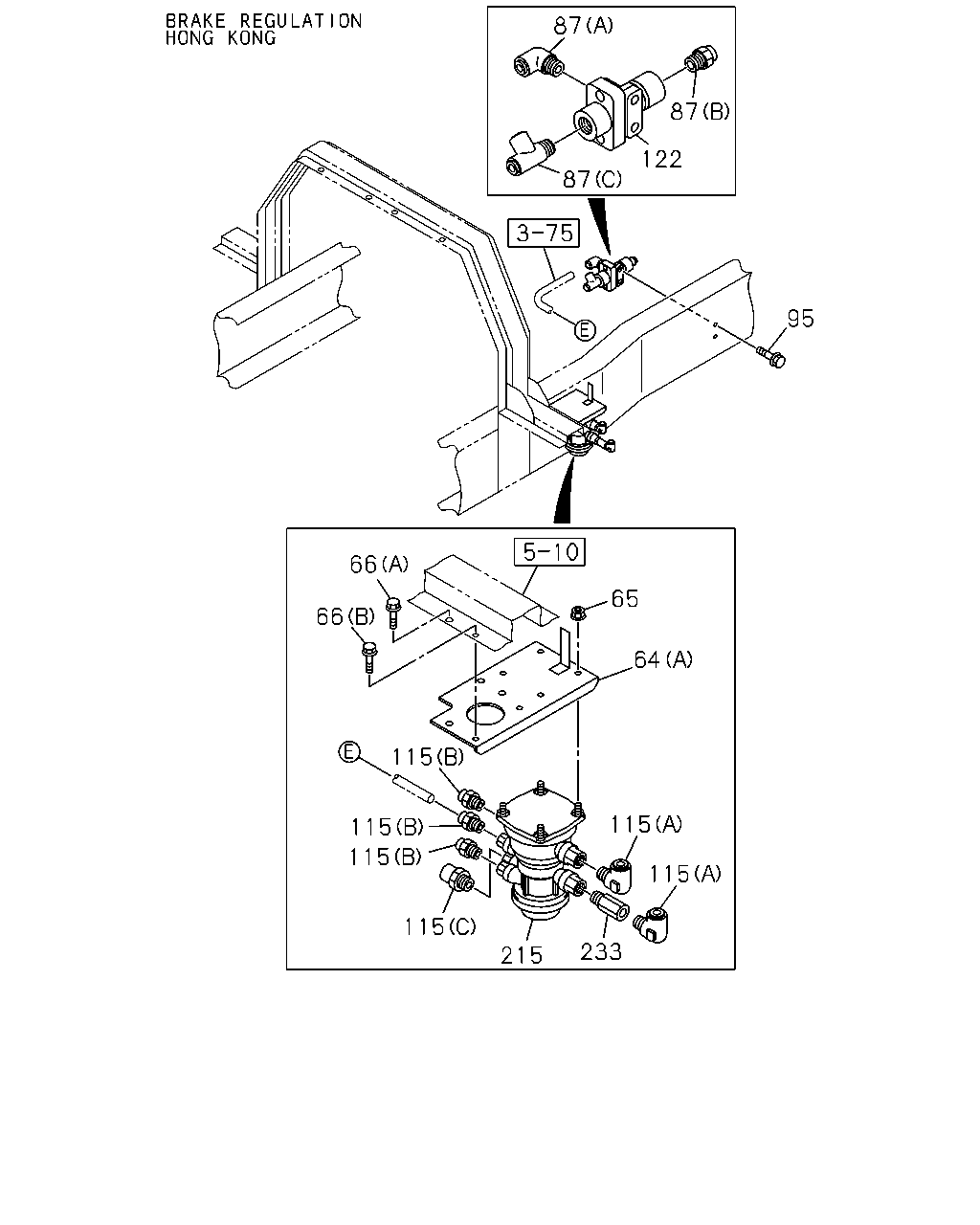

87 87 122 87 95 66 65 66 64 115 115 115 115 115 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-193-0	01	1	9902-0007
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-226-0	01	1	0008-
64	BRACKET; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48495-216-0	01	1	9812-
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	06	1	9902-
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	08	1	9812-
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (C) M10X40 FLANGE	0-28681-040-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (A) M10X25 FLANGE	0-28681-025-0	02	1	9812-
87	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-
87	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9812-
87	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9812-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9812-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9902-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-050-0	01	1	9812-9902
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	9903-0003
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	0004-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	0004-
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>	1-48210-684-0	01	1	9812-9901
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48210-684-0	01	1	9902-
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ> PT3/8	1-48319-058-0	01	1	9812-9901
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	01	1	9902-

95 65 65 64 123 66 123 115 115 115 115 115 122 123 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-193-0	01	1	9902-0007
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-226-0	01	1	0008-
64	BRACKET; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48495-216-0	01	1	9812-
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	06	1	9902-
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	08	1	9812-
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (C) M10X40 FLANGE	0-28681-040-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (A) M10X25 FLANGE	0-28681-025-0	02	1	9812-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9812-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9902-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-050-0	01	1	9812-9902
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	9903-0003
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	0004-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	0004-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0004-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>	1-48210-684-0	01	1	9812-9901
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48210-684-0	01	1	9902-
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ> PT3/8	1-48319-058-0	01	1	9812-9901
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	01	1	9902-

162 32 138 105 138 138 137 137 137 112 138 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (A)	1-48460-316-0	01	1	9902-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-315-0	01	1	9812-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48460-184-0	01	1	9902-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-9901
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9812-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9902-
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	9902-
112	BRACKET; CONT VLV (A)	1-79996-112-1	01	1	9812-9901
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-112-1	01	1	9902-
112	BRACKET; CONT VLV ISRINGHAUSEN SEAT(SJA) (B)	1-79996-439-0	01	1	9812-9903
112	BRACKET; CONT VLV EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-79996-113-1	01	1	9812-9903
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9904-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-47475-260-2	01	1	9902-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	9812-9901
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-352-1	01	1	9902-
137	CONNECTOR; SUPPLY (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9812-9901
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9902-0007
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-0009
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0010-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (D) PT1/4 2WAY	1-09660-693-0	01	1	9902-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9912-0007
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9902-
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9902-
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	9812-9901
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	9902-
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9812-9901
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9902-0007
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9905-9911
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9912-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (E) PT1/4 2WAY	1-09660-693-0	01	1	9905-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9812-
151	BOLT; VLV BRKT (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9812-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X16 W/LK WASHER	0-50040-616-0	02	1	9902-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9812-

162 32 105 151 112 151 139 112 49 138 137 32 167 170 170 166 169 168 166 57 173 140 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (A)	1-48460-316-0	01	1	9902-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-315-0	01	1	9812-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48460-184-0	01	1	9902-
49	SCREW; COVER BRAKE REGULATION ECE<TDV> (A)	1-48469-120-0	04	1	9902-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9812-
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-52139-005-0	02	1	9902-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9812-9901
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-076-0	01	1	9902-
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-097-0	01	1	9902-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-9901
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9812-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9902-
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	9902-
112	BRACKET; CONT VLV (A)	1-79996-112-1	01	1	9812-9901
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-112-1	01	1	9902-
112	BRACKET; CONT VLV ISRINGHAUSEN SEAT(SJA) (B)	1-79996-439-0	01	1	9812-9903
112	BRACKET; CONT VLV EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-79996-113-1	01	1	9812-9903
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9904-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-47475-260-2	01	1	9902-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	9812-9901
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-352-1	01	1	9902-
137	CONNECTOR; SUPPLY (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9812-9901
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9902-0007
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-0009
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0010-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (D) PT1/4 2WAY	1-09660-693-0	01	1	9902-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9912-0007
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9902-
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9902-
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	9812-9901
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	9902-
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9812-9901
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9902-0007
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9905-9911
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9912-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (E) PT1/4 2WAY	1-09660-693-0	01	1	9905-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9812-
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9902-
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9902-
151	BOLT; VLV BRKT (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9812-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X16 W/LK WASHER	0-50040-616-0	02	1	9902-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9812-
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48129-069-0	01	1	9902-
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-101-0	01	1	9902-
167	SPRING; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-098-0	01	1	9902-
168	VALVE; INL EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-099-0	01	1	9902-
169	WASHER; PL,VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> ID=6.4	9-09164-506-0	01	1	9902-
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-100-0	01	1	9902-
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	9-19519-094-0	01	1	9902-
172	KNOB; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-102-0	01	1	9902-
173	PIN; SPR,KNOB EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	8-94124-044-0	01	1	9902-

95 129 217 218 65 123 106 123 66 217 236 115 216 115 122 115 115 123 115 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	06	1	9902-
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	08	1	9812-
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (C) M10X40 FLANGE	0-28681-040-0	02	1	9902-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> (A) M10X25 FLANGE	0-28681-025-0	02	1	9812-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9812-
106	BRACKET; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48495-193-0	01	1	9902-0007
106	BRACKET; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48495-226-0	01	1	0008-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9902-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9812-9901
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9902-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-050-0	01	1	9812-9902
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	9903-0003
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	0004-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	0004-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0004-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	04	1	9902-0007
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	0008-
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>	1-48210-684-0	01	1	9812-9901
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48210-684-0	01	1	9902-
216	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48219-142-0	01	1	9902-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A) M8X20 FLANGE	0-28080-820-0	02	1	9902-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (B) M8X30 FLANGE	0-28080-830-0	02	1	9902-
218	BRACKET; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48219-144-0	01	1	9902-
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ> PT3/8	1-48319-058-0	01	1	9812-9901
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	01	1	9902-
236	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9902-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
