0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#74109) — 63 parça

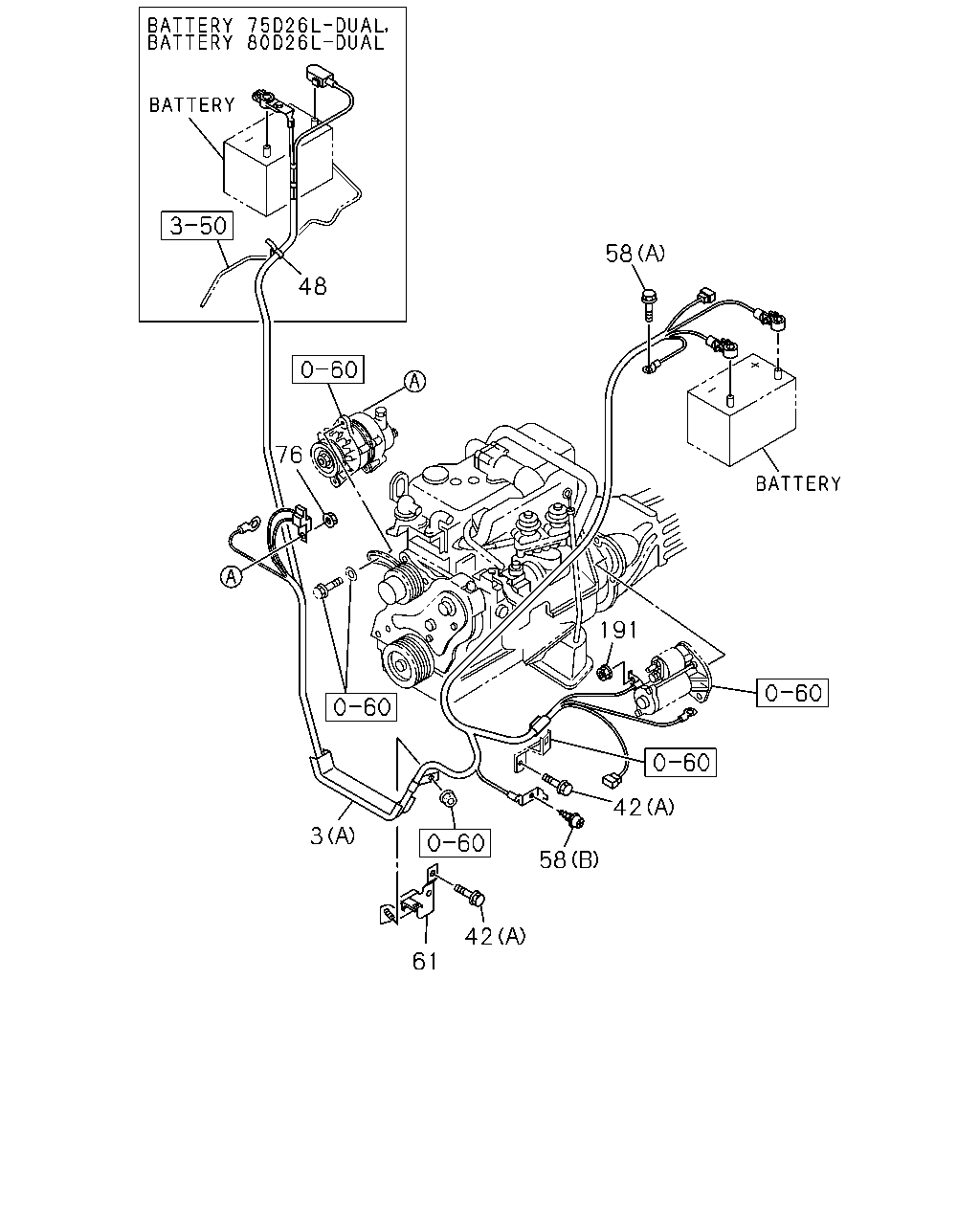

çizim 153078
58 48 76 191 42 3 58 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-97362-313-0 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-97383-725-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-98005-204-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98007-623-0 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-97362-312-0 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98007-622-1 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) SHIFT ON THE FLY<NR4> (A) 		8-97368-020-0 01 1 0306-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) SHIFT ON THE FLY<NR4> (A) 		8-98005-195-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97368-019-0 01 1 0306-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-194-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97307-438-2 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97380-856-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98005-202-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97307-437-2 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97380-855-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98005-201-0 01 1 0502-0609 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0609 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ●
48 02.343 CLIP; CABLE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.363 L=140 		8-97920-656-0 01 1 0306-0609 ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0306-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0306-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) M10X12 FLANGE 		0-28151-012-0 01 1 0610- ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0306-0609 ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●

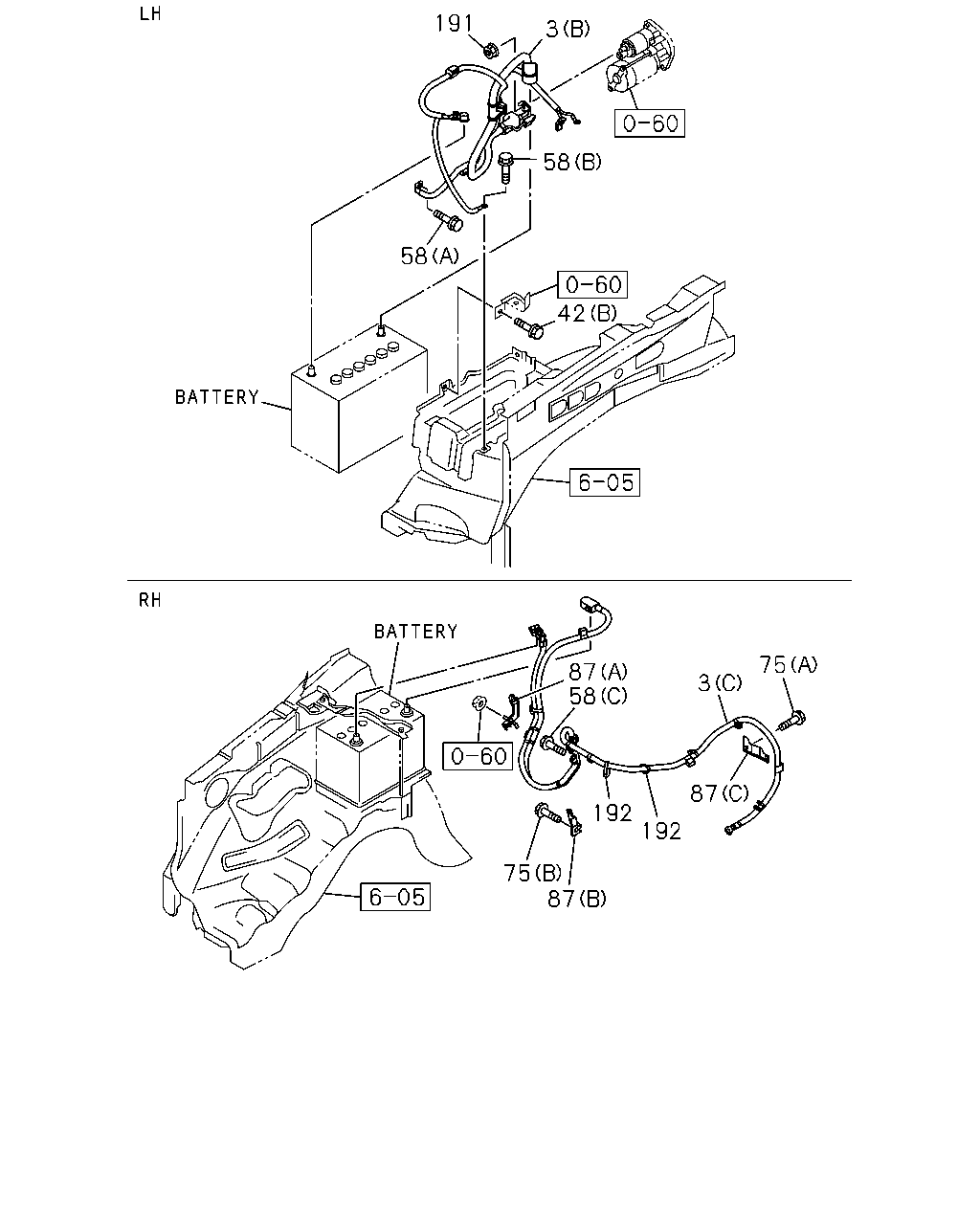

çizim 153349
191 3 58 58 42 75 87 58 3 87 192 192 75 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-97362-313-0 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-97383-725-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> (A) 		8-98005-204-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98007-623-0 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-97362-312-0 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98007-622-1 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) SHIFT ON THE FLY<NR4> (A) 		8-97368-020-0 01 1 0306-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) SHIFT ON THE FLY<NR4> (A) 		8-98005-195-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97368-019-0 01 1 0306-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-194-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97307-438-2 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97380-856-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98005-202-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97307-437-2 01 1 0306-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97380-855-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4>,BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98005-201-0 01 1 0502-0609 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0609 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0306-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0306-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) M10X12 FLANGE 		0-28151-012-0 01 1 0610- ● ●
75 02.333 BOLT; BRKT
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
75 02.333 BOLT; BRKT
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (B) M10X12 FLANGE 		0-28151-012-0 01 1 0610- ● ●
87 02.343 BRACKET; HARNESS
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-98005-351-1 01 1 0610- ● ●
87 02.343 BRACKET; HARNESS
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98005-352-1 01 1 0610- ● ●
87 02.343 BRACKET; HARNESS
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98005-354-0 01 1 0610- ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
192 02.343 RETAINER; CABLE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 L=250 		5-09707-030-1 02 1 0610- ● ●
