0-57 — EMISSION PIPING (#74107) — 118 parça

58 17 709 704 58 709 135 5 2 4 17 12 2 1 4 4 4 16 185

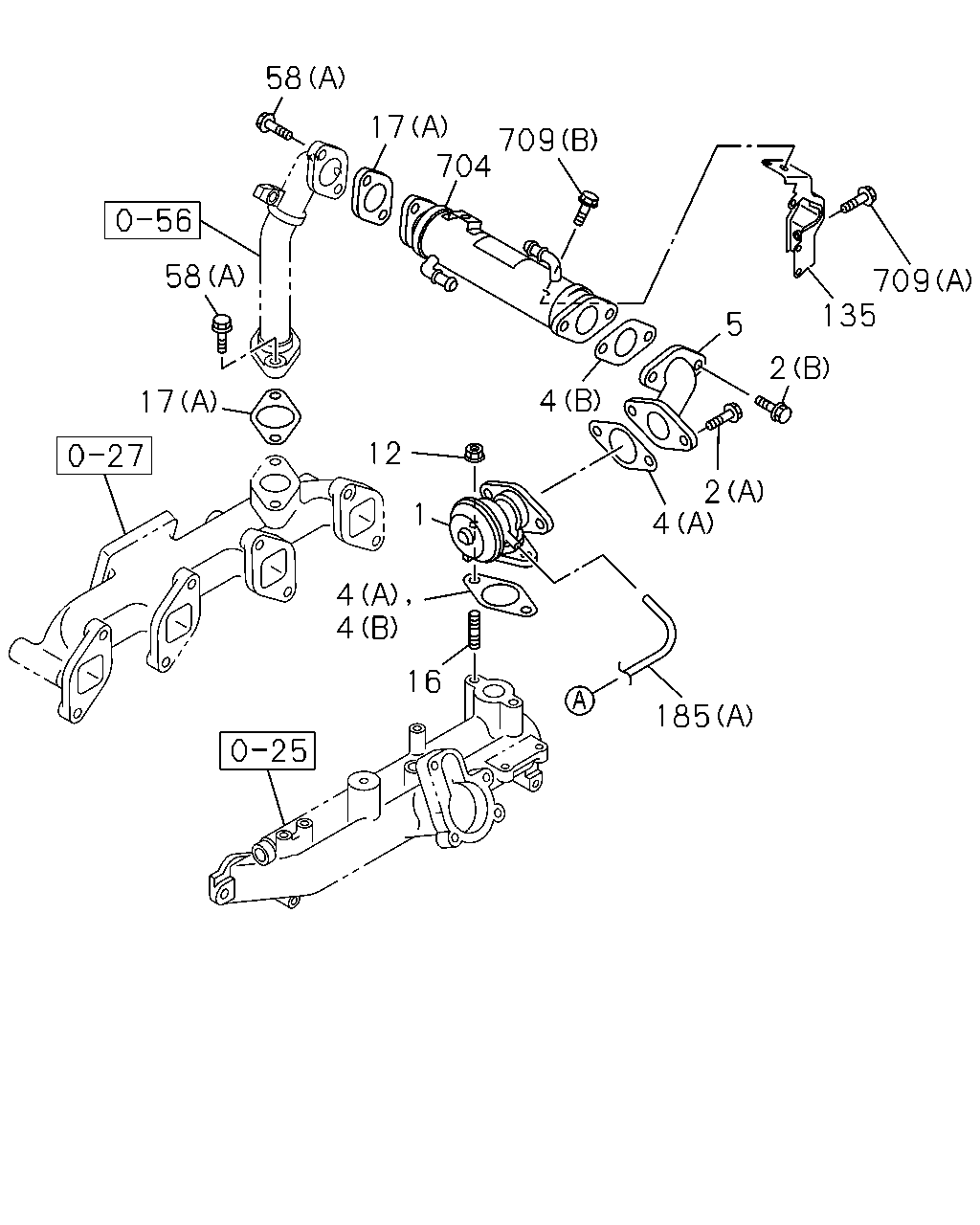

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR	8-97312-533-1	01	1	0306-0609	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-		●	●
1	03.670 VALVE; EGR	8-97349-435-0	01	1	0306-0609				●
2	03.670 BOLT; EGR VLV (A) M8X23 FLANGE	8-94103-629-2	02	1	0306-0409	●			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	02	1	0410-0609	●			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0610-		●	●
2	03.670 BOLT; EGR VLV 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0306-0409	●			●
2	03.670 BOLT; EGR VLV (B) M8X18 FLANGE	8-97378-076-0	02	1	0410-0609	●			●
2	03.670 BOLT; EGR VLV 09.181 (D) M10X45 FLANGE	0-28151-045-0	01	1	0610-		●	●
2	03.670 BOLT; EGR VLV 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0610-		●	●
4	03.671 GASKET; EGR VLV 03.665 (A)	8-97192-765-0	02	1	0306-0609	●
4	03.671 GASKET; EGR VLV (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-711-3	01	1	0610-		●	●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97324-052-0	01	1	0306-0402	●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97942-749-0	01	1	0403-0609	●			●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97324-052-0	03	1	0306-0402				●
4	03.671 GASKET; EGR VLV 03.665 (A)	8-97942-749-0	02	1	0403-0609				●
5	03.670 ADAPTER ASM	8-97329-584-2	01	1	0306-0609	●			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0402	●			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0403-0609	●			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●	●
16	03.275 STUD; EGR VLV 03.342 M8X55 L=67	8-94343-897-0	02	1	0306-0609	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-		●	●
16	03.275 STUD; EGR VLV 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0409				●
16	03.275 STUD; EGR VLV 03.342 M8X20 L=31	8-97378-060-0	02	1	0410-0609				●
17	03.665 GASKET; EGR PIPE (A)	8-94340-670-0	02	1	0306-0503	●			●
17	03.665 GASKET; EGR PIPE (A)	8-97942-749-0	02	1	0504-0609	●			●
17	03.665 GASKET; EGR PIPE (B)	8-97357-684-3	01	1	0610-		●	●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	0610-		●	●
58	03.417 BOLT; PIPE FRIGID ZONE<YL3> 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1110-		●	●
58	03.417 BOLT; PIPE 03.670 (A) M8X23 FLANGE	8-94103-629-2	04	1	0306-0409	●			●
58	03.417 BOLT; PIPE (A) M8X23 FLANGE	8-97378-077-0	04	1	0410-0609	●			●
58	03.417 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0610-1109		●	●
58	03.417 BOLT; PIPE EXC. FRIGID ZONE<YL3> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-		●	●
135	03.680 BRACKET; EGR	8-97329-585-0	01	1	0306-0609	●			●
185	03.163 HOSE; RUBBER,VSV (B)	8-97320-372-3	01	1	0306-0609	●
185	03.163 HOSE; RUBBER,VSV EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97320-372-3	01	1	0306-0609				●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-922-0	01	1	0312-0609	●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-807-0	01	1	0306-0311	●			●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-807-0	01	1	0312-0609				●
185	03.163 HOSE; RUBBER,VSV BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97943-684-0	01	1	0306-0609				●
704	03.337 COOLER ASM; EGR	8-97329-581-0	01	1	0306-0609	●			●
709	03.670 BOLT; EGR COOLER 01.271 (A) M8X40 FLANGE	0-28080-840-0	02	1	0306-0402	●			●
709	03.670 BOLT; EGR COOLER 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	0403-0609	●			●
709	03.670 BOLT; EGR COOLER 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0306-0402	●			●
709	03.670 BOLT; EGR COOLER 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0403-0609	●			●

185 752 472 185 737 747 740 631 754 155 753

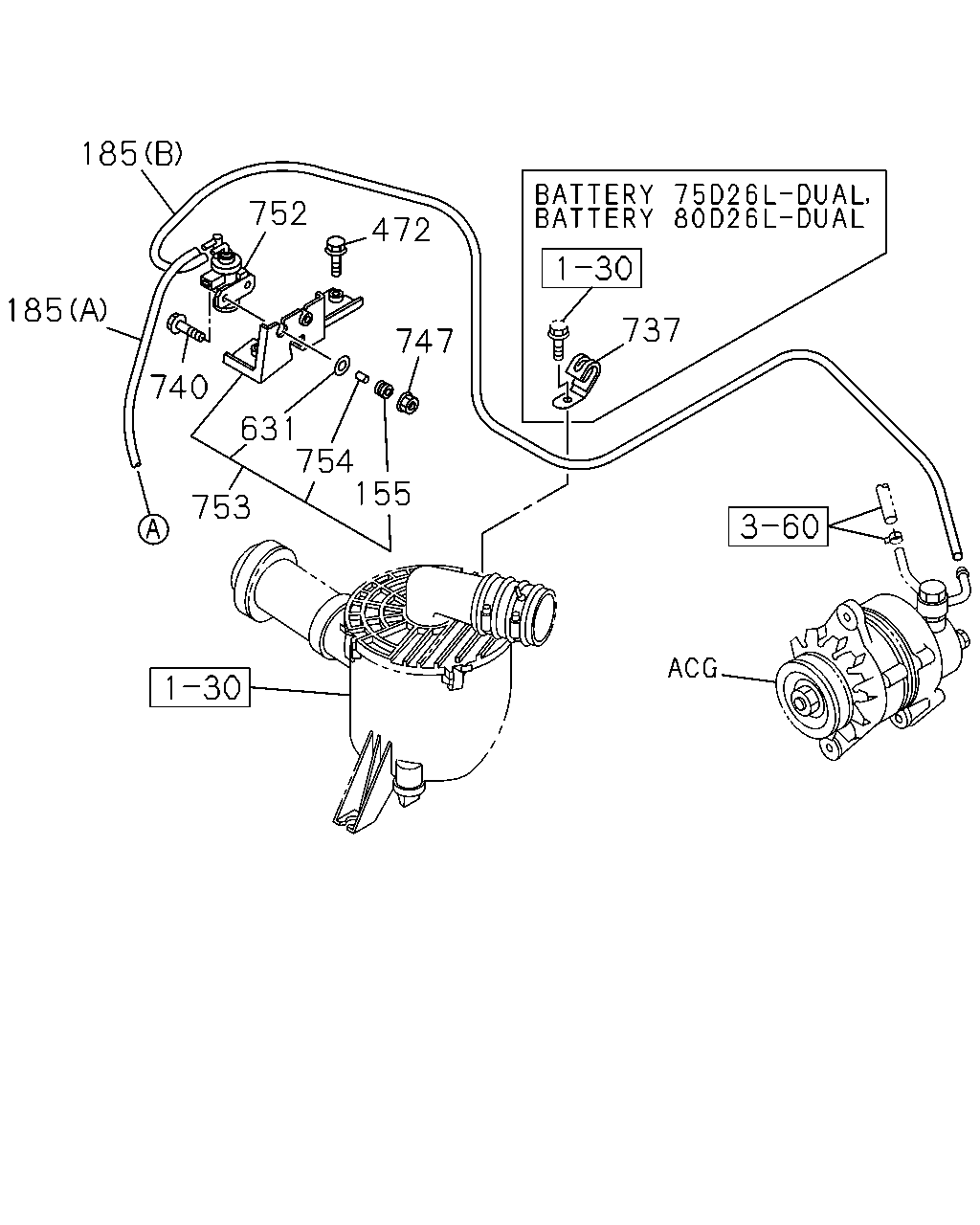

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
155	03.680 RUBBER; MTG,BRKT 03.671	8-97943-313-0	04	1	0306-0609	●			●
185	03.163 HOSE; RUBBER,VSV (B)	8-97320-372-3	01	1	0306-0609	●
185	03.163 HOSE; RUBBER,VSV EXC. BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97320-372-3	01	1	0306-0609				●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-922-0	01	1	0312-0609	●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-807-0	01	1	0306-0311	●			●
185	03.163 HOSE; RUBBER,VSV (A)	8-97943-807-0	01	1	0312-0609				●
185	03.163 HOSE; RUBBER,VSV BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97943-684-0	01	1	0306-0609				●
472	03.671 BOLT; BRKT 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0306-0609	●			●
631	03.417 WASHER; PL,BRKT 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0306-0606	●			●
631	03.417 WASHER; PL,BRKT 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-0609	●			●
737	03.671 CLIP; EGR VLV TO COOLER BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) ID=12 VINYL CHLORIDE	8-97367-984-0	01	1	0306-0609				●
740	03.680 BOLT; VAC REG VALVE M6X30 FLANGE	0-28650-630-0	02	1	0306-0609	●			●
747	03.671 NUT; VAC REG VALVE 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-0609	●			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●	●
752	03.670 VALVE; EVRV	8-97240-699-0	01	1	0306-0609	●			●
752	03.670 VALVE; EVRV	8-98033-927-0	01	1	0610-0803		●	●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0804-		●	●
753	03.670 BRACKET; VALVE	8-97943-321-0	01	1	0306-0609	●			●
754	03.647 BUSHING; RUBBER	8-97944-146-0	04	1	0306-0609	●			●

194 194 73 58 747 73 148 681 194 2 718 752 15 17 2 194 17 1 16 12 4 16 12 2

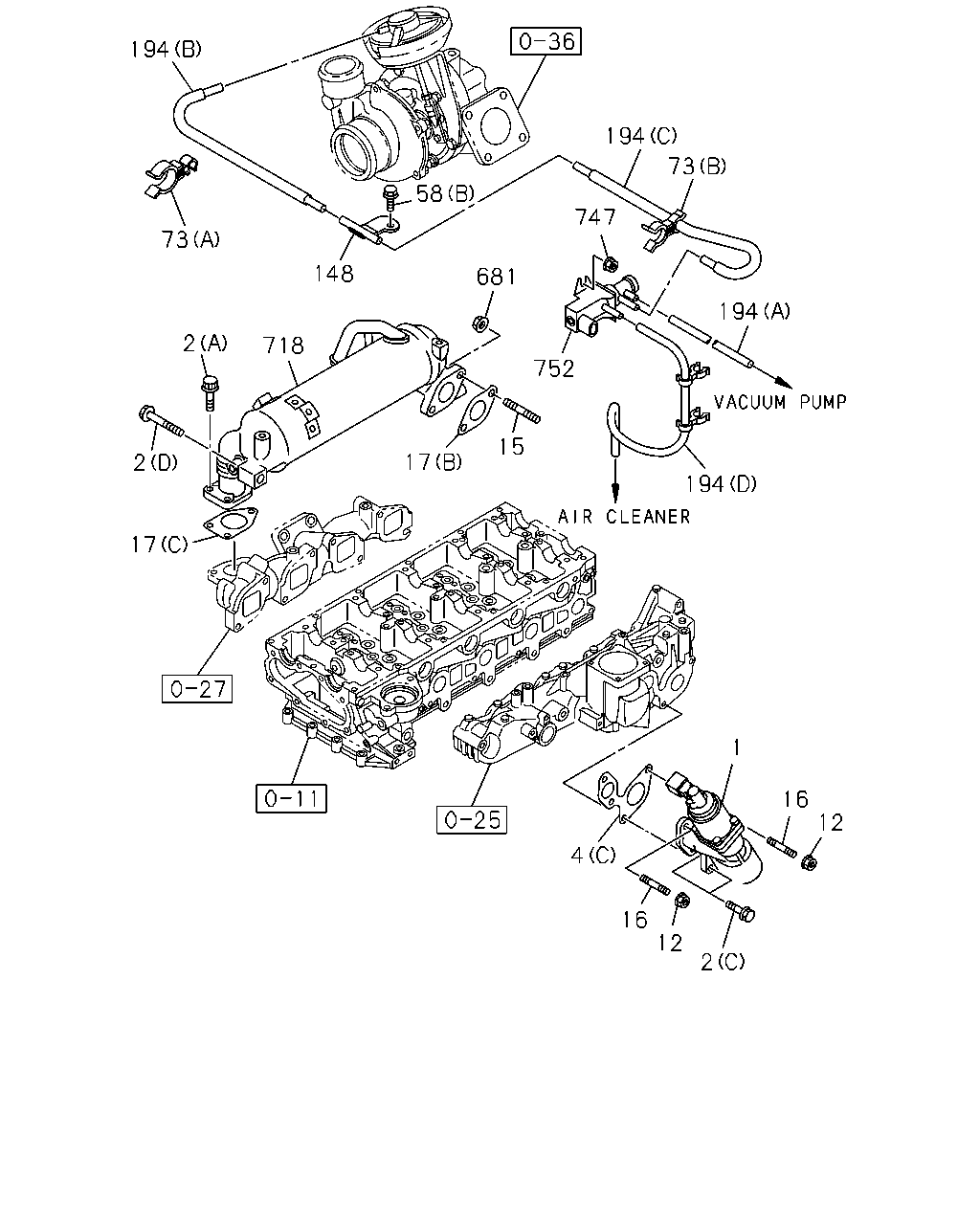

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR	8-97312-533-1	01	1	0306-0609	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-		●	●
1	03.670 VALVE; EGR	8-97349-435-0	01	1	0306-0609				●
2	03.670 BOLT; EGR VLV (A) M8X23 FLANGE	8-94103-629-2	02	1	0306-0409	●			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	02	1	0410-0609	●			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0610-		●	●
2	03.670 BOLT; EGR VLV 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0306-0409	●			●
2	03.670 BOLT; EGR VLV (B) M8X18 FLANGE	8-97378-076-0	02	1	0410-0609	●			●
2	03.670 BOLT; EGR VLV 09.181 (D) M10X45 FLANGE	0-28151-045-0	01	1	0610-		●	●
2	03.670 BOLT; EGR VLV 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0610-		●	●
4	03.671 GASKET; EGR VLV 03.665 (A)	8-97192-765-0	02	1	0306-0609	●
4	03.671 GASKET; EGR VLV (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-711-3	01	1	0610-		●	●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97324-052-0	01	1	0306-0402	●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97942-749-0	01	1	0403-0609	●			●
4	03.671 GASKET; EGR VLV 03.665 (B)	8-97324-052-0	03	1	0306-0402				●
4	03.671 GASKET; EGR VLV 03.665 (A)	8-97942-749-0	02	1	0403-0609				●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0402	●			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0403-0609	●			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-		●	●
16	03.275 STUD; EGR VLV 03.342 M8X55 L=67	8-94343-897-0	02	1	0306-0609	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-		●	●
16	03.275 STUD; EGR VLV 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0409				●
16	03.275 STUD; EGR VLV 03.342 M8X20 L=31	8-97378-060-0	02	1	0410-0609				●
17	03.665 GASKET; EGR PIPE (A)	8-94340-670-0	02	1	0306-0503	●			●
17	03.665 GASKET; EGR PIPE (A)	8-97942-749-0	02	1	0504-0609	●			●
17	03.665 GASKET; EGR PIPE (B)	8-97357-684-3	01	1	0610-		●	●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	0610-		●	●
58	03.417 BOLT; PIPE FRIGID ZONE<YL3> 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1110-		●	●
58	03.417 BOLT; PIPE 03.670 (A) M8X23 FLANGE	8-94103-629-2	04	1	0306-0409	●			●
58	03.417 BOLT; PIPE (A) M8X23 FLANGE	8-97378-077-0	04	1	0410-0609	●			●
58	03.417 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0610-1109		●	●
58	03.417 BOLT; PIPE EXC. FRIGID ZONE<YL3> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-		●	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0610-		●	●
73	03.680 CLIP; VAC HOSE 03.483 (B) ID=21 & 7.5	8-97309-946-0	01	1	0610-		●	●
148	03.675 PIPE; VAC	8-98011-533-0	01	1	0610-		●	●
194	03.675 HOSE; VAC (A)	0-04420-430-0	01	1	0610-		●	●
194	03.675 HOSE; VAC (B)	8-98011-635-1	01	1	0610-		●	●
194	03.675 HOSE; VAC (C)	8-98011-637-1	01	1	0610-		●	●
194	03.675 HOSE; VAC (D)	8-98037-352-1	01	1	0610-		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●	●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0610-0907		●	●
718	03.337 COOLER; EGR	8-98150-749-1	01	1	0908-1007		●	●
718	03.337 COOLER; EGR	8-98152-122-1	01	1	1008-		●	●
747	03.671 NUT; VAC REG VALVE 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-0609	●			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●	●
752	03.670 VALVE; EVRV	8-97240-699-0	01	1	0306-0609	●			●
752	03.670 VALVE; EVRV	8-98033-927-0	01	1	0610-0803		●	●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0804-		●	●

221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

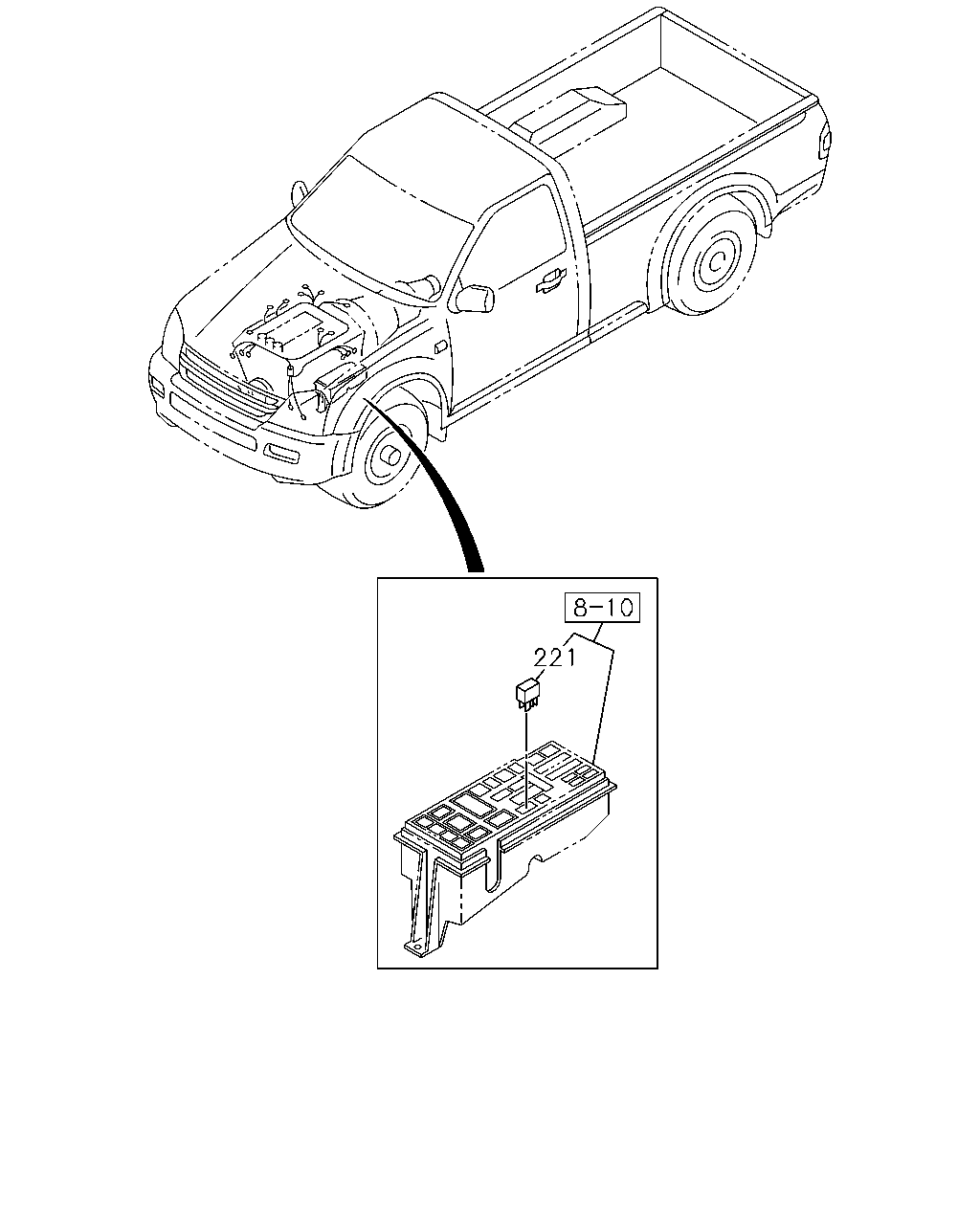

221	03.670 RELAY; MAIN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●			●
221	03.670 RELAY; MAIN 02.510 12V OMRON	8-97125-441-1	01	1	0610-0910		●	●
221	03.670 RELAY; MAIN 12V YAZAKI	8-98146-834-0	01	1	0911-		●	●
221	03.670 RELAY; MAIN 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●			●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI	8-97309-294-0	01	1	0710-0910		●	●
