Sayfa 0-40 - Isuzu EPC

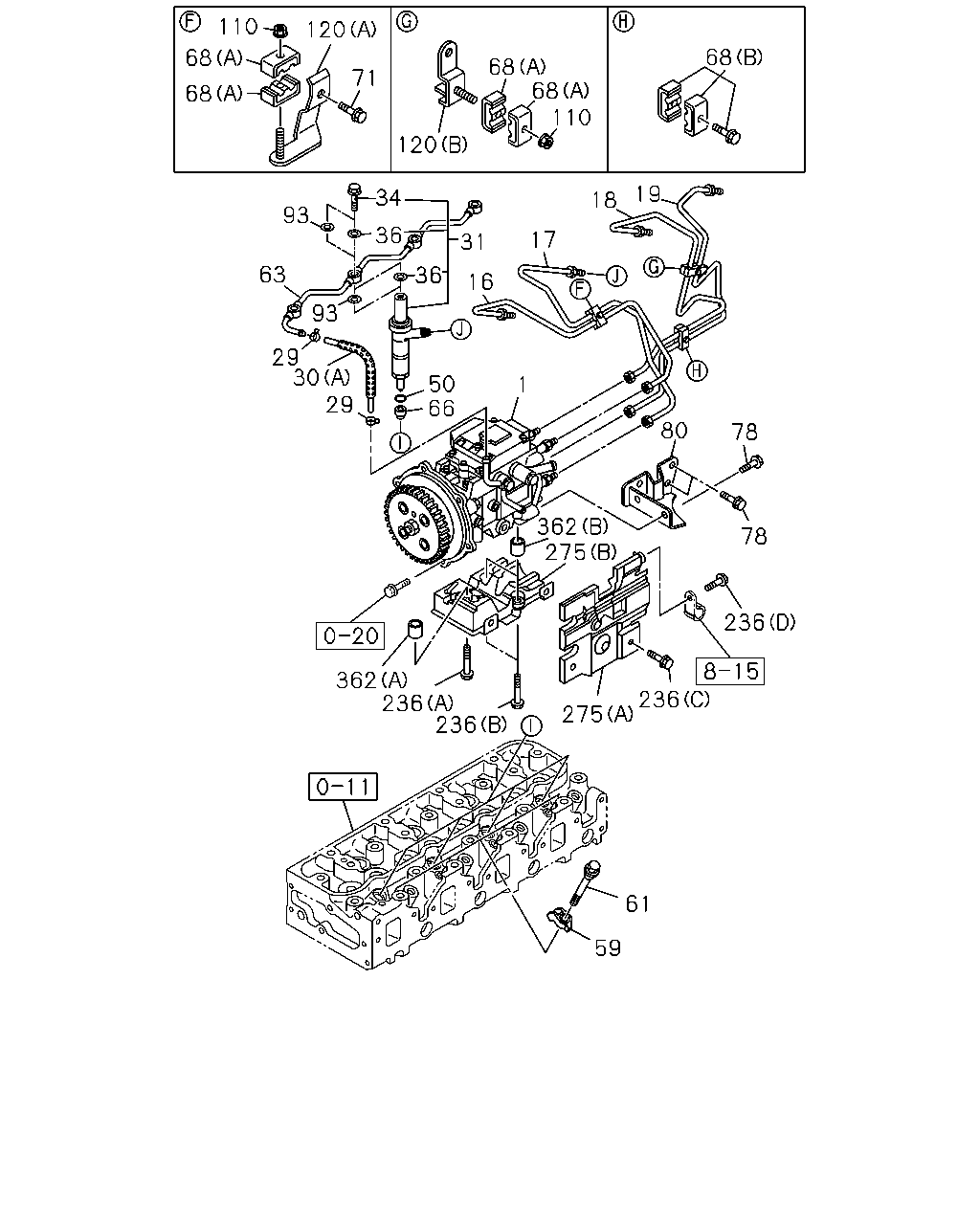

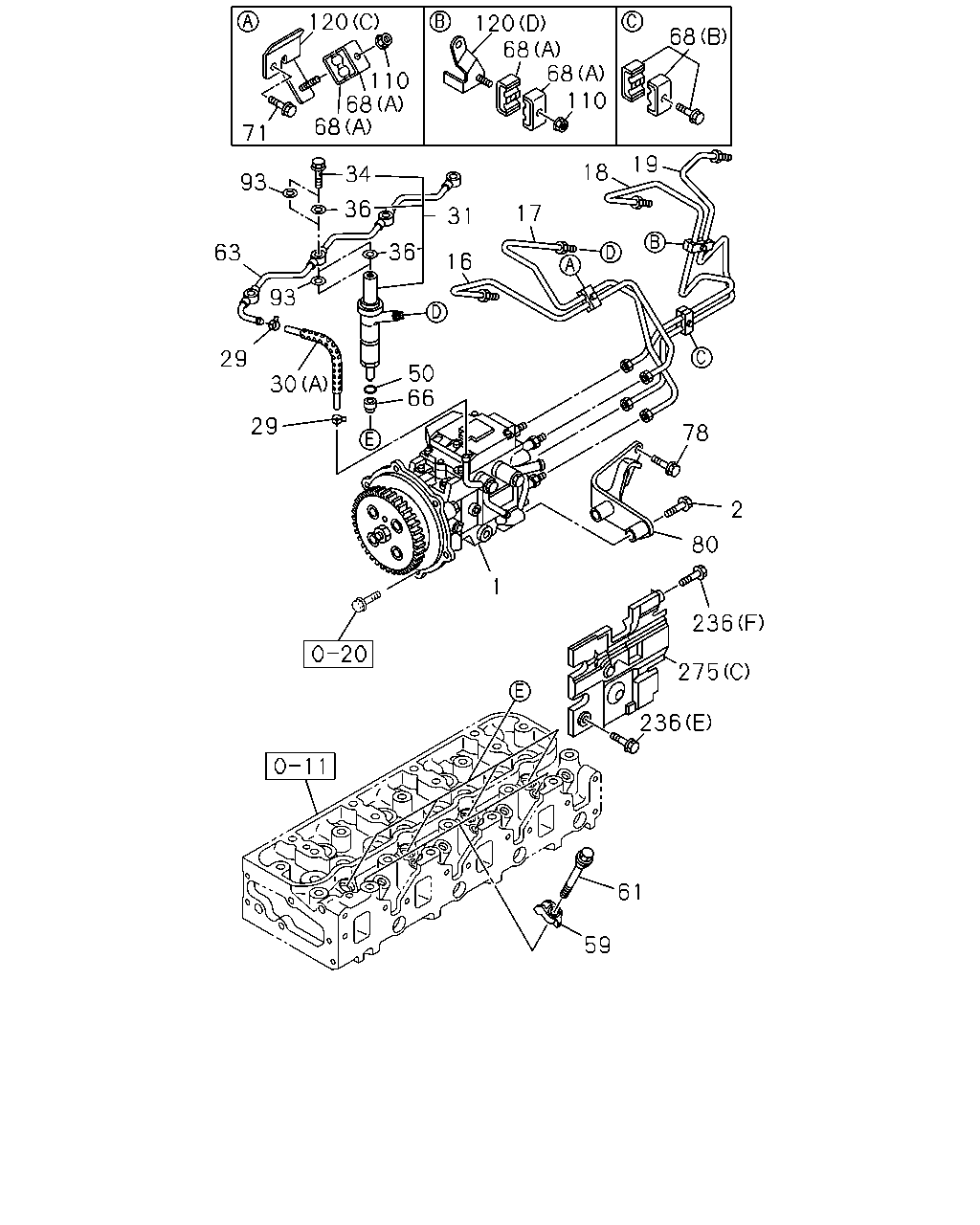

0-40 — FUEL INJECTION SYSTEM (#74101) — 261 parça

110 120 68 68 68 68 110 71 68 120 19 34 18 93 36 17 31 63 36 16 93 29 30 29 50 66 1 80 78 362 275 78 236 236 362 236 236 275 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97249-238-2	01	1	0306-0402	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FRIGID ZONE<V10>	8-97249-238-4	01	1	0403-0609	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRIGID ZONE<V10>	8-97377-519-2	01	1	0403-0609	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97326-739-1	01	1	0306-0402		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FRIGID ZONE<V10>	8-97326-739-3	01	1	0403-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRIGID ZONE<V10>	8-97377-520-2	01	1	0403-0609		●
16	03.330 PIPE; INJ NO.1	8-97300-013-4	01	1	0306-0609	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609		●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97300-014-4	01	1	0306-0609	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-97300-015-4	01	1	0306-0609	●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-			●	●
19	03.330 PIPE; INJ NO.4	8-97300-016-4	01	1	0306-0609	●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609		●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-			●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0306-0609	●	●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	0610-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	8-98053-692-0	01	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=96	8-98053-693-0	03	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0610-0810			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98112-034-0	01	1	0811-			●	●
31	03.332 NOZZLE ASM; INJ	8-97300-942-1	04	1	0306-0502	●
31	03.332 NOZZLE ASM; INJ	8-97382-947-0	04	1	0503-0609	●
31	03.332 NOZZLE ASM; INJ	8-98011-605-5	04	1	0610-			●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0502		●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0503-0609		●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0610-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0306-0609	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0306-0502	●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-1	04	1	0306-0402	●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-615-0	04	1	0403-0609	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0402	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97920-006-0	04	1	0403-0609	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710			●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-			●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0306-0402	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-97920-028-0	04	1	0403-0609	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0306-0402	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97920-247-0	01	1	0403-0609	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-			●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609	●	●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-			●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609	●	●
71	03.162 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0306-0402	●	●
71	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0403-0609	●	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0306-0402	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0403-0609	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0306-0311		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0312-0402		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0403-0609		●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0306-0311		●
80	03.306 BRACKET; PUMP	8-97328-484-0	01	1	0306-0609	●
80	03.306 BRACKET; PUMP	8-97287-698-3	01	1	0306-0609		●
93	03.162 GASKET; LEAK OFF PIPE 03.332	8-97084-347-0	08	1	0503-0609	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0402	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0403-0609	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-			●	●
120	03.330 BRACKET; INJ PIPE (C)	8-97255-534-0	01	1	0306-0609	●
120	03.330 BRACKET; INJ PIPE (D)	8-97310-508-0	01	1	0306-0609	●
120	03.330 BRACKET; INJ PIPE (A)	8-97313-942-1	01	1	0306-0609		●
120	03.330 BRACKET; INJ PIPE (B)	8-97313-943-1	01	1	0306-0609		●
236	03.335 BOLT; COVER 01.540 (E) M10X20 FLANGE	0-28181-020-0	01	1	0306-0601	●
236	03.335 BOLT; COVER 03.417 (E) M10X20 FLANGE	0-28151-020-0	01	1	0602-0609	●
236	03.335 BOLT; COVER 16.716 (F) M8X25	8-94493-360-1	01	1	0306-0609	●
236	03.335 BOLT; COVER 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0306-0402		●
236	03.335 BOLT; COVER 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0403-0609		●
236	03.335 BOLT; COVER 09.171 (A) M10X45 FLANGE	0-28181-045-0	01	1	0306-0601		●
236	03.335 BOLT; COVER 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0602-0609		●
236	03.335 BOLT; COVER 08.900 (B) M10X50 FLANGE	0-28181-050-0	02	1	0306-0601		●
236	03.335 BOLT; COVER 02.042 (B) M10X50 FLANGE	0-28151-050-0	02	1	0602-0609		●
236	03.335 BOLT; COVER 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0306-0402		●
236	03.335 BOLT; COVER 01.531 (D) M8X20 FLANGE	0-28650-820-0	01	1	0403-0609		●
275	03.335 COVER; INJ PUMP (C)	8-97329-015-1	01	1	0306-0609	●
275	03.335 COVER; INJ PUMP (A)	8-97329-014-0	01	1	0306-0609		●
275	03.335 COVER; INJ PUMP (B)	8-97329-016-0	01	1	0306-0609		●
362	03.330 PIPE; GUIDE (A)	8-97287-007-0	01	1	0306-0609		●
362	03.330 PIPE; GUIDE (B)	8-97287-008-0	02	1	0306-0609		●

120 120 68 68 110 68 110 68 68 71 19 18 34 93 36 17 31 36 63 16 93 29 50 66 30 29 78 2 80 1 236 275 236 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97249-238-2	01	1	0306-0402	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FRIGID ZONE<V10>	8-97249-238-4	01	1	0403-0609	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRIGID ZONE<V10>	8-97377-519-2	01	1	0403-0609	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97326-739-1	01	1	0306-0402		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FRIGID ZONE<V10>	8-97326-739-3	01	1	0403-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRIGID ZONE<V10>	8-97377-520-2	01	1	0403-0609		●
2	03.330 BOLT; INJ PUMP 01.540 M8X45 FLANGE	0-28080-845-0	02	1	0306-0402	●
2	03.330 BOLT; INJ PUMP 09.173 M8X45 FLANGE	0-28050-845-0	02	1	0403-0609	●
16	03.330 PIPE; INJ NO.1	8-97300-013-4	01	1	0306-0609	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609		●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97300-014-4	01	1	0306-0609	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-97300-015-4	01	1	0306-0609	●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-			●	●
19	03.330 PIPE; INJ NO.4	8-97300-016-4	01	1	0306-0609	●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609		●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-			●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0306-0609	●	●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	0610-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	8-98053-692-0	01	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=96	8-98053-693-0	03	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0610-0810			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98112-034-0	01	1	0811-			●	●
31	03.332 NOZZLE ASM; INJ	8-97300-942-1	04	1	0306-0502	●
31	03.332 NOZZLE ASM; INJ	8-97382-947-0	04	1	0503-0609	●
31	03.332 NOZZLE ASM; INJ	8-98011-605-5	04	1	0610-			●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0502		●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0503-0609		●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0610-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0306-0609	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0306-0502	●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-1	04	1	0306-0402	●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-615-0	04	1	0403-0609	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0402	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97920-006-0	04	1	0403-0609	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710			●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-			●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0306-0402	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-97920-028-0	04	1	0403-0609	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0306-0402	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97920-247-0	01	1	0403-0609	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-			●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609	●	●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-			●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609	●	●
71	03.162 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0306-0402	●	●
71	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0403-0609	●	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0306-0402	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0403-0609	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0306-0311		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0312-0402		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0403-0609		●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0306-0311		●
80	03.306 BRACKET; PUMP	8-97328-484-0	01	1	0306-0609	●
80	03.306 BRACKET; PUMP	8-97287-698-3	01	1	0306-0609		●
93	03.162 GASKET; LEAK OFF PIPE 03.332	8-97084-347-0	08	1	0503-0609	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0402	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0403-0609	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-			●	●
120	03.330 BRACKET; INJ PIPE (C)	8-97255-534-0	01	1	0306-0609	●
120	03.330 BRACKET; INJ PIPE (D)	8-97310-508-0	01	1	0306-0609	●
120	03.330 BRACKET; INJ PIPE (A)	8-97313-942-1	01	1	0306-0609		●
120	03.330 BRACKET; INJ PIPE (B)	8-97313-943-1	01	1	0306-0609		●
236	03.335 BOLT; COVER 01.540 (E) M10X20 FLANGE	0-28181-020-0	01	1	0306-0601	●
236	03.335 BOLT; COVER 03.417 (E) M10X20 FLANGE	0-28151-020-0	01	1	0602-0609	●
236	03.335 BOLT; COVER 16.716 (F) M8X25	8-94493-360-1	01	1	0306-0609	●
236	03.335 BOLT; COVER 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0306-0402		●
236	03.335 BOLT; COVER 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0403-0609		●
236	03.335 BOLT; COVER 09.171 (A) M10X45 FLANGE	0-28181-045-0	01	1	0306-0601		●
236	03.335 BOLT; COVER 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0602-0609		●
236	03.335 BOLT; COVER 08.900 (B) M10X50 FLANGE	0-28181-050-0	02	1	0306-0601		●
236	03.335 BOLT; COVER 02.042 (B) M10X50 FLANGE	0-28151-050-0	02	1	0602-0609		●
236	03.335 BOLT; COVER 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0306-0402		●
236	03.335 BOLT; COVER 01.531 (D) M8X20 FLANGE	0-28650-820-0	01	1	0403-0609		●
275	03.335 COVER; INJ PUMP (C)	8-97329-015-1	01	1	0306-0609	●
275	03.335 COVER; INJ PUMP (A)	8-97329-014-0	01	1	0306-0609		●
275	03.335 COVER; INJ PUMP (B)	8-97329-016-0	01	1	0306-0609		●

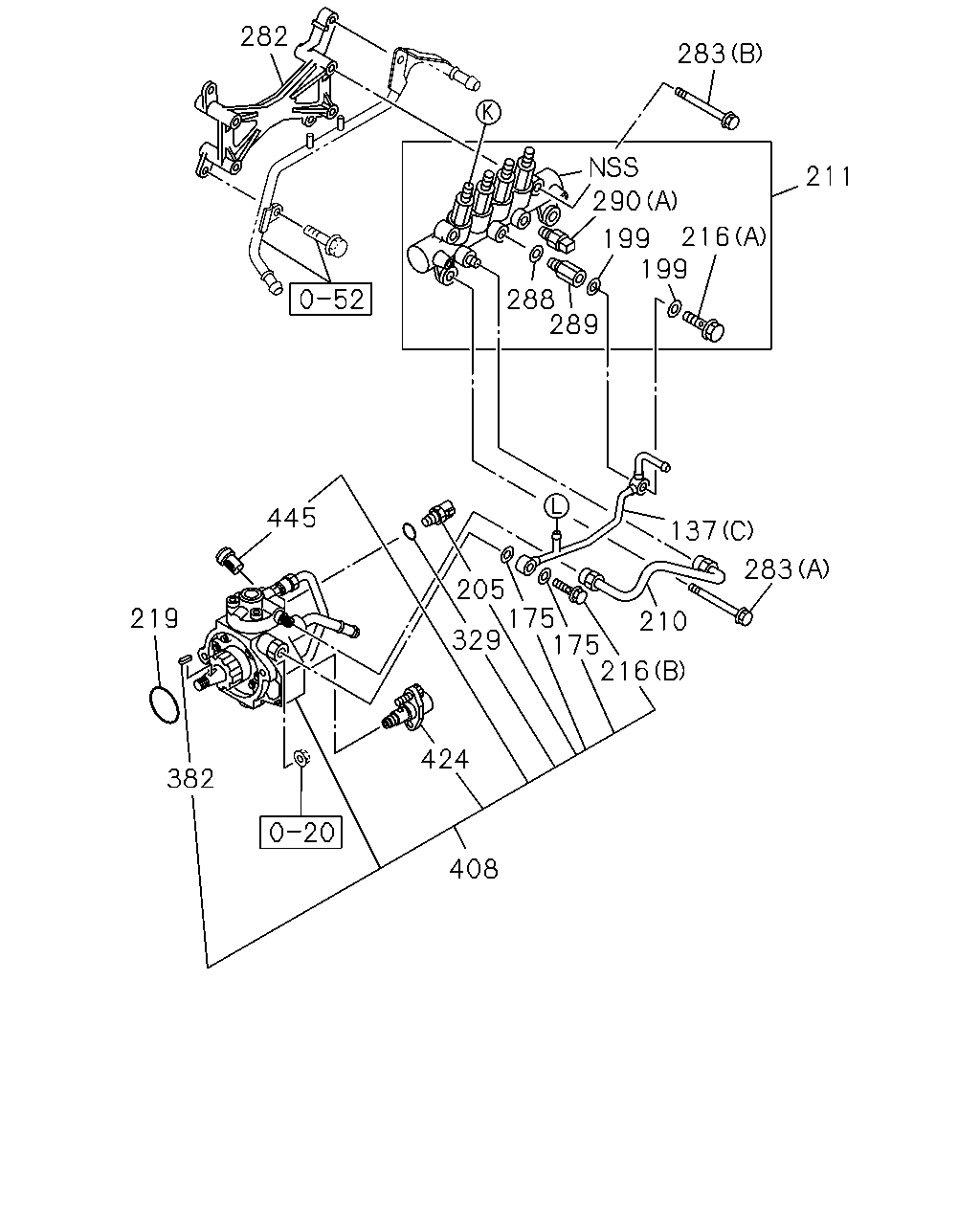

283 211 216 199 199 290 289 288 137 283 210 216 175 175 205 329 445 219 382 408 424 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0610-	●	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0610-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-97357-916-4	01	1	0610-	●	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-97372-938-3	01	1	0610-	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0610-	●	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0610-	●	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0610-0611	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0612-	●	●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	0610-	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-0	01	1	0610-0708	●	●
211	03.331 RAIL ASM; COMMON	8-98052-238-1	01	1	0709-	●	●
216	03.162 BOLT; EYE (B)	8-98056-937-0	01	1	0610-0809	●	●
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	0810-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0610-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0610-	●	●
282	03.163 BRACKET; COMMON RAIL	8-98011-890-1	01	1	0610-	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0610-	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0610-	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0610-	●	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0610-	●	●
290	03.331 SENSOR; PRESS (A)	8-97318-684-0	01	1	0610-0708	●	●
290	03.331 SENSOR; PRESS (A)	8-98014-320-0	01	1	0709-1208	●	●
290	03.331 SENSOR; PRESS (A)	8-98181-616-0	01	1	1209-	●	●
290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0710-	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1008-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97311-373-9	01	1	0610-1007	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-1	01	1	1008-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-453-0	01	1	0610-0809	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-0	01	1	0810-	●	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1008-	●	●

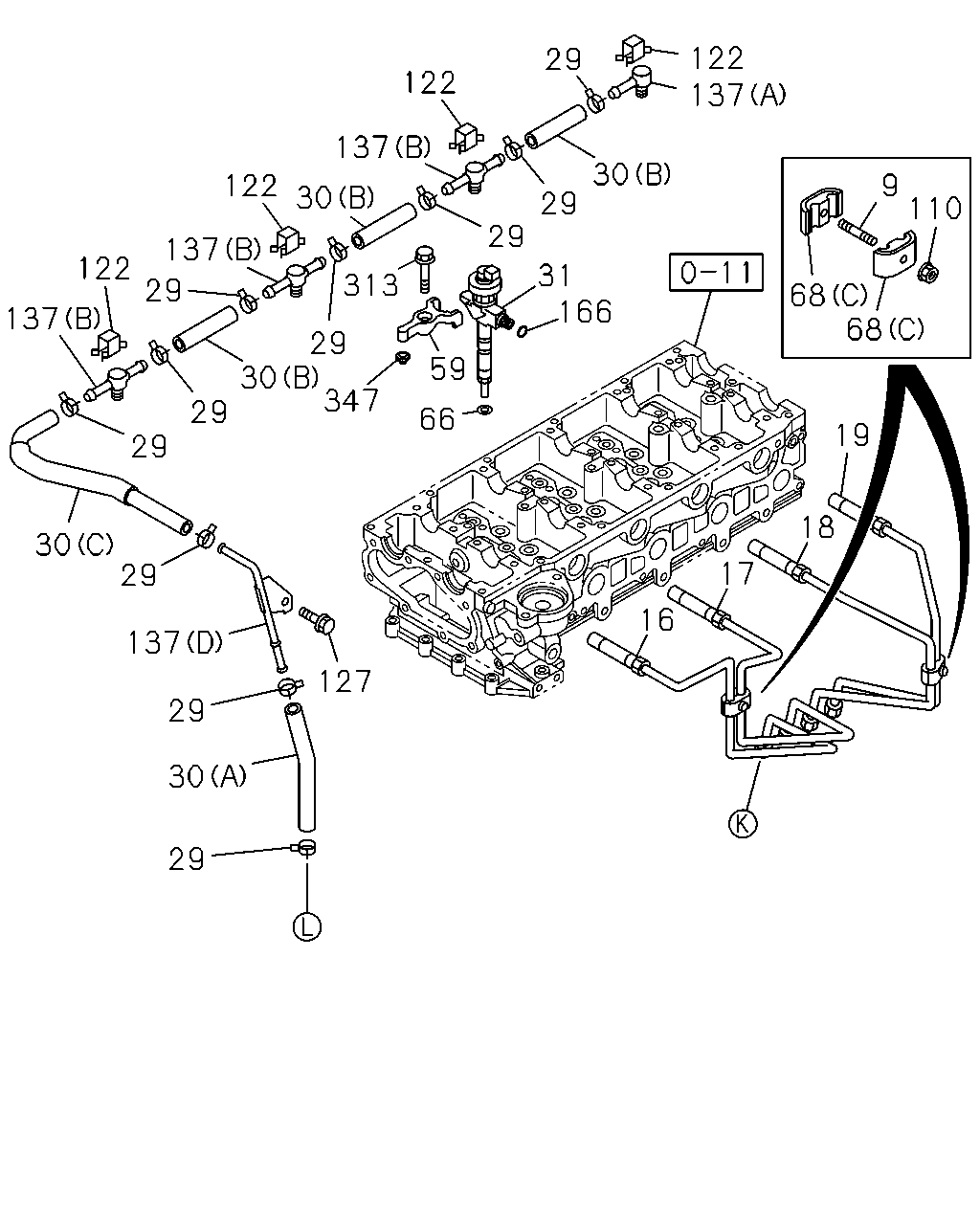

122 137 29 122 137 30 9 110 122 30 29 29 137 122 31 166 313 29 68 68 137 29 30 347 59 29 66 19 29 18 30 29 17 16 137 127 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	0610-			●	●
16	03.330 PIPE; INJ NO.1	8-97300-013-4	01	1	0306-0609	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609		●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97300-014-4	01	1	0306-0609	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-			●	●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-97300-015-4	01	1	0306-0609	●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609		●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-			●	●
19	03.330 PIPE; INJ NO.4	8-97300-016-4	01	1	0306-0609	●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609		●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-			●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0306-0609	●	●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	0610-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	8-98053-692-0	01	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0610-0611			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=96	8-98053-693-0	03	1	0612-			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0610-0810			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98112-034-0	01	1	0811-			●	●
31	03.332 NOZZLE ASM; INJ	8-97300-942-1	04	1	0306-0502	●
31	03.332 NOZZLE ASM; INJ	8-97382-947-0	04	1	0503-0609	●
31	03.332 NOZZLE ASM; INJ	8-98011-605-5	04	1	0610-			●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0502		●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0503-0609		●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0610-				●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0402	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97920-006-0	04	1	0403-0609	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710			●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-			●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609	●	●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-			●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0402	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0403-0609	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-			●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0610-			●	●
127	03.162 BOLT; CLIP LEAK OFF PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-			●	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0610-			●	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0610-			●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-97357-916-4	01	1	0610-			●	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-97372-938-3	01	1	0610-			●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	0610-			●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0610-0707			●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-98095-575-0	04	1	0708-			●	●
347	03.332 PIN	8-97383-286-0	04	1	0610-1012			●	●
347	03.332 PIN	8-98165-035-0	04	1	1101-			●	●

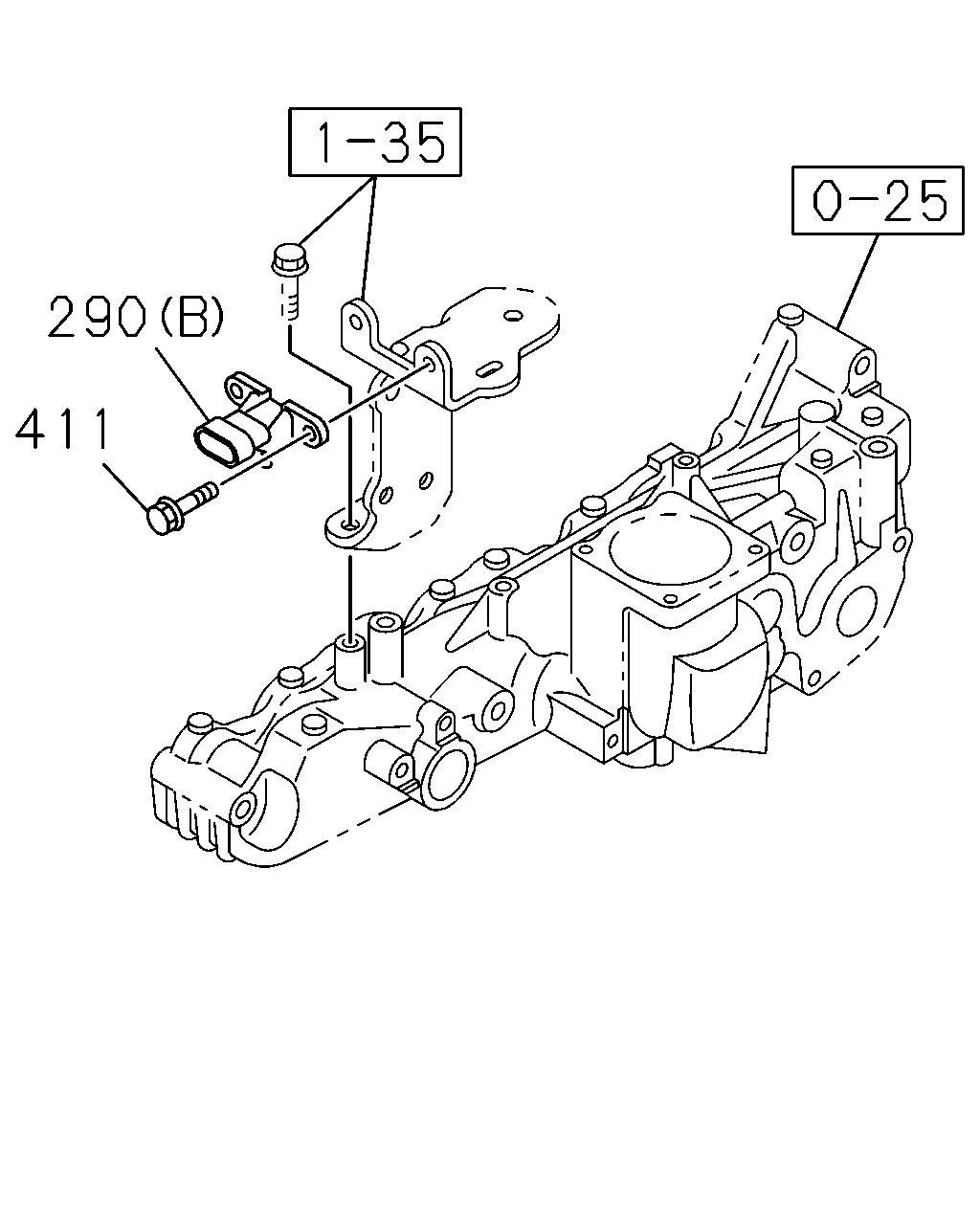

290 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
290	03.331 SENSOR; PRESS (A)	8-97318-684-0	01	1	0610-0708	●	●
290	03.331 SENSOR; PRESS (A)	8-98014-320-0	01	1	0709-1208	●	●
290	03.331 SENSOR; PRESS (A)	8-98181-616-0	01	1	1209-	●	●
290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●	●
411	03.331 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
