Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#7410) — 216 parça

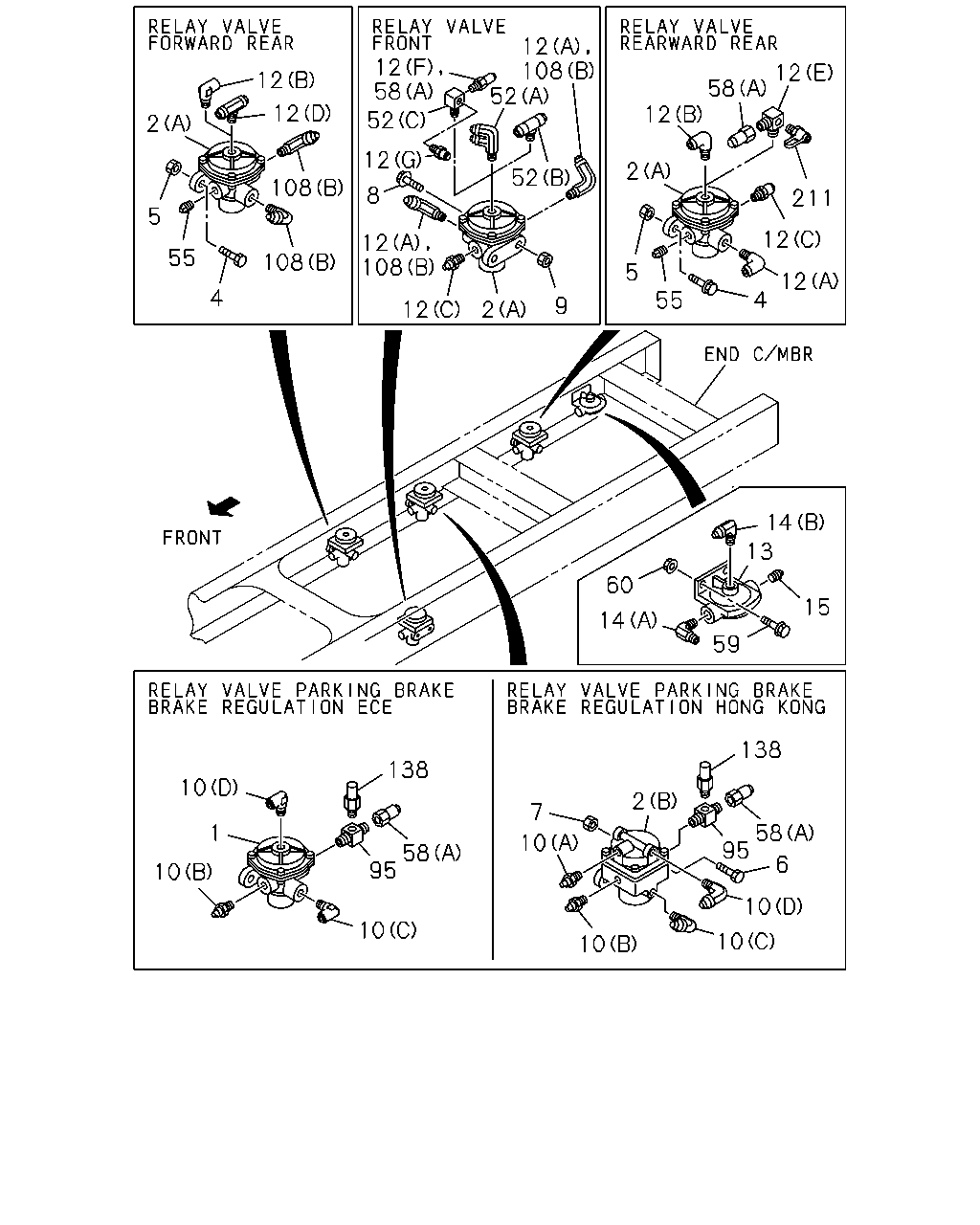

12 58 52 12 108 52 12 12 58 12 12 2 12 52 2 108 8 211 5 12 12 108 55 108 5 12 4 4 55 9 12 2 14 13 60 15 14 59 138 138 10 2 7 58 95 1 10 58 95 6 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	9902-
2	VALVE; RELAY WHEEL BASE 4500MM(45W) (A) REARWARD REAR	1-48210-278-0	01	1	9812-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	02	1	9902-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9812-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	9812-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (A)	1-48210-500-0	01	1	9902-9912
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	9812-
5	NUT M10 FLANGE	0-91150-210-0	04	1	9812-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9812-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9812-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9812-
9	NUT M10 FLANGE	0-91150-210-0	02	1	9812-
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-9902
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9812-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (C)	1-09661-125-0	01	1	9812-9901
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (B)	1-09661-126-0	01	1	9812-9901
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-09661-126-0	01	1	9902-
12	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9812-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9812-9901
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9812-
12	CONNECTOR; RELAY VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (F) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
12	CONNECTOR; RELAY VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (F) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9812-9901
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9812-9901
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9902-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9812-9901
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9812-9901
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	9902-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	9902-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9812-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-
15	PLUG; VALVE BRAKE REGULATION HONG KONG<TCZ> PT3/8	9-09204-517-0	01	1	9812-
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9902-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0004-
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9812-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0004-
52	CONNECTOR; RELAY VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0004-
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) PT1/2	9-09204-521-0	01	1	9812-9901
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	01	1	9812-9901
55	PLUG; SUPPLY PT1/2	9-09204-521-0	01	1	9902-
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	9902-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9812-
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9901
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9902-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	9812-9903
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28680-825-0	02	1	9904-
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	9812-9903
60	NUT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	02	1	9904-
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>	1-09656-446-0	01	1	9812-9901
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-09656-446-0	01	1	9902-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9812-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9812-9901
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-0	01	1	9812-9901
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48340-057-1	01	1	9902-
211	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9902-

240 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	9812-
	241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	9812-

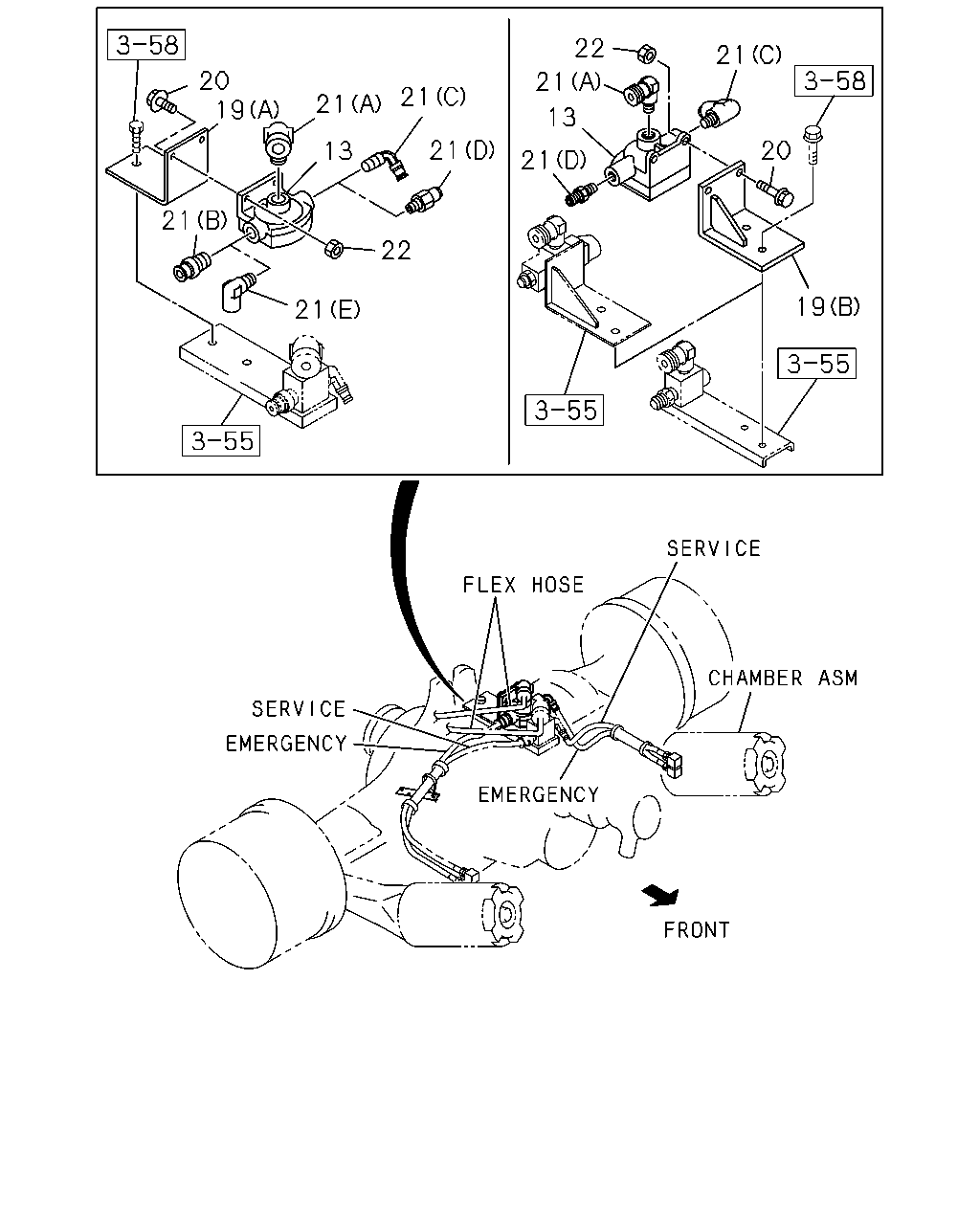

22 21 20 19 21 21 21 13 21 20 13 21 21 22 19 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9812-9901
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9812-9901
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	9902-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	9902-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (B)	1-47477-702-0	01	1	9902-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-47475-199-1	01	1	9812-9901
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47475-199-1	01	1	9902-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28680-825-0	02	1	9812-9901
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	9902-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	9902-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (D) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9902-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9812-9901
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9902-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9902-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9812-9901
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9902-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9812-9901
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9902-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9902-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9812-9901
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	9902-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	9902-

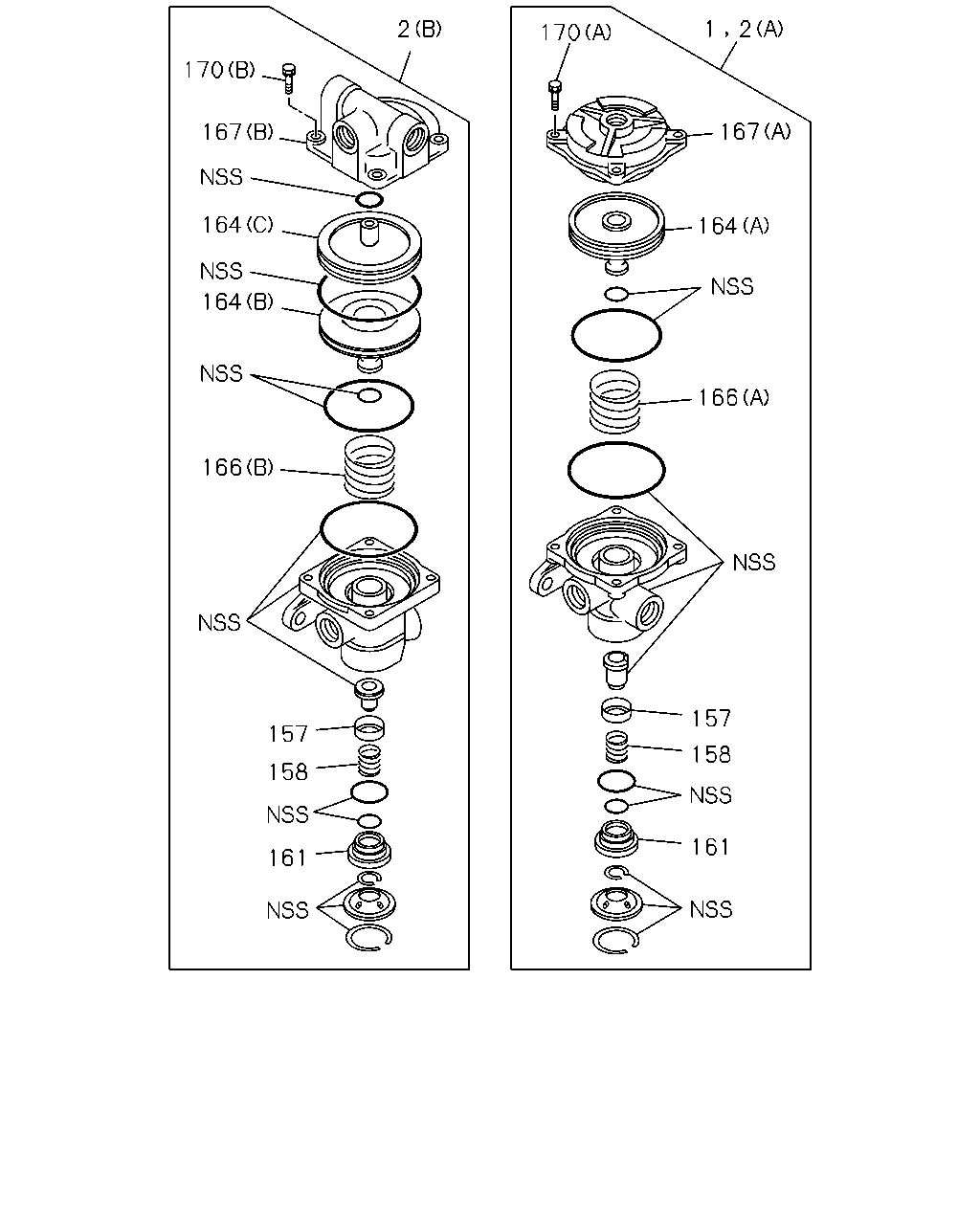

2 2 1 170 170 167 167 164 164 164 166 166 157 157 158 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	9902-
2	VALVE; RELAY WHEEL BASE 4500MM(45W) (A) REARWARD REAR	1-48210-278-0	01	1	9812-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	02	1	9902-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9812-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	9812-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (A)	1-48210-500-0	01	1	9902-9912
157	RETAINER; VALVE	1-48213-002-0	01	1	9812-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	02	1	0001-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	03	1	9812-9901
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48213-002-0	03	1	9902-9912
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	03	1	0001-
158	SPRING; VALVE	1-47819-089-0	01	1	9812-9912
158	SPRING; VALVE BRAKE REGULATION ECE<TDV>	1-47819-089-0	02	1	0001-
158	SPRING; VALVE BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0001-
158	SPRING; VALVE	1-47819-089-0	01	1	0001-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-47819-089-0	03	1	9812-9901
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-47819-089-0	03	1	9902-9912
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-47819-089-0	03	1	0001-
161	GUIDE; VALVE	1-48129-014-0	01	1	9812-9912
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	02	1	0001-
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48129-014-0	03	1	9812-9901
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48129-014-0	03	1	9902-9912
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48129-014-0	03	1	0001-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9812-9901
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-071-0	03	1	9902-9912
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9902-9912
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	9812-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	9812-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	02	1	9812-9912
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48219-071-0	02	1	0001-
166	SPRING; PISTON WHEEL BASE 4500MM(45W) (A) REARWARD REAR	1-47819-090-0	01	1	9812-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	03	1	9902-9912
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	02	1	0001-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	02	1	9812-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	9812-
166	SPRING; PISTON WHEEL BASE 4700MM(47W) (A)	1-47819-165-0	01	1	9902-9912
166	SPRING; PISTON WHEEL BASE 4700MM(47W) (A)	1-47819-165-0	01	1	0001-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	0001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	9812-9901
167	COVER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	03	1	9902-9912
167	COVER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	01	1	0001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	9902-9912
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	9812-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	02	1	9812-9912
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	02	1	0001-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9812-9901
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	12	1	9902-9912
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9902-9912
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	08	1	9812-9912
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	08	1	0001-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	9812-

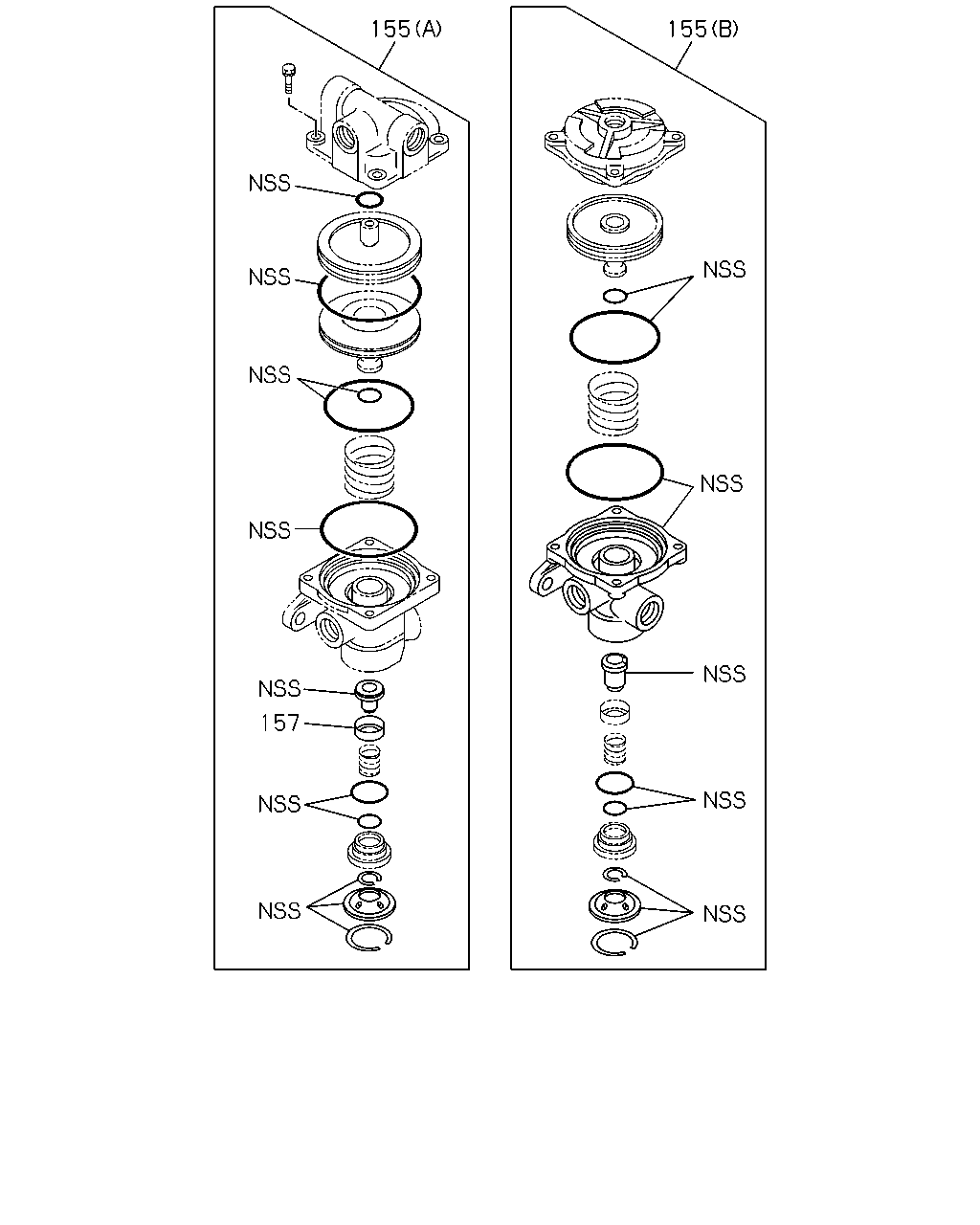

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9812-9901
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	03	1	9902-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9902-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	02	1	9812-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	02	1	0001-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-85576-035-0	01	1	9812-
157	RETAINER; VALVE	1-48213-002-0	01	1	9812-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	02	1	0001-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	03	1	9812-9901
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48213-002-0	03	1	9902-9912
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	03	1	0001-

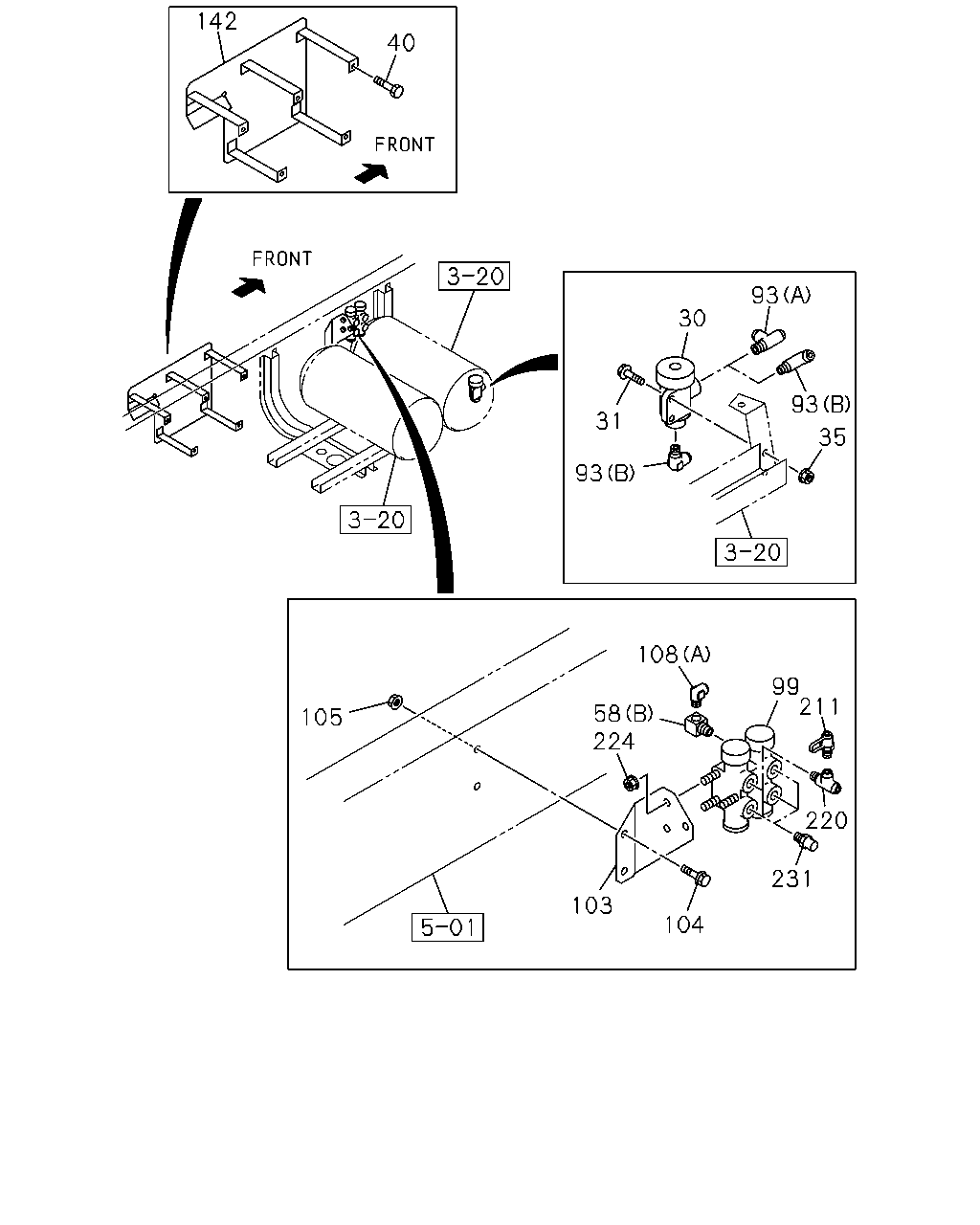

142 40 93 30 93 31 35 93 108 99 211 58 224 105 220 231 103 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9812-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9812-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9812-
40	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	05	1	9902-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9812-
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9901
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9902-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	02	1	9812-0002
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0003-
93	CONNECTOR; GOV WHEEL BASE 4700MM(47W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9902-
99	VALVE; PROTECTION	1-48110-114-5	01	1	9812-
103	BRACKET; PROTECTION VALVE WHEEL BASE 4500MM(45W)	1-47478-351-1	01	1	9812-
103	BRACKET; PROTECTION VALVE WHEEL BASE 4700MM(47W)	1-47478-407-0	01	1	9902-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	9812-
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	9812-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9812-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9812-9901
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-
142	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48219-143-0	01	1	9902-
211	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9902-
220	CONNECTOR; 3WAY WHEEL BASE 4700MM(47W)	1-09661-027-0	01	1	9902-
224	NUT; PROTECTION VALVE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	03	1	9812-
231	CONNECTOR; NYLON TUBE WHEEL BASE 4500MM(45W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	9812-
231	CONNECTOR; NYLON TUBE WHEEL BASE 4700MM(47W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9902-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
