Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

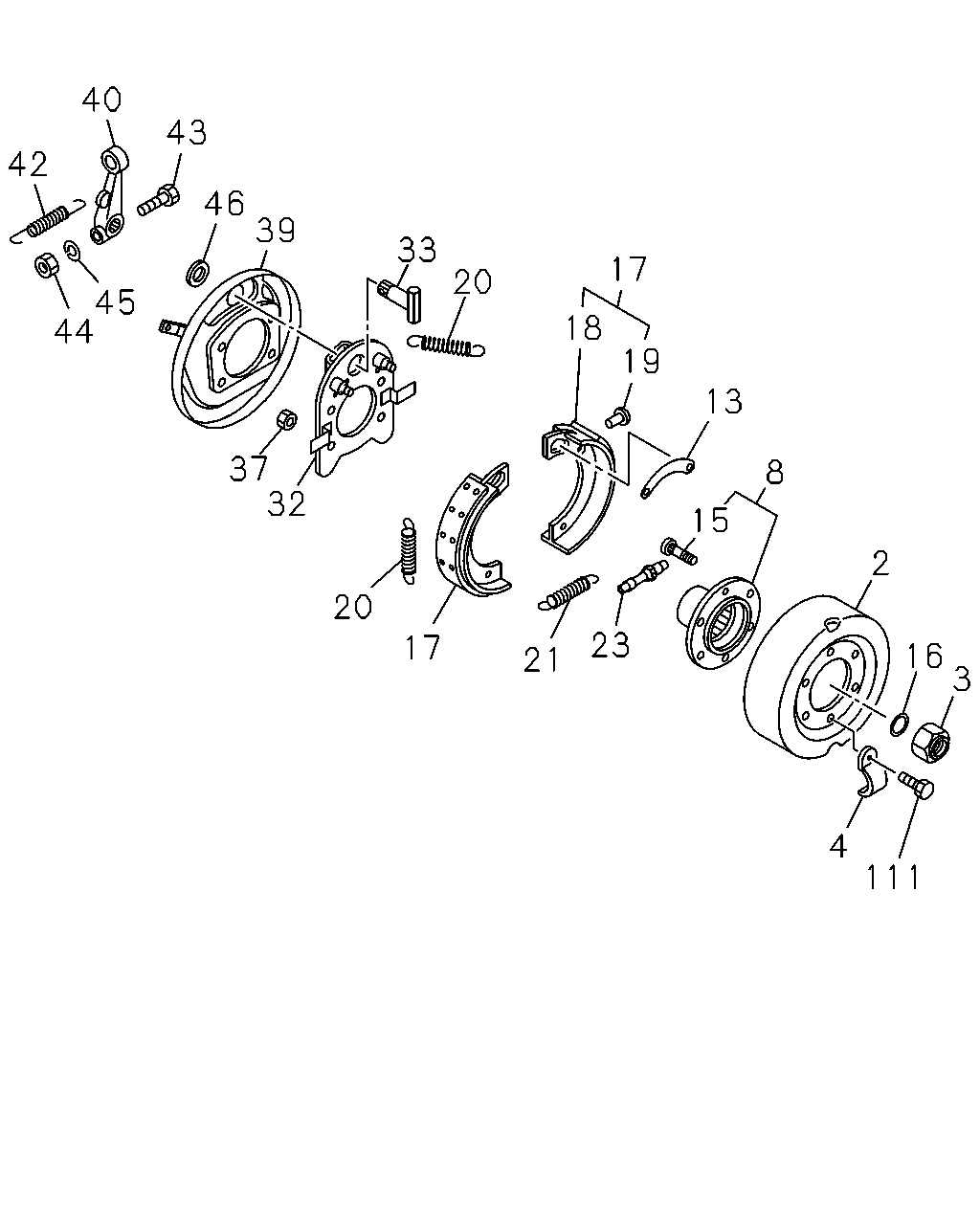

3-08 — PARKING BRAKE
(#741) — 24 parça
40
43
42
46
39
33
17
20
45
44
18
19
13
37
32
8
15
2
20
23
17
16
3
21
4
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-019-0
01
1
9505-
3
NUT; LK
M36 FLANGE
1-09449-063-0
01
1
9505-
4
COVER; ADJ HOLE
1-46219-030-0
02
1
9505-
8
FLANGE; PARKING BRK
1-37243-235-0
01
1
9505-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
9505-
15
BOLT; FLANGE
M16X55
1-46219-039-0
04
1
9505-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5
1-09623-380-0
01
1
9505-
17
SHOE; PARKING BRK
1-46220-022-0
02
1
9505-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
9505-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
9505-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
9505-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
9505-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
9505-
32
PLATE; SUPPORT,PARKING BRK
1-46213-039-0
01
1
9505-
33
SHAFT; CAM,PARKING BRK
1-46251-006-0
01
1
9505-
37
NUT; SUPPORT PLATE
M14 FLANGE
1-09440-048-0
04
1
9505-
39
COVER; DUST,PARKING BRK
1-46213-038-0
01
1
9505-
40
LEVER; CM/SHF,PARKING BRK
1-46252-013-0
01
1
9505-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
9505-
43
BOLT; LEVER TO CM/SHF
0-10811-040-0
01
1
9505-
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
9505-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-010-0
01
1
9505-
46
WASHER; LEVER
9-09855-362-0
01
1
9505-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
9505-
