◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#74095) — 42 parça

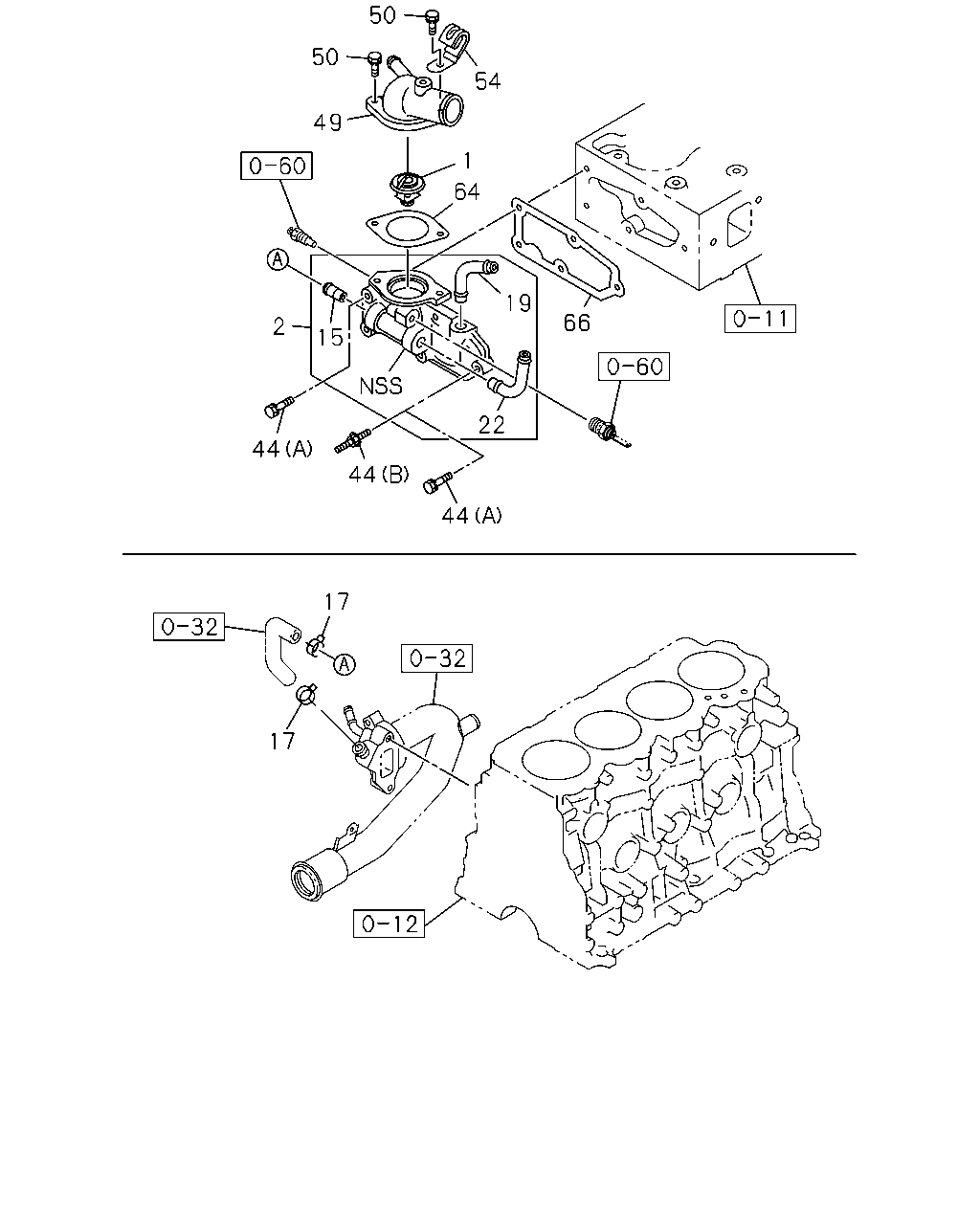

çizim 153132
50 50 54 49 1 64 19 66 2 15 22 44 44 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0306-0609 ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0610- ● ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 0306-0312 ● ●
2 01.251 HOUSING; THERMOSTAT 8-97372-994-1 01 1 0401-0609 ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 0306-0609 ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0610- ● ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-1 02 1 0306-0609 ● ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 0306-0609 ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-2 01 1 0306-0609 ● ●
44 01.252 BOLT; HSG TO HD
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 0306-0402 ● ●
44 01.252 BOLT; HSG TO HD
09.171 (A) M8X30 W/LK WASHER 		0-50540-830-0 04 1 0403-0609 ● ●
44 01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 0306-0609 ● ●
49 01.153 PIPE; WATER OUTLET 8-97354-992-0 01 1 0306-0310 ● ●
49 01.153 PIPE; WATER OUTLET 8-97306-461-2 01 1 0311-0609 ● ●
49 01.153 PIPE; WATER OUTLET 8-97355-456-7 01 1 0610-0809 ● ●
49 01.153 PIPE; WATER OUTLET 8-98120-945-0 01 1 0810- ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0306-0402 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0403-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 0610- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
01.150 ID=12 		8-97367-983-0 01 1 0306-0609 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-2 01 1 0306-0402 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97943-088-0 01 1 0403-0609 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0804- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 0306-0402 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97920-513-1 01 1 0403-0609 ● ●

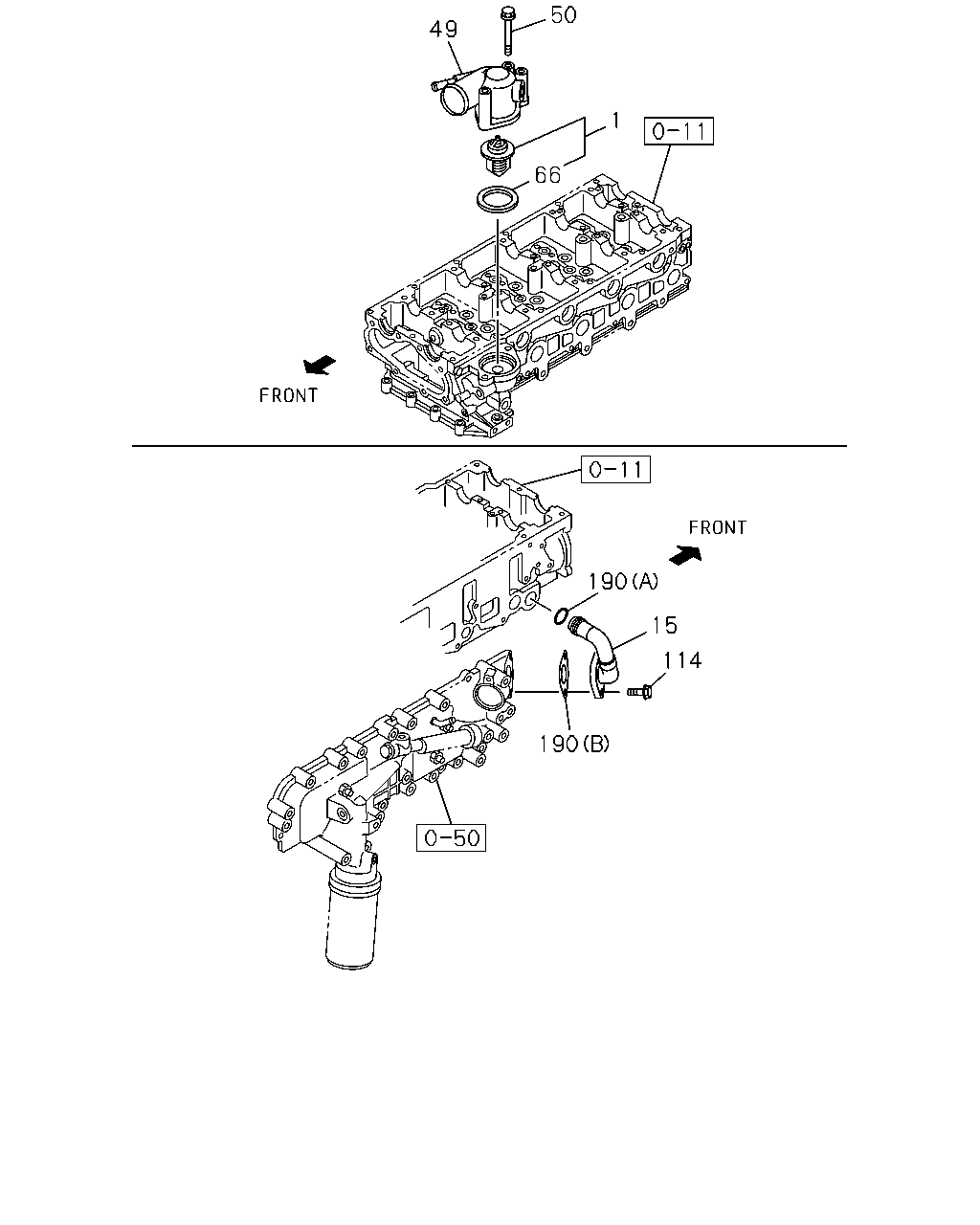

çizim 153350
50 49 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0306-0609 ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0610- ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 0306-0609 ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0610- ● ●
49 01.153 PIPE; WATER OUTLET 8-97354-992-0 01 1 0306-0310 ● ●
49 01.153 PIPE; WATER OUTLET 8-97306-461-2 01 1 0311-0609 ● ●
49 01.153 PIPE; WATER OUTLET 8-97355-456-7 01 1 0610-0809 ● ●
49 01.153 PIPE; WATER OUTLET 8-98120-945-0 01 1 0810- ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0306-0402 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0403-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 0610- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0804- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 0306-0402 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97920-513-1 01 1 0403-0609 ● ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 0610- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97318-494-2 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
