◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#74091) — 65 parça

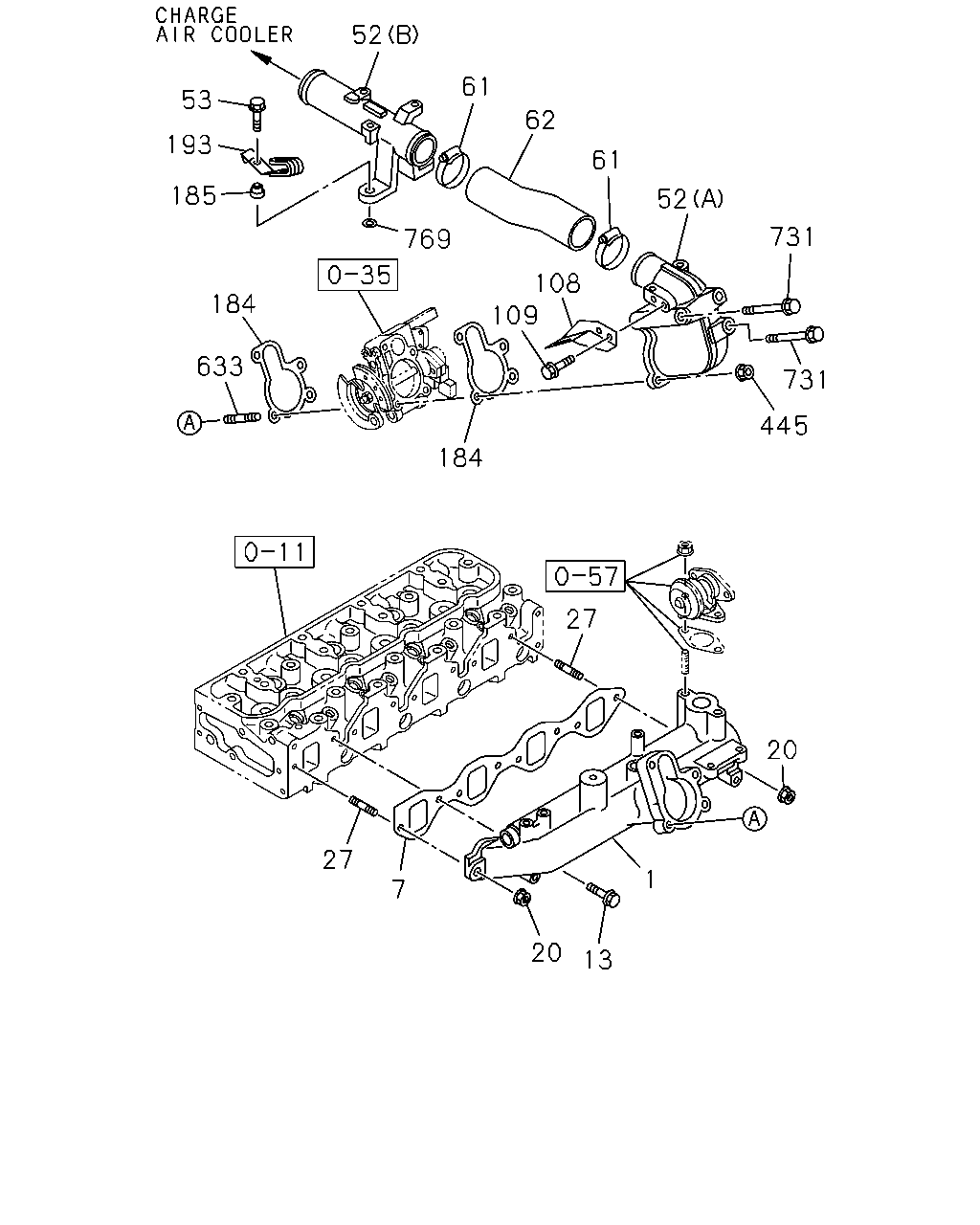

çizim 153096
52 61 53 62 193 61 185 52 731 769 108 109 184 633 731 445 184 27 20 27 1 7 20 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0306-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-97324-152-2 01 1 0306-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97301-838-0 01 1 0306-0402 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97920-514-1 01 1 0403-0609 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97312-067-1 01 1 0610- ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0306-0402 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0403-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610- ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610- ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0306-0402 ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97943-102-0 02 1 0403-0609 ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0306-0402 ● ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0403-0609 ● ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610- ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0306-0609 ● ●
52 01.097 PIPE; INL
(A) 		8-97311-685-2 01 1 0306-0609 ● ●
52 01.097 PIPE; INL
(B) 		8-97315-137-1 01 1 0306-0609 ● ●
53 03.602 BOLT; INL PIPE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0306-0402 ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0403-0609 ● ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-69 		8-94316-991-0 02 1 0306-0402 ● ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-65 		1-09707-204-0 02 1 0403-0609 ● ●
62 03.265 HOSE; CONNECTOR 8-97316-600-0 01 1 0306-0609 ● ●
108 03.444 BRACKET; ACCEL CABLE 8-97315-134-0 01 1 0306-0609 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0306-0402 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0403-0609 ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97214-127-0 02 1 0306-0609 ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97366-784-1 01 1 0610- ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR 8-94434-927-0 02 1 0306-0402 ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR 8-97910-200-0 02 1 0403-0609 ● ●
193 03.265 CLIP; VAC HOSE 8-97367-981-0 01 1 0306-0609 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0306-0402 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0403-0609 ● ●
633 03.275 STUD; THROTTLE BODY
01.060 M8X55 L=71 		9-04020-855-0 02 1 0306-0605 ● ●
633 03.275 STUD; THROTTLE BODY
M8X55 L=71 		0-40210-855-0 02 1 0606-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0306-0601 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0602-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610- ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0306-0402 ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=12 OD=24 T=4.5 		8-97912-693-1 02 1 0403-0609 ● ●

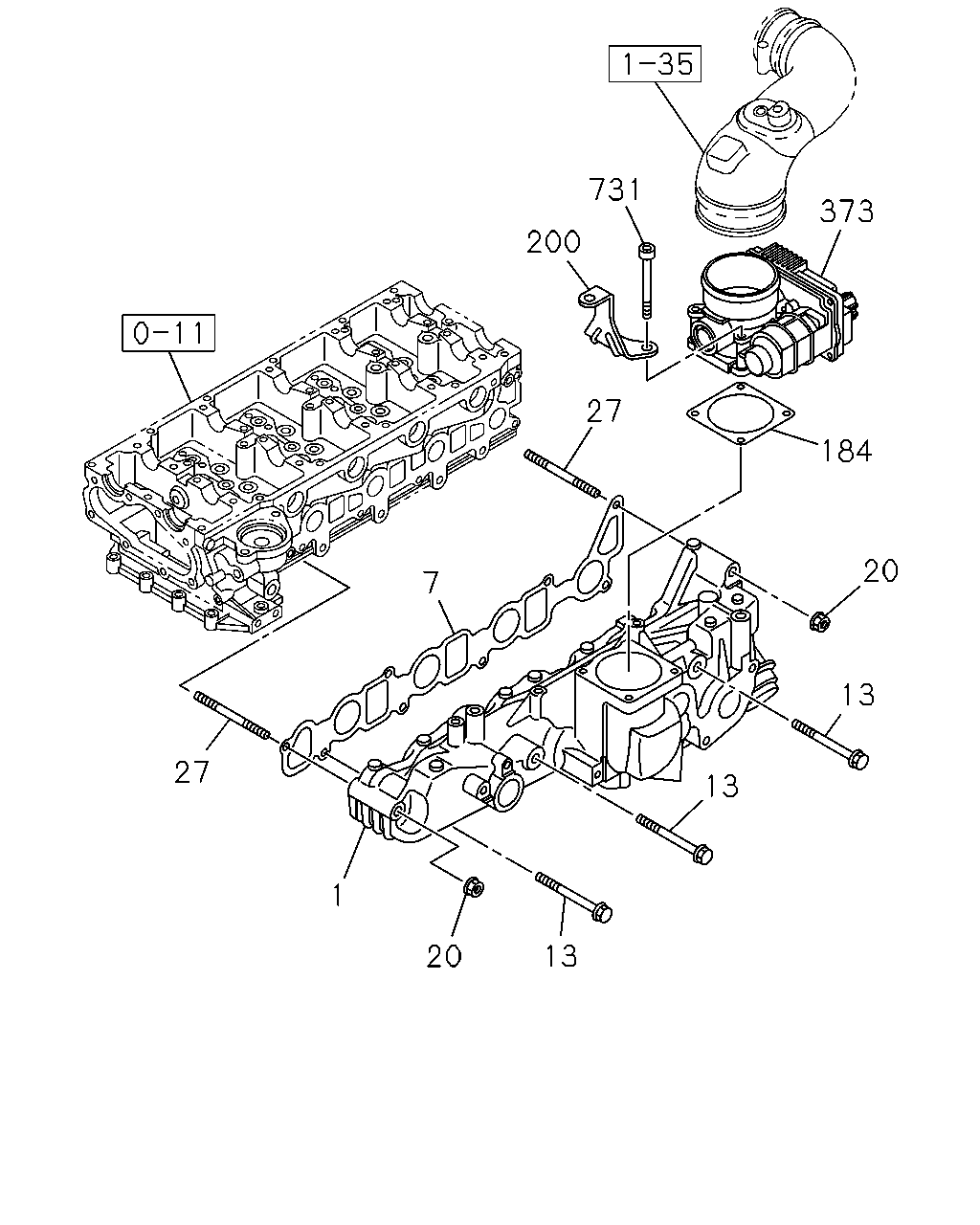

çizim 153292
731 373 200 27 184 20 7 13 27 13 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0306-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-97324-152-2 01 1 0306-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97301-838-0 01 1 0306-0402 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97920-514-1 01 1 0403-0609 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97312-067-1 01 1 0610- ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0306-0402 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0403-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610- ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610- ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0306-0402 ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97943-102-0 02 1 0403-0609 ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0306-0402 ● ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0403-0609 ● ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610- ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0306-0609 ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97214-127-0 02 1 0306-0609 ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97366-784-1 01 1 0610- ● ●
200 03.407 BRACKET; AIR DUCT 8-98031-444-0 01 1 0610- ● ●
373 03.265 THROTTLE ASM; INT 8-97945-522-4 01 1 0610- ● ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0306-0601 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0602-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610- ● ●
