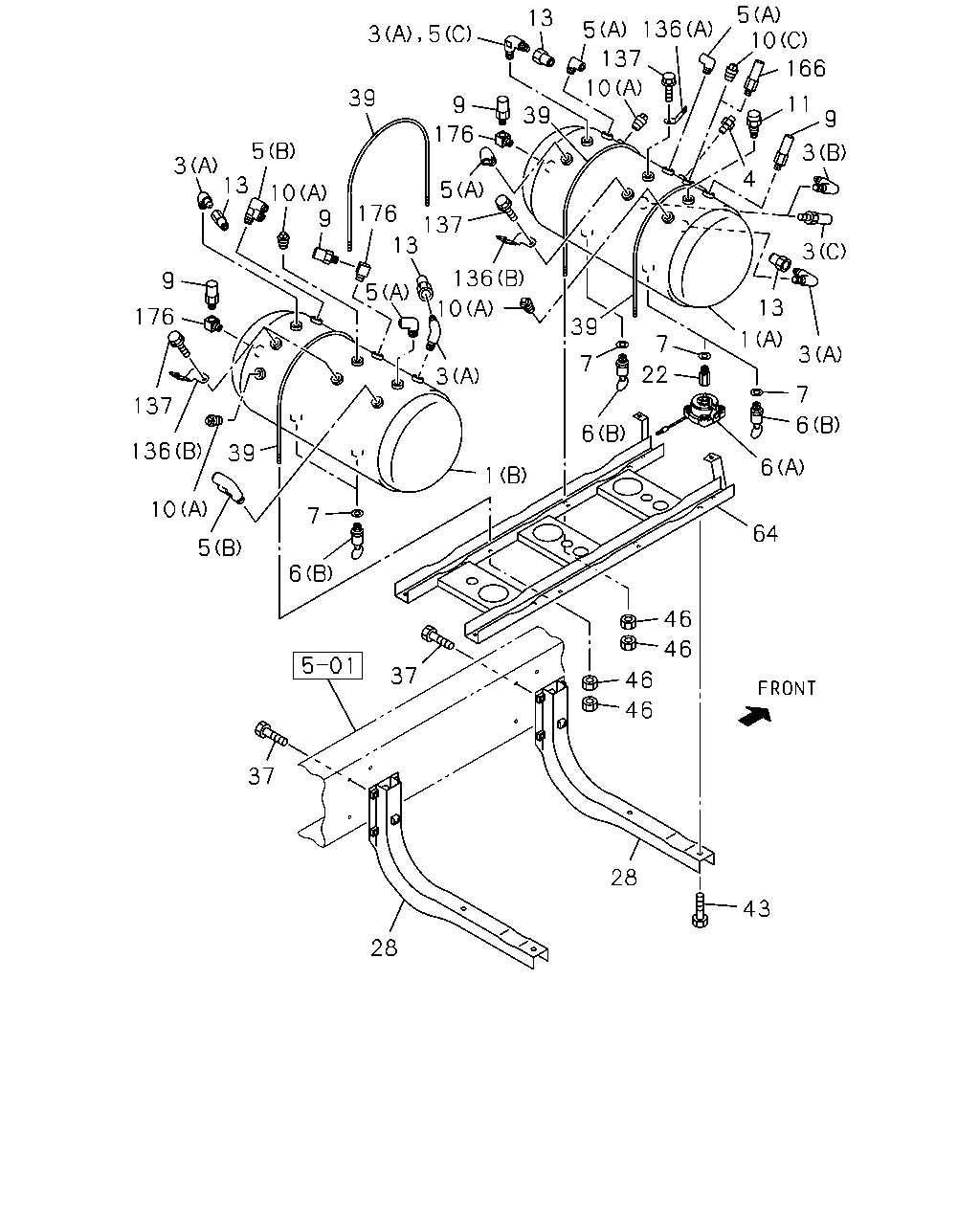

3-20 — AIR TANK (#7409) — 134 parça

5 10 166 13 136 5 3 5 137 10 39 11 9 39 9 176 5 3 3 13 4 5 10 9 176 137 13 3 136 9 5 10 13 176 39 1 7 3 3 7 22 7 137 6 6 136 39 6 1 10 7 64 5 6 46 46 37 46 46 37 28 43 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (A)	1-48370-626-1	01	1	9812-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (B)	1-48370-627-2	01	1	9812-
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (C)	1-48370-601-1	01	1	9902-9902
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (C)	1-48370-885-0	01	1	9903-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9812-9903
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (C)	1-48410-182-3	01	1	9904-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9812-9901
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9902-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9812-9903
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9904-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9902-
4	CONNECTOR; FLARE WHEEL BASE 4500MM(45W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9812-
4	CONNECTOR; FLARE WHEEL BASE 4700MM(47W) TRAILER BRAKE CONTROL<J91> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0004-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9812-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9812-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (C) M20 & PT3/4	1-09650-261-2	01	1	9904-
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9902-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9812-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9812-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) (B)	1-48312-015-0	03	1	9812-9901
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	03	1	9902-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9812-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ID=14	1-09630-145-0	03	1	9812-9901
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9902-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 4500MM(45W) 530KPA	1-48340-054-0	04	1	9812-9901
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9902-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	9812-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	9812-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT3/8	9-09204-517-0	03	1	9812-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	09	1	9902-9902
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	06	1	9903-0003
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) TRAILER BRAKE CONTROL<J91> (A) PT3/8	9-09204-517-0	05	1	0004-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (B) PT3/4	9-09204-526-0	03	1	9902-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) EXC. TRAILER BRAKE CONTROL<J91> (A) PT3/8	9-09204-517-0	06	1	0004-
11	VALVE; SAFETY,AIR TANK WHEEL BASE 4500MM(45W)	1-48320-012-0	01	1	9812-9901
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9902-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9812-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9812-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9812-
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-790-0	02	1	9812-
28	BRACKET; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-826-5	02	1	9902-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9812-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-675-0	04	1	9812-9901
39	U-BOLT; AIR TANK	1-48317-675-0	04	1	9902-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4500MM(45W) M12X25 FLANGE	0-28681-225-0	04	1	9812-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4700MM(47W) M12X30 FLANGE	0-28681-230-0	08	1	9902-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) M8	9-09110-408-0	16	1	9812-9901
46	NUT; U-BOLT M8	9-09110-408-0	16	1	9902-
64	STAY; AIR TANK,MAIN WHEEL BASE 4500MM(45W)	1-48317-809-1	01	1	9812-
64	STAY; AIR TANK,MAIN WHEEL BASE 4700MM(47W)	1-48317-801-1	01	1	9902-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47477-571-3	01	1	9812-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47477-943-0	03	1	9812-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (A) L=150 H=30	1-47477-629-2	01	1	9902-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (B) L=100 H=30	1-47477-645-2	01	1	9902-
137	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	04	1	9812-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9812-
176	ADAPTER WHEEL BASE 4500MM(45W) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9812-
176	ADAPTER WHEEL BASE 4700MM(47W) PT3/8 ELBOW	1-09660-696-0	01	1	9902-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9812-9901
	241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9902-

37 43 28 28 46 46 64 10 5 5 10 366 39 5 357 9 4 10 357 136 10 10 10 9 136 9 11 10 39 10 5 10 166 13 351 10 7 2 10 9 6 176 366 10 10 23 39 3 9 1 39 7 5 7 35 7 6 2 6 126 3 13 20 3 6

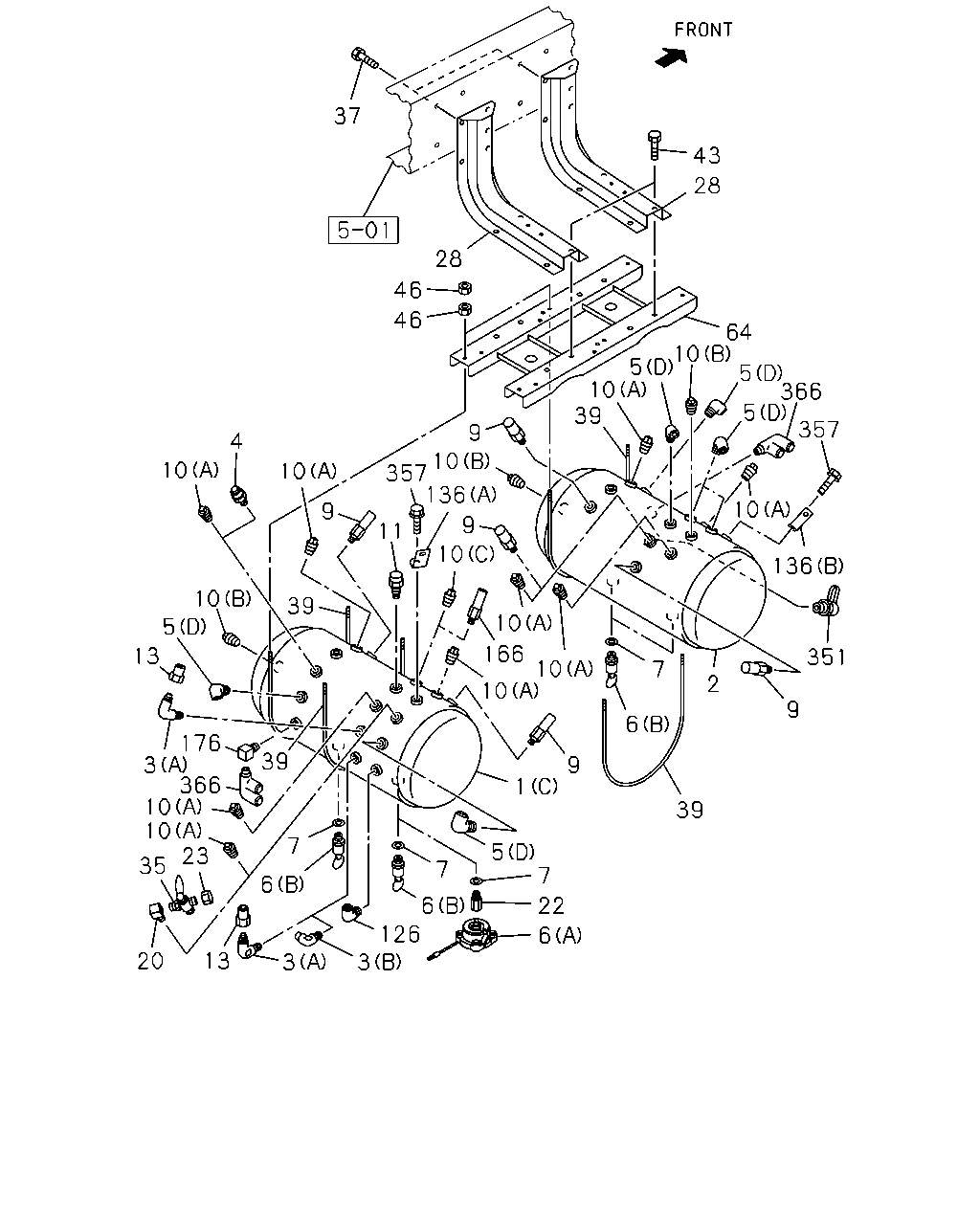

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (A)	1-48370-626-1	01	1	9812-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (B)	1-48370-627-2	01	1	9812-
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (C)	1-48370-601-1	01	1	9902-9902
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (C)	1-48370-885-0	01	1	9903-
2	TANK; AIR WHEEL BASE 4700MM(47W)	1-48370-602-0	01	1	9902-9902
2	TANK; AIR WHEEL BASE 4700MM(47W)	1-48370-884-0	01	1	9903-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9812-9903
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (C)	1-48410-182-3	01	1	9904-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9812-9901
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9902-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9812-9903
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9904-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9902-
4	CONNECTOR; FLARE WHEEL BASE 4500MM(45W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9812-
4	CONNECTOR; FLARE WHEEL BASE 4700MM(47W) TRAILER BRAKE CONTROL<J91> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0004-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9812-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9812-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (C) M20 & PT3/4	1-09650-261-2	01	1	9904-
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9902-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9812-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9812-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) (B)	1-48312-015-0	03	1	9812-9901
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	03	1	9902-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9812-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ID=14	1-09630-145-0	03	1	9812-9901
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9902-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 4500MM(45W) 530KPA	1-48340-054-0	04	1	9812-9901
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9902-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	9812-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	9812-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT3/8	9-09204-517-0	03	1	9812-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	09	1	9902-9902
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	06	1	9903-0003
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) TRAILER BRAKE CONTROL<J91> (A) PT3/8	9-09204-517-0	05	1	0004-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (B) PT3/4	9-09204-526-0	03	1	9902-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) EXC. TRAILER BRAKE CONTROL<J91> (A) PT3/8	9-09204-517-0	06	1	0004-
11	VALVE; SAFETY,AIR TANK WHEEL BASE 4500MM(45W)	1-48320-012-0	01	1	9812-9901
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9902-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9812-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9812-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9812-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9812-
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-790-0	02	1	9812-
28	BRACKET; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-826-5	02	1	9902-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9812-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9812-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-675-0	04	1	9812-9901
39	U-BOLT; AIR TANK	1-48317-675-0	04	1	9902-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4500MM(45W) M12X25 FLANGE	0-28681-225-0	04	1	9812-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4700MM(47W) M12X30 FLANGE	0-28681-230-0	08	1	9902-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) M8	9-09110-408-0	16	1	9812-9901
46	NUT; U-BOLT M8	9-09110-408-0	16	1	9902-
64	STAY; AIR TANK,MAIN WHEEL BASE 4500MM(45W)	1-48317-809-1	01	1	9812-
64	STAY; AIR TANK,MAIN WHEEL BASE 4700MM(47W)	1-48317-801-1	01	1	9902-
126	CONNECTOR; ELBOW WHEEL BASE 4700MM(47W) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47477-571-3	01	1	9812-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47477-943-0	03	1	9812-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (A) L=150 H=30	1-47477-629-2	01	1	9902-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (B) L=100 H=30	1-47477-645-2	01	1	9902-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9812-
176	ADAPTER WHEEL BASE 4500MM(45W) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9812-
176	ADAPTER WHEEL BASE 4700MM(47W) PT3/8 ELBOW	1-09660-696-0	01	1	9902-
351	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9902-
357	BOLT; BRKT WHEEL BASE 4700MM(47W) M8X20 FLANGE	0-28680-820-0	02	1	9902-
366	CONNECTOR; NYLON TUBE WHEEL BASE 4700MM(47W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9902-
