0-10 — CYLINDER HEAD COVER (#74083) — 53 parça

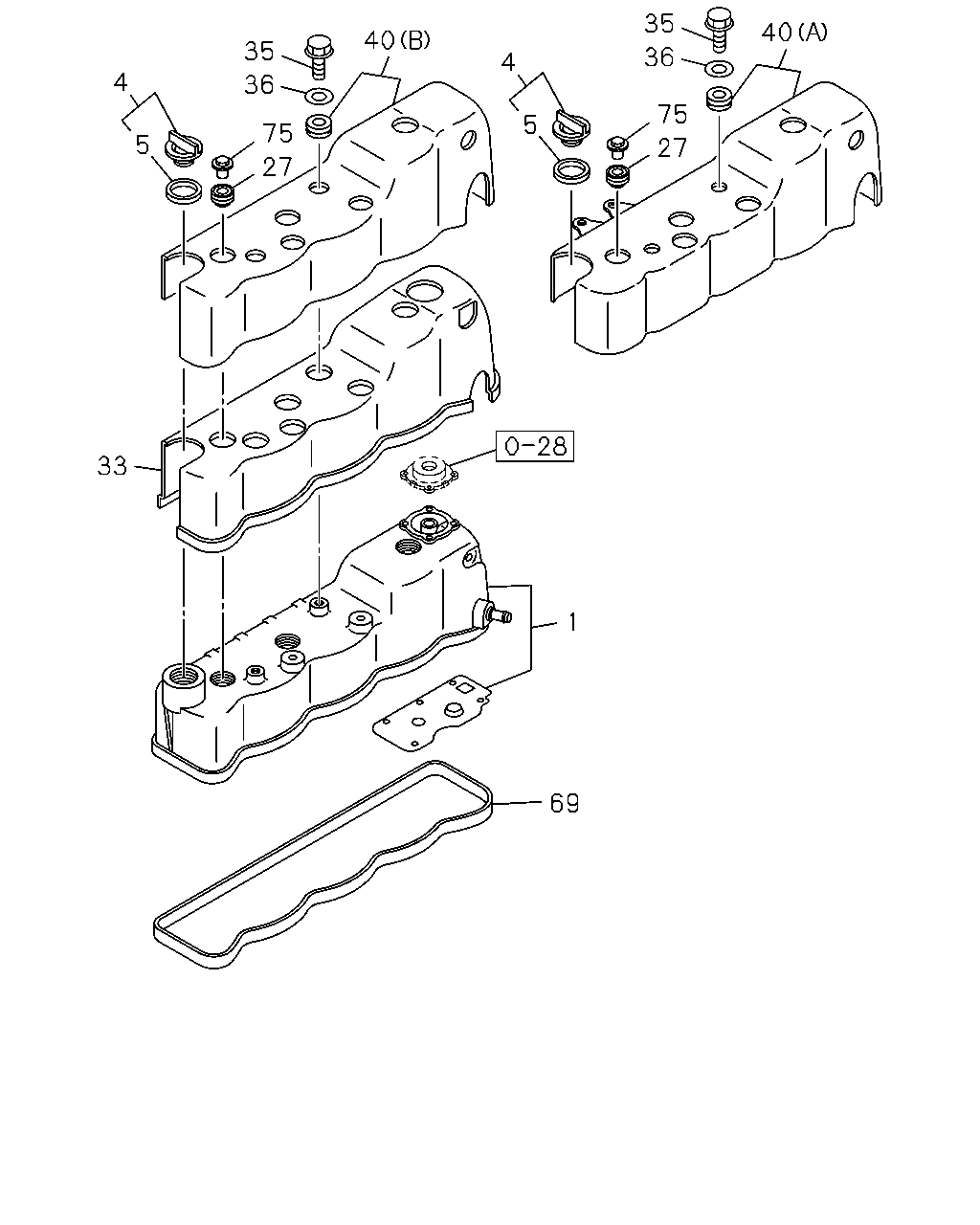

çizim 153141
35 40 40 35 36 4 4 36 75 5 75 5 27 27 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0306-0609 ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0610-1007 ● ●
1 00.386 COVER; CYL HD 8-98156-392-0 01 1 1008- ● ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0306-0609 ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0306-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 0610- ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5 		8-97263-801-1 03 1 0306-0609 ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0306-0609 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0402 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0609 ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0306-0609 ● ●
40 00.386 COVER
(B) 		8-97252-869-1 01 1 0306-0609 ●
40 00.386 COVER
(A) 		8-97353-821-2 01 1 0306-0609 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97349-416-0 01 1 0306-0402 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97912-741-0 01 1 0403-0609 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97945-338-0 01 1 0610-1007 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98156-394-0 01 1 1008- ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0306-0402 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-97912-654-0 03 1 0403-0609 ● ●

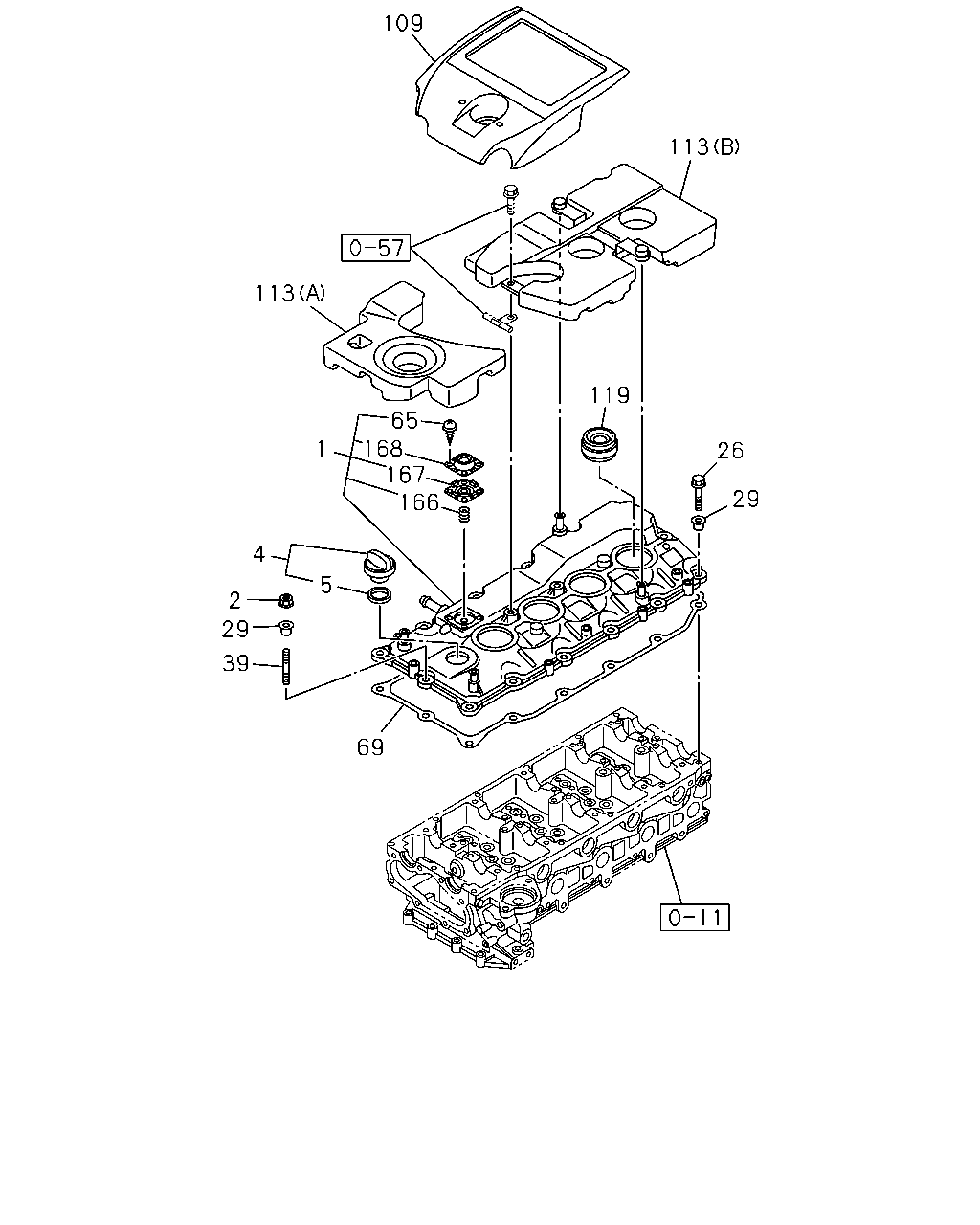

çizim 153358
109 113 113 119 65 168 167 166 1 26 29 4 5 2 29 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0306-0609 ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0610-1007 ● ●
1 00.386 COVER; CYL HD 8-98156-392-0 01 1 1008- ● ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 0610- ● ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0306-0609 ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0306-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 0610- ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 0610-1007 ● ●
26 08.900 BOLT; CYL HD COVER
00.685 M6X25 FLANGE 		0-28650-625-0 13 1 1008- ● ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 0610-1007 ● ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0610-1007 ● ●
39 00.413 STUD; COVER,HD
03.275 M6X25 L=34 		0-41010-625-0 01 1 1008- ● ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 0610- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97349-416-0 01 1 0306-0402 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97912-741-0 01 1 0403-0609 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97945-338-0 01 1 0610-1007 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98156-394-0 01 1 1008- ● ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> 		8-98061-177-0 01 1 0810-1006 ● ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> 		8-98175-669-0 01 1 1007- ● ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> 		8-98061-177-0 01 1 0710-0710 ●
109 00.386 COVER; ENG 8-98061-176-0 01 1 0610-0709 ● ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98061-176-0 01 1 0710-0710 ● ●
109 00.386 COVER; ENG 8-98061-176-0 01 1 0711-0809 ● ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98061-176-0 01 1 0810-1003 ● ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98154-683-0 01 1 1004-1006 ● ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98175-665-0 01 1 1007- ● ●
113 00.386 COVER; CYL HEAD COVER
FRIGID ZONE<YL3> (A) 		8-98182-325-0 01 1 1110- ● ●
113 00.386 COVER; CYL HEAD COVER
FRIGID ZONE<YL3> (B) 		8-98182-326-0 01 1 1110- ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 0610- ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 0610- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 0610- ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 0610- ● ●
