Sayfa 9-32 - Isuzu EPC

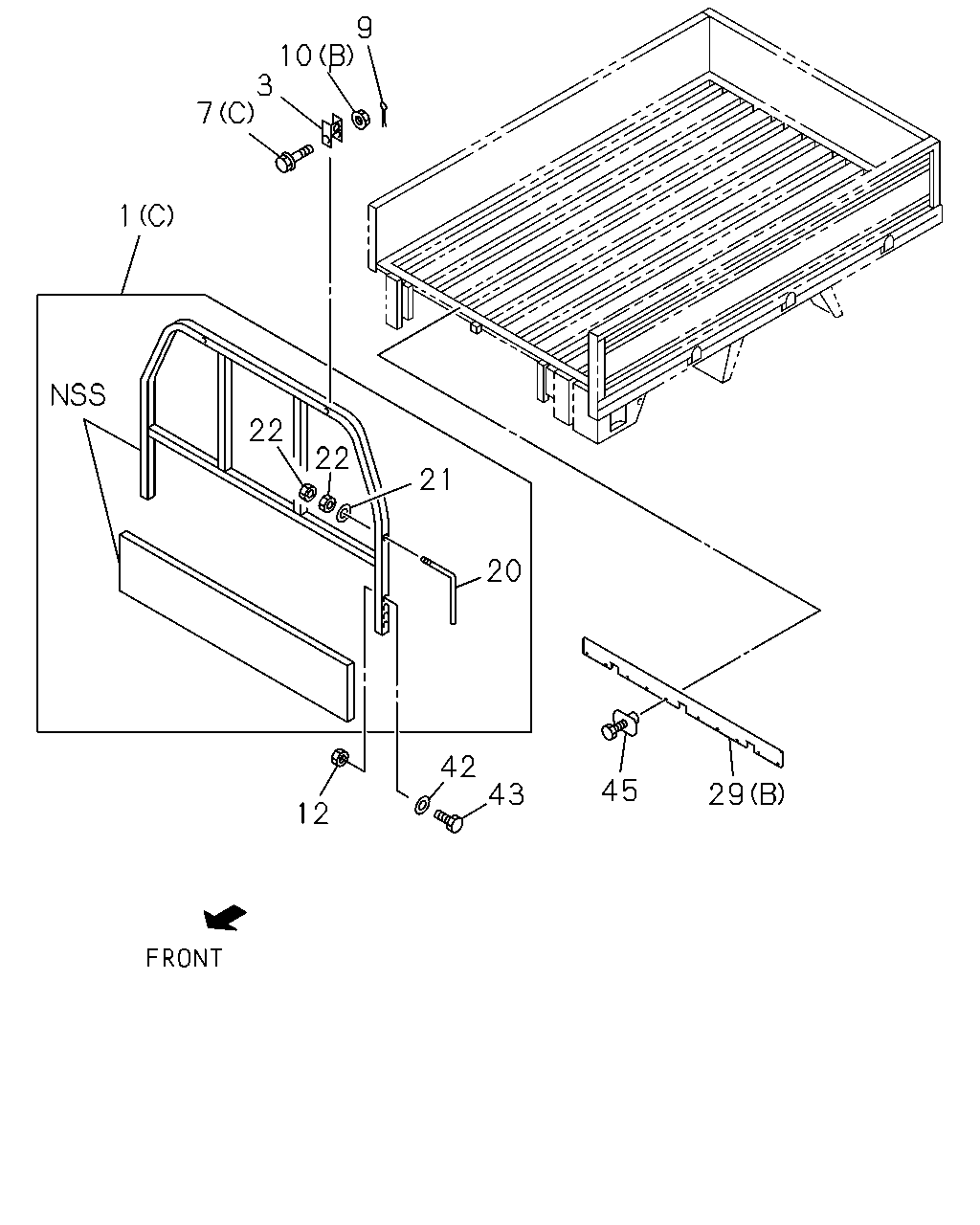

9-32 — REAR BODY; GUARD FRAME (#74079) — 137 parça

9 10 3 7 1 22 22 21 20 42 43 45 29 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.455 FRAME; GUARD,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0807-	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97310-075-2	01	1	0306-		●	●	●	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0306-0806	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-97236-678-5	01	1	0306-	●					●
3	17.447 STOPPER; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0807-	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97352-624-0	02	1	0306-	●	●	●	●	●	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0306-0806	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0807-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-94481-022-0	02	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-98056-129-0	02	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0306-0806	●
9	17.447 PIN; SPLIT,GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=1.8 L=20	0-81122-020-0	02	1	0807-	●
9	17.447 PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED(E39) 06.234 OD=1.8 L=20	9-08112-020-0	02	1	0306-0607	●
9	17.447 PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED(E39) OD=1.8 L=20	0-81122-020-0	02	1	0608-0806	●
10	17.447 NUT; GUARD FRAME STOPPER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0807-	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 FLANGE	8-94481-428-0	02	1	0306-0611	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6	8-98056-127-0	02	1	0612-	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0306-0806	●
12	17.455 NUT; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10 FLANGE	8-97065-439-0	08	1	0807-	●
12	17.455 NUT; GUARD FRAME REAR BODY FLAT BED(E39) M10 FLANGE	8-97065-439-0	08	1	0306-0806	●
20	17.455 HANDLE; FRT,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-94197-048-0	02	1	0807-	●
20	17.455 HANDLE; FRT,RR BODY REAR BODY FLAT BED(E39)	8-94197-048-0	02	1	0306-0806	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0807-0902	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.204 ID=12.5	0-91614-512-0	02	1	0903-0909	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0910-	●
21	17.455 WASHER; LK,FRT HANDLE REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0306-0806	●
22	17.455 NUT; FRT HANDLE REAR BODY FLAT BED(E39) 07.347 M12	9-99111-412-0	04	1	0306-0601	●
22	17.455 NUT; FRT HANDLE REAR BODY FLAT BED(E39) 04.439 M12	0-91111-512-0	04	1	0602-0710	●
22	17.455 NUT; FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 M12	0-91111-512-0	04	1	0711-	●
29	17.455 COVER; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0807-	●
29	17.455 COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) (A)	8-97918-416-0	02	1	0306-	●	●	●	●	●	●
29	17.455 COVER; GUARD FRAME REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0306-0806	●
42	17.447 WASHER; PL BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455	8-97065-438-0	12	1	0807-	●
42	17.447 WASHER; PL REAR BODY FLAT BED(E39) 17.455	8-97065-438-0	12	1	0306-0806	●
43	17.447 BOLT; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0807-	●
43	17.447 BOLT; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE	8-97065-440-0	12	1	0807-	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0306-0601	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0602-0806	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE	8-97065-440-0	12	1	0306-0806	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	12	1	1008-		●		●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	14	1	1008-	●					●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	0807-1007	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	1008-	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	10	1	1008-			●		●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	0306-0806	●

9 10 3 7 1 22 22 21 20 42 43 45 29 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.455 FRAME; GUARD,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0807-	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97310-075-2	01	1	0306-		●	●	●	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0306-0806	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-97236-678-5	01	1	0306-	●					●
3	17.447 STOPPER; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0807-	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97352-624-0	02	1	0306-	●	●	●	●	●	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0306-0806	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0807-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-94481-022-0	02	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-98056-129-0	02	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0306-0806	●
9	17.447 PIN; SPLIT,GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=1.8 L=20	0-81122-020-0	02	1	0807-	●
9	17.447 PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED(E39) 06.234 OD=1.8 L=20	9-08112-020-0	02	1	0306-0607	●
9	17.447 PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED(E39) OD=1.8 L=20	0-81122-020-0	02	1	0608-0806	●
10	17.447 NUT; GUARD FRAME STOPPER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0807-	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 FLANGE	8-94481-428-0	02	1	0306-0611	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6	8-98056-127-0	02	1	0612-	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0306-0806	●
12	17.455 NUT; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10 FLANGE	8-97065-439-0	08	1	0807-	●
12	17.455 NUT; GUARD FRAME REAR BODY FLAT BED(E39) M10 FLANGE	8-97065-439-0	08	1	0306-0806	●
20	17.455 HANDLE; FRT,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-94197-048-0	02	1	0807-	●
20	17.455 HANDLE; FRT,RR BODY REAR BODY FLAT BED(E39)	8-94197-048-0	02	1	0306-0806	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0807-0902	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.204 ID=12.5	0-91614-512-0	02	1	0903-0909	●
21	17.455 WASHER; LK,FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0910-	●
21	17.455 WASHER; LK,FRT HANDLE REAR BODY FLAT BED(E39) 06.172 ID=12.5	9-09164-512-0	02	1	0306-0806	●
22	17.455 NUT; FRT HANDLE REAR BODY FLAT BED(E39) 07.347 M12	9-99111-412-0	04	1	0306-0601	●
22	17.455 NUT; FRT HANDLE REAR BODY FLAT BED(E39) 04.439 M12	0-91111-512-0	04	1	0602-0710	●
22	17.455 NUT; FRT HANDLE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 M12	0-91111-512-0	04	1	0711-	●
29	17.455 COVER; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0807-	●
29	17.455 COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) (A)	8-97918-416-0	02	1	0306-	●	●	●	●	●	●
29	17.455 COVER; GUARD FRAME REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0306-0806	●
42	17.447 WASHER; PL BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455	8-97065-438-0	12	1	0807-	●
42	17.447 WASHER; PL REAR BODY FLAT BED(E39) 17.455	8-97065-438-0	12	1	0306-0806	●
43	17.447 BOLT; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0807-	●
43	17.447 BOLT; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE	8-97065-440-0	12	1	0807-	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0306-0601	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0602-0806	●
43	17.447 BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE	8-97065-440-0	12	1	0306-0806	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	12	1	1008-		●		●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	14	1	1008-	●					●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	0807-1007	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	1008-	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	10	1	1008-			●		●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY FLAT BED(E39) 08.154	8-94221-150-0	10	1	0306-0806	●

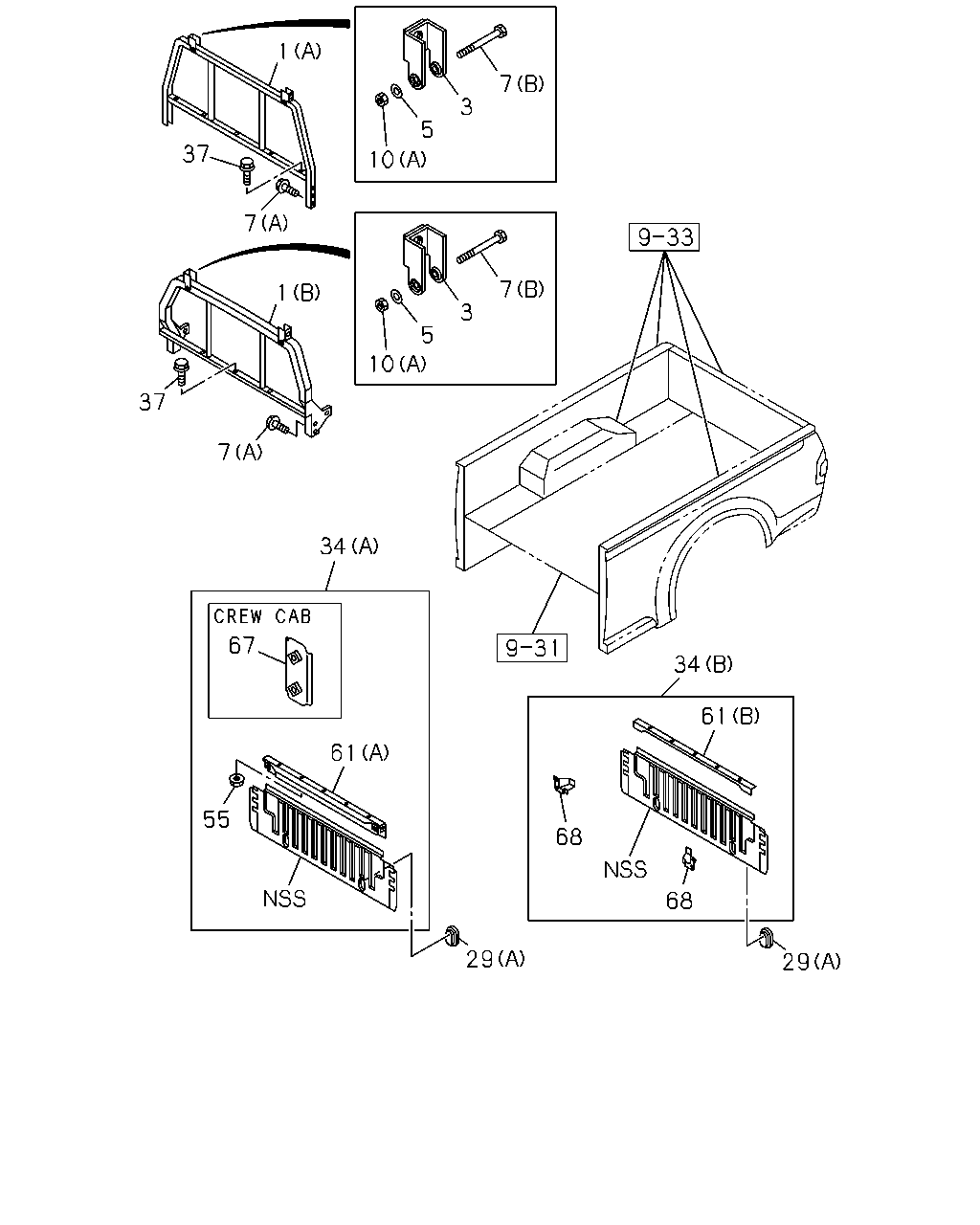

1 7 3 5 37 10 7 7 1 3 5 10 37 7 34 67 34 61 61 55 68 68 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.455 FRAME; GUARD,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0807-	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97310-075-2	01	1	0306-		●	●	●	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY FLAT BED(E39) (C)	8-97356-791-0	01	1	0306-0806	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-97236-678-5	01	1	0306-	●					●
3	17.447 STOPPER; GUARD FRAME,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0807-	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97352-624-0	02	1	0306-	●	●	●	●	●	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY FLAT BED(E39)	8-97354-208-0	02	1	0306-0806	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-94481-019-0	02	1	0306-0612	●	●	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98056-308-0	02	1	0701-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0807-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-94481-022-0	02	1	0306-0611	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-98056-129-0	02	1	0612-	●	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY FLAT BED(E39) (C) M10X60	8-94197-069-0	02	1	0306-0806	●
10	17.447 NUT; GUARD FRAME STOPPER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0807-	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 FLANGE	8-94481-428-0	02	1	0306-0611	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6	8-98056-127-0	02	1	0612-	●	●	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY FLAT BED(E39) (B) M10	8-94197-072-0	02	1	0306-0806	●
29	17.455 COVER; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0807-	●
29	17.455 COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) (A)	8-97918-416-0	02	1	0306-	●	●	●	●	●	●
29	17.455 COVER; GUARD FRAME REAR BODY FLAT BED(E39) (B)	8-97354-207-0	01	1	0306-0806	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97327-406-0	01	1	0306-0309		●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97373-643-1	01	1	0310-		●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-255-2	01	1	0306-0309		●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97369-725-1	01	1	0310-		●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97236-254-3	01	1	0306-0309	●					●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97369-723-1	01	1	0310-0402	●					●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97369-723-1	01	1	0403-	●					●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97327-407-0	01	1	0306-0309			●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97373-644-1	01	1	0310-			●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-93358-340-2	01	1	0306-0309			●		●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97369-727-1	01	1	0310-			●		●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0306-0601	●	●	●	●	●	●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE	0-28050-612-0	07	1	0602-	●	●	●	●	●	●
55	17.070 NUT; MEMBER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6	9-09114-086-0	05	1	0306-		●	●	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97326-371-0	01	1	0306-		●	●	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-715-0	01	1	0306-		●	●	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) (B)	8-97252-308-1	01	1	0306-0402	●					●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) (B)	8-97252-308-2	01	1	0403-	●					●
67	17.455 PLATE; RR BODY FRONT REAR BODY DBL WALL CTR PULL(E63)	8-93326-173-1	02	1	0306-			●		●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97287-179-1	01	1	0306-	●					●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97287-178-1	01	1	0306-	●					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
