◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#74076) — 115 parça
çizim 4800
405 421 284 195 422
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
195 08.820 BRACKET; JACK
(C) 		8-97249-694-5 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (C) 		8-97249-694-5 01 1 0610-1002 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97249-694-5 01 1 1003-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (C) 		8-97249-694-5 01 1 1004- ● ●
195 08.820 BRACKET; JACK
(A) 		8-97249-692-2 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (A) 		8-97249-692-2 01 1 0610-0709 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (A) 		8-97249-692-2 01 1 0710-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (A) 		8-97249-692-2 01 1 1004- ● ●
195 08.820 BRACKET; JACK
(B) 		8-97249-698-2 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (B) 		8-97249-698-2 01 1 0610-0709 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (B) 		8-97249-698-2 01 1 0710-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (B) 		8-97249-698-2 01 1 1004-1007 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (B) 		8-97249-698-2 01 1 1008- ● ●
284 08.821 BOLT; TOOL BOX
16.550 M6X16 W/PL WASHER 		1-09981-438-0 03 1 0306-0609 ● ● ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0610- ● ● ● ●
284 08.821 BOLT; TOOL BOX
16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0306-0609 ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 0610- ● ●
405 08.821 GUIDE; COUNTER 8-97328-053-0 01 1 0306-0609 ● ●
405 08.821 GUIDE; COUNTER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97328-053-0 01 1 0610-1002 ● ●
405 08.821 GUIDE; COUNTER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97328-053-0 01 1 1003-1003 ● ●
405 08.821 GUIDE; COUNTER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97328-053-0 01 1 1004- ● ●
421 08.820 COVER; JACK
DARK GRAY 		8-97392-412-1 01 1 0306-0609 ● ●
421 08.820 COVER; JACK
DARK GRAY 		8-97409-188-1 01 1 0610- ● ●
422 08.820 RETAINER; JACK
DARK GRAY 		8-97392-413-1 01 1 0306-0609 ● ●
422 08.820 RETAINER; JACK
DARK GRAY 		8-97409-189-0 01 1 0610- ● ●

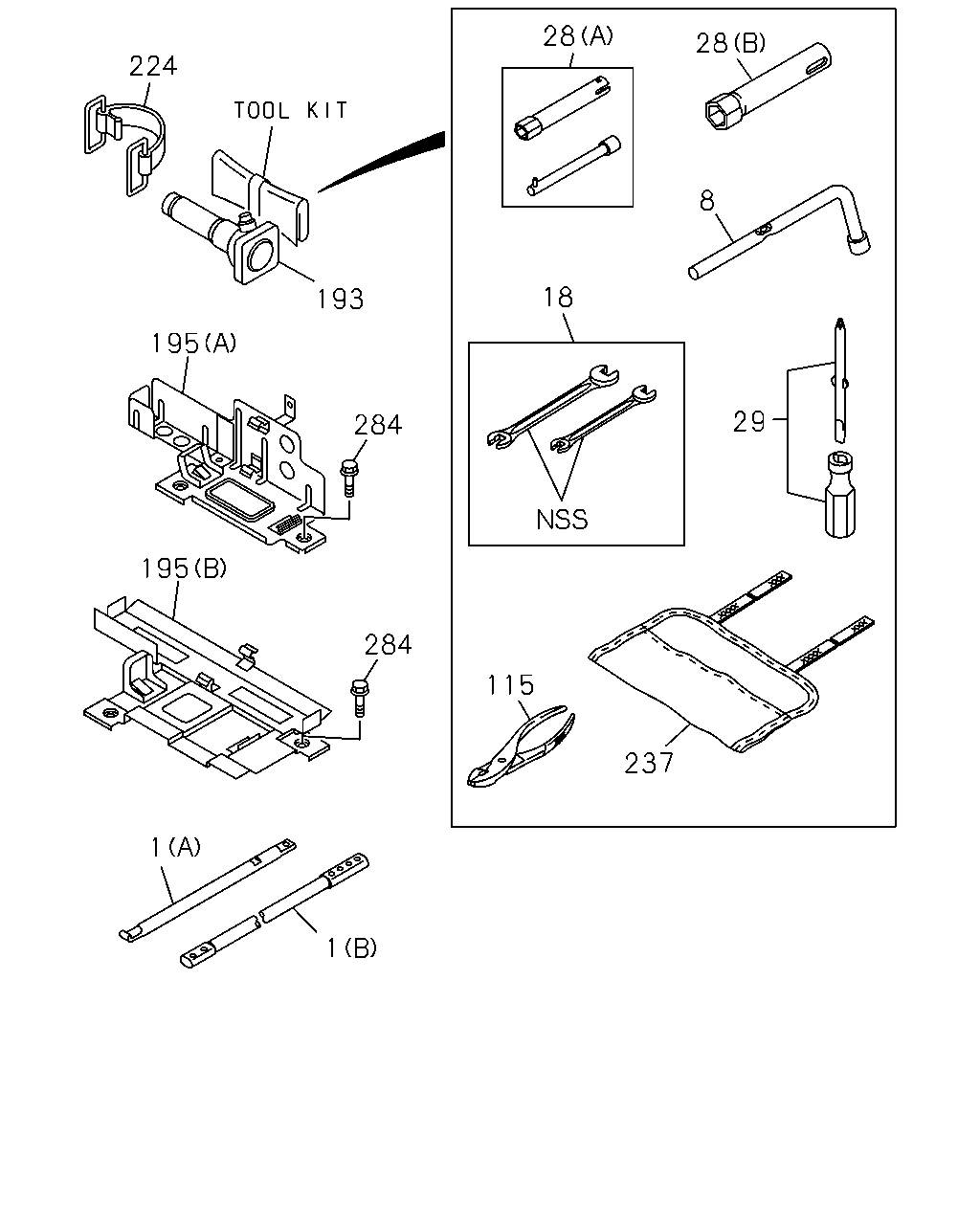

çizim 14377
28 28 224 8 18 193 195 29 284 195 284 115 237 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 0306- ● ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 03 1 0306- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL 8-97217-790-0 01 1 0306-0609 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
L=19 		8-98027-834-0 01 1 0610- ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97248-884-0 01 1 0306-0609 ● ● ● ● ● ●
18 08.821 WRENCH KIT
8X10,12X14 		8-97945-273-0 01 1 0610- ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A) 		8-98027-836-0 01 1 1008- ●
28 08.821 WRENCH; SPARK PLUG
6VE1 ENG(LX5) (A) 		8-98027-836-0 01 1 1008- ●
28 08.821 WRENCH; SPARK PLUG
C24SE ENG(LG1) (B) 		8-97248-865-0 01 1 0306-0609 ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
C24SE ENG(LG1) (B) 		8-98027-835-0 01 1 0610- ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A) 		8-98027-836-0 01 1 0710-1003 ●
28 08.821 WRENCH; SPARK PLUG
6VE1 ENG(LX5) (A) 		8-98027-836-0 01 1 0710-1003 ● ●
28 08.821 WRENCH; SPARK PLUG
6VE1 ENG(LX5) (A) 		8-97248-867-0 01 1 0306-0609 ● ● ●
29 08.821 DRIVER; SCREW 8-97248-870-0 01 1 0306-0609 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW 8-98027-833-0 01 1 0610- ● ● ● ● ● ●
115 08.821 PLIER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98099-659-0 01 1 1003-1003 ● ● ● ●
115 08.821 PLIER 8-98099-659-0 01 1 1004- ● ● ● ● ● ●
115 08.821 PLIER 8-97248-869-0 01 1 0306-0609 ● ● ● ● ● ●
115 08.821 PLIER 8-98027-832-0 01 1 0610-1002 ● ● ● ● ● ●
115 08.821 PLIER
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98027-832-0 01 1 1003-1003 ● ● ● ● ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1004- ● ● ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> ,HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1003-1003 ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1004- ● ● ●
195 08.820 BRACKET; JACK
(C) 		8-97249-694-5 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (C) 		8-97249-694-5 01 1 0610-1002 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97249-694-5 01 1 1003-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (C) 		8-97249-694-5 01 1 1004- ● ●
195 08.820 BRACKET; JACK
(A) 		8-97249-692-2 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (A) 		8-97249-692-2 01 1 0610-0709 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (A) 		8-97249-692-2 01 1 0710-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (A) 		8-97249-692-2 01 1 1004- ● ●
195 08.820 BRACKET; JACK
(B) 		8-97249-698-2 01 1 0306-0609 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (B) 		8-97249-698-2 01 1 0610-0709 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (B) 		8-97249-698-2 01 1 0710-1003 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) (B) 		8-97249-698-2 01 1 1004-1007 ● ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (B) 		8-97249-698-2 01 1 1008- ● ●
224 08.821 BAND; RUBBER,JACK 8-97248-864-0 01 1 0306-0609 ● ● ● ● ● ●
224 08.821 BAND; RUBBER,JACK 8-98027-837-0 01 1 0610- ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97248-885-1 01 1 0306-0609 ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97945-395-0 01 1 0610- ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
16.550 M6X16 W/PL WASHER 		1-09981-438-0 03 1 0306-0609 ● ● ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0610- ● ● ● ●
284 08.821 BOLT; TOOL BOX
16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0306-0609 ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 0610- ● ●

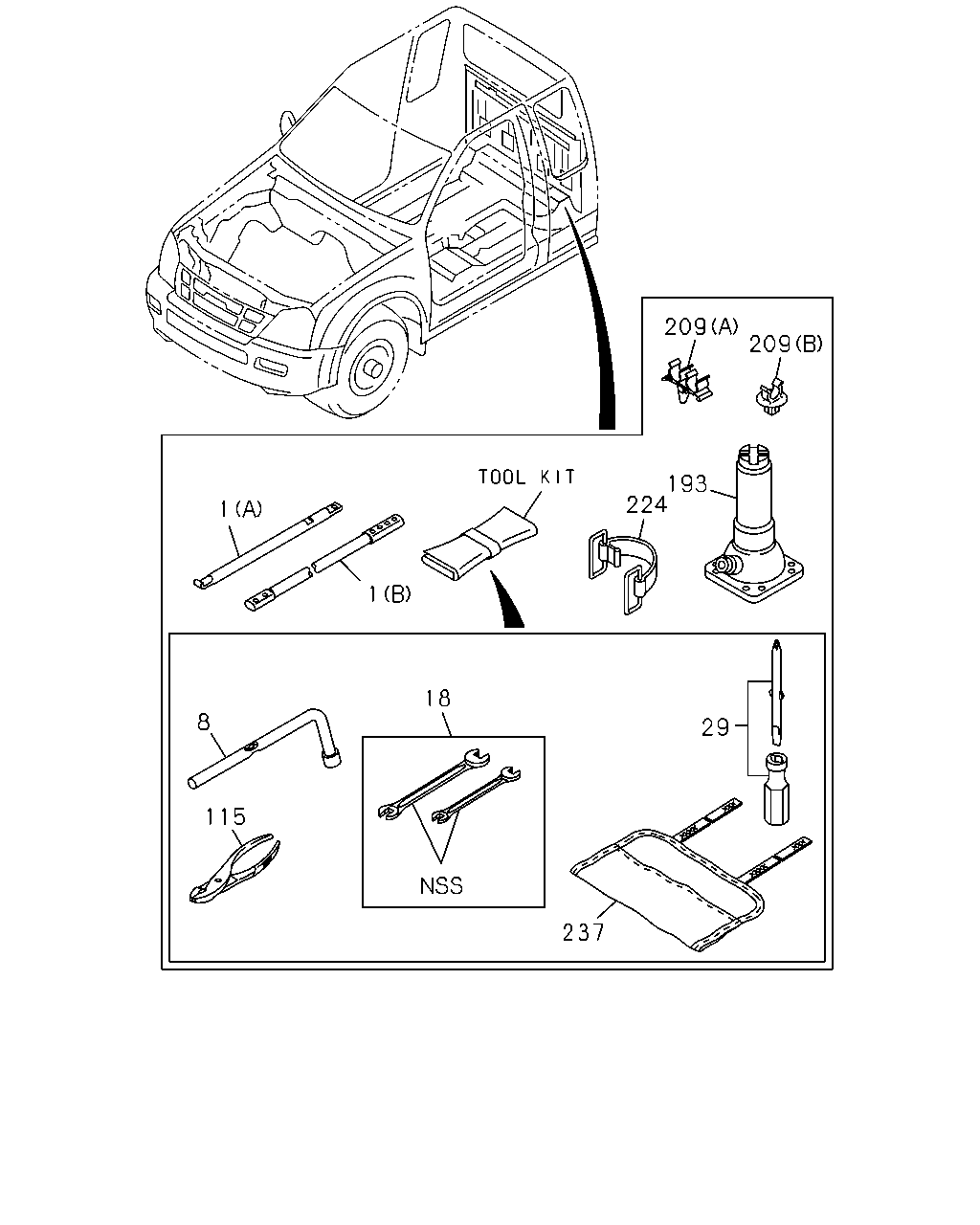

çizim 14596
209 209 193 224 1 1 18 8 29 115 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 0306- ● ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 03 1 0306- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL 8-97217-790-0 01 1 0306-0609 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
L=19 		8-98027-834-0 01 1 0610- ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97248-884-0 01 1 0306-0609 ● ● ● ● ● ●
18 08.821 WRENCH KIT
8X10,12X14 		8-97945-273-0 01 1 0610- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW 8-97248-870-0 01 1 0306-0609 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW 8-98027-833-0 01 1 0610- ● ● ● ● ● ●
115 08.821 PLIER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98099-659-0 01 1 1003-1003 ● ● ● ●
115 08.821 PLIER 8-98099-659-0 01 1 1004- ● ● ● ● ● ●
115 08.821 PLIER 8-97248-869-0 01 1 0306-0609 ● ● ● ● ● ●
115 08.821 PLIER 8-98027-832-0 01 1 0610-1002 ● ● ● ● ● ●
115 08.821 PLIER
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98027-832-0 01 1 1003-1003 ● ● ● ● ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1004- ● ● ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0306-1002 ● ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> ,HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1003-1003 ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1003-1003 ● ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1004- ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-97264-777-0 04 1 0306-0609 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (A) 		8-97264-777-0 04 1 0610-1002 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97264-777-0 04 1 1003-1003 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (A) 		8-97264-777-0 04 1 1004- ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-97264-782-0 02 1 0306-0609 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (B) 		8-97264-782-0 02 1 0610-1002 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97264-782-0 02 1 1003-1003 ● ●
209 08.820 CLIP; JACK HANDLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) (B) 		8-97264-782-0 02 1 1004- ● ●
224 08.821 BAND; RUBBER,JACK 8-97248-864-0 01 1 0306-0609 ● ● ● ● ● ●
224 08.821 BAND; RUBBER,JACK 8-98027-837-0 01 1 0610- ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97248-885-1 01 1 0306-0609 ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97945-395-0 01 1 0610- ● ● ● ● ● ●
