◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#74073) — 457 parça

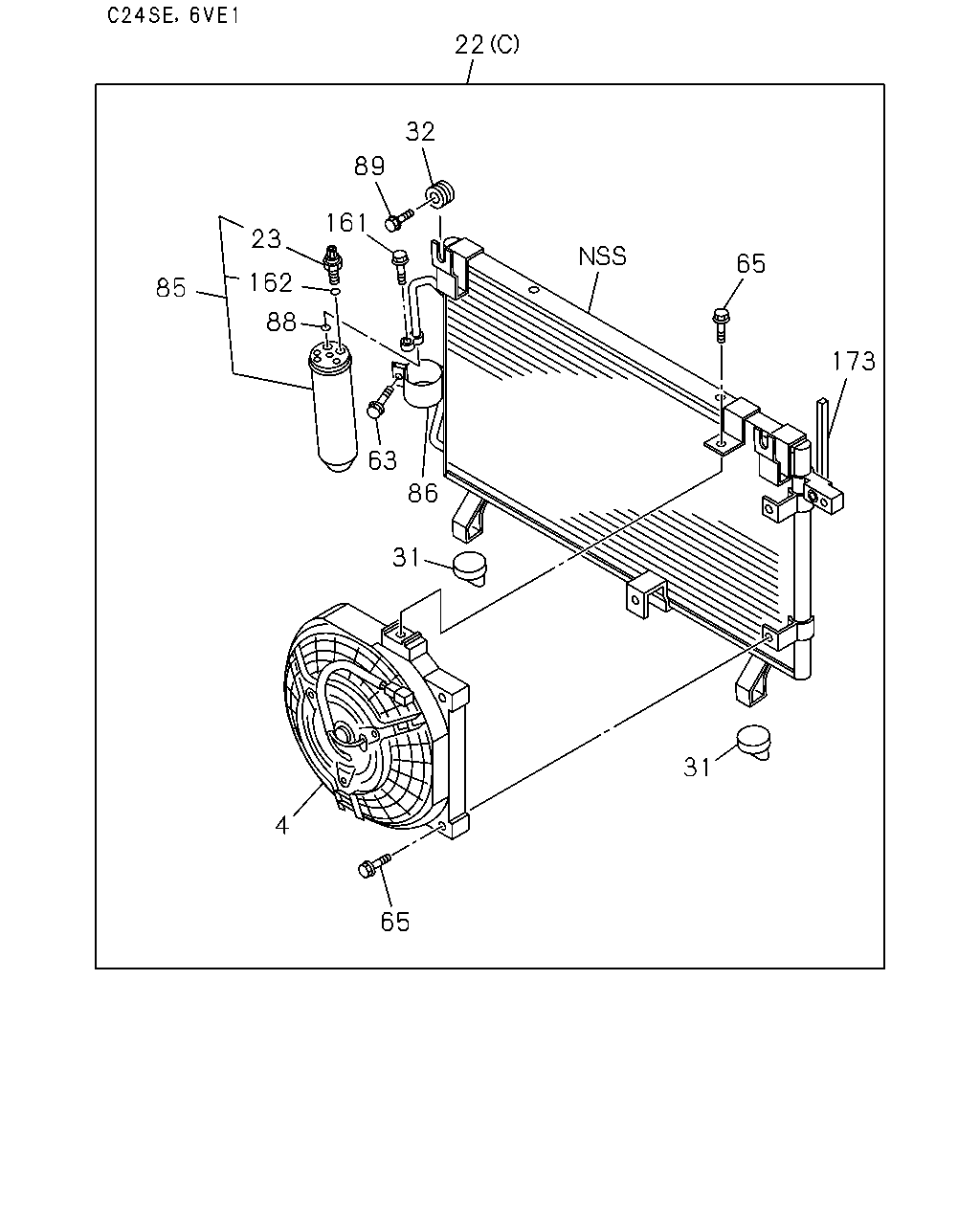

çizim 158104
22 32 89 161 23 65 162 85 88 173 63 86 31 31 4 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 09.216 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0306-0609 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0610-0709 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0610-0709 ● ● ● ●
4 09.216 MOTOR ASM; FAN
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0710-1003 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0710-1003 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1004-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1008- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98163-506-0 01 1 1004- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97363-952-0 01 1 0306-0508 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98000-108-0 01 1 0509-0606 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98039-413-0 01 1 0607-0609 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-413-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 0704-1003 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-963-0 01 1 0509-0606 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-417-0 01 1 0607-0609 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98000-111-0 01 1 0610-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 0704-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 1008-1201 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98176-437-0 01 1 1202- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (C) 		8-98000-110-0 01 1 0509-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98000-110-0 01 1 0610-0611 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98039-424-0 01 1 0612-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0704-0709 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0710-1003 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97363-953-0 01 1 0306-0508 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98008-961-0 01 1 0509-0606 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98039-425-0 01 1 0607-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98000-112-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 0704-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 1008-1201 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98176-435-1 01 1 1202- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0306-0508 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0509-0606 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0607-0609 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0610-0703 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 0610-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0610-0703 ● ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-319-0 02 1 0306- ● ● ● ● ● ●
32 09.190 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-320-0 02 1 0306- ● ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-98071-146-0 03 1 0704- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0306-0609 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0610-0703 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0610-0703 ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0710-1003 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0710-1003 ● ● ● ●
65 09.216 BOLT; SHROUD
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0306-0508 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0509-0606 ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0607-0609 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0610-0709 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0710-1003 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 0610-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0610-1007 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 1008-1201 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0306-0508 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0509-0606 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> 		8-97333-318-0 01 1 0607-0609 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0610-0611 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98049-150-0 01 1 0612-0703 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0704-0709 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0710-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-98049-150-0 01 1 0607-0609 ● ● ● ●
88 09.190 GASKET; PRESSURE SW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-97333-317-0 02 1 0306-0703 ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-98071-149-0 02 1 0704- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16 		8-98071-146-0 01 1 0911- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20 		8-98071-147-0 01 1 0704-0910 ● ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0610-0611 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0610-0611 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0612-0703 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0704- ● ● ● ● ● ●

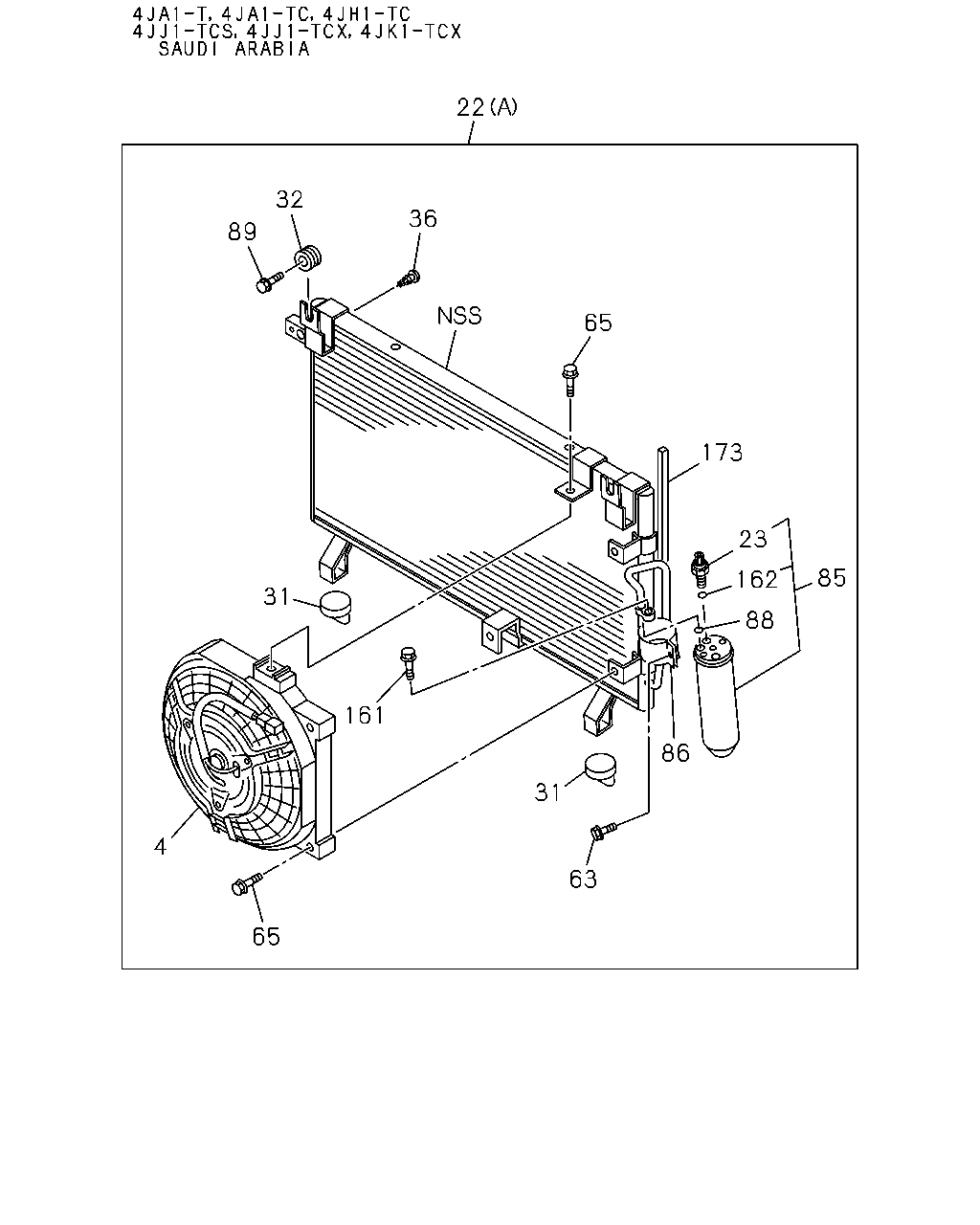

çizim 158184
22 32 36 89 65 173 23 85 162 31 88 161 86 31 4 63 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 09.216 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0306-0609 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0610-0709 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0610-0709 ● ● ● ●
4 09.216 MOTOR ASM; FAN
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0710-1003 ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 0710-1003 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1004-1007 ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ● ● ● ● ●
4 09.216 MOTOR ASM; FAN
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-646-0 01 1 1008- ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1004-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1008- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98163-506-0 01 1 1004- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97363-952-0 01 1 0306-0508 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98000-108-0 01 1 0509-0606 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98039-413-0 01 1 0607-0609 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-413-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 0704-1003 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-963-0 01 1 0509-0606 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-417-0 01 1 0607-0609 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98000-111-0 01 1 0610-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 0704-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 1008-1201 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98176-437-0 01 1 1202- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (C) 		8-98000-110-0 01 1 0509-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98000-110-0 01 1 0610-0611 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98039-424-0 01 1 0612-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0704-0709 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0710-1003 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97363-953-0 01 1 0306-0508 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98008-961-0 01 1 0509-0606 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98039-425-0 01 1 0607-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98000-112-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 0704-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 1008-1201 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98176-435-1 01 1 1202- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0306-0508 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0509-0606 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0607-0609 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0610-0703 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 0610-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0610-0703 ● ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-319-0 02 1 0306- ● ● ● ● ● ●
32 09.190 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-320-0 02 1 0306- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 0704-1003 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1004-1007 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1004-1007 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0710-1003 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0710-1003 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-98071-146-0 03 1 0704- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0306-0609 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0610-0703 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-97356-647-0 04 1 0610-0703 ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0704-0709 ● ● ● ●
65 09.216 BOLT; SHROUD
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0710-1003 ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 0710-1003 ● ● ● ●
65 09.216 BOLT; SHROUD
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1004-1007 ● ● ● ●
65 09.216 BOLT; SHROUD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ● ● ● ● ●
65 09.216 BOLT; SHROUD
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18 		8-98071-145-0 04 1 1008- ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0306-0508 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0509-0606 ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0607-0609 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0610-0709 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0710-1003 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 0610-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0610-1007 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 1008-1201 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0306-0508 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0509-0606 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> 		8-97333-318-0 01 1 0607-0609 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0610-0611 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98049-150-0 01 1 0612-0703 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0704-0709 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0710-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-98049-150-0 01 1 0607-0609 ● ● ● ●
88 09.190 GASKET; PRESSURE SW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-97333-317-0 02 1 0306-0703 ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-98071-149-0 02 1 0704- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16 		8-98071-146-0 01 1 0911- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20 		8-98071-147-0 01 1 0704-0910 ● ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0610-0611 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0610-0611 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0612-0703 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0704- ● ● ● ● ● ●
çizim 158327
22 32 36 89 173 86 23 85 162 88 31 161 63 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1004-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98163-507-0 01 1 1008- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98163-506-0 01 1 1004- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97363-952-0 01 1 0306-0508 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98000-108-0 01 1 0509-0606 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A) 		8-98039-413-0 01 1 0607-0609 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-413-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 0704-1003 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-128-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-963-0 01 1 0509-0606 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-417-0 01 1 0607-0609 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98000-111-0 01 1 0610-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 0704-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98071-120-0 01 1 1008-1201 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98176-437-0 01 1 1202- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (C) 		8-98000-110-0 01 1 0509-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98000-110-0 01 1 0610-0611 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98039-424-0 01 1 0612-0703 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0704-0709 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 0710-1003 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1004-1007 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ● ● ●
22 09.190 CONDENSER ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98071-123-0 01 1 1008- ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97363-953-0 01 1 0306-0508 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98008-961-0 01 1 0509-0606 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (C) 		8-98039-425-0 01 1 0607-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98000-112-0 01 1 0610-0703 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 0704-1007 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98071-118-0 01 1 1008-1201 ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-98176-435-1 01 1 1202- ● ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98008-515-0 01 1 0509-0608 ●
22 09.190 CONDENSER ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A) 		8-98039-415-0 01 1 0609-0609 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0306-0508 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0509-0606 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0607-0609 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0610-0703 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0704-0709 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 0710-1003 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1004-1007 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-465-0 01 1 1008- ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 0610-1003 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1004-1007 ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-560-0 01 1 1008- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0509-0606 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-449-0 01 1 0607-0608 ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-449-0 01 1 0610-0703 ● ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-319-0 02 1 0306- ● ● ● ● ● ●
32 09.190 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-320-0 02 1 0306- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 0704-1003 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1004-1007 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1004-1007 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) M4X25 		8-98071-148-0 06 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0704-0709 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0710-1003 ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 0710-1003 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1004-1007 ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ● ● ● ● ●
36 09.190 SCREW; PLATE TO CONDENSER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25 		8-98071-148-0 09 1 1008- ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16 		8-98071-146-0 03 1 0704- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98071-280-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0306-0508 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0509-0606 ● ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0607-0609 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0610-0709 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 0710-1003 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1004-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
C24SE ENG(LG1) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1008-1201 ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97381-576-0 01 1 1202- ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 0610-1007 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97375-558-2 01 1 1008-1201 ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0509-0606 ●
85 09.172 DRYER; RECEIVER
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97380-448-2 01 1 0607-0609 ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 0610-1007 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SAUDI ARABIA EQUIPMENT(GH3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-448-2 01 1 1008-1201 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0306-0508 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0509-0606 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> 		8-97333-318-0 01 1 0607-0609 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-318-0 01 1 0610-0611 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98049-150-0 01 1 0612-0703 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0704-0709 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 0710-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98071-269-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0509-0609 ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 0610-1003 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1004-1007 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97380-437-0 01 1 1008- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-98049-150-0 01 1 0607-0609 ● ● ● ●
88 09.190 GASKET; PRESSURE SW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-97333-317-0 02 1 0306-0703 ● ● ● ● ● ●
89 09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35 		8-98071-149-0 02 1 0704- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16 		8-98071-146-0 01 1 0911- ● ● ● ● ● ●
161 02.559 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20 		8-98071-147-0 01 1 0704-0910 ● ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190 		8-97333-321-0 01 1 0306- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0610-0611 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0610-0611 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98034-693-0 02 1 0612-0703 ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98034-693-0 02 1 0704- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
