8-71 — COMPRESSOR; AIR CONDITIONING (#74070) — 51 parça

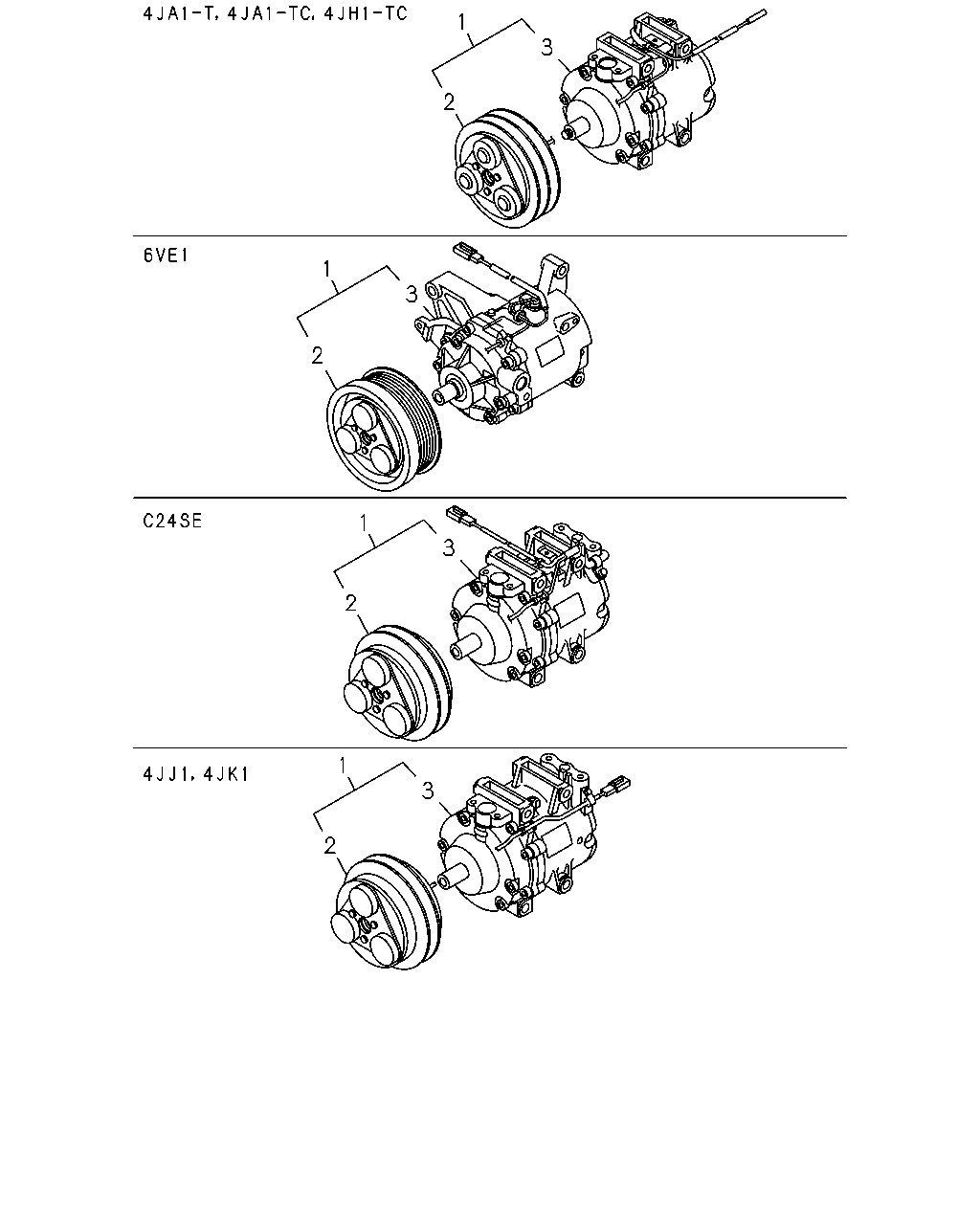

çizim 8788
1 3 2 1 3 2 1 3 2 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97369-418-0 01 1 1008-1109 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98199-291-1 01 1 1110- ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97236-637-1 01 1 0306-0312 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97369-415-0 01 1 0401-0609 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97369-415-0 01 1 0610-1110 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98199-289-1 01 1 1111- ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97236-638-1 01 1 0306-0508 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97369-417-0 01 1 0509-1111 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98199-290-1 01 1 1112- ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97316-085-1 01 1 0306-0508 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97369-418-0 01 1 0509-0609 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97370-661-3 01 1 0610-1007 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97370-661-3 01 1 1008-1109 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98199-292-1 01 1 1110- ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97369-418-0 01 1 0710-1003 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-582-0 01 1 1008-1402 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-539-0 01 1 1403- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-324-0 01 1 0306-0312 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-580-0 01 1 0401-0609 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-580-0 01 1 0610-1402 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-537-0 01 1 1403- ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-377-0 01 1 0306-0508 ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-581-0 01 1 0509-1402 ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-538-0 01 1 1403- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97356-380-0 01 1 0306-0402 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-98031-852-0 01 1 0403-0508 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97371-582-0 01 1 0509-0609 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97372-920-0 01 1 0610-1007 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97372-920-0 01 1 1008-1402 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98252-777-0 01 1 1403- ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-582-0 01 1 0710-1003 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-579-0 01 1 1008-1109 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98204-873-0 01 1 1110-1402 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-532-0 01 1 1403- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-322-0 01 1 0306-0312 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-576-0 01 1 0401-0609 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-576-0 01 1 0610-1110 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98204-871-0 01 1 1111-1402 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-530-0 01 1 1403- ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98070-188-0 01 1 0610-1007 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98070-188-0 01 1 1008-1109 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98204-874-0 01 1 1110-1402 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-533-0 01 1 1403- ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97356-378-0 01 1 0306-0508 ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-578-0 01 1 0509-1111 ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98204-872-0 01 1 1112-1402 ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-98258-531-0 01 1 1403- ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97356-381-0 01 1 0306-0402 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-98031-853-0 01 1 0403-0508 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 		8-97371-579-0 01 1 0509-0609 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97371-579-0 01 1 0710-1003 ● ● ●
