Sayfa 8-52 - Isuzu EPC

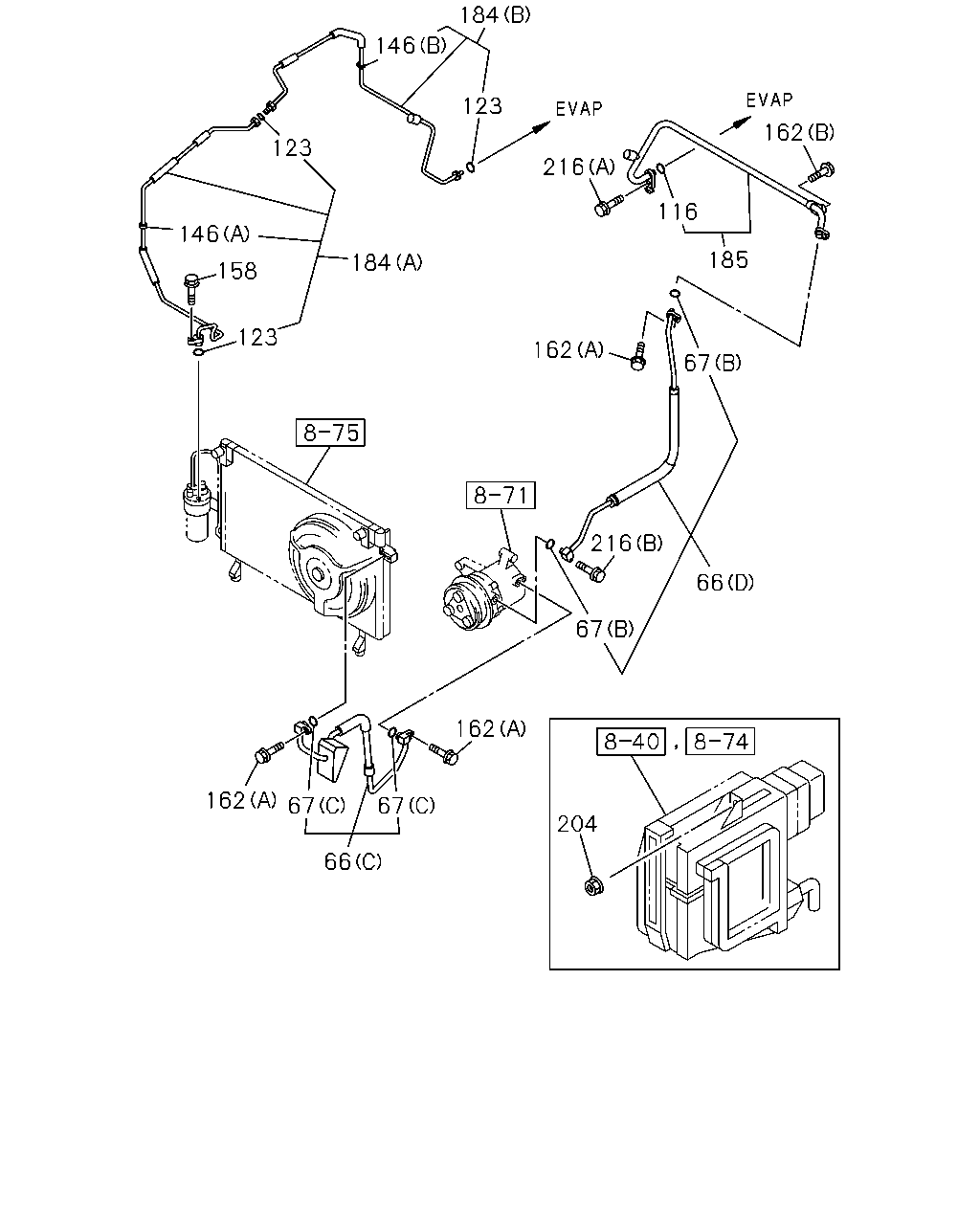

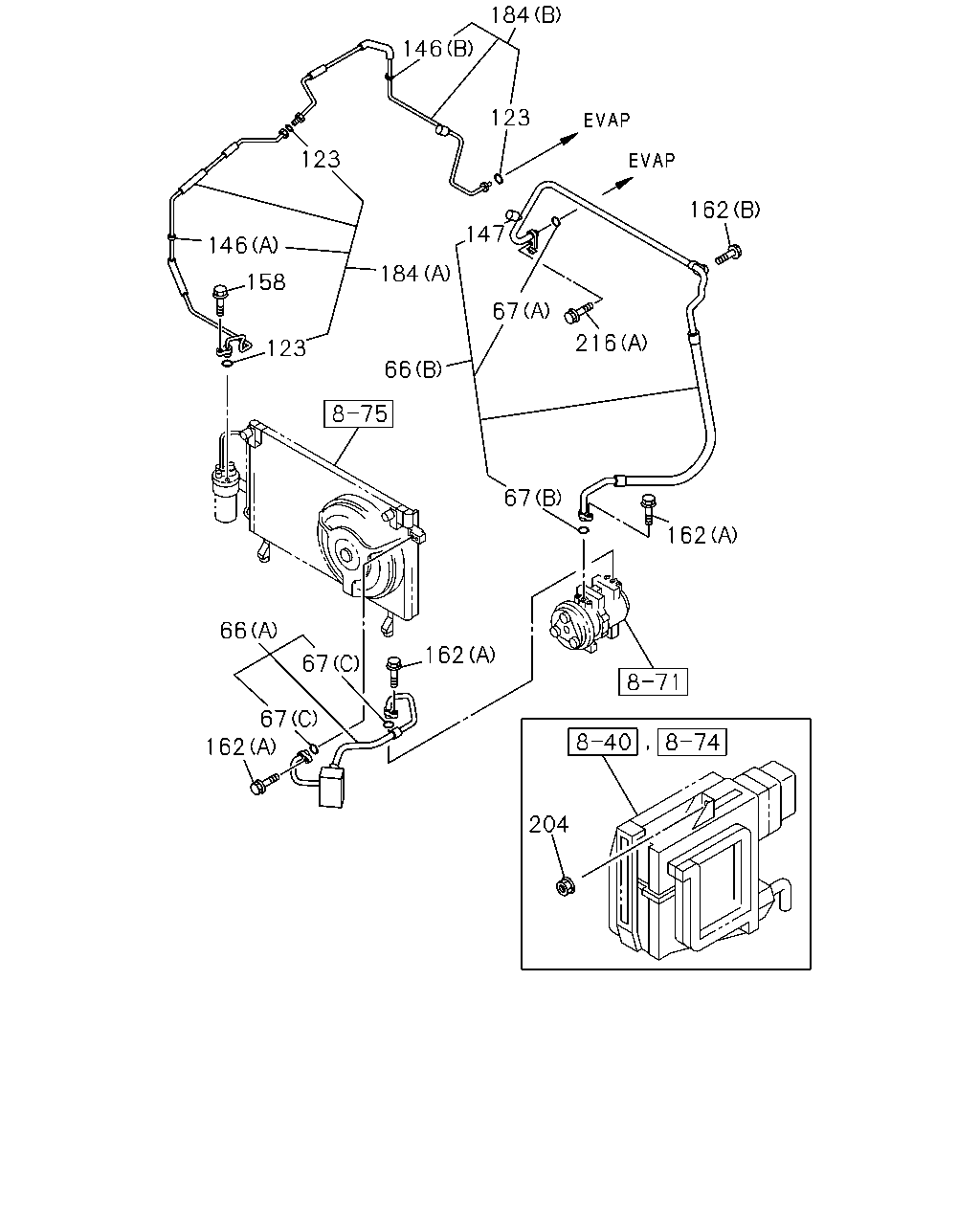

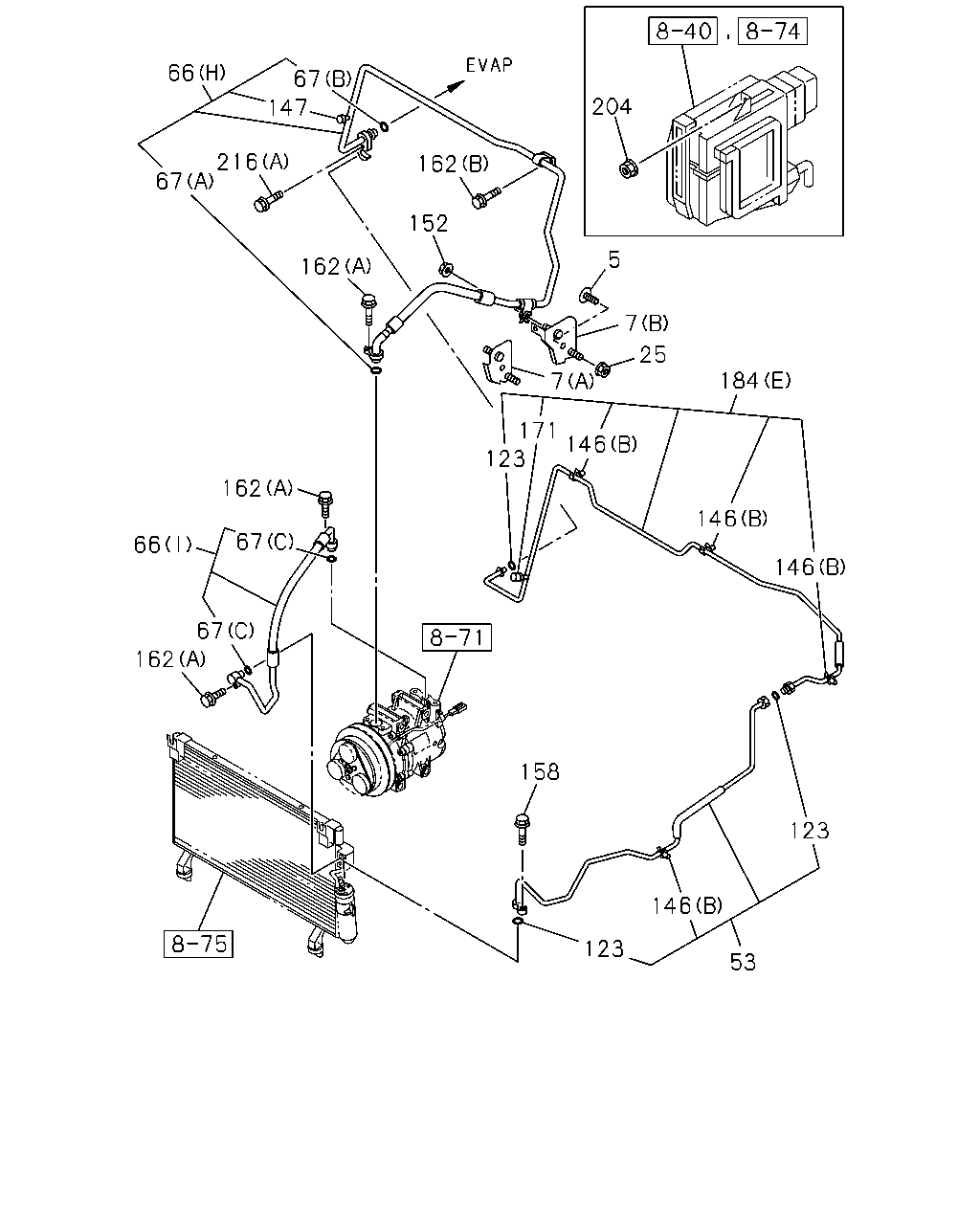

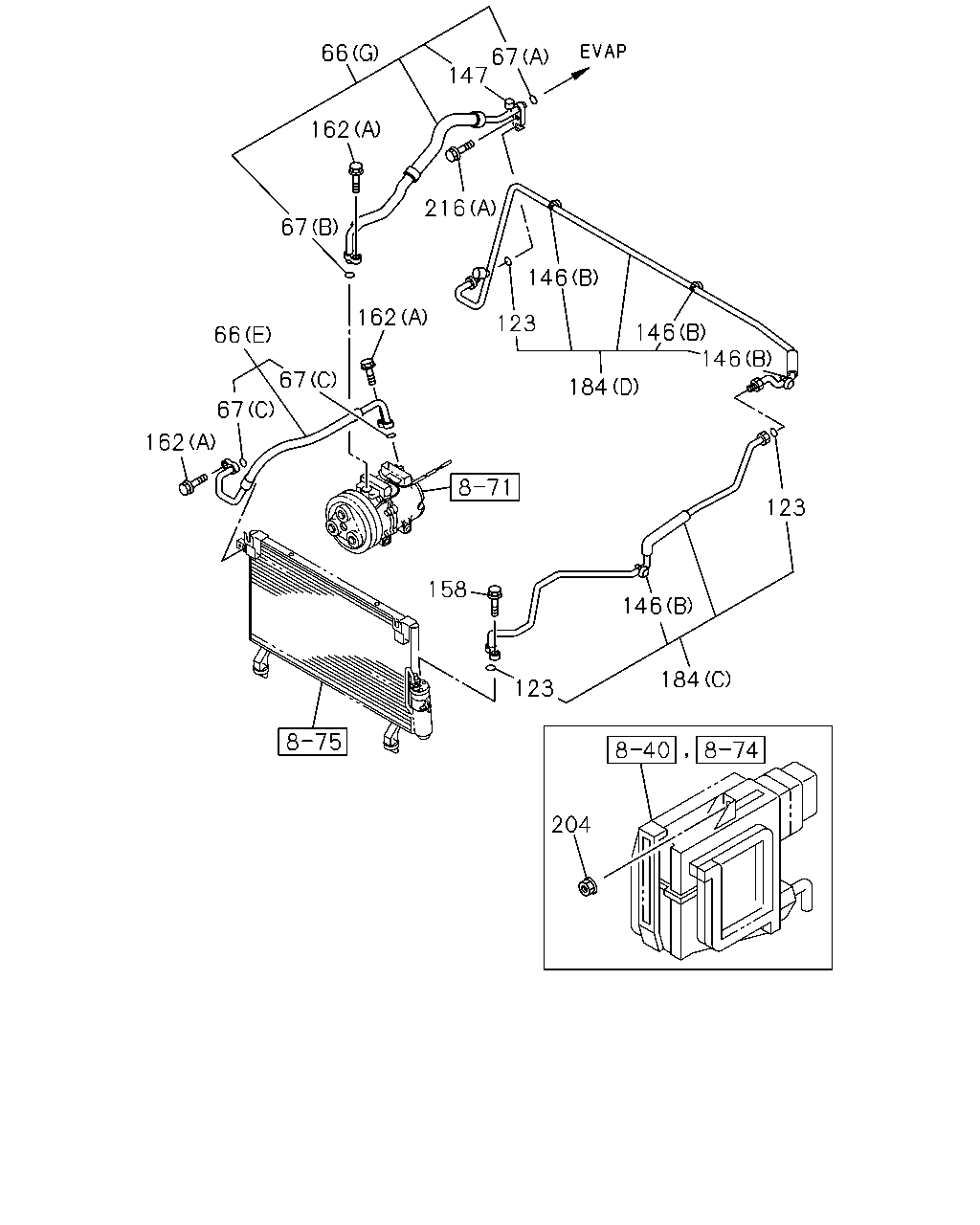

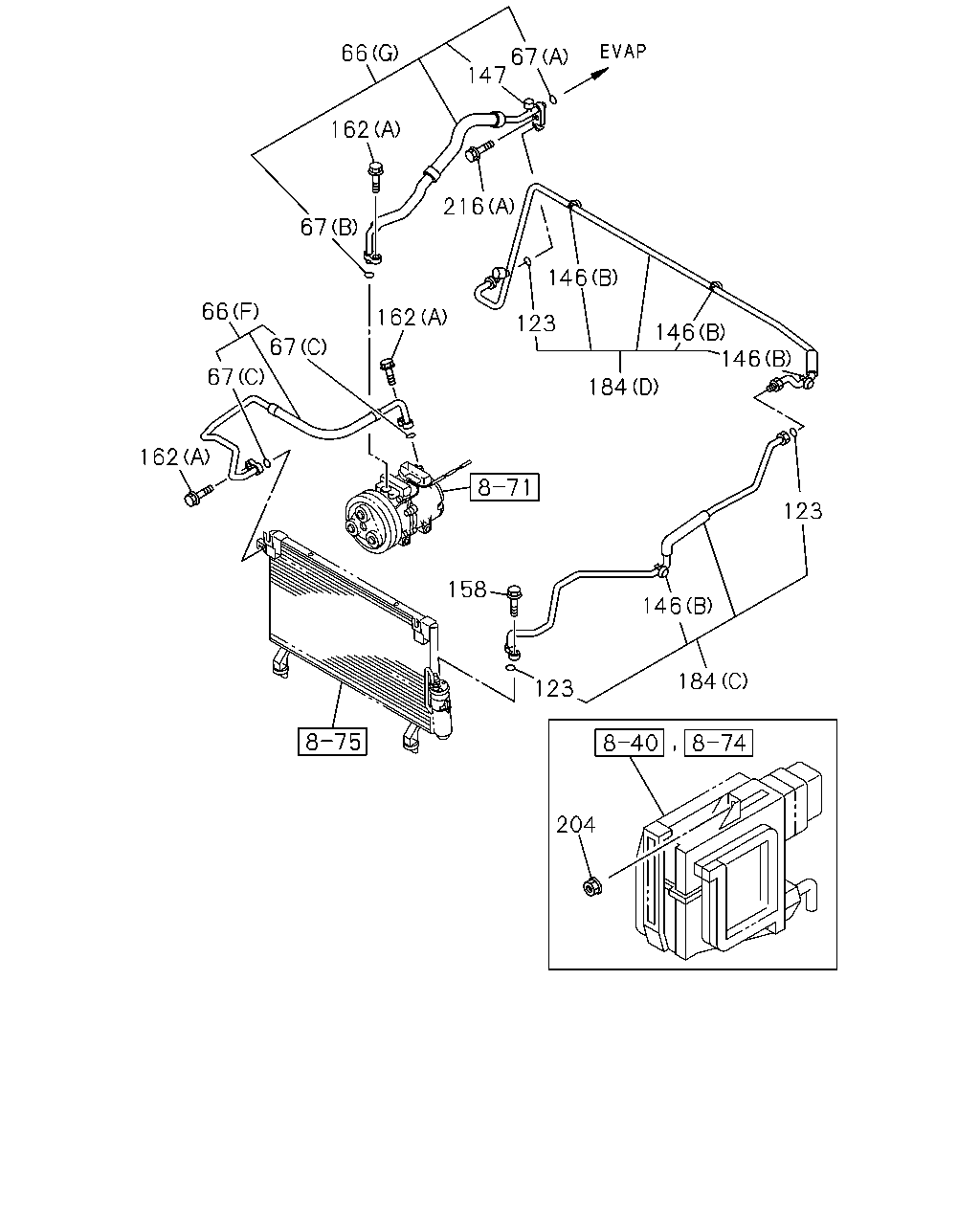

8-52 — PIPING; AIR CONDITIONING (#74067) — 537 parça

184 146 123 123 162 147 146 184 158 67 216 123 66 67 162 66 162 67 67 162 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0501-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98007-109-0	01	1	0610-0612	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	0701-1007	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	1008-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97234-778-2	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-533-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	0610-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97234-787-1	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-529-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-97383-574-2	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	0710-1003	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	0710-1003	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	1008-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-0709	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0710-1003	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1004-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	02	1	0306-0609	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	0710-1003	●	●				●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-0709	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0710-1003	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1004-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0610-0709	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0710-1003	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1004-1007	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1008-	●	●		●		●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0610-1007	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	1008-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●		●		●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-0709	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0710-1003	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1004-1007	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1008-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	0610-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	1008-	●	●		●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0306-0609	●	●				●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-1003	●	●				●

66 67 147 162 216 67 146 162 123 146 146 66 67 184 67 162 123 158 146 184 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0501-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98007-109-0	01	1	0610-0612	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	0701-1007	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	1008-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97234-778-2	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-533-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	0610-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97234-787-1	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-529-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-97383-574-2	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	0710-1003	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	0710-1003	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	1008-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-0709	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0710-1003	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1004-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	02	1	0306-0609	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	0710-1003	●	●				●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-0709	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0710-1003	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1004-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0610-0709	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0710-1003	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1004-1007	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1008-	●	●		●		●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0610-1007	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	1008-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●		●		●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-0709	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0710-1003	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1004-1007	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1008-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	0610-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	1008-	●	●		●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0306-0609	●	●				●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-1003	●	●				●

184 146 123 162 123 216 116 146 185 184 158 123 162 67 216 66 67 162 162 67 67 204 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0501-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98007-109-0	01	1	0610-0612	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	0701-1007	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	1008-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97234-778-2	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-533-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	0610-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97234-787-1	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-529-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-97383-574-2	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	0710-1003	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	0710-1003	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	1008-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-0709	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0710-1003	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1004-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	02	1	0306-0609	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	0710-1003	●	●				●
116	09.225 GASKET; PIPE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.260	8-97321-351-0	01	1	1008-	●	●
116	09.225 GASKET; PIPE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.260	8-97321-351-0	01	1	0306-0609	●	●				●
116	09.225 GASKET; PIPE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.260	8-97321-351-0	01	1	0710-1003	●	●				●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-0709	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0710-1003	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1004-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0610-0709	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0710-1003	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1004-1007	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1008-	●	●		●		●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●		●		●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-0709	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0710-1003	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1004-1007	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1008-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	0610-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	1008-	●	●		●		●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97316-076-0	01	1	1008-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97316-076-0	01	1	0306-0609	●	●				●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97316-076-0	01	1	0710-1003	●	●				●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0306-0609	●	●				●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-1003	●	●				●

66 67 204 147 216 162 67 152 5 162 7 25 184 7 171 146 123 162 146 67 66 146 67 162 158 123 146 123 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 OD=25	8-94279-810-0	01	1	0610-1007	●	●		●		●
5	09.242 CLIP; FLEX HOSE,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 OD=25	8-94279-810-0	01	1	1008-	●	●		●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98008-136-0	01	1	0610-1007	●	●		●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98008-136-0	01	1	1008-	●	●		●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 04.686 (B)	8-98006-970-0	01	1	0610-1007	●	●		●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 04.686 (B)	8-98006-970-0	01	1	1008-	●	●		●		●
25	09.171 NUT; BRKT 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-1007	●	●		●		●
25	09.171 NUT; BRKT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	1008-	●	●		●		●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97378-434-0	01	1	0610-1007	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97378-434-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0501-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98007-109-0	01	1	0610-0612	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	0701-1007	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	1008-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97234-778-2	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-533-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	0610-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97234-787-1	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-529-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-97383-574-2	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	0710-1003	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	0710-1003	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	1008-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-0709	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0710-1003	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1004-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	02	1	0306-0609	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	0710-1003	●	●				●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-0709	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0710-1003	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1004-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0610-0709	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0710-1003	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1004-1007	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1008-	●	●		●		●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0610-1007	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	1008-	●	●	●	●	●	●
152	09.225 NUT; CLIP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 08.915 M6 FLANGE	8-98055-704-0	01	1	0610-1007	●	●		●		●
152	09.225 NUT; CLIP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 08.915 M6 FLANGE	8-98055-704-0	01	1	1008-	●	●		●		●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●		●		●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-0709	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0710-1003	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1004-1007	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1008-	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97376-622-0	01	1	0610-1007	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97376-622-0	01	1	1008-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	0610-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	1008-	●	●		●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0306-0609	●	●				●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-1003	●	●				●

66 67 147 162 216 67 146 66 162 123 146 146 67 67 184 162 123 158 146 184 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	1008-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0501-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (G)	8-98002-527-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-537-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●		●		●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98007-109-0	01	1	0610-0612	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	0701-1007	●	●		●		●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-98072-738-0	01	1	1008-	●	●		●		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97234-778-2	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-533-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	0610-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (I)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97234-787-1	01	1	0306-0412	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-529-0	01	1	0501-0609	●	●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (H)	8-97383-574-2	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-529-0	01	1	0710-1003	●	●				●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-533-0	01	1	0710-1003	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	1008-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-0709	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0710-1003	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1004-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-1007	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	1008-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	02	1	0306-0609	●	●				●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	02	1	0710-1003	●	●				●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-0709	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0710-1003	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1004-1007	●	●		●		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	1008-	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	03	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-0709	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	0710-1003	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1004-1007	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97354-058-0	01	1	1008-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-0609	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0610-0709	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	0710-1003	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1004-1007	●	●		●		●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97355-792-0	01	1	1008-	●	●		●		●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0610-1007	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	1008-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●		●		●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-0709	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0710-1003	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1004-1007	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1008-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97234-594-2	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-0609	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0610-0709	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	0710-1003	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1004-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97362-296-0	01	1	1008-	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	0610-1007	●	●		●		●
184	09.220 PIPE; PIPE TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98013-164-1	01	1	1008-	●	●		●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0306-0609	●	●				●
216	09.173 BOLT; HOSE FIX 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-1003	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
