Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#74066) — 261 parça

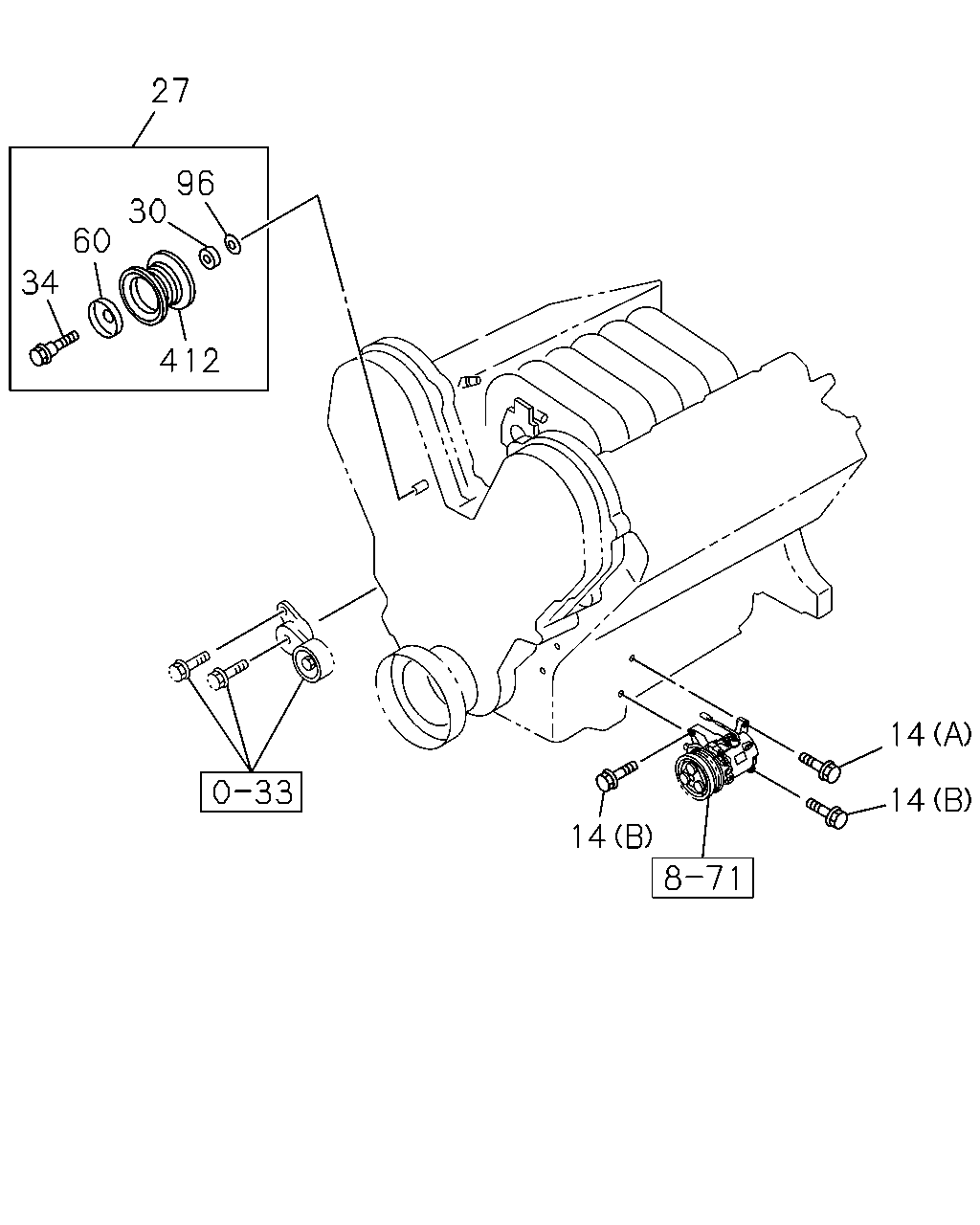

27 96 30 60 34 412 14 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	01	1	1008-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0306-0601	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-1007	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1008-	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28181-000-0	04	1	0306-0601	●	●		●		●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0710-1003	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-1003	●	●				●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) POWER STEERING<N40>	8-97178-354-0	01	1	1008-	●	●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-145-0	01	1	0306-0402	●	●		●		●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0306-0609	●	●				●
27	09.180 PULLEY; IDLE,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-328-0	01	1	0610-0910	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97178-354-0	01	1	0710-1003	●	●				●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-854-0	01	1	1008-	●	●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-143-0	01	1	0306-0402	●	●		●		●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0306-0609	●	●				●
30	09.181 COLLAR; IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-333-2	01	1	0610-0910	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-854-0	01	1	0710-1003	●	●				●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-858-0	01	1	1008-	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-858-0	01	1	0306-0609	●	●				●
34	09.181 SHAFT; IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97945-181-0	01	1	0610-0910	●	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-858-0	01	1	0710-1003	●	●				●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-857-0	01	1	1008-	●	●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(LX5)	8-97185-857-0	01	1	0306-0609	●	●				●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-857-0	01	1	0710-1003	●	●				●
96	08.929 WASHER; LK 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-853-0	01	1	1008-	●	●
96	08.929 WASHER; LK 6VE1 ENG(LX5)	8-97185-853-0	01	1	0306-0609	●	●				●
96	08.929 WASHER; LK 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-853-0	01	1	0710-1003	●	●				●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-859-0	01	1	1008-	●	●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(LX5)	8-97185-859-0	01	1	0306-0609	●	●				●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-859-0	01	1	0710-1003	●	●				●

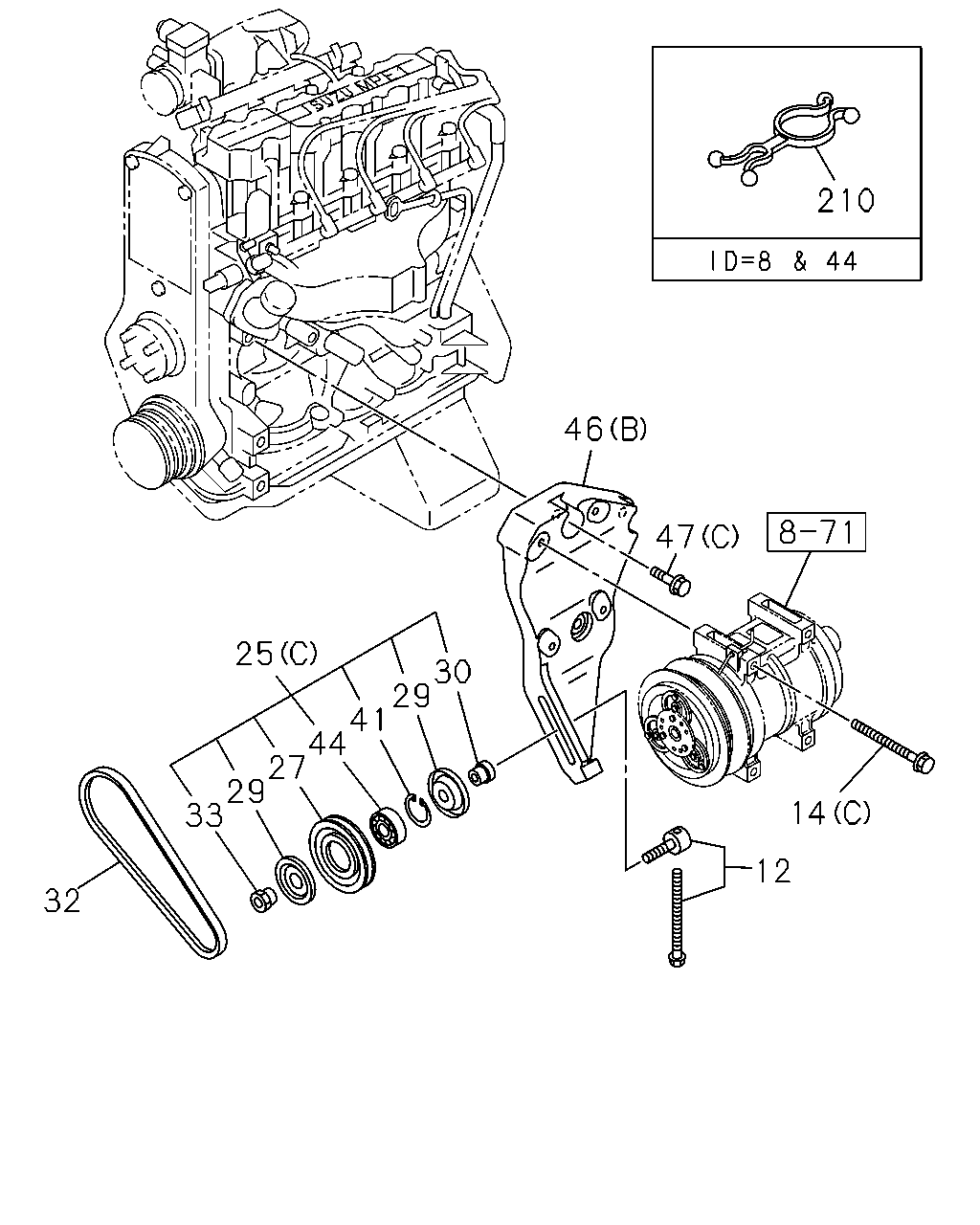

210 46 47 25 30 29 41 44 27 29 33 14 12 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	09.181 BOLT; ADJ,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-139-0	01	1	0306-	●	●		●		●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	01	1	1008-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0306-0601	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-1007	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1008-	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28181-000-0	04	1	0306-0601	●	●		●		●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0710-1003	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-1003	●	●				●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A)	8-97943-806-0	01	1	0306-	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	0610-1007	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	1008-	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-92066-142-0	01	1	0306-	●	●		●		●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) POWER STEERING<N40>	8-97178-354-0	01	1	1008-	●	●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-145-0	01	1	0306-0402	●	●		●		●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0306-0609	●	●				●
27	09.180 PULLEY; IDLE,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-328-0	01	1	0610-0910	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97178-354-0	01	1	0710-1003	●	●				●
29	09.181 COVER; DUST,IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-334-1	01	1	0610-0910	●	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92064-070-0	02	1	0306-0402	●	●		●		●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-854-0	01	1	1008-	●	●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-143-0	01	1	0306-0402	●	●		●		●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0306-0609	●	●				●
30	09.181 COLLAR; IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-333-2	01	1	0610-0910	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-854-0	01	1	0710-1003	●	●				●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	1008-	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI	8-97942-729-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	0610-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0306-	●	●		●		●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0306-0609	●	●				●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) MITSUBOSHI	8-97944-104-0	01	1	0610-0711	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0710-1003	●	●				●
33	09.181 NUT; IDLER PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10	8-97377-331-0	01	1	0610-0910	●	●	●	●	●	●
33	09.181 NUT; IDLER PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-146-0	01	1	0306-0402	●	●		●		●
41	09.181 RING; SNAP,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-234-0	01	1	0306-0402	●	●		●		●
44	09.180 BEARING; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-233-0	01	1	0306-0402	●	●		●		●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0306-0609	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0306-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0306-	●	●		●		●
46	09.171 BRACKET; CMPR 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-1007	●	●		●		●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	1008-	●	●		●		●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0306-	●	●		●		●
210	09.242 CLIP; HARNESS C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.559	8-94109-862-0	01	1	0306-	●	●		●		●

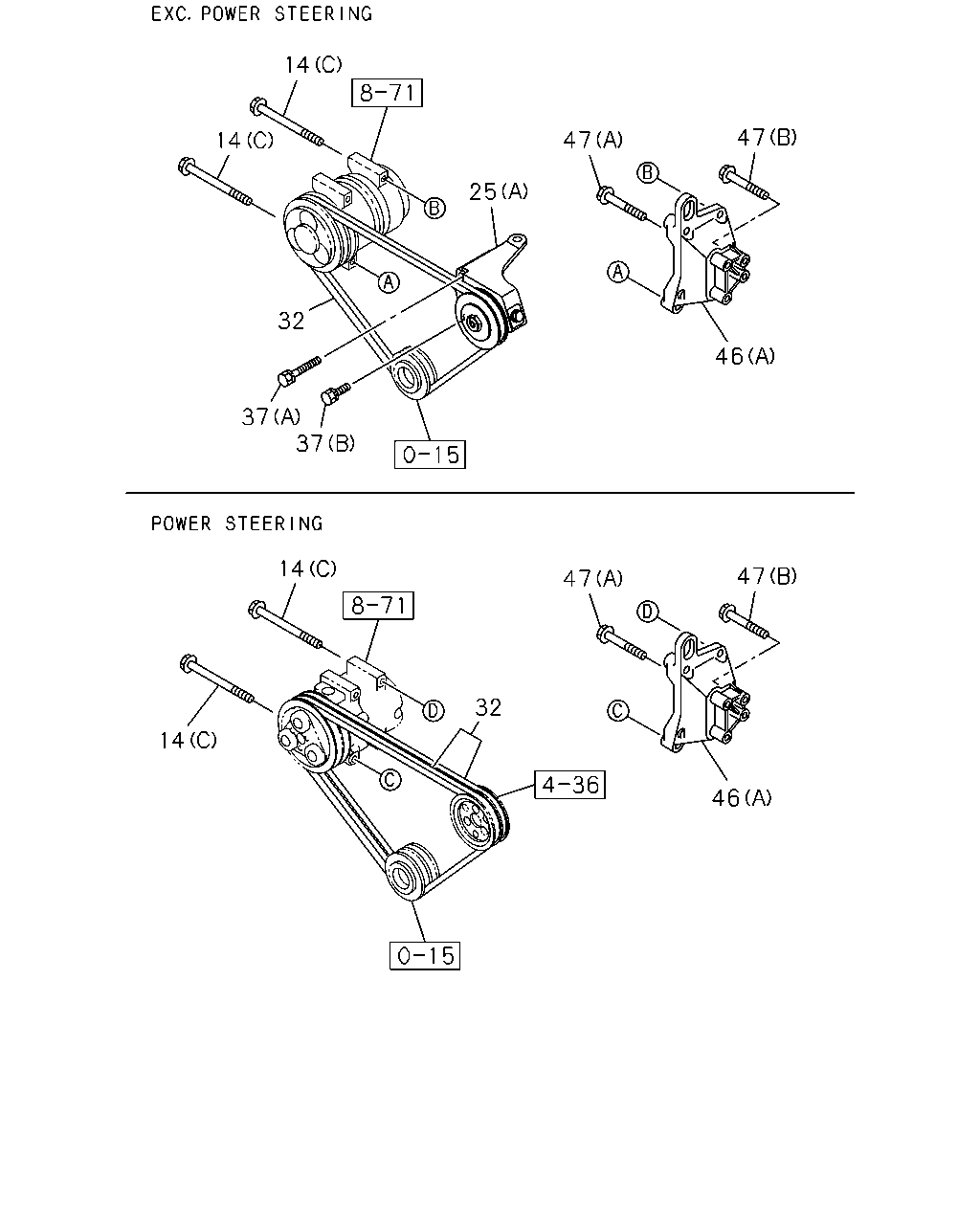

14 47 47 14 25 32 46 37 37 14 47 47 32 14 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	01	1	1008-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0306-0601	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-1007	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1008-	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28181-000-0	04	1	0306-0601	●	●		●		●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0710-1003	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-1003	●	●				●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A)	8-97943-806-0	01	1	0306-	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	0610-1007	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	1008-	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-92066-142-0	01	1	0306-	●	●		●		●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	1008-	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI	8-97942-729-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	0610-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0306-	●	●		●		●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0306-0609	●	●				●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) MITSUBOSHI	8-97944-104-0	01	1	0610-0711	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0710-1003	●	●				●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0306-	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0306-	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0610-1007	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0306-0609	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0306-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0306-	●	●		●		●
46	09.171 BRACKET; CMPR 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-1007	●	●		●		●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	1008-	●	●		●		●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0306-	●	●		●		●

31 25 26 30 34 27 29 33 37 25 46 47 184 14 47 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	01	1	1008-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0306-0601	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-1007	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1008-	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28181-000-0	04	1	0306-0601	●	●		●		●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0306-0609	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0710-1003	●	●				●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-1003	●	●				●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A)	8-97943-806-0	01	1	0306-	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	0610-1007	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 1-GROOVE	8-98051-011-0	01	1	1008-	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-92066-142-0	01	1	0306-	●	●		●		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-329-0	01	1	0610-0910	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) POWER STEERING<N40>	8-97178-354-0	01	1	1008-	●	●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-145-0	01	1	0306-0402	●	●		●		●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0306-0609	●	●				●
27	09.180 PULLEY; IDLE,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-328-0	01	1	0610-0910	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97178-354-0	01	1	0710-1003	●	●				●
29	09.181 COVER; DUST,IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-334-1	01	1	0610-0910	●	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92064-070-0	02	1	0306-0402	●	●		●		●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-854-0	01	1	1008-	●	●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-143-0	01	1	0306-0402	●	●		●		●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0306-0609	●	●				●
30	09.181 COLLAR; IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97377-333-2	01	1	0610-0910	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-854-0	01	1	0710-1003	●	●				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M8X75	8-97377-330-2	01	1	0610-0910	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	1008-	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI	8-97942-729-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	0610-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0306-	●	●		●		●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0306-0609	●	●				●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) MITSUBOSHI	8-97944-104-0	01	1	0610-0711	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0710-1003	●	●				●
33	09.181 NUT; IDLER PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10	8-97377-331-0	01	1	0610-0910	●	●	●	●	●	●
33	09.181 NUT; IDLER PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-146-0	01	1	0306-0402	●	●		●		●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5) POWER STEERING<N40>	8-97185-858-0	01	1	1008-	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-858-0	01	1	0306-0609	●	●				●
34	09.181 SHAFT; IDLE PULLEY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97945-181-0	01	1	0610-0910	●	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97185-858-0	01	1	0710-1003	●	●				●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0306-	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0306-	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0610-1007	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0306-0609	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0306-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0306-	●	●		●		●
46	09.171 BRACKET; CMPR 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-1007	●	●		●		●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	1008-	●	●		●		●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0306-0609	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0306-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	0610-1007	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) M8X35 FLANGE	8-98049-562-0	01	1	1008-	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0306-	●	●		●		●
184	09.242 NUT; A/C PIPE BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-1007	●	●	●	●	●	●
184	09.242 NUT; A/C PIPE BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	1008-	●	●	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

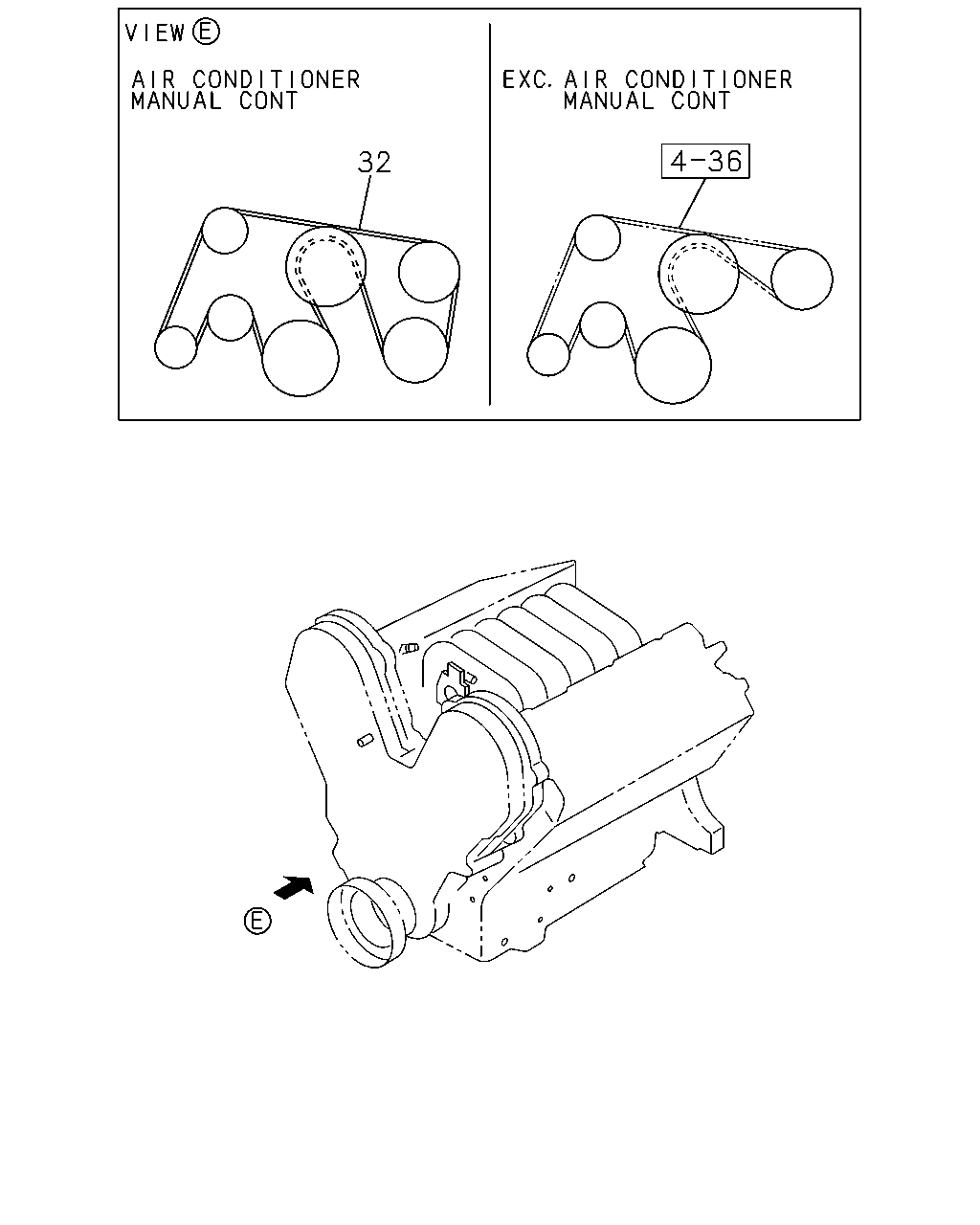

32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	1008-	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0306-0609	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-	●		●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI	8-97942-728-0	01	1	0610-		●			●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI	8-97942-729-0	01	1	0306-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	0610-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) BANDO	8-97944-138-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0306-	●	●		●		●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0306-0609	●	●				●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) MITSUBOSHI	8-97944-104-0	01	1	0610-0711	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-1007	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1008-	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0710-1003	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
