◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#74062) — 247 parça

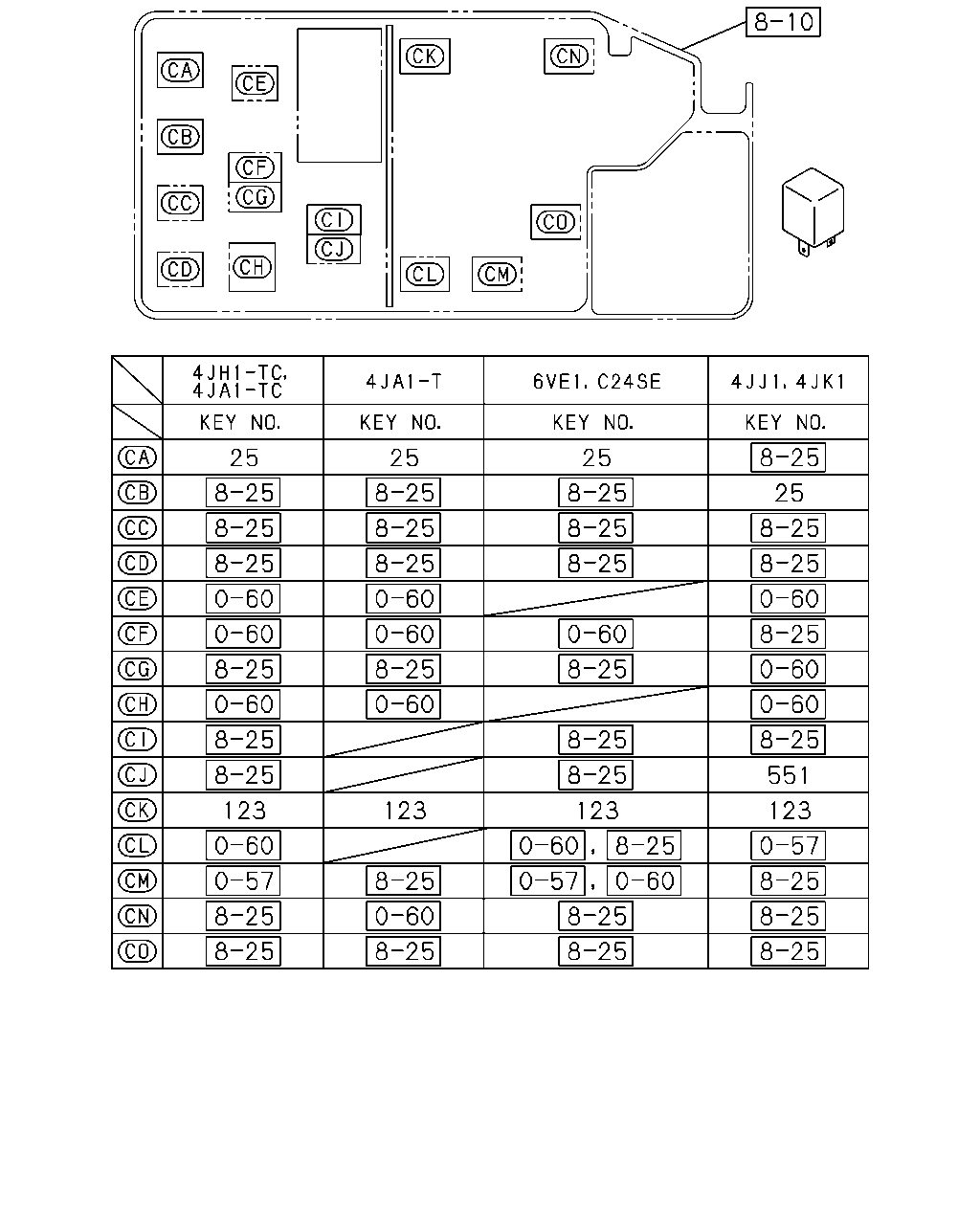

çizim 143624
25 25 25 551 123 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0),6VE1 ENG(LX5) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710-1003 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004-1007 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1008- ● ● ● ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-294-0 01 1 1008-1109 ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 02.485 12V YAZAKI 		8-97309-294-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0710- ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0910 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.575 12V OMRON 		8-98005-407-0 01 1 0710-0809 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
02.575 12V OMRON 		8-98005-407-0 01 1 0810-1003 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.575 12V OMRON 		8-98005-407-0 01 1 1004-1007 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON 		8-98005-407-0 01 1 1008-1109 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0710-0809 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
09.778 12V YAZAKI 		8-97309-293-0 01 1 0810-1003 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004-1007 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1008-1109 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
09.778 12V YAZAKI 		8-97309-293-0 01 1 1110- ● ● ● ● ● ●
çizim 143785
25 25 25 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0),6VE1 ENG(LX5) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710-1003 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004-1007 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1008- ● ● ● ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-294-0 01 1 1008-1109 ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 02.485 12V YAZAKI 		8-97309-294-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0710- ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0910 ● ● ● ● ● ●
çizim 143822
25 25 25 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0),6VE1 ENG(LX5) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710-1003 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004-1007 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1008- ● ● ● ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-294-0 01 1 1008-1109 ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 02.485 12V YAZAKI 		8-97309-294-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0710- ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0910 ● ● ● ● ● ●

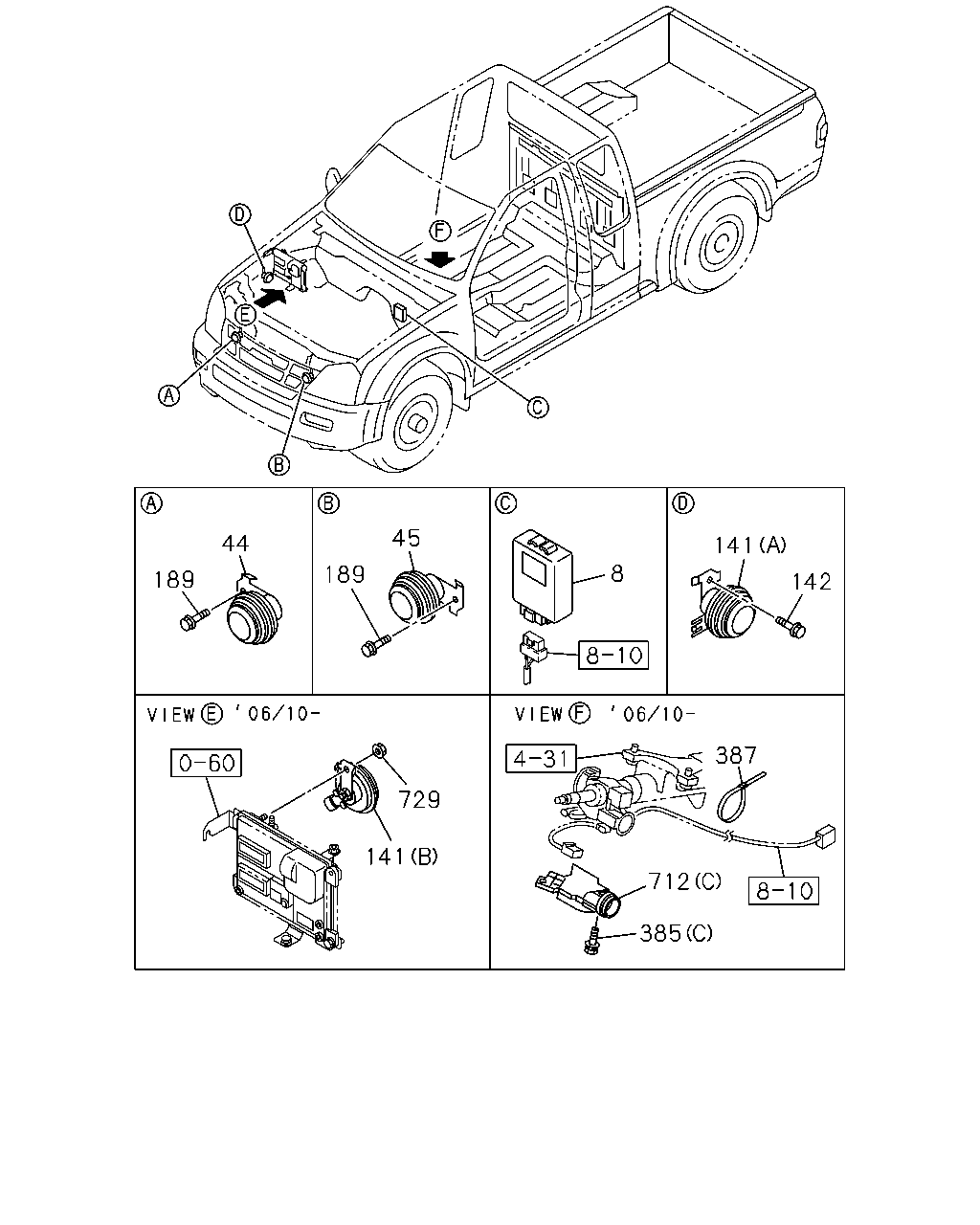

çizim 143924
45 44 141 8 189 189 142 387 729 141 712 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 12V 		8-97302-100-0 01 1 0306- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
VARIABLE INTERMITTENT WIPER<CD4> 12V 		8-97302-101-0 01 1 0306- ● ● ●
44 02.810 HORN; HIGH NOTE
CHEVROLET EQUIPMENT(8JF) 07.505 		8-97363-624-0 01 1 1008-1010 ● ● ●
44 02.810 HORN; HIGH NOTE
CHEVROLET EQUIPMENT(8JF) 		8-98154-696-0 01 1 1011- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 0306-0508 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 0509-1003 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. CHEVROLET EQUIPMENT(8JF) 		8-97237-046-0 01 1 0509-1003 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 1004-1007 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 1008- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. CHEVROLET EQUIPMENT(8JF) 		8-97237-046-0 01 1 1008- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> CHEVROLET EQUIPMENT(8JF) 07.505 		8-97363-624-0 01 1 0509-0609 ● ● ●
44 02.810 HORN; HIGH NOTE
CHEVROLET EQUIPMENT(8JF) 07.505 		8-97363-624-0 01 1 0610-1003 ● ● ●
45 02.810 HORN; LOW NOTE
CHEVROLET EQUIPMENT(8JF) 		8-97374-040-0 01 1 1008- ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 0306-0508 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 0509-1003 ● ● ●
45 02.810 HORN; LOW NOTE
EXC. CHEVROLET EQUIPMENT(8JF) 		8-97237-047-0 01 1 0509-1003 ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 1004-1007 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 1008- ● ● ●
45 02.810 HORN; LOW NOTE
EXC. CHEVROLET EQUIPMENT(8JF) 		8-97237-047-0 01 1 1008- ● ● ●
45 02.810 HORN; LOW NOTE
CHEVROLET EQUIPMENT(8JF) 		8-97374-040-0 01 1 0509-1003 ● ● ●
141 02.810 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97237-044-0 01 1 0306-0409 ● ● ● ● ●
141 02.810 HORN; ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97237-044-0 01 1 0410-0508 ● ● ● ● ●
141 02.810 HORN; ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97237-044-0 01 1 0509-0609 ● ● ●
141 02.810 HORN; ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97237-044-0 01 1 0610- ● ● ●
141 02.810 HORN; ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97375-253-0 01 1 0610-1007 ● ● ●
141 02.810 HORN; ANTI THEFT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97375-253-0 01 1 1008- ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306-0409 ● ● ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0410-0508 ● ● ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0509-0609 ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ● ●
189 02.812 BOLT; HORN
CHEVROLET EQUIPMENT(8JF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1008- ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0306-0508 ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0509-1003 ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> EXC. CHEVROLET EQUIPMENT(8JF) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0509-1003 ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1004-1007 ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1008- ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> EXC. CHEVROLET EQUIPMENT(8JF) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1008- ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306-0508 ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509-1003 ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05>,CHEVROLET EQUIPMENT(8JF) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509-1003 ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1004-1007 ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1008- ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05>,CHEVROLET EQUIPMENT(8JF) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1008- ● ● ●
189 02.812 BOLT; HORN
CHEVROLET EQUIPMENT(8JF) EXC. DUAL TONE HORN<U05> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0509-0609 ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> CHEVROLET EQUIPMENT(8JF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0509-0609 ● ● ●
189 02.812 BOLT; HORN
CHEVROLET EQUIPMENT(8JF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610-1003 ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0612 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0609 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0610-0709 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0306-0606 ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0607-0609 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0610-0709 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ● ● ●
387 02.363 CLIP; BAND
IMMOBILIZER SYSTEM<7KC> L=140 		8-97920-656-0 01 1 0306- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> 16.263 (A) 		8-97244-759-0 01 1 0306-0404 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-323-0 01 1 0405-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-323-0 01 1 0610- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0306-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0610-0709 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0710- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> (A) 		8-97365-025-0 01 1 0306- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 16.263 (A) 		8-97234-671-0 01 1 0306-0408 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-324-0 01 1 0409-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-324-0 01 1 0610-0703 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 0610-1007 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 1008- ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 1008- ● ●
729 07.450 NUT; HORN,ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ●
729 07.450 NUT; HORN,ANTI THEFT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●

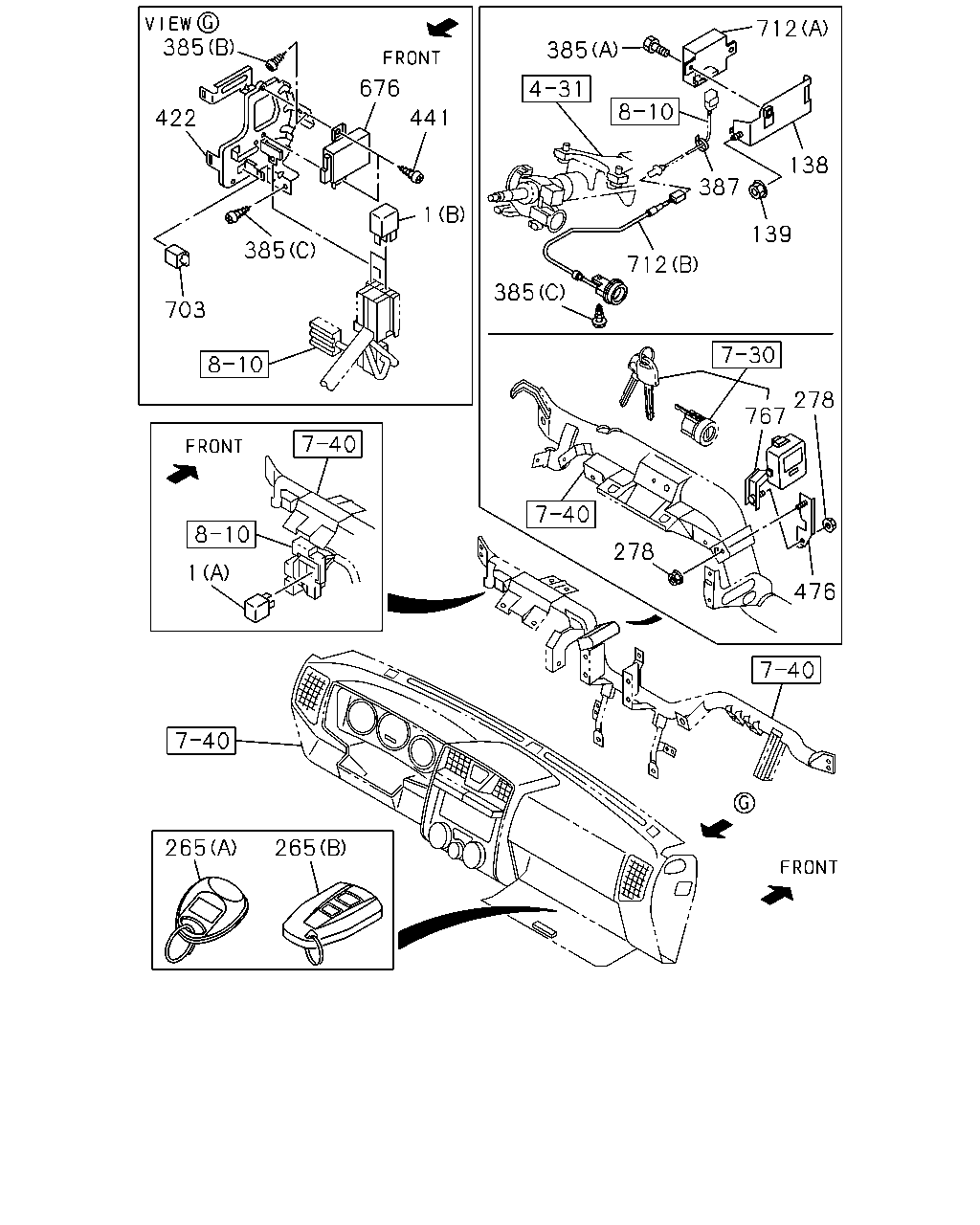

çizim 144099
385 712 385 676 422 441 138 387 1 139 385 712 385 703 278 767 278 1 476 265 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-97912-779-0 01 1 0306-0510 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-98032-675-0 01 1 0511-1404 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
(A) DENSO 		8-97202-225-1 01 1 1405- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0306-0502 ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> (B) 12V OMRON 		8-98005-407-0 02 1 0503-0508 ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON 		8-98005-407-0 02 1 0509-0709 ● ● ●
1 02.575 UNIT; FLASHER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0710- ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT
IMMOBILIZER SYSTEM<7KC> 		8-97357-768-0 01 1 0306-0609 ● ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 		8-97357-768-0 01 1 0610-0709 ● ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 		8-97357-768-0 01 1 0710- ● ● ● ●
139 02.810 NUT; ANTI THEFT BRKT
IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0609 ● ● ● ●
139 02.810 NUT; ANTI THEFT BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-0709 ● ● ● ●
139 02.810 NUT; ANTI THEFT BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPME NT(B15),COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPME NT(E06),MEXICO EQUIPMENT(E11), ECUADOREQUIPMENT(E46),CHILE EQUIPMENT(KE1), ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (B) 		8-98000-035-0 01 1 0710-0809 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),AR GENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (B) 		8-98000-035-0 01 1 0810-0905 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),AR GENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVROL ET EQUIPMENT(8JF) (B) 		8-98000-035-0 01 1 0906-1003 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),CHILE EQUIPMENT(KE1), ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYST EM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 01 1 1004-1007 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),AR GENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVROL ET EQUIPMENT(8JF) (B) 		8-98000-035-0 01 1 1008- ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-90508-961-2 01 1 0306-0412 ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-97378-442-0 01 1 0501-0508 ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97378-442-0 01 1 0509-0709 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC>, CHEVROLET EQUIPMENT(8JF) (A) 		8-97378-442-0 01 1 0710-1003 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-97378-442-0 01 1 1004-1007 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC>, CHEVROLET EQUIPMENT(8JF) (A) 		8-97378-442-0 01 1 1008- ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) 		8-98000-035-0 02 1 0509-0609 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (B) 		8-98000-035-0 02 1 0509-0609 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (B) 		8-98000-035-0 02 1 0610-0709 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) 		8-98000-035-0 02 1 0610-0709 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 0710-0809 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 0710-0809 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 02 1 0710-0809 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 0810-1003 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 02 1 0810-1003 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 0810-1003 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 02 1 1004-1007 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 02 1 1004-1007 ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 1008- ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98000-035-0 02 1 1008- ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) (B) 		8-98000-035-0 02 1 1008- ● ● ● ● ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0809 ● ● ● ● ● ●
278 03.415 NUT; CONT UNIT
4JA1-T ENG(LP0) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) EXC. IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0809 ● ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,CHEVROLET EQUIPMENT(8JF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0809 ● ● ●
278 03.415 NUT; CONT UNIT
4JA1-T ENG(LP0) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0809 ● ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ● ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0612 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0609 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0610-0709 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0306-0606 ● ● ● ●
385 03.670 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0607-0609 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0610-0709 ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ● ● ●
387 02.363 CLIP; BAND
IMMOBILIZER SYSTEM<7KC> L=140 		8-97920-656-0 01 1 0306- ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97318-954-1 01 1 0306-0404 ● ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97381-411-0 01 1 0405- ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0609 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0610-0702 ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1003 ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
476 03.407 SPACER
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION(7YC), CHEVROLET EQUIPMENT(8JF) 		8-98097-697-0 01 1 0710-0809 ● ● ●
476 03.407 SPACER
4JA1-T ENG(LP0) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98097-697-0 01 1 0710-0809 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-97361-705-0 01 1 0306-0508 ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97361-705-0 01 1 0509-0709 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC>, CHEVROLET EQUIPMENT(8JF) 		8-97361-705-0 01 1 0710-1003 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-705-0 01 1 1004-1007 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. IMMOBILIZER SYSTEM<7KC>, CHEVROLET EQUIPMENT(8JF) 		8-97361-705-0 01 1 1008- ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98000-034-0 01 1 0509-0609 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98000-034-0 01 1 0509-0609 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98000-034-0 01 1 0610-0709 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98000-034-0 01 1 0610-0709 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 0710-0809 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0710-0809 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),GU ATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),MEXICO EQUIPMENT(E11),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVROLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0710-0809 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 0810-0905 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0810-0905 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0) ,ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRA EL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,CHEVROLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0810-0905 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 0906-1003 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0906-1003 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0) ,ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46), CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, CHEVROLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 0906-1003 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 1004-1007 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),CHILE EQUIPMENT(KE1), ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYST EM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 1004-1007 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. GUATEMALA EQUIPMENT(CE0), ARGENTINA EQUIPMENT(E06),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> 		8-98000-034-0 01 1 1004-1007 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> ARGENTINA EQUIPMENT(E06) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 1008- ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0) ,ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46), CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, CHEVROLET EQUIPMENT(8JF) 		8-98000-034-0 01 1 1008- ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> SAUDI ARABIA EQUIPMENT(GH3) CHEVROLET EQUIPMENT(8JF) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98000-034-0 01 1 1008- ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,CHEVROLET EQUIPMENT(8JF) 		8-98053-167-0 01 1 0710-0809 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JA1-T ENG(LP0) REMOTE CONT DOOR LOCK<AP5> TURKEY EQUIPMENT(B11) EXC. IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,CHEVR OLET EQUIPMENT(8JF) 		8-98053-167-0 01 1 0710-0809 ● ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0306- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> 16.263 (A) 		8-97244-759-0 01 1 0306-0404 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-323-0 01 1 0405-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-323-0 01 1 0610- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0306-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0610-0709 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 06.500 (B) 		8-97251-755-0 01 1 0710- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> (A) 		8-97365-025-0 01 1 0306- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 16.263 (A) 		8-97234-671-0 01 1 0306-0408 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-324-0 01 1 0409-0609 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A) 		8-97377-324-0 01 1 0610-0703 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 0610-1007 ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 1008- ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C) 		8-98008-412-0 01 1 1008- ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> TURKEY EQUIPMENT(B11) ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM<7KC>,LOCK ENDGATE<8CW> 		8-98053-170-2 01 1 0710-0809 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM<7KC> ISUZU BRAND<7WL> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0710-0809 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM<7KC> ISUZU BRAND<7WL> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98053-170-2 01 1 0710-0809 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> TURKEY EQUIPMENT(B11) CHEVROLET BRAND<RWE> IMMOBILIZER SYSTEM<7KC> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY>,LOC K END GATE<8CW> 		8-98053-170-2 01 1 0710-0809 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> TURKEY EQUIPMENT(B11) CHEVROLET BRAND<RWE> IMMOBILIZER SYSTEM<7KC> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0710-0809 ● ● ●

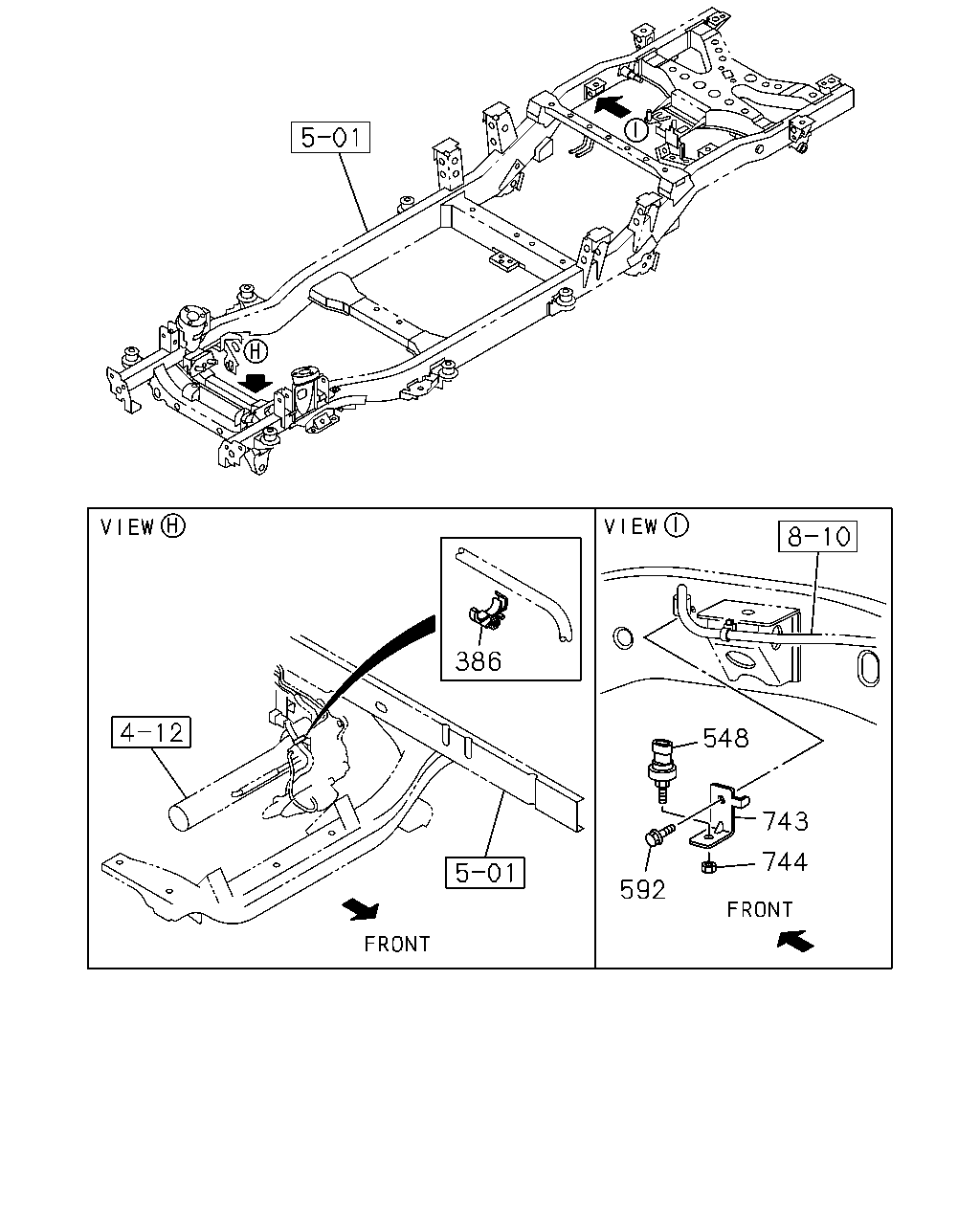

çizim 185303
386 548 743 744 592
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
386 02.559 CLIP; HARNESS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TCENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0306-0402 ● ● ●
386 02.559 CLIP; HARNESS
SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0403-0508 ● ● ●
386 02.559 CLIP; HARNESS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0509-0609 ● ● ●
386 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0610-0709 ● ● ●
386 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0710-1003 ● ● ●
386 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 1004-1007 ● ● ●
386 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1ENG(LX5),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 1008- ● ● ●
548 03.425 SENSOR; ACCELERATION
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) 		8-98004-467-0 01 1 0610-0809 ● ●
592 02.490 BOLT; SENSOR
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0610-0809 ● ●
743 09.196 BRACKET; SENSOR
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) 		8-98001-227-0 01 1 0610-0702 ● ●
743 09.196 BRACKET; SENSOR
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) 		8-98052-188-0 01 1 0703-0809 ● ●
744 09.277 NUT; SENSOR
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) 03.604 		8-11082-413-0 01 1 0610-0809 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
