◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#74060) — 130 parça
çizim 138235
81 107 305 67 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 0306-1007 ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 1008- ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97415-936-1 01 1 1008-1204 ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97423-267-0 01 1 1205- ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97415-936-1 01 1 0810-1003 ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) DARK GRAY 		8-97395-115-1 01 1 0306-0609 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) DARK GRAY 		8-97403-936-1 01 1 0610-1003 ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-936-1 01 1 0610-1003 ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-936-1 01 1 1004-1204 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97423-266-0 01 1 1205- ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VE1 ENG(LX5) A/T AISIN(RMD) 		8-97355-189-0 01 1 1008- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) 		8-97367-247-0 01 1 0306-0411 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97367-247-0 01 1 0306-0411 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) 		8-97372-890-0 01 1 0412-0508 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97372-890-0 01 1 0412-0508 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) 		8-97372-890-0 01 1 0509-0609 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97372-890-0 01 1 0509-0609 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 0610-1003 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 1004-1007 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 1008-1101 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 1102- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FRT&RR 225/75R15C(BZC) 		8-97367-257-0 01 1 0306-0410 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FRT&RR 225/75R15C(BZC) 		8-97372-891-0 01 1 0411-0609 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97372-891-0 01 1 0610-0709 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-98041-749-0 01 1 0710-0809 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(QCQ) EURO2 SPECIFICATION<NT2> 		8-98041-749-0 01 1 0810- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0610-0709 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0610-0709 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0710-0809 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0710-0809 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0810-1003 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0810-1003 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 1004-1007 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 1004-1007 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 1008- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 1008- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 0610-1003 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 1004-1007 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 1008- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> 		8-98043-641-0 01 1 0610-0709 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> 		8-98043-641-0 01 1 0710-1003 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> 		8-98043-641-0 01 1 1004- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VE1 ENG(LX5) A/T AISIN(RMD) 		8-97355-189-0 01 1 0306-0609 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 0610-1007 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 1008- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VE1 ENG(LX5) A/T AISIN(RMD) 		8-97355-189-0 01 1 0710-1003 ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0306-1007 ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1008- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0306- ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●

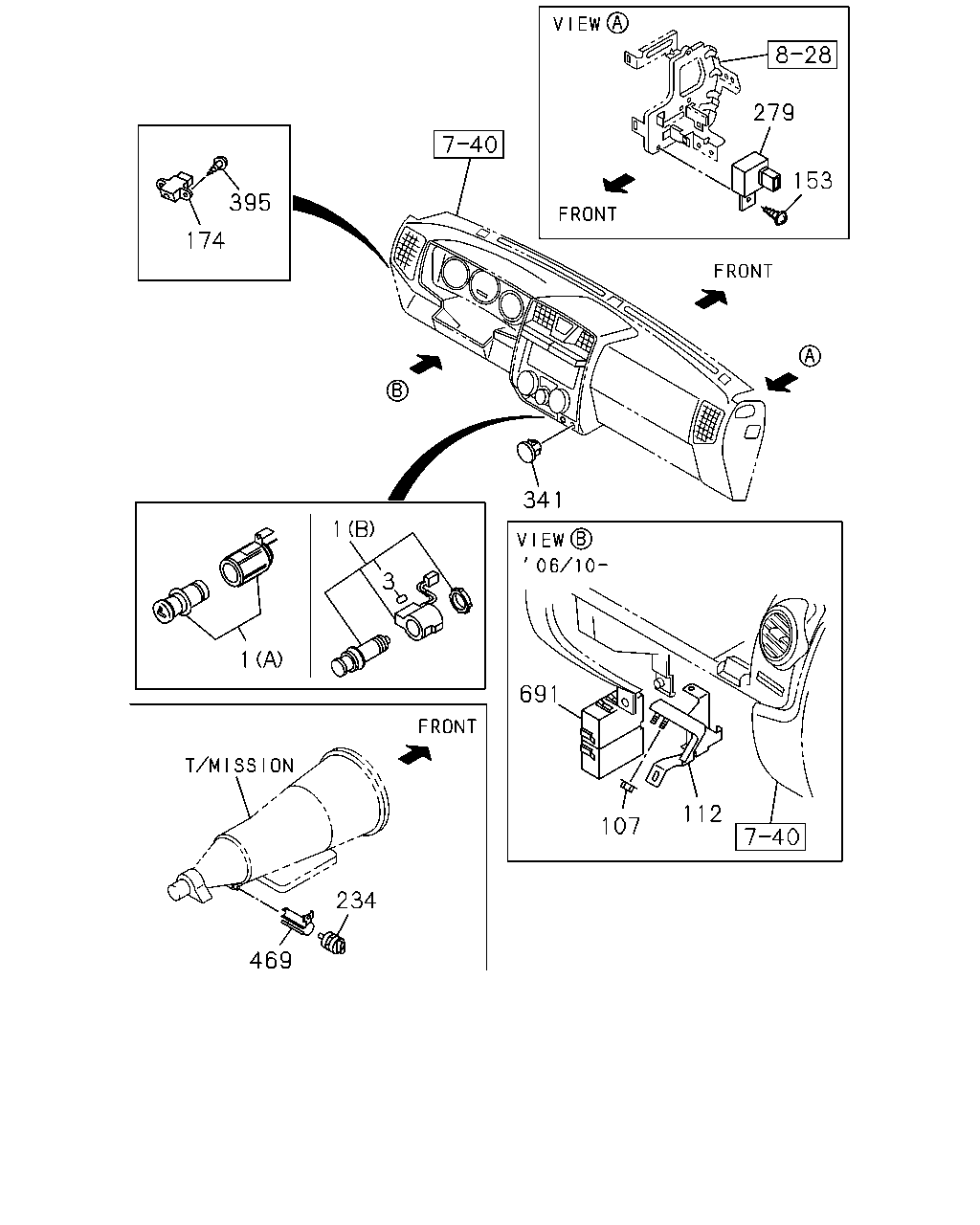

çizim 185297
279 153 395 174 341 1 3 1 691 112 107 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) CHEVROLET EQUIPMENT(8JF) (B) 		8-97329-641-0 01 1 1008- ● ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0306-0609 ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0306-0609 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0610- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97329-641-0 01 1 0306-0609 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97329-641-0 01 1 0610-1003 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97302-229-0 01 1 1004-1007 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97302-229-0 01 1 1008- ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-97302-229-0 01 1 1008- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT(RBD) 14V 1.4W 		8-97173-160-0 01 1 0306-0609 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT(RBD) 14V 1.4W 		8-97173-160-0 01 1 0610- ● ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0306-1007 ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1008- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
112 02.500 BRACKET; CONT UNIT 8-97945-257-0 01 1 0610- ● ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0306-0609 ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0306-0609 ● ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0306-0508 ● ● ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0509- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0306-0406 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0306-0406 ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0609 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0609 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1003 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1003 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1004-1007 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1004-1007 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1008- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1008- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 		8-97129-705-0 01 1 0306-0609 ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 0610-0610 ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 0610-1007 ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 1008- ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0306-0609 ● ● ● ● ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0306-0609 ● ● ● ●
341 04.115 COVER ASM
09.277 DARK GRAY 		8-97390-774-0 01 1 0306-0609 ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 09.277 DARK GRAY 		8-97390-774-0 01 1 0306-0609 ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0610-1003 ● ● ●
341 04.115 COVER ASM
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR COLOR IN MED.CASHMERE(136) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0610-1003 ● ● ●
341 04.115 COVER ASM
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 1004-1007 ● ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 1008- ● ● ● ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0509-0612 ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 		8-98119-903-0 01 1 1008- ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0306-0609 ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),A/T AISIN(RMD), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97168-308-0 01 1 0306-0609 ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97168-308-0 01 1 0610-0809 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 0810-1003 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98119-901-0 01 1 1004-1007 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 1008- ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 02.559 		8-97350-141-0 01 1 0306-0609 ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 02.559 		8-97350-141-0 01 1 0710-0809 ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 		8-98119-903-0 01 1 0810-1003 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0306-0309 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0306-0412 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ● ●

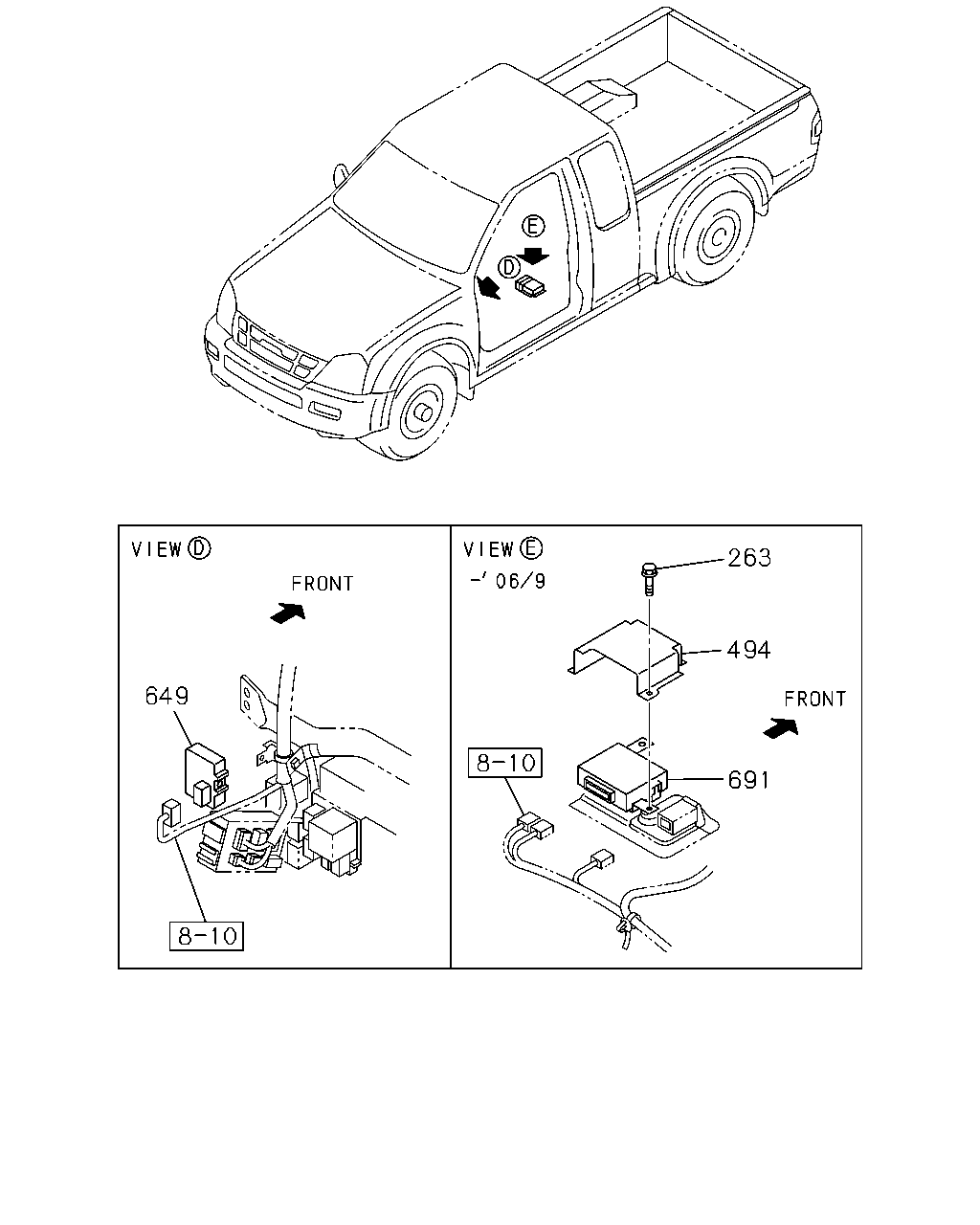

çizim 185301
263 494 649 691
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
263 04.115 BOLT; CONT UNIT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0306-0601 ● ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0602-0609 ● ● ●
494 04.115 COVER; ELEC BOX 8-97328-613-0 01 1 0306-0609 ● ● ●
649 02.679 CONTROL UNIT; RR FOG LAMP
RR FOG LAMP<T79> 		8-97362-213-0 01 1 0306- ● ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0306-0309 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0306-0412 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
