3-08C — PARKING BRAKE (#7406) — 95 parça

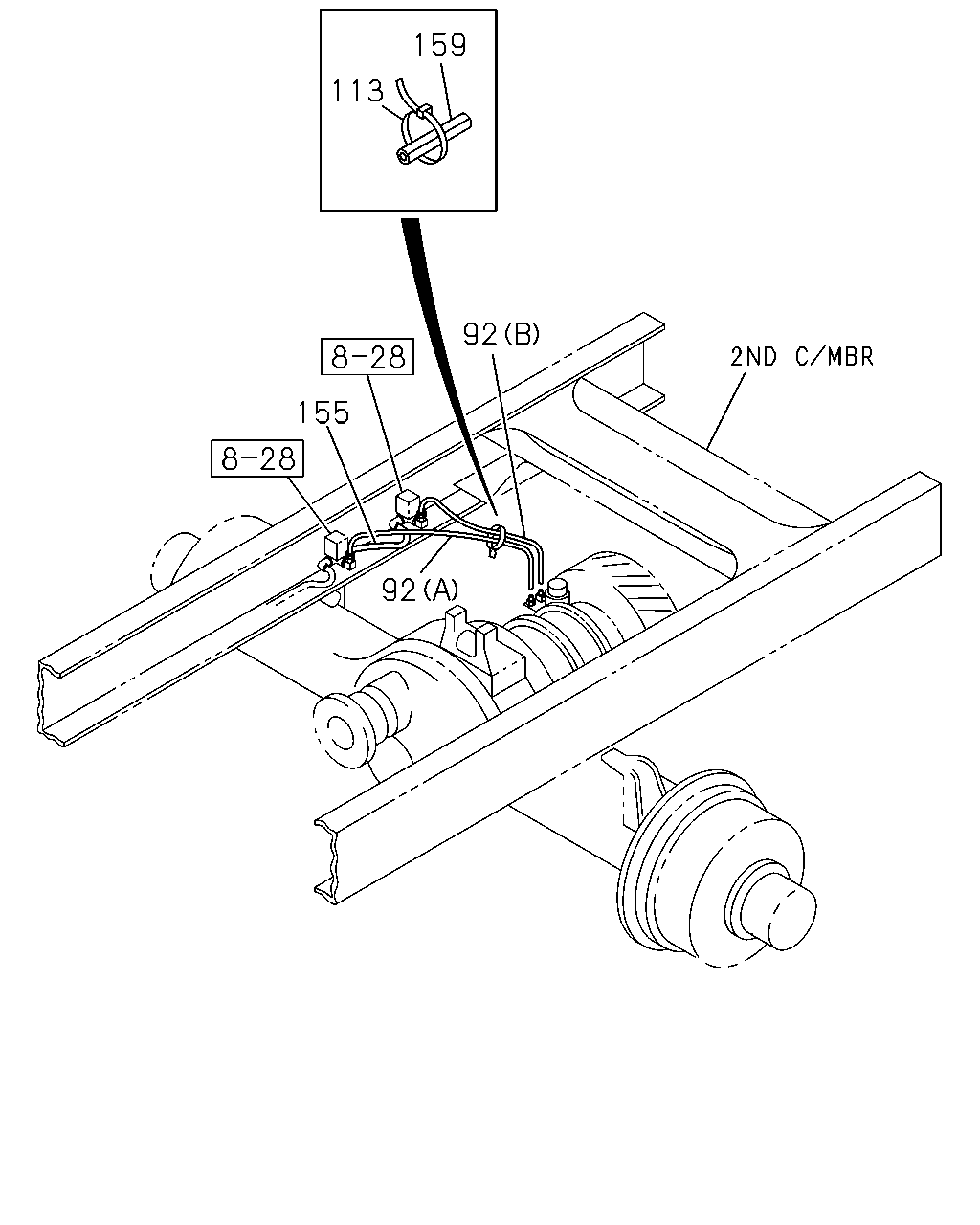

159 113 92 155 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=580	1-09363-641-0	01	1	9812-9901	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-09363-650-0	01	1	9812-9901	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A),(B)	1-09363-650-0	02	1	9902-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140	5-09707-031-1	01	1	9812-	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	9902-9906	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	9907-		●
159	SLEEVE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	9812-	●	●

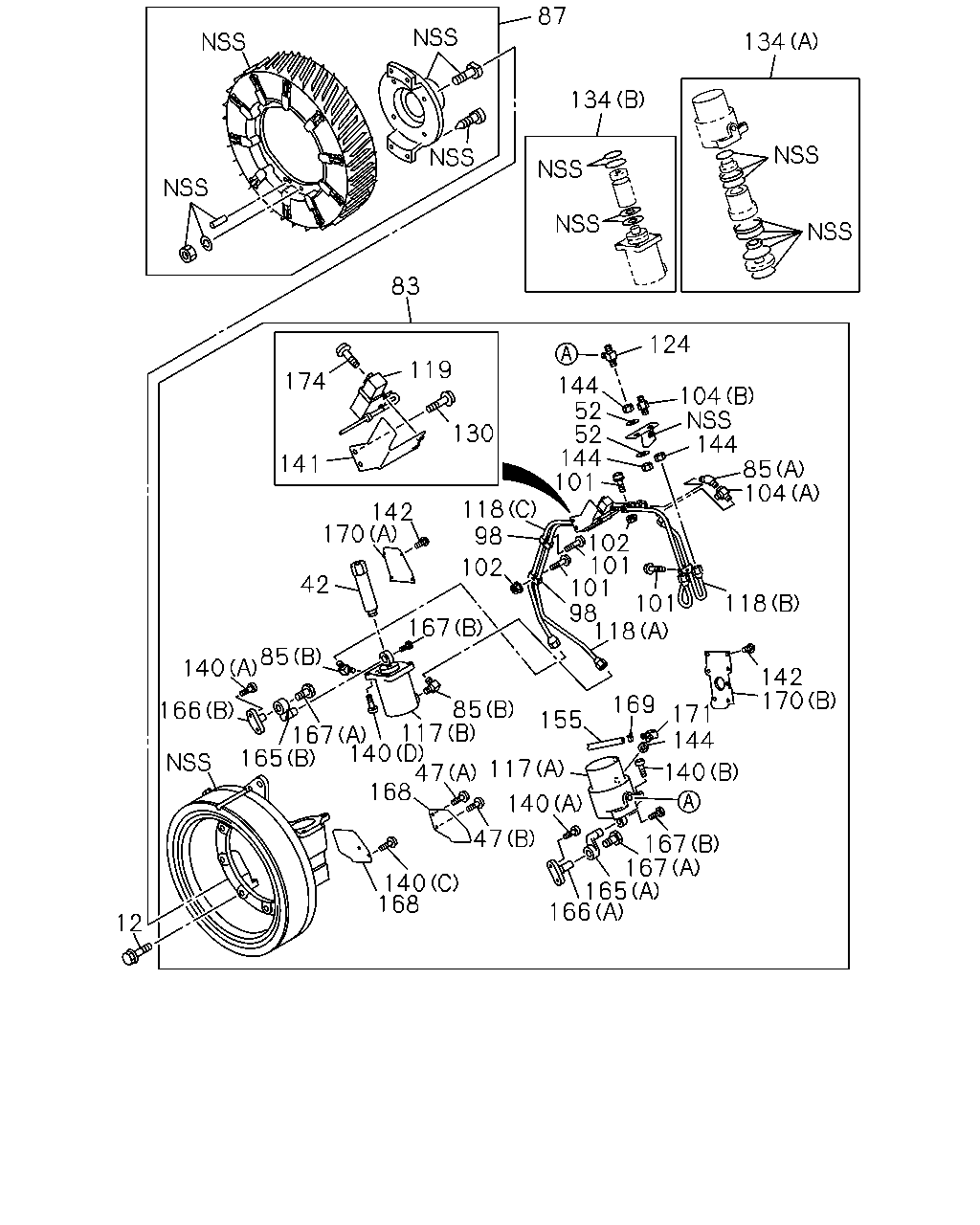

87 134 134 83 124 119 174 144 52 52 144 101 104 144 85 104 130 141 118 98 142 170 102 101 101 101 98 118 102 42 118 167 85 171 144 140 142 170 169 85 167 117 140 165 47 168 166 155 117 140 140 47 167 167 165 166 140 168 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9902-9906	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9907-		●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9902-9906	●	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9907-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	9902-9906	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	9907-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	9902-9906	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	9907-		●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	9902-9906	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	9907-		●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-2	01	1	9902-9906	●	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-3	01	1	9907-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9902-9906	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9907-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9902-9906	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9907-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-269-1	01	1	9902-9906	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-269-3	01	1	9907-		●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9902-9906	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9907-		●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X18	1-48629-134-0	03	1	9902-9906	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X18	1-48629-134-0	03	1	9907-		●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	9902-9906	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	9907-		●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9902-9906	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9907-		●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9902-9906	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9907-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9902-9906	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9907-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9902-9906	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9907-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9902-9906	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9907-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49115-877-0	01	1	9902-9906	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49115-877-0	01	1	9907-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49118-551-0	01	1	9902-9906	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49118-551-0	01	1	9907-		●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	9902-9906	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	9907-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9902-9906	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9907-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9902-9906	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9907-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9902-9906	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9907-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9902-9906	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9907-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9907-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9907-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9907-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9907-		●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9902-9906	●	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9907-		●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9902-9906	●	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9907-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	9902-9906	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	9907-		●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	9902-9906	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	9907-		●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	9902-9906	●	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	9907-		●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	9902-9906	●	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	9907-		●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9902-9906	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9907-		●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9902-9906	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9907-		●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	9902-9906	●	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	9907-		●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	9902-9906	●	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	9907-		●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9902-9906	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9907-		●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	9902-9906	●	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	9907-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9902-9906	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9907-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9902-9906	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9907-		●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	9902-9906	●	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	9907-		●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	9902-9906	●	●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	9907-		●
