◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#74057) — 5 parça

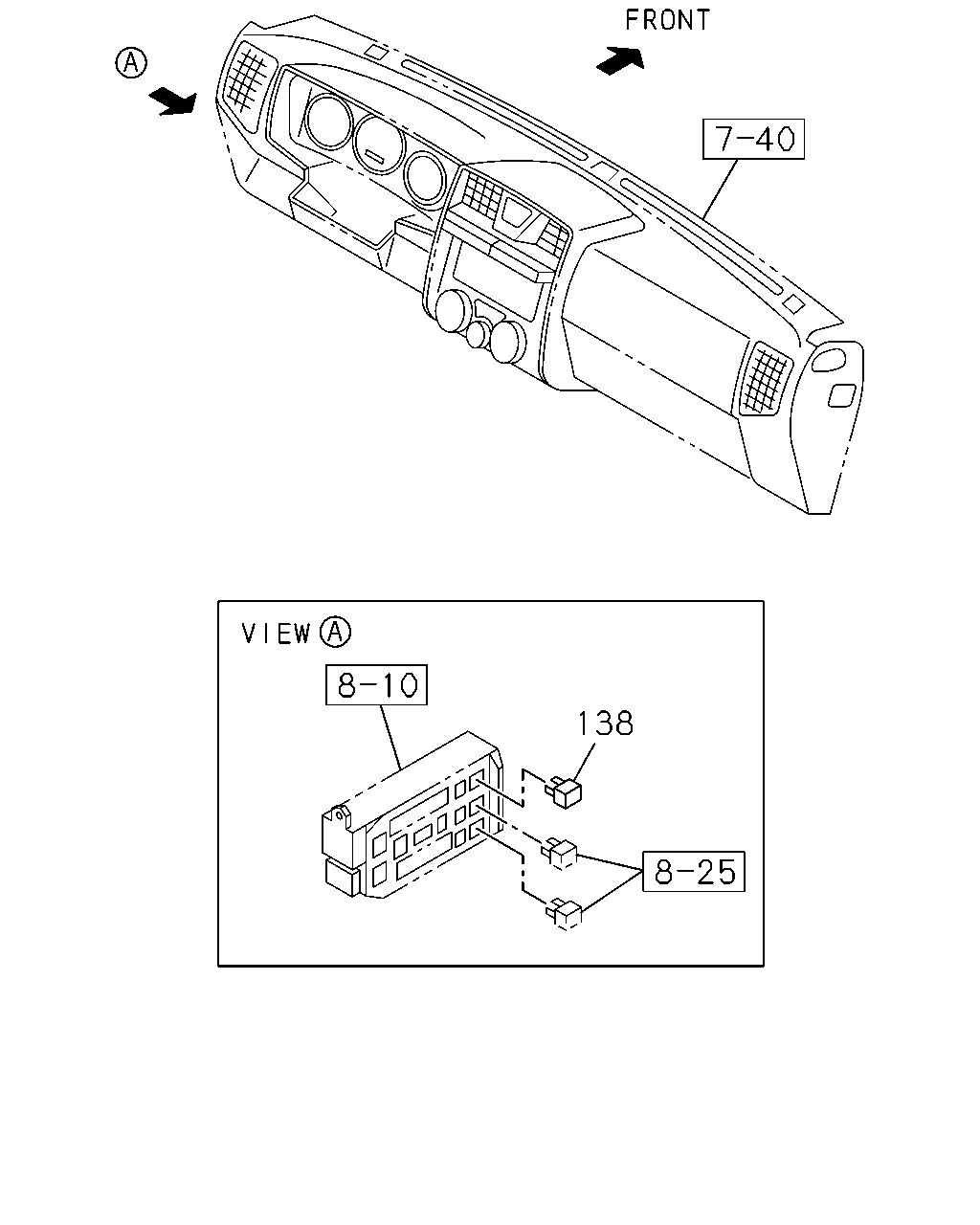

çizim 185299
138
BalonParca AdiParca NoAdetTipApplied Date A B C D E
138 08.852 RELAY; ACCESSORY
GRADE LT(RBD) EXC. TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0508 ● ● ● ● ●
138 08.852 RELAY; ACCESSORY
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0508 ● ● ● ●
138 08.852 RELAY; ACCESSORY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> SEAT BELT TENSIONER FRT<A70> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0508 ● ● ● ●
138 08.852 RELAY; ACCESSORY
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> SEAT BELT TENSIONER FRT<A70> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0508 ● ● ● ●
138 08.852 RELAY; ACCESSORY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> SEAT BELT TENSIONER FRT<A70> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 		8-97364-229-0 01 1 0306-0508 ● ● ● ●
