◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#74056) — 797 parça

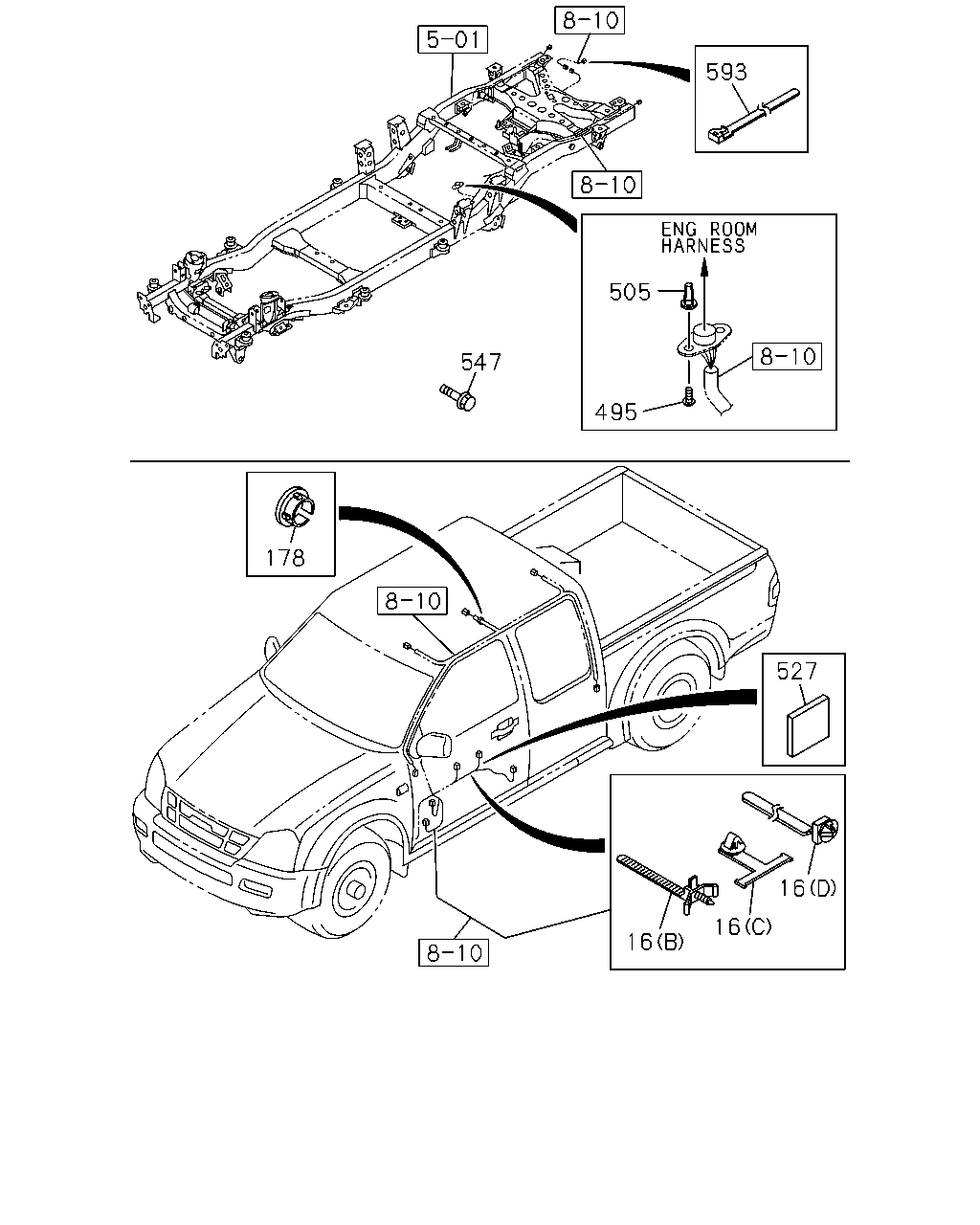

çizim 136656
593 505 547 495 178 527 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 06 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 06 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 02 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 0509-0809 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0610-0610 ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0710-0809 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 06 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 05 1 0509-0609 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-0 02 1 0306-0703 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0704- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0506-0703 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 03.162 (F) L=140 		5-09707-031-1 01 1 0704- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0306-1109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-0 03 1 0306-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-1 03 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 06 1 0509-0709 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 08 1 0710- ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0306- ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0306- ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0306- ● ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45 		8-97304-372-0 01 1 0306-0508 ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC ,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRI GHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 70X45 		8-97304-372-0 01 1 0509-0609 ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC ,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC TRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 70X45 		8-97304-372-0 01 1 0509-0609 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC ,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRI GHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 70X45 		8-97304-372-0 01 1 0610-0709 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC ,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC TRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 70X45 		8-97304-372-0 01 1 0610-0709 ● ● ●
547 02.559 BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306-0508 ● ● ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509-0609 ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509-0609 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0610- ● ●
547 02.559 BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0610- ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) L=250 		5-09707-030-1 01 1 0306- ● ● ● ● ● ●

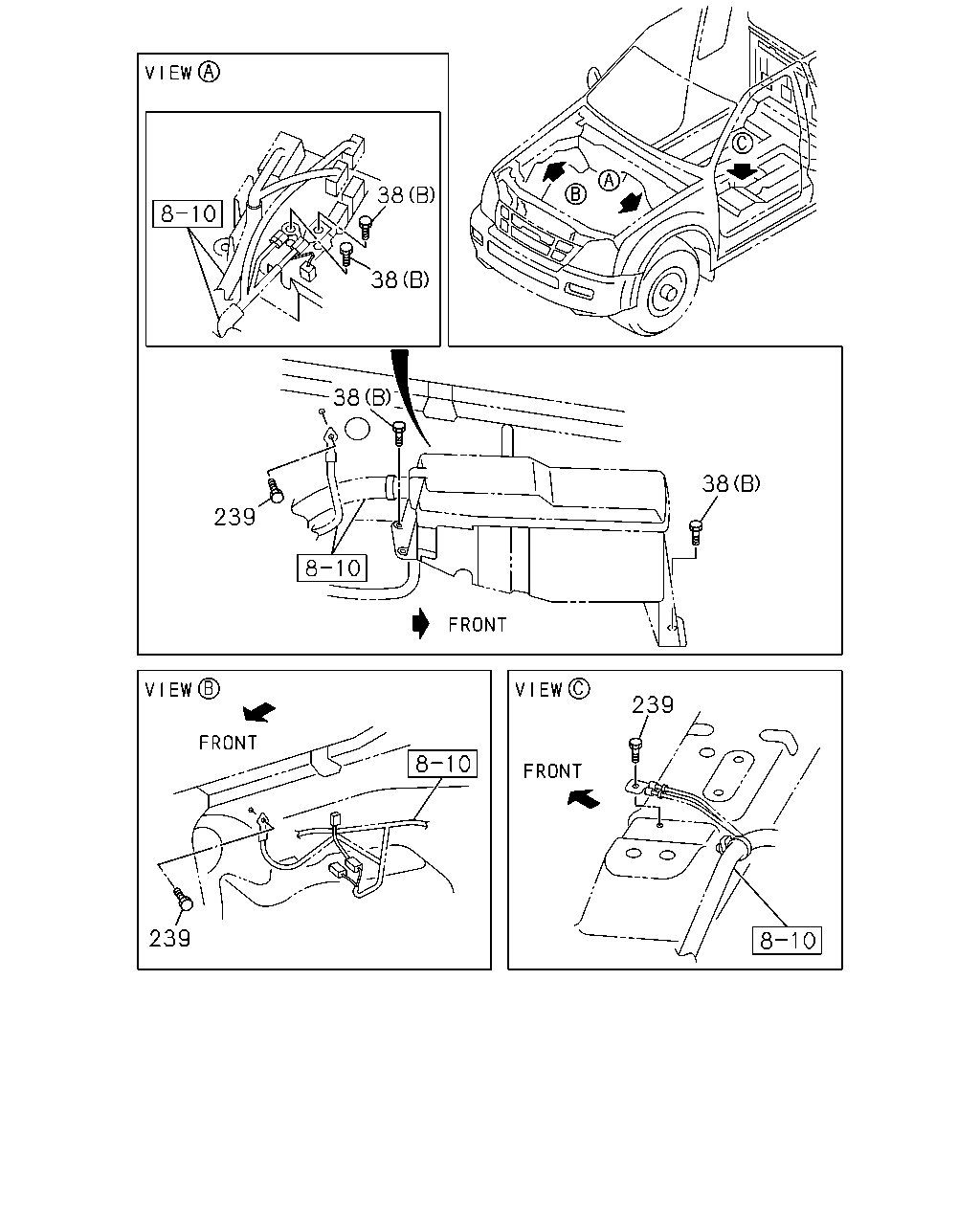

çizim 136929
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0306- ● ● ● ● ● ●

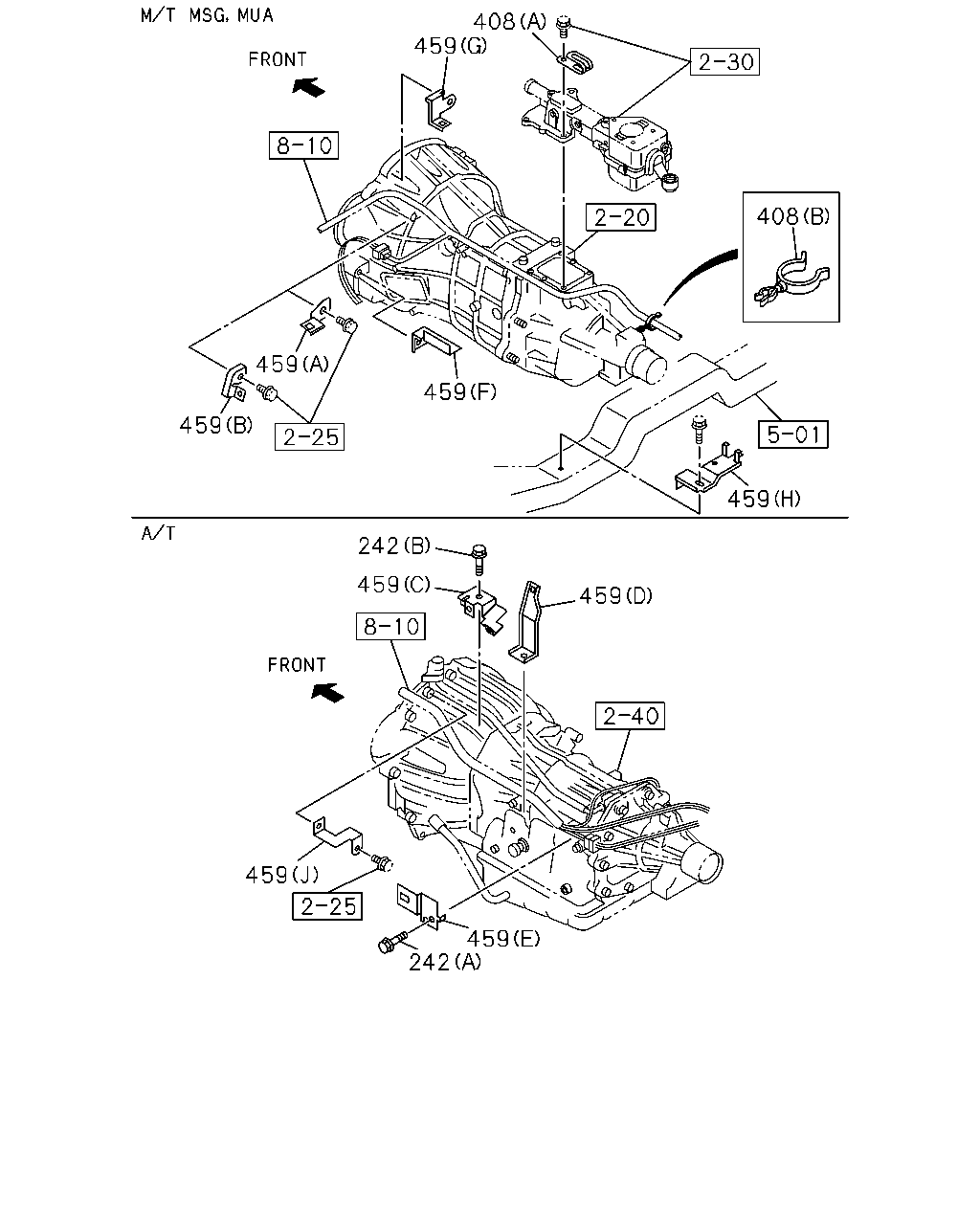

çizim 136975
408 459 408 459 459 459 459 242 459 459 459 459 242
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0512 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 0610-1007 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710-1003 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0306-0604 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0605-0609 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0610-1003 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1004-1007 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1008- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0306-1003 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 1004-1007 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 1008- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-98073-241-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-98073-242-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A) 		8-94315-284-0 01 1 0306-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M UA 5 SPEED 5S(RSQ) (A) 		8-98050-882-0 01 1 0610-1003 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 1004-1007 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M UA 5 SPEED 5S(RSQ) (A) 		8-98050-882-0 01 1 1008- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0601-0609 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> (H) 		8-98035-653-0 01 1 0610-0809 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0610-0809 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0810-1003 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 1004-1007 ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (H) 		8-98073-239-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-97323-436-0 01 1 0306-0609 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-98050-883-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (F) 		8-97237-168-0 01 1 0306-0512 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 0<NA5>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EU RO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 0601-1003 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM FEDERAL,TIER 1<NF2>, EURO1 SPECIFICATION<NT1>,EURO2 SPECIFI CATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 1004-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 0<NA5>, EURO1 SPECIFICATION<NT1>,EURO2 SPECIFI CATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 1008- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (I) 		8-98035-741-0 01 1 0610-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) (I) 		8-98035-741-0 01 1 1008- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (I) 		8-98035-741-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) (I) 		8-98035-741-0 01 1 1008- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-97249-919-1 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (J) 		8-97307-524-1 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-97249-920-0 01 1 0306-0608 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0609-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0610-0709 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0710-1003 ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 1004-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-97317-620-0 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (K) 		8-97382-804-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-98073-241-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-98073-242-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) (B) 		8-97237-379-0 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (L) 		8-98035-740-0 01 1 0610-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) (L) 		8-98035-740-0 01 1 1008- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (L) 		8-98035-740-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) (L) 		8-98035-740-0 01 1 1008- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98073-239-0 01 1 0710-1003 ● ● ●
çizim 137199
358 38 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EGYPT EQUIPMENT(B09) 03.162 (H) L=140 		5-09707-031-1 01 1 1008- ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0409-0609 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. EGYPT EQUIPMENT(B09) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30 		8-94315-423-0 01 1 0306- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 0612-1007 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 1008- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0610-0611 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0612-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. CHEVROLET EQUIPMENT(8JF) 03.162 (H) L=140 		5-09707-031-1 01 1 0810-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 0610-0809 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 1008-1109 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0710-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0710-1003 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ● ● ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601-0703 ● ● ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0704- ● ● ● ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0710-1003 ● ● ●

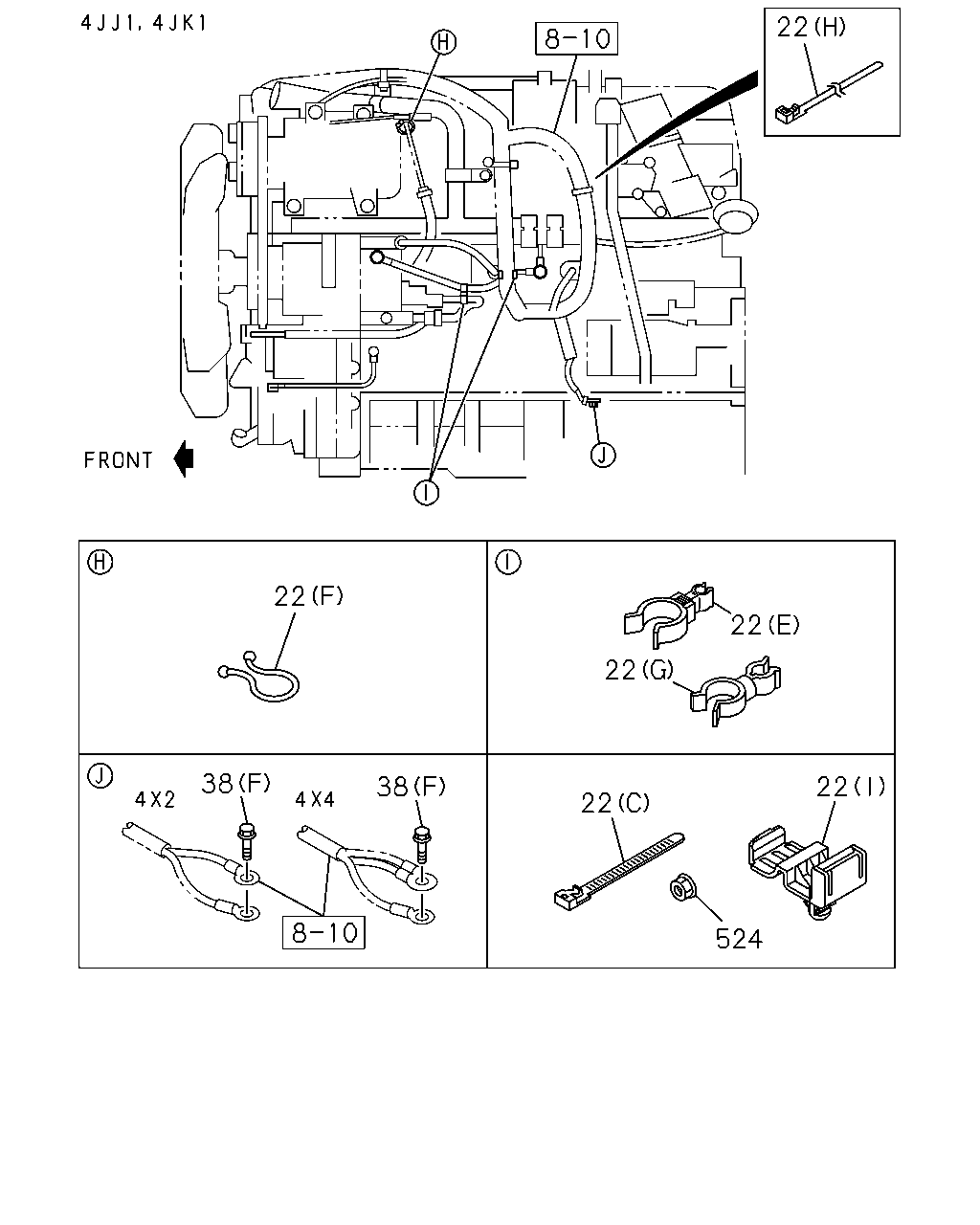

çizim 137314
22 22 22 22 38 22 38 22 524
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EGYPT EQUIPMENT(B09) 03.162 (H) L=140 		5-09707-031-1 01 1 1008- ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0409-0609 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. EGYPT EQUIPMENT(B09) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30 		8-94315-423-0 01 1 0306- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 0612-1007 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 1008- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0610-0611 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0612-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. CHEVROLET EQUIPMENT(8JF) 03.162 (H) L=140 		5-09707-031-1 01 1 0810-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 0610-0809 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 1008-1109 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0710-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0710-1003 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0611 ● ● ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-1007 ● ● ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ● ● ● ● ● ●

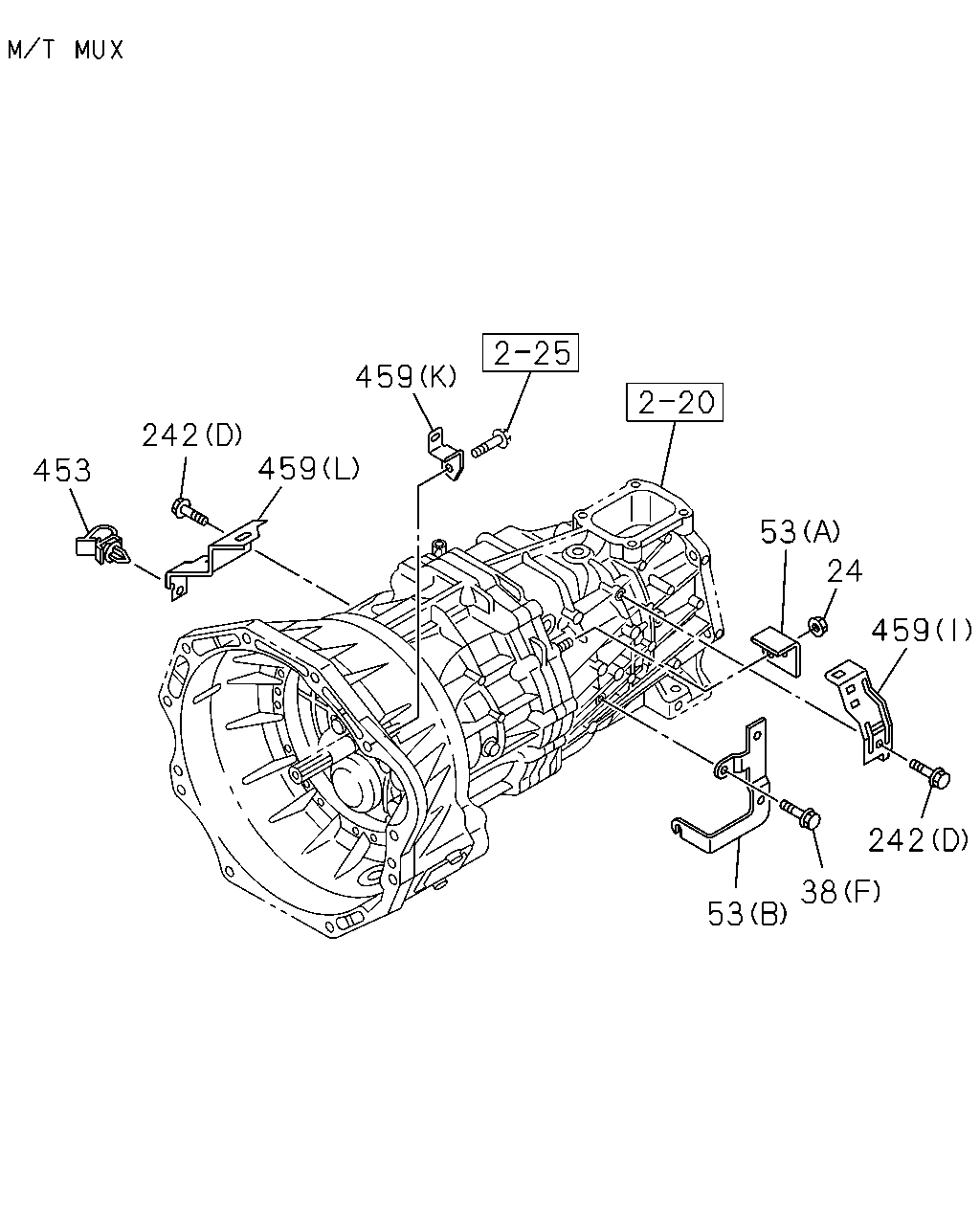

çizim 137365
459 242 459 453 53 24 459 242 38 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 02.559 NUT; HARNESS
M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0610- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 0610- ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 0610- ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0512 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 0610-1007 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710-1003 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ● ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0610-1007 ● ● ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) 04.342 ID=6.5 		5-09709-117-0 01 1 1008- ● ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.342 ID=6.5 		5-09709-117-0 01 1 1008- ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) 04.342 ID=6.5 		5-09709-117-0 01 1 1008- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-98073-241-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-98073-242-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A) 		8-94315-284-0 01 1 0306-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M UA 5 SPEED 5S(RSQ) (A) 		8-98050-882-0 01 1 0610-1003 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 1004-1007 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M UA 5 SPEED 5S(RSQ) (A) 		8-98050-882-0 01 1 1008- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0601-0609 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> (H) 		8-98035-653-0 01 1 0610-0809 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0610-0809 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 0810-1003 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (H) 		8-98035-653-0 01 1 1004-1007 ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (H) 		8-98073-239-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-97323-436-0 01 1 0306-0609 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-98050-883-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (F) 		8-97237-168-0 01 1 0306-0512 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 0<NA5>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EU RO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 0601-1003 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM FEDERAL,TIER 1<NF2>, EURO1 SPECIFICATION<NT1>,EURO2 SPECIFI CATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 1004-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 0<NA5>, EURO1 SPECIFICATION<NT1>,EURO2 SPECIFI CATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-97237-168-0 01 1 1008- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (I) 		8-98035-741-0 01 1 0610-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) (I) 		8-98035-741-0 01 1 1008- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (I) 		8-98035-741-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) (I) 		8-98035-741-0 01 1 1008- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-97249-919-1 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (J) 		8-97307-524-1 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-97249-920-0 01 1 0306-0608 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0609-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0610-0709 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0710-1003 ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 1004-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-97317-620-0 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (K) 		8-97382-804-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (E) 		8-98073-241-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) (C) 		8-98073-242-0 01 1 0710-1003 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) (B) 		8-97237-379-0 01 1 0306-0609 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (L) 		8-98035-740-0 01 1 0610-1007 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) (L) 		8-98035-740-0 01 1 1008- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (L) 		8-98035-740-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) (L) 		8-98035-740-0 01 1 1008- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(LX5) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98073-239-0 01 1 0710-1003 ● ● ●
çizim 137840
21 16 16 21 242 16 38 16 38 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 06 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 06 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 02 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 0509-0809 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0509-0609 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0610-0610 ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0710-0809 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-1003 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3) DOOR MIR ELEC DUAL FOLDING CHROME TUR N SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 02 1 1008- ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 06 1 0306-0508 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 05 1 0509-0609 ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 04 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 04 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-0 02 1 0306-0703 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0704- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0506-0703 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 03.162 (F) L=140 		5-09707-031-1 01 1 0704- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0306-1109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-0 03 1 0306-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-1 03 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=135 		8-94473-399-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,SAUDI ARABIA EQUI PMENT(GH3) (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710-0809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810-1003 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1004-1007 ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,SAUDI A RABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, DOORMIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1008-1202 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1),REMOTE CONT DOOR LO CK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 1203- ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) SAUDI ARABIA EQUIPMENT(GH3) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 06 1 0509-0709 ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> PHILIPPINE ISLANDS EQUIPMENT(B15) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 08 1 0710- ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0703 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-97249-918-1 01 1 0704- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 0710-1007 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0610- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0605 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97307-432-2 01 1 0606-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0609-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. MEXICO EQUIPMENT(E11) (A) 		8-98050-842-0 01 1 0610-0809 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0810-1003 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1004-1007 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1008- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EGYPT EQUIPMENT(B09) 03.162 (H) L=140 		5-09707-031-1 01 1 1008- ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 1008- ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0409-0609 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. EGYPT EQUIPMENT(B09) 02.363 (C) L=140 		8-97920-656-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30 		8-94315-423-0 01 1 0306- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E) ID=10 & 11 		8-94438-996-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 0612-1007 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (I) 		8-98062-229-0 01 1 1008- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0610-0611 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 (H) L=140 		5-09707-031-1 01 1 0612-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. CHEVROLET EQUIPMENT(8JF) 03.162 (H) L=140 		5-09707-031-1 01 1 0810-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 0610-0809 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.663 (F) ID=15 		1-09709-003-0 01 1 1008-1109 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (F) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) 04.594 (A) L=100 		5-09707-036-1 01 1 0710-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0306-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0610-0611 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 0612-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.483 (G) ID=6 & 10 		8-94154-844-0 01 1 1008- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0710-1003 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0512 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1109 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 0610-1007 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0609 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710-1003 ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ● ● ●
çizim 185293
21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0703 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-97249-918-1 01 1 0704- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 0710-1007 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0610- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0605 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97307-432-2 01 1 0606-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0609-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. MEXICO EQUIPMENT(E11) (A) 		8-98050-842-0 01 1 0610-0809 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0810-1003 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1004-1007 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1008- ● ● ● ●
çizim 185295
38 21 516 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0703 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-97249-918-1 01 1 0704- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 0710-1007 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0610- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0605 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97307-432-2 01 1 0606-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0609-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. MEXICO EQUIPMENT(E11) (A) 		8-98050-842-0 01 1 0610-0809 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 0810-1003 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI FICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1004-1007 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EMISSION SYSTEM FEDERAL,TIER 0<NA5>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98050-842-0 01 1 1008- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0703 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0704- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-1109 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0404 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) EXC. TURKEY EQUIPMENT(B11) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0405-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0508 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) TURKEY EQUIPMENT(B11) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0509-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0306-0609 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 0612-1007 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (F) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 00.029 (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-1003 ● ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0306-0709 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, TURKEY EQUIPMENT(B11),4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,ISRAEL EQUIPMENT(2G1) 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0710-0809 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
GRADE DX(RBA) TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0710-0809 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,ISRAEL EQUIPMENT(2G1) 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0810- ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
GRADE DX(RBA) ISRAEL EQUIPMENT(2G1) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0810- ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0710-1007 ● ● ● ● ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1008- ● ● ● ● ● ●
çizim 185298
358
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ● ● ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601-0703 ● ● ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0704- ● ● ● ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0710-1003 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
