8-05 — INTERIOR LAMP (#74054) — 42 parça
çizim 136195
14 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> 		8-97363-727-0 01 1 0306-0609 ● ● ● ● ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> 		8-97363-727-0 01 1 0610- ● ● ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W 		8-97352-272-0 01 1 0306-0609 ● ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W 		8-97352-272-0 01 1 0610- ● ● ● ● ● ●

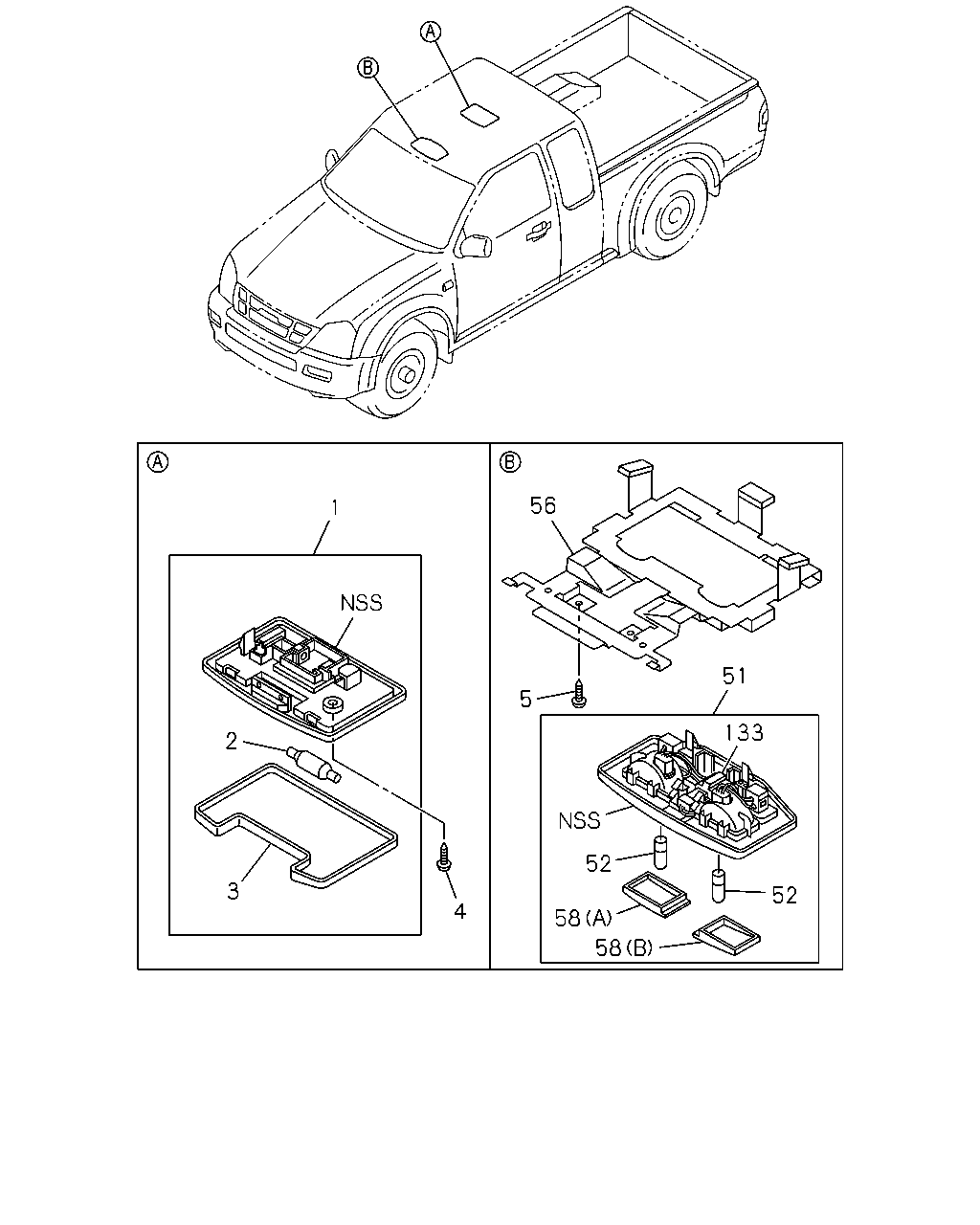

çizim 185291
56 1 51 5 133 2 52 3 52 4 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN MED.CASHMERE(136) GRAY 		8-97411-440-0 01 1 1008- ● ● ●
1 16.494 LAMP ASM; ROOM
LIGHT GRAY 		8-97294-070-2 01 1 0306-0609 ● ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
LIGHT GRAY 		8-97403-891-2 01 1 0610-0612 ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-891-2 01 1 0610-0612 ● ● ●
1 16.494 LAMP ASM; ROOM
LIGHT GRAY 		8-97411-439-0 01 1 0701-1003 ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97411-439-0 01 1 0701-1003 ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97411-439-0 01 1 1004- ● ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN MED.CASHMERE(136) GRAY 		8-97403-892-2 01 1 0610-0612 ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN MED.CASHMERE(136) GRAY 		8-97411-440-0 01 1 0701-1003 ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR BLACK(101) BLACK 		8-97418-484-0 01 1 1004- ● ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0306-0609 ● ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0610-1003 ● ● ●
2 08.991 BULB; ROOM LAMP
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR COLOR IN MED.CASHMERE(136) 12V 10W 		8-97128-771-0 01 1 0610-1003 ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 1004- ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 0306-0609 ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 0610-1003 ● ● ●
3 16.495 LENS; ROOM LAMP
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR COLOR IN MED.CASHMERE(136) 		8-97333-429-0 01 1 0610-1003 ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 1004- ● ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
08.010 M5X12 TAPPING 		9-07066-512-0 02 1 0306-0604 ● ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 0605- ● ● ● ● ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0306- ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN MED.CASHMERE(136) MAP LAMP<C74> GRAY 		8-97411-745-0 01 1 1008- ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY 		8-97396-084-0 01 1 0306-0609 ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY 		8-97403-890-0 01 1 0610-0612 ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> LIGHT GRAY 		8-97403-890-0 01 1 0610-0612 ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0701-1003 ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0701-1003 ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 1004- ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN MED.CASHMERE(136) MAP LAMP<C74> GRAY 		8-97408-044-0 01 1 0610-0612 ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN MED.CASHMERE(136) MAP LAMP<C74> GRAY 		8-97411-745-0 01 1 0701-1003 ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR BLACK(101) MAP LAMP<C74> BLACK 		8-97418-611-0 01 1 1004- ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 0306- ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> 		8-97236-839-5 01 1 0306-0412 ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> 		8-97385-493-0 01 1 0501-0609 ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> 		8-98050-901-0 01 1 0610- ● ● ● ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) 		8-97333-440-0 01 1 0306- ● ● ● ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) 		8-97333-441-0 01 1 0306- ● ● ● ● ● ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> 		8-97176-526-0 01 1 0306- ● ● ● ● ● ●
