◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#74046) — 110 parça

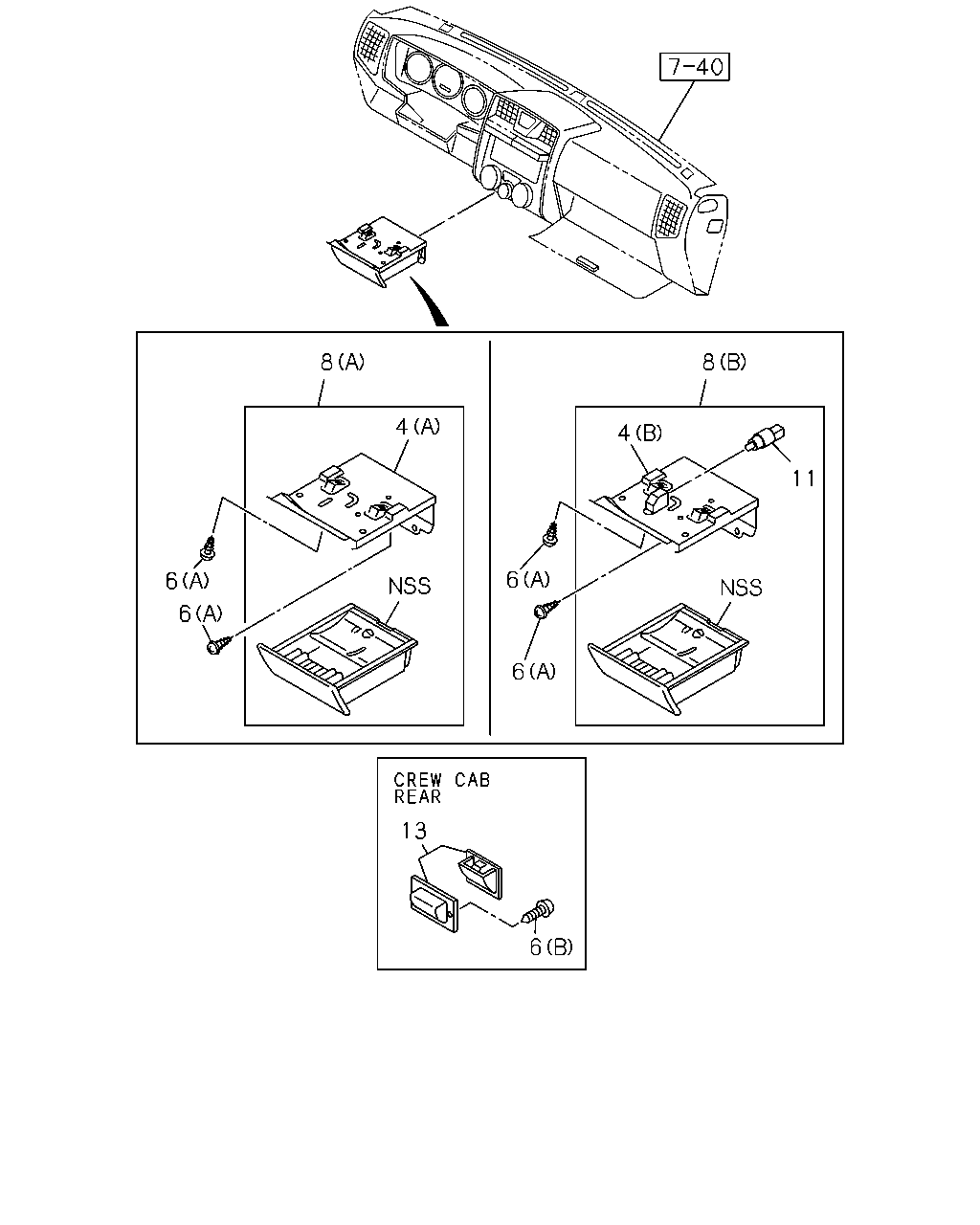

çizim 132805
8 8 4 4 11 6 6 6 6 13 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0306-0408 ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) (A) 		8-97308-648-0 01 1 0306-0408 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0409-0609 ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-97308-648-0 01 1 0409-0609 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) (B) 		8-97308-647-0 01 1 0306-0609 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(C) 		8-98044-027-0 01 1 0610-1003 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 1004-1007 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) 		8-98044-027-0 01 1 1004-1007 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 1008- ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR C OLOR IN MED.CASHMERE(136) (C) 		8-98044-027-0 01 1 1008- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 03 1 0306-0609 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0306-0609 ● ●
6 16.120 SCREW; ASH TRAY
16.742 (B) M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 04 1 0610- ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> (C) GRAY 		8-97405-211-0 01 1 1008- ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0306-0408 ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) (A) DARK GRAY 		8-97293-901-0 01 1 0306-0408 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 0610-1003 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 1004-1007 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 1008- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) (B) DARK GRAY 		8-97392-978-0 01 1 0306-0408 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97392-978-0 01 1 0409-0409 ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) (B) DARK GRAY 		8-97392-978-0 01 1 0409-0409 ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97392-978-0 01 1 0410-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 0610-1003 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 1004-1007 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR C OLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 1008- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97392-979-0 01 1 0409-0409 ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97392-979-0 01 1 0410-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97403-299-0 01 1 0610-1003 ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97403-299-0 01 1 0610-1003 ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (C) BLACK 		8-97418-182-0 01 1 1004- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> (C) GRAY 		8-97405-211-0 01 1 0610-1003 ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LT(RBD) 		8-97308-651-0 01 1 0306-0609 ● ● ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LT(RBD) 		8-97308-651-0 01 1 0610- ● ● ● ● ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> BEIGE 		8-97409-356-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97393-945-1 02 1 0306-0609 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97409-355-0 02 1 0610-1003 ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97409-355-0 02 1 1004-1007 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 0610-0809 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> BEIGE 		8-97409-356-0 02 1 0810-1003 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 0810-1003 ● ●

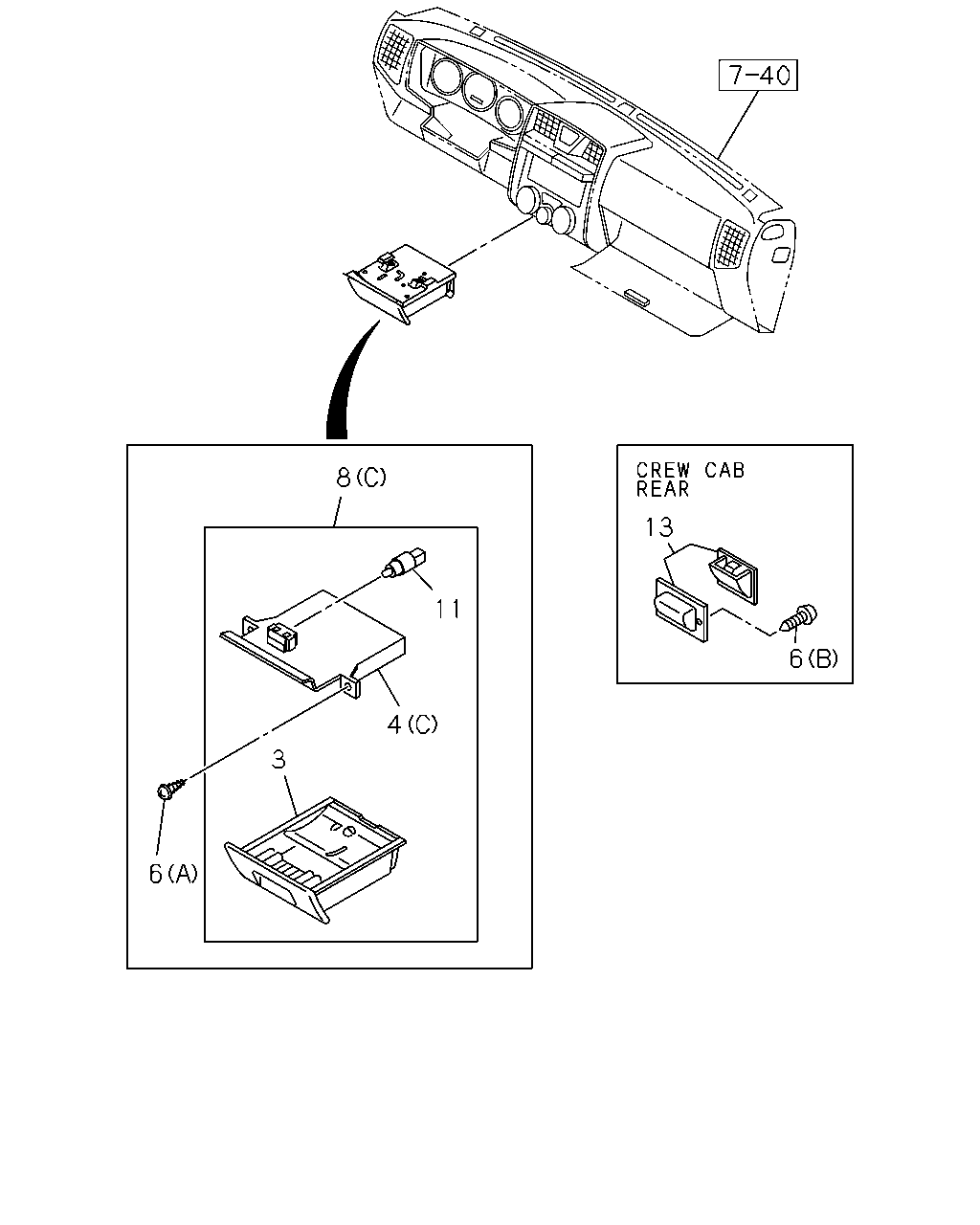

çizim 185362
8 13 11 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.120 CASE ASM; ASH TRAY INNER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> GRAY 		8-97407-839-0 01 1 1008- ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 0610-1003 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 1004-1007 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 1004-1007 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 1008- ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR C OLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 1008- ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-837-0 01 1 0610-1003 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-837-0 01 1 0610-1003 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> BLACK 		8-97418-203-0 01 1 1004- ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> GRAY 		8-97407-839-0 01 1 0610-1003 ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0306-0408 ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) (A) 		8-97308-648-0 01 1 0306-0408 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0409-0609 ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-97308-648-0 01 1 0409-0609 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) (B) 		8-97308-647-0 01 1 0306-0609 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(C) 		8-98044-027-0 01 1 0610-1003 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 1004-1007 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) 		8-98044-027-0 01 1 1004-1007 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 1008- ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR C OLOR IN MED.CASHMERE(136) (C) 		8-98044-027-0 01 1 1008- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 03 1 0306-0609 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0306-0609 ● ●
6 16.120 SCREW; ASH TRAY
16.742 (B) M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 04 1 0610- ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> (C) GRAY 		8-97405-211-0 01 1 1008- ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0306-0408 ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) (A) DARK GRAY 		8-97293-901-0 01 1 0306-0408 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 0610-1003 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 1004-1007 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-296-0 01 1 1008- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) (B) DARK GRAY 		8-97392-978-0 01 1 0306-0408 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97392-978-0 01 1 0409-0409 ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) (B) DARK GRAY 		8-97392-978-0 01 1 0409-0409 ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97392-978-0 01 1 0410-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 0610-1003 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 1004-1007 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR C OLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-297-0 01 1 1008- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97392-979-0 01 1 0409-0409 ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97392-979-0 01 1 0410-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97403-299-0 01 1 0610-1003 ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97403-299-0 01 1 0610-1003 ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (C) BLACK 		8-97418-182-0 01 1 1004- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> (C) GRAY 		8-97405-211-0 01 1 0610-1003 ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LT(RBD) 		8-97308-651-0 01 1 0306-0609 ● ● ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LT(RBD) 		8-97308-651-0 01 1 0610- ● ● ● ● ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> BEIGE 		8-97409-356-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97393-945-1 02 1 0306-0609 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97409-355-0 02 1 0610-1003 ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97409-355-0 02 1 1004-1007 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97409-355-0 02 1 1008- ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 0610-0809 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> BEIGE 		8-97409-356-0 02 1 0810-1003 ● ●
13 16.120 TRAY ASM; ASH,RR
INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE 		8-97409-356-0 02 1 0810-1003 ● ●
