7-40 — INSTRUMENT PANEL AND BOX (#74045) — 394 parça

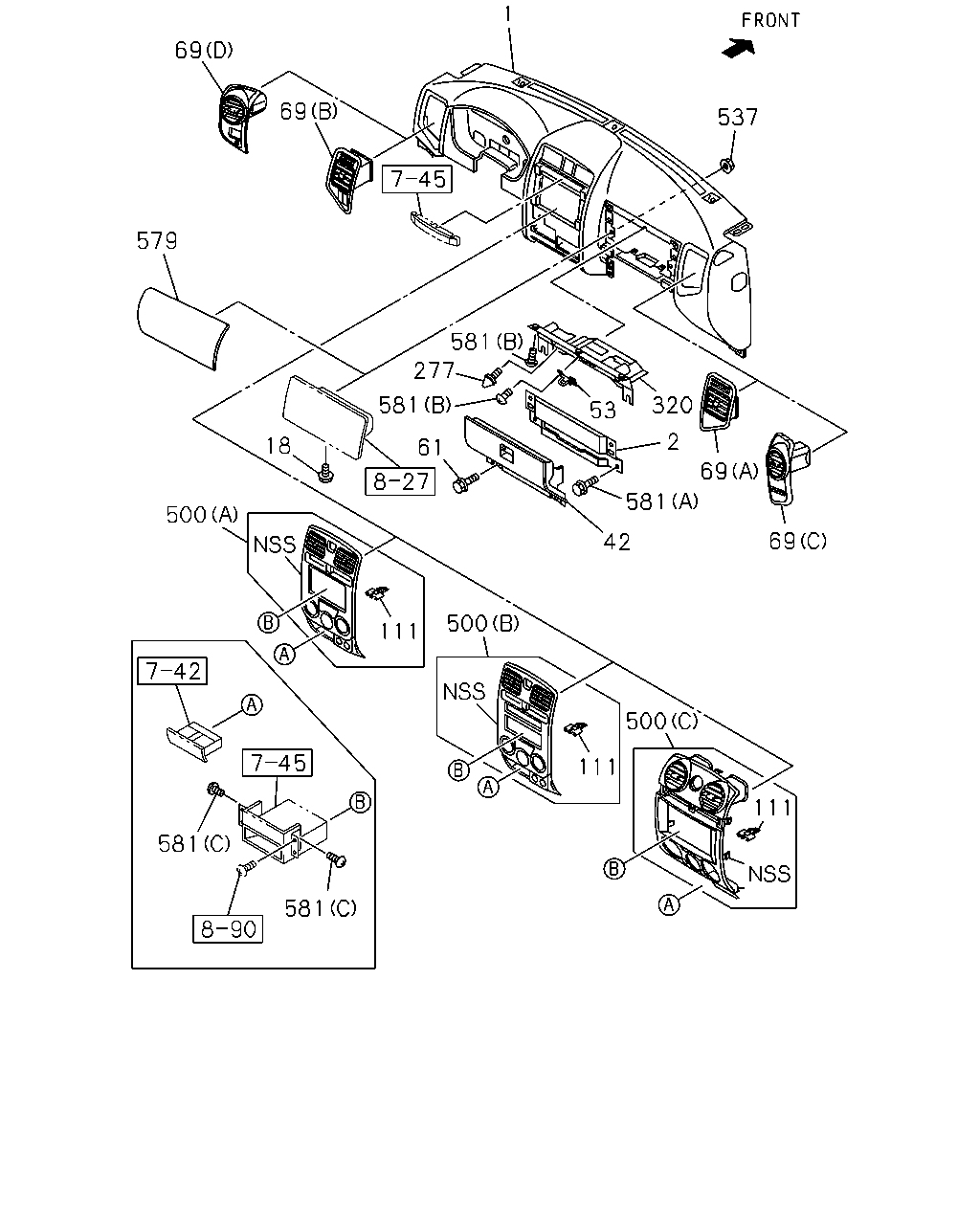

çizim 132844
1 69 69 537 579 581 277 581 320 53 2 18 61 69 581 500 69 42 500 111 500 111 111 581 581
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-1 01 1 1008- ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0306-0609 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-0 01 1 0610-0912 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-0 01 1 1001-1003 ● ● ● ● ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97405-958-0 01 1 1004-1007 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-1 01 1 1008- ● ● ● ● ● ●
1 16.080 PANEL; INST
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA) DARK GRAY 		8-97405-967-0 01 1 0610-0709 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-967-0 01 1 0610-0709 ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-967-0 01 1 0710-1003 ● ● ● ● ● ●
1 16.080 PANEL; INST
RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-967-0 01 1 1004-1007 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-967-1 01 1 1008- ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-973-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-973-0 01 1 0710-0809 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-0 01 1 0810-0912 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-0 01 1 1001-1003 ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0306- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0306-0609 ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0610- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) LOCK GLOVE BOX<A99> BEIGE 		8-97415-659-0 01 1 1008- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) EXC. LOCK GLOVE BOX<A99> BEIGE 		8-97415-661-0 01 1 1008- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97396-879-0 01 1 0306-0404 ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-879-0 01 1 0306-0404 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97294-638-2 01 1 0405-0609 ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97294-638-2 01 1 0405-0609 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-323-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-323-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-181-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-181-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0806-1003 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0806-1003 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 1004- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-878-0 01 1 0306-0404 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97293-941-2 01 1 0405-0609 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-321-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-321-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-179-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-179-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0806-1003 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0806-1003 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 1004- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) LOCK GLOVE BOX<A99> BEIGE 		8-97403-322-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) LOCK GLOVE BOX<A99> BEIGE 		8-97409-180-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) LOCK GLOVE BOX<A99> BEIGE 		8-97415-659-0 01 1 0806-1003 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) EXC. LOCK GLOVE BOX<A99> BEIGE 		8-97404-471-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) EXC. LOCK GLOVE BOX<A99> BEIGE 		8-97409-182-0 01 1 0701-0805 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) EXC. LOCK GLOVE BOX<A99> BEIGE 		8-97415-661-0 01 1 0806-1003 ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0306- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0306-0612 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
09.744 M5X16 TAPPING 		8-98061-683-0 02 1 0701-1003 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1004- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (C) GRAY 		8-97416-008-3 01 1 1008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) GRAY 		8-97415-924-3 01 1 1008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (C) GRAY 		8-97416-008-3 01 1 0810-0912 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (C) GRAY 		8-97416-008-3 01 1 1001-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) GRAY 		8-97415-923-3 01 1 0810-0910 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) GRAY 		8-97415-924-3 01 1 0810-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97392-790-0 01 1 0306-0508 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) DARK GRAY 		8-97392-790-0 01 1 0306-0508 ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97392-790-0 01 1 0509-0609 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) DARK GRAY 		8-97392-790-0 01 1 0509-0609 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97405-959-3 01 1 0610-0709 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97405-959-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9>, CHEVROLET EQUIPMENT(8JF) (C) DARK GRAY 		8-97405-959-3 01 1 0710-0912 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97405-959-3 01 1 0710-0912 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9>, CHEVROLET EQUIPMENT(8JF) (C) DARK GRAY 		8-97405-959-3 01 1 1001-1003 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97405-959-3 01 1 1001-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97405-959-3 01 1 1004- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97398-421-0 01 1 0306-0609 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97405-968-3 01 1 0610-0709 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> EXC. CHEVROLET EQUIPMENT(8JF) (C) LIGHT GRAY 		8-97405-968-3 01 1 0710-1003 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) BLACK 		8-97419-447-3 01 1 1004- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-870-3 01 1 0610-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) DARK GRAY 		8-97405-870-3 01 1 0610-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-870-3 01 1 1004-1007 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) DARK GRAY 		8-97405-870-3 01 1 1004-1007 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-870-3 01 1 1008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR IN MED.CASHMERE(136) EXC. INTERIOR SILVER BEZEL<BY9>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) DARK GRAY 		8-97405-870-3 01 1 1008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) DARK GRAY 		8-97391-531-0 01 1 0306-0508 ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) DARK GRAY 		8-97391-531-0 01 1 0509-0609 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY 		8-97403-330-3 01 1 0610-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) LIGHT GRAY 		8-97403-330-3 01 1 0610-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> (D) BLACK 		8-97419-443-3 01 1 1004- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D) BLACK 		8-97419-443-3 01 1 1004- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) LIGHT GRAY 		8-97403-329-3 01 1 0610-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) BLACK 		8-97419-442-3 01 1 1004- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97403-325-3 01 1 0610-0809 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97403-325-3 01 1 0810-1003 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97403-325-3 01 1 1004-1007 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR IN MED.CASHMERE(136) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97403-325-3 01 1 1008- ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0306-0508 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1),INST PANEL FO R DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0509-0609 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> 16.100 T=0.5 		8-97137-828-0 06 1 0610-0612 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 16.100 T=0.5 		8-97137-828-0 06 1 0610-0612 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0610-0612 ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> T=0.5 		8-98061-356-0 06 1 0701-0910 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) T=0.5 		8-98061-356-0 06 1 0701-0910 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 0701-0910 ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 0911-0912 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 1001- ● ● ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0306- ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-965-2 01 1 1008- ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0306-0609 ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-1 01 1 0610-0912 ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97405-960-1 01 1 0610-0912 ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-1 01 1 1001-1003 ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-960-1 01 1 1001-1003 ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-1 01 1 1004-1007 ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 1008- ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-960-2 01 1 1008- ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-965-1 01 1 0610-0709 ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-965-1 01 1 0710-0809 ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-965-1 01 1 0810-0912 ● ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-965-1 01 1 1001-1003 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) CHEVROLET EQUIPMENT(8JF) (C) LIGHT GRAY 		8-97409-176-0 01 1 1008- ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (C) LIGHT GRAY 		8-97409-174-0 01 1 1008- ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) GRAY 		8-97409-177-0 01 1 1008- ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) GRAY 		8-97409-175-0 01 1 1008- ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) DARK GRAY 		8-97396-250-0 01 1 0306-0408 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) DARK GRAY 		8-97396-250-0 01 1 0409-0409 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0409-0409 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) DARK GRAY 		8-97396-250-0 01 1 0410-0508 ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0410-0508 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) (A) DARK GRAY 		8-97396-250-0 01 1 0509-0609 ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0509-0609 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-315-4 01 1 0610-0612 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 0701-0912 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 1001-1003 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 1004-1007 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 1008- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97403-316-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97403-316-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 0701-0912 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 0701-0912 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 1001-1003 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 1001-1003 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) BLACK 		8-97418-544-0 01 1 1004-1007 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) (C) BLACK 		8-97418-544-0 01 1 1008- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97391-529-1 01 1 0306-0408 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97391-529-1 01 1 0409-0609 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-318-4 01 1 0610-0612 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 0701-1003 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 1004- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) LIGHT GRAY 		8-97401-257-0 01 1 0409-0609 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97403-317-4 01 1 0610-0612 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97409-172-0 01 1 0701-1003 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97419-441-0 01 1 1004- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) LIGHT GRAY 		8-97398-208-0 01 1 0409-0409 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) LIGHT GRAY 		8-97398-208-0 01 1 0410-0508 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) (A) LIGHT GRAY 		8-97398-208-0 01 1 0509-0609 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) LIGHT GRAY 		8-97403-319-4 01 1 0610-0612 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) LIGHT GRAY 		8-97409-176-0 01 1 0701-1003 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) BLACK 		8-97418-545-0 01 1 1004-1007 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) EXC. CHEVROLET EQUIPMENT(8JF) (C) BLACK 		8-97418-545-0 01 1 1008- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) GRAY 		8-97405-209-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) GRAY 		8-97409-177-0 01 1 0701-1003 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) GRAY 		8-97405-208-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) GRAY 		8-97409-175-0 01 1 0701-0912 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR IN MED.CASHMERE(136) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) GRAY 		8-97409-175-0 01 1 1001-1003 ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0306-0609 ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0610-0612 ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0701- ● ● ● ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-966-1 01 1 1008- ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97299-329-0 01 1 0306-0609 ● ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97405-961-0 01 1 0610-0912 ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97405-961-0 01 1 0610-0912 ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97405-961-0 01 1 1001-1007 ● ● ● ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-961-1 01 1 1008- ● ● ● ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) BEIGE 		8-97405-966-0 01 1 0610-0809 ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-966-0 01 1 0810-0912 ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR IN MED.CASHMERE(136) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-966-0 01 1 1001-1003 ● ● ●
581 09.744 SCREW
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0609 ● ● ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0610- ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 17 1 0306-0411 ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 15 1 0412-0609 ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0610- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 13 1 0306-0411 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 11 1 0412-0609 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING 		8-98061-683-0 15 1 0610- ● ● ● ● ● ●

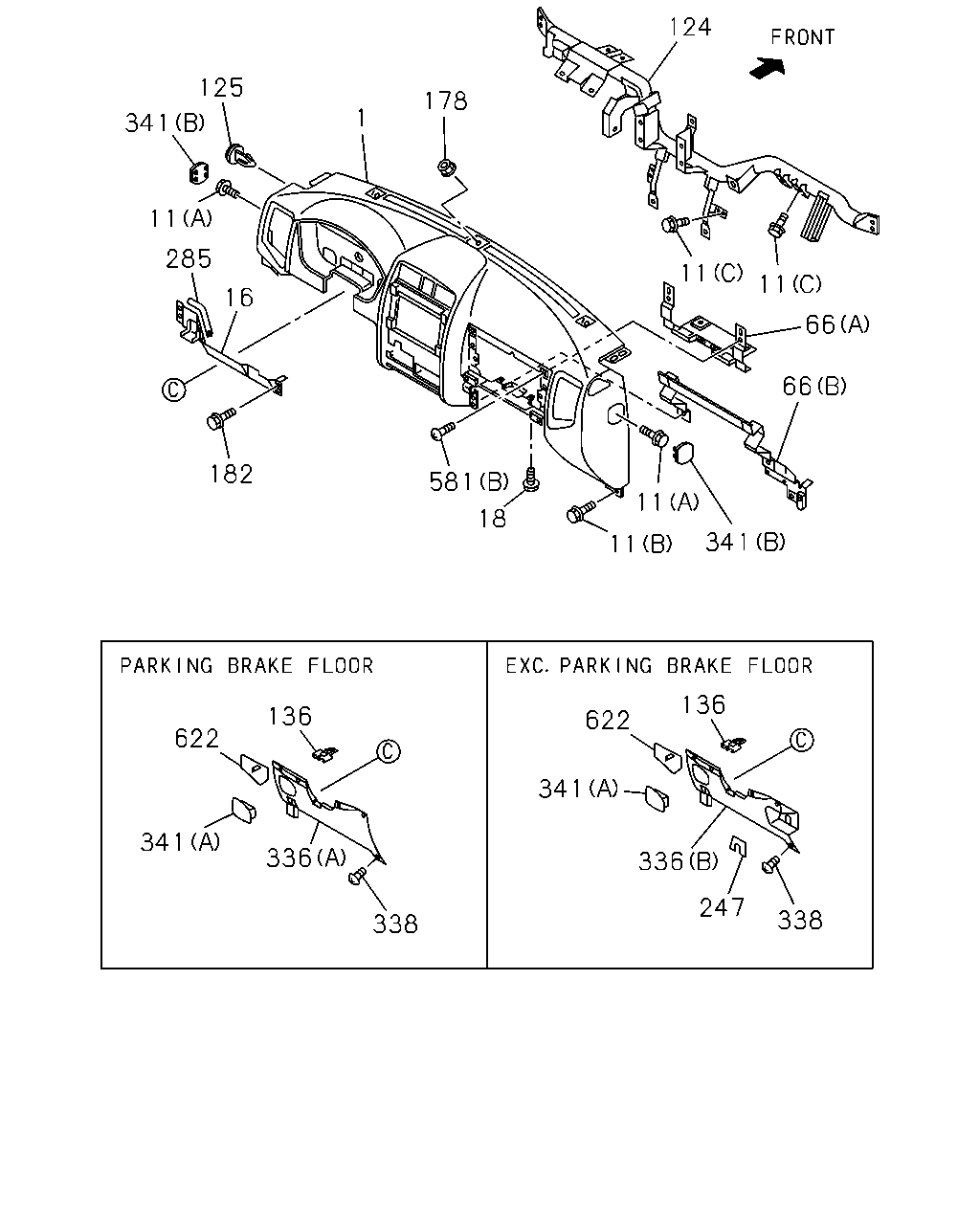

çizim 133192
124 125 178 1 341 11 285 11 11 16 66 66 182 581 11 18 341 11 136 136 622 622 341 341 336 336 247 338 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-1 01 1 1008- ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0306-0609 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-0 01 1 0610-0912 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-0 01 1 1001-1003 ● ● ● ● ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97405-958-0 01 1 1004-1007 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-958-1 01 1 1008- ● ● ● ● ● ●
1 16.080 PANEL; INST
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA) DARK GRAY 		8-97405-967-0 01 1 0610-0709 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-967-0 01 1 0610-0709 ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-967-0 01 1 0710-1003 ● ● ● ● ● ●
1 16.080 PANEL; INST
RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-967-0 01 1 1004-1007 ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> RADIO AM/FM W/CD,W/MP3(ULA),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY 		8-97405-967-1 01 1 1008- ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-973-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> BEIGE 		8-97405-973-0 01 1 0710-0809 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-0 01 1 0810-0912 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) BEIGE 		8-97405-973-0 01 1 1001-1003 ● ● ●
11 16.090 BOLT; INST PNL
04.570 (A) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0306-0609 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(A) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0610- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
01.287 (B) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0306-0609 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0610- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 08.015 (C) M6X20 W/WASHER 		8-94112-987-1 04 1 0306-0611 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (C) M6X20 W/WASHER 		8-98056-282-0 04 1 0612- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 08.015 (C) M6X20 W/WASHER 		8-94112-987-1 06 1 0306-0609 ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 08.015 (C) M6X20 W/WASHER 		8-94112-987-1 06 1 0610-0611 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 09.744 (C) M6X20 W/WASHER 		8-98056-282-0 06 1 0612- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-97361-674-0 01 1 0306-0609 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-98043-127-0 01 1 0610- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0306-0609 ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0610- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97369-652-0 01 1 0306- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0306-0609 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0610- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-97362-201-0 01 1 0306-0508 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0509-0609 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0610-0709 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. RR FOG LAMP<T79>,PARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,P ARKING BRAKE FLOOR<7XW> 		8-98023-074-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,P ARKING BRAKE FLOOR<7XW> 		8-98110-174-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,P ARKING BRAKE FLOOR<7XW> 		8-98110-174-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97362-202-0 01 1 0306-0508 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) PARKING BRAKE FLOOR<7XW> 		8-98023-075-0 01 1 0509-0609 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98023-075-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-075-0 01 1 0610-0709 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-075-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98023-075-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98023-075-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98110-175-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98110-175-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-198-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-071-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-091-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98023-091-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98023-091-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC> 		8-98110-197-0 01 1 0810- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-197-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-070-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,PARKING BRAKE FLOOR<7XW> 		8-98023-092-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-092-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,P ARKING BRAKE FLOOR<7XW> 		8-98023-092-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,P ARKING BRAKE FLOOR<7XW> 		8-98110-198-0 01 1 0810- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-97362-206-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-079-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-087-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-087-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-192-0 01 1 0810- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97362-205-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98023-078-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-088-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-088-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-194-0 01 1 0810-1003 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-194-0 01 1 1004- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-194-0 01 1 1004- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) IMMOBILIZER SYSTEM<7KC> EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-199-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) IMMOBILIZER SYSTEM<7KC> EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-072-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-072-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-072-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-072-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-171-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-171-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-171-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-171-0 01 1 1001- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> 		8-97362-200-0 01 1 0306-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> 		8-98023-073-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> 		8-98023-073-0 01 1 0610-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-073-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-073-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-173-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-173-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-173-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-173-0 01 1 1001- ● ● ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0306- ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 T=0.5 		8-97137-828-0 04 1 0306-0612 ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
09.744 T=0.5 		8-98061-356-0 04 1 0701- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 0306-0609 ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 M6 FLANGE 		8-98055-704-0 03 1 0610- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0306-0611 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0612- ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97404-478-0 01 1 1008-1104 ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97422-833-0 01 1 1105- ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
ISUZU BRAND<7WL> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> BEIGE 		8-97404-478-0 01 1 0610-0709 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97404-478-0 01 1 0710-1003 ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97398-434-0 01 1 0306-0609 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 0610-0709 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 0710-0809 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 0810-1003 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JA1-T ENG(LP0) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 0810-1003 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 1004-1007 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-951-0 01 1 1008-1104 ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-832-0 01 1 1105- ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0306- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN MED.CASHMERE(136) PARKING BRAKE FLOOR<7XW> (A) BEIGE 		8-97408-043-0 01 1 1008-1104 ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN MED.CASHMERE(136) PARKING BRAKE FLOOR<7XW> (A) BEIGE 		8-97422-826-0 01 1 1105- ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> (B) BEIGE 		8-97404-475-0 01 1 1008-1104 ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> (B) BEIGE 		8-97422-825-0 01 1 1105- ● ● ●
336 16.081 COVER; INST PANEL SIDE
ISUZU BRAND<7WL> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> (B) BEIGE 		8-97404-475-0 01 1 0610-0709 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> (B) BEIGE 		8-97404-475-0 01 1 0710-0809 ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) EXC. PARKING BRAKE FLOOR<7XW> (B) BEIGE 		8-97404-475-0 01 1 0810-1003 ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97398-387-0 01 1 0306-0609 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-943-0 01 1 0610-0709 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-943-0 01 1 0710-1003 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-943-0 01 1 1004-1007 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-943-0 01 1 1008-1104 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97422-823-0 01 1 1105- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97398-431-0 01 1 0306-0609 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-944-0 01 1 0610-0709 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-944-0 01 1 0710-1003 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-944-0 01 1 1004-1104 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-824-0 01 1 1105- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) PARKING BRAKE FLOOR<7XW> (A) BEIGE 		8-97408-043-0 01 1 0610-0709 ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) PARKING BRAKE FLOOR<7XW> (A) BEIGE 		8-97408-043-0 01 1 0710-0809 ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) PARKING BRAKE FLOOR<7XW> (A) BEIGE 		8-97408-043-0 01 1 0810-1003 ● ● ●
338 16.081 SCREW; COVER
16.115 M5X16 		8-94279-312-0 01 1 0306-0612 ● ● ● ● ● ●
338 16.081 SCREW; COVER
09.744 M5X16 TAPPING 		8-98061-683-0 01 1 0701-1003 ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.100 M5X16 TAPPING 		8-98167-214-0 01 1 1004- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) (A) BEIGE 		8-97404-476-0 01 1 1008-1104 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) (A) BEIGE 		8-97422-828-0 01 1 1105- ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-293-0 01 1 1008-1103 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97422-816-0 01 1 1104- ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-295-0 01 1 1008-1103 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97422-817-0 01 1 1104- ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97398-432-0 01 1 0306-0609 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-946-0 01 1 0610-0709 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-946-0 01 1 0710-1003 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97403-946-0 01 1 1004-1007 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-946-0 01 1 1008-1104 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97422-827-0 01 1 1105- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0306-0609 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-0 01 1 0610-0912 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) (B) DARK GRAY 		8-97408-049-0 01 1 0610-0912 ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CHEVROLET EQUIPMENT(8JF) (B) DARK GRAY 		8-97408-049-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-0 01 1 1004-1007 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 1008- ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) (B) DARK GRAY 		8-97408-049-1 01 1 1008- ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0306-0609 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-0 01 1 0610-0912 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) (B) DARK GRAY 		8-97408-048-0 01 1 0610-0912 ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CHEVROLET EQUIPMENT(8JF) (B) DARK GRAY 		8-97408-048-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-0 01 1 1004-1007 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 1008- ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN ,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CHEVROLET EQUIPMENT(8JF) (B) DARK GRAY 		8-97408-048-1 01 1 1008- ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (B) BEIGE 		8-97403-293-0 01 1 0610-0709 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (B) BEIGE 		8-97403-293-0 01 1 0710-0809 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-293-0 01 1 0810-0912 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-293-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (B) BEIGE 		8-97403-295-0 01 1 0610-0709 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> (B) BEIGE 		8-97403-295-0 01 1 0710-0809 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-295-0 01 1 0810-0912 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) CHEVROLET BRAND<RWE> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) CHEVROLET EQUIPMENT(8JF) (B) BEIGE 		8-97403-295-0 01 1 1001-1003 ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) (A) BEIGE 		8-97404-476-0 01 1 0610-0709 ● ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR IN MED.CASHMERE(136) (A) BEIGE 		8-97404-476-0 01 1 0710-0809 ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) (A) BEIGE 		8-97404-476-0 01 1 0810-1003 ● ● ●
581 09.744 SCREW
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0609 ● ● ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0610- ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 17 1 0306-0411 ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 15 1 0412-0609 ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0610- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BANDW/CASSETTE FULL LOGIC(UX5),AM/FM ASI A/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 13 1 0306-0411 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 11 1 0412-0609 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING 		8-98061-683-0 15 1 0610- ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97404-477-0 01 1 1008-1104 ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97422-830-0 01 1 1105- ● ● ●
622 16.100 BOX; IDLE CONT
C24SE ENG(LG1),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DARK GRAY 		8-97398-433-0 01 1 0306-0609 ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-949-0 01 1 0610-0709 ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-949-0 01 1 0710-1003 ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
DARK GRAY 		8-97403-949-0 01 1 1004-1007 ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-949-0 01 1 1008-1104 ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-97422-829-0 01 1 1105- ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97404-477-0 01 1 0610-0709 ● ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR IN MED.CASHMERE(136) BEIGE 		8-97404-477-0 01 1 0710-1003 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
