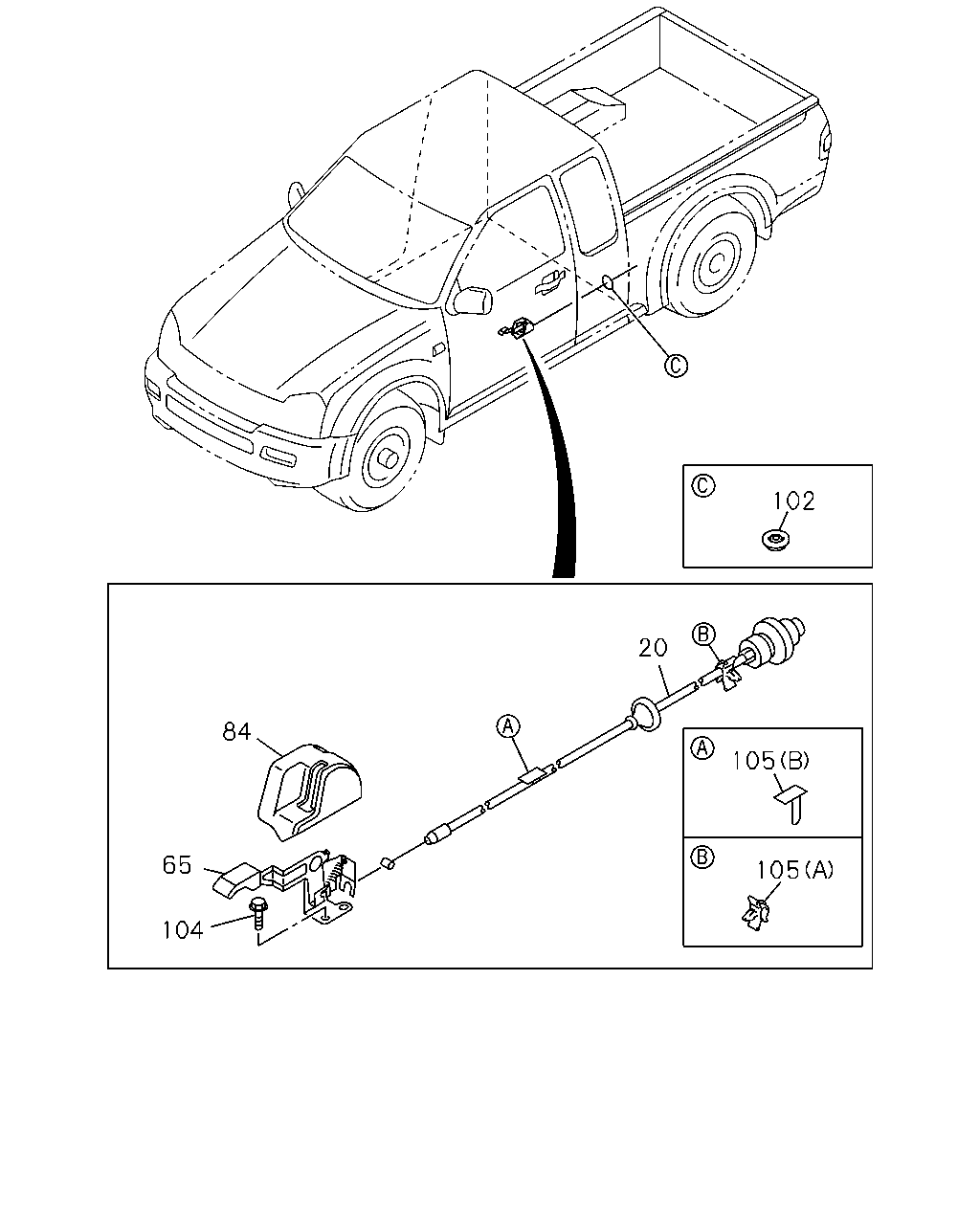

6-86 — TRUNK OPENER AND FUEL LID (#74039) — 25 parça

102 20 84 105 65 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-97315-537-0	01	1	0306-0612	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-756-0	01	1	0701-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-97315-535-0	01	1	0306-0308			●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-97368-369-0	01	1	0309-0612			●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-754-0	01	1	0701-			●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-97315-536-2	01	1	0306-0612					●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-758-0	01	1	0701-					●	●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY	8-97394-287-0	01	1	0306-0510	●	●	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY	8-97405-952-0	01	1	0511-0609	●	●	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY	8-97405-954-0	01	1	0610-	●	●	●	●	●	●
84	17.185 COVER; BRKT INTERIOR COLOR IN MED.CASHMERE(136) FUEL LID OPENER<N08> BEIGE	8-97404-510-0	01	1	1008-			●		●	●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> DARK GRAY	8-97391-007-0	01	1	0306-0609	●	●	●	●	●	●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> DARK GRAY	8-97403-683-0	01	1	0610-1003	●	●		●
84	17.185 COVER; BRKT INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DARK GRAY	8-97403-683-0	01	1	0610-1003			●		●	●
84	17.185 COVER; BRKT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DARK GRAY	8-97403-683-0	01	1	1004-1007	●	●	●	●	●	●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> DARK GRAY	8-97403-683-0	01	1	1008-	●	●	●	●	●	●
84	17.185 COVER; BRKT INTERIOR COLOR IN MED.CASHMERE(136) FUEL LID OPENER<N08> BEIGE	8-97404-510-0	01	1	0610-1003			●		●	●
102	17.505 GROMMET EXC. FUEL LID OPENER<N08>	8-97321-645-1	01	1	0306-	●	●	●	●	●	●
104	17.505 BOLT; KNOB FUEL LID OPENER<N08> 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0306-0306	●	●	●	●	●	●
104	17.505 BOLT; KNOB FUEL LID OPENER<N08> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0307-	●	●	●	●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	01	1	0306-1110	●	●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> (B) ID=7	8-98158-303-0	01	1	1111-	●	●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 02.559 (A) D=5.8	5-09709-081-0	02	1	0306-			●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	02	1	0306-1110					●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> (B) ID=7	8-98158-303-0	02	1	1111-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
