◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#74037) — 13 parça

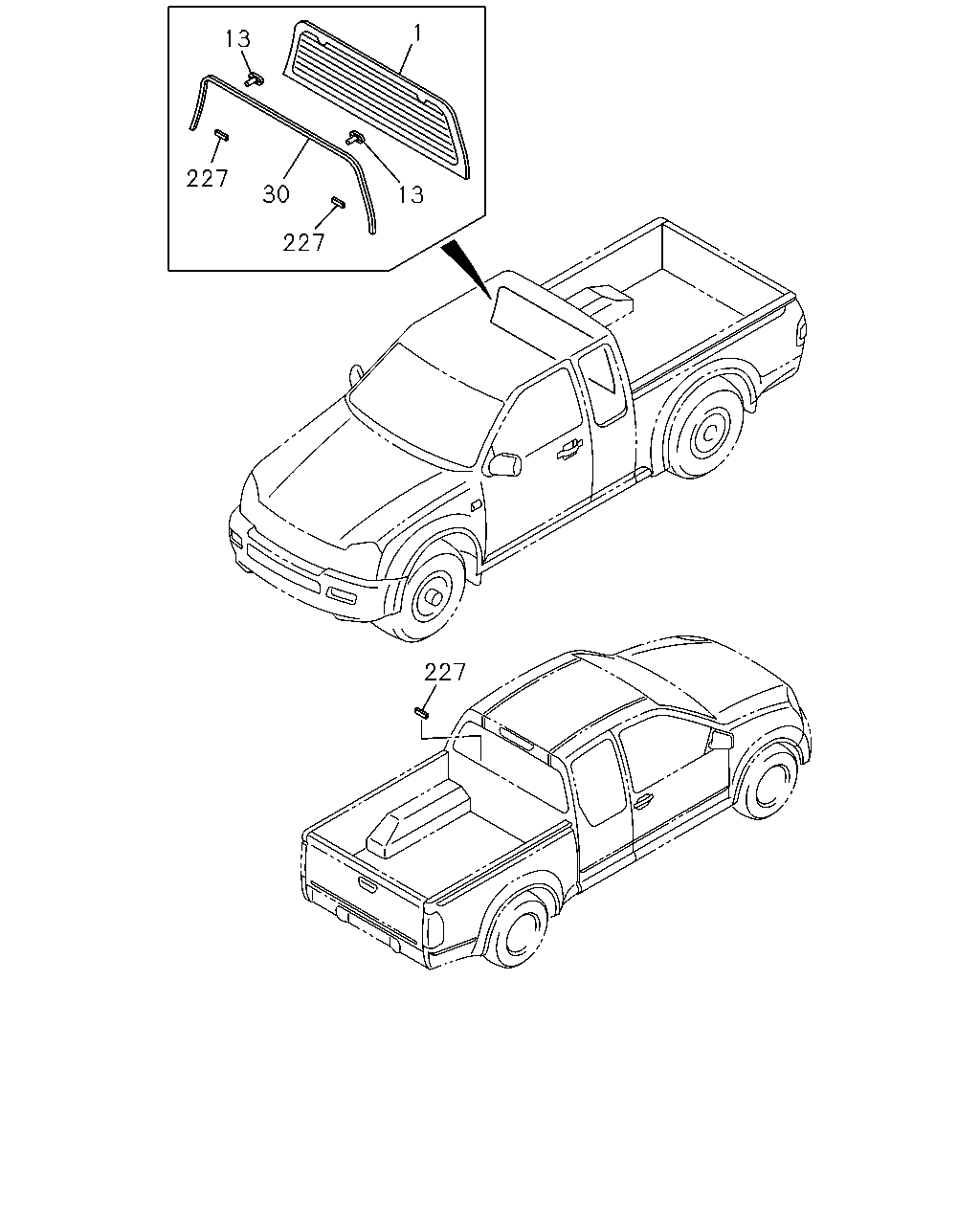

çizim 185285
1 13 227 30 13 227 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-97331-610-0 01 1 0306-0808 ● ● ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0809- ● ● ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-97331-609-0 01 1 0306-0808 ● ● ● ●
1 16.464 GLASS; BACKLIGHT 8-97331-609-0 01 1 0306-0808 ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0809- ● ● ● ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0809- ● ●
13 16.464 SUPPORT; BACKLIGHT GLASS 8-97244-819-0 02 1 0306- ● ● ● ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97312-630-0 01 1 0306-0309 ● ● ● ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97371-385-0 01 1 0310- ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0306-1101 ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0306-1101 ● ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ●
