◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#74034) — 31 parça

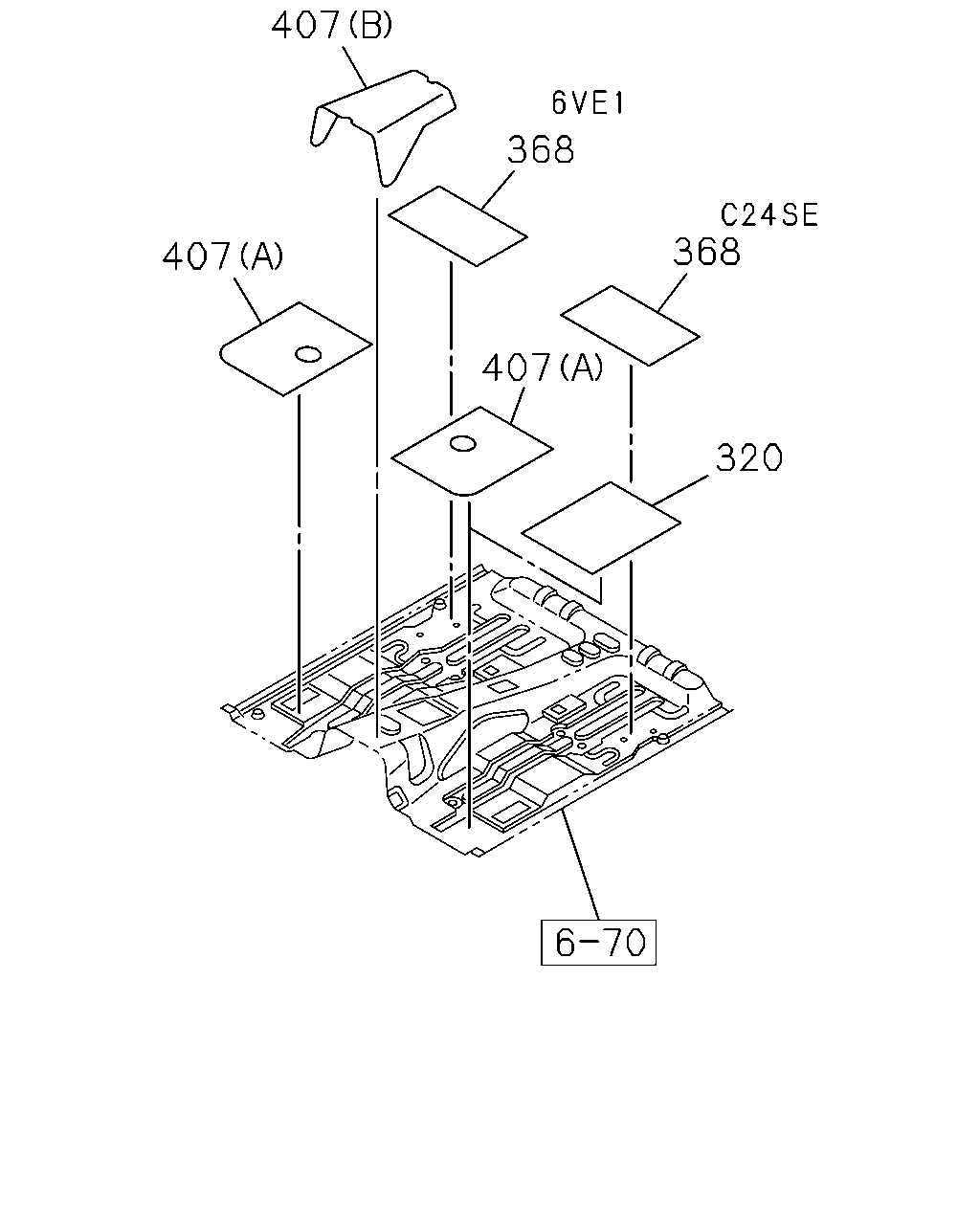

çizim 185281
407 368 368 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0306-0609 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 0306-0609 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0610-0709 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 0610-0709 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 0610-0709 ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0710-1003 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 0710-1003 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 0710-1003 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 1004-1007 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 1004-1007 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 1004-1007 ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 1008- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 1008- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 1008- ● ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97329-089-1 01 1 0306-0609 ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1) 		8-97329-089-1 01 1 0610-0709 ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97329-089-1 01 1 0710-1003 ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1) 		8-97329-089-1 01 1 1004-1007 ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97329-089-1 01 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0306-0609 ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0610-1007 ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0610-1007 ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0306-0609 ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0610-1007 ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0610-1007 ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 1008- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 1008- ● ●
