Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#74032) — 307 parça

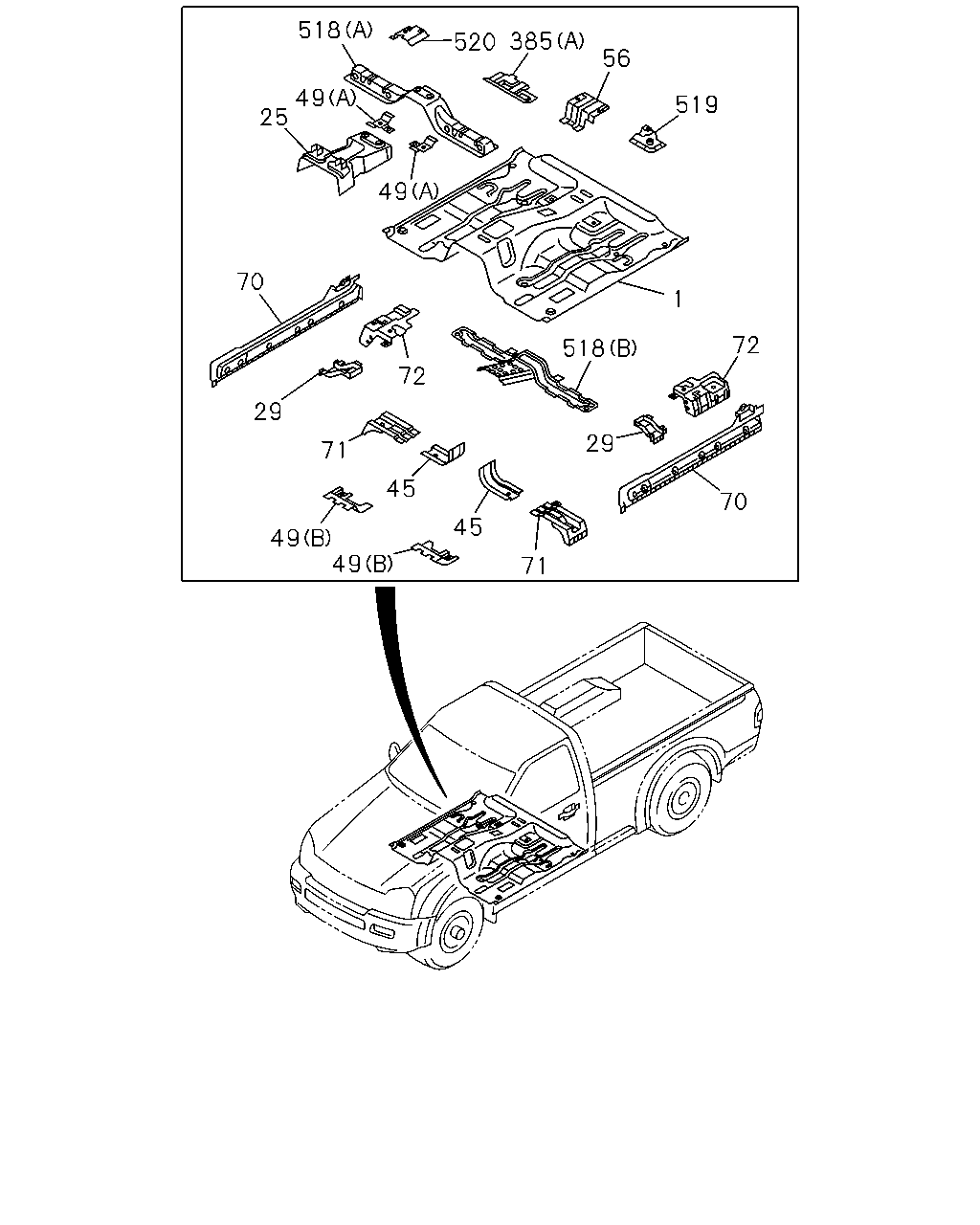

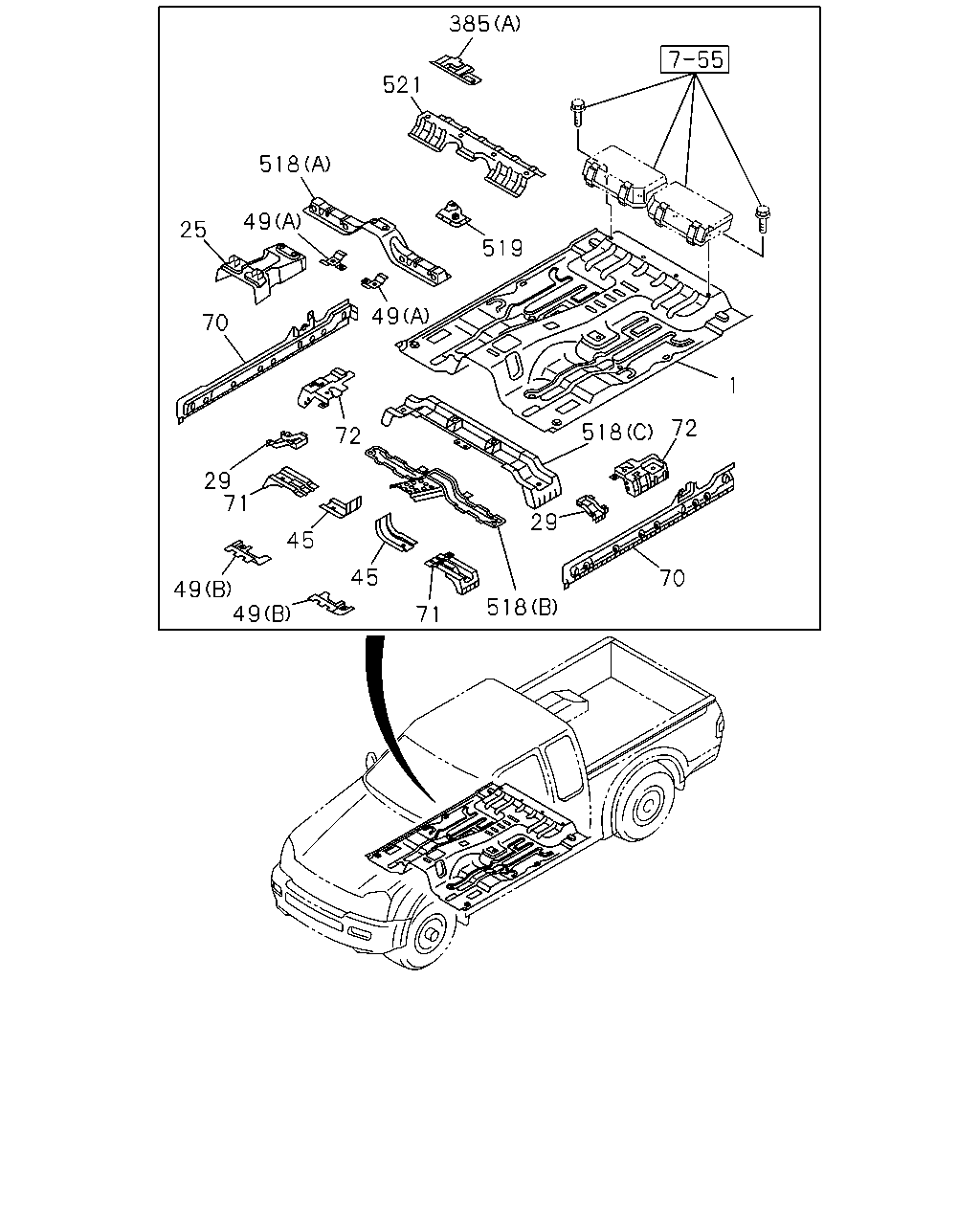

518 385 520 56 49 25 519 49 70 1 72 518 72 29 29 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97235-751-4	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0405-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97235-752-5	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0405-	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT (B)	8-97334-435-0	01	1	1008-1008					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	1009-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0912-1003				●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0306-0910			●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0911-0911			●	●
56	08.820 BRACKET; JACK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97236-363-2	01	1	0911-0911					●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0912-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
385	16.545 BRACKET (A)	8-97326-676-2	01	1	0306-1003	●	●	●	●	●	●
385	16.545 BRACKET 4JH1-TC ENG(RDM) (A)	8-97326-676-2	01	1	1004-	●	●	●	●	●	●

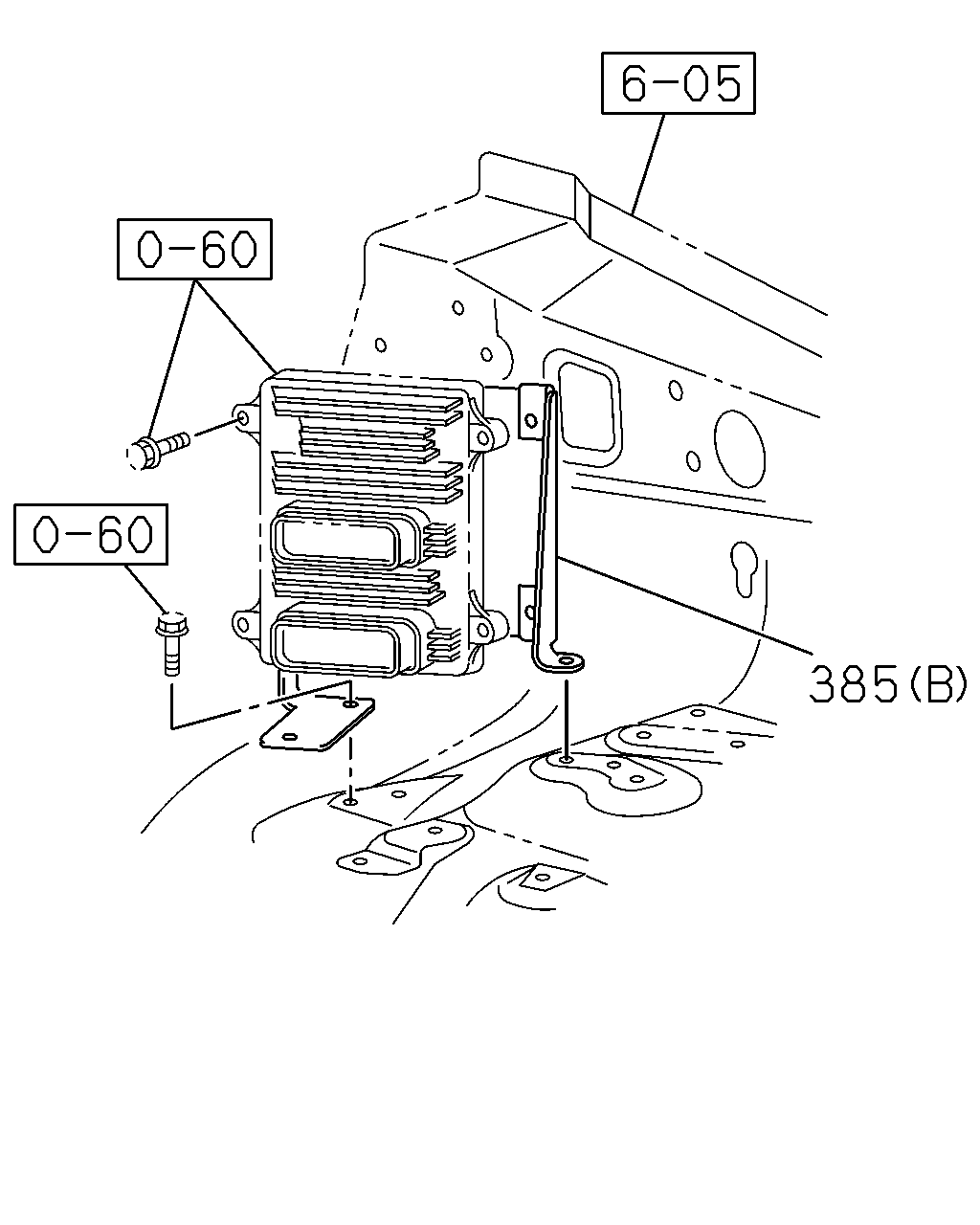

385	16.545 BRACKET C24SE ENG(LG1) MEXICO EQUIPMENT(E11) (B)	8-92184-846-0	01	1	0610-0809			●		●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0609			●	●	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0609	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0306-	●	●	●	●	●	●

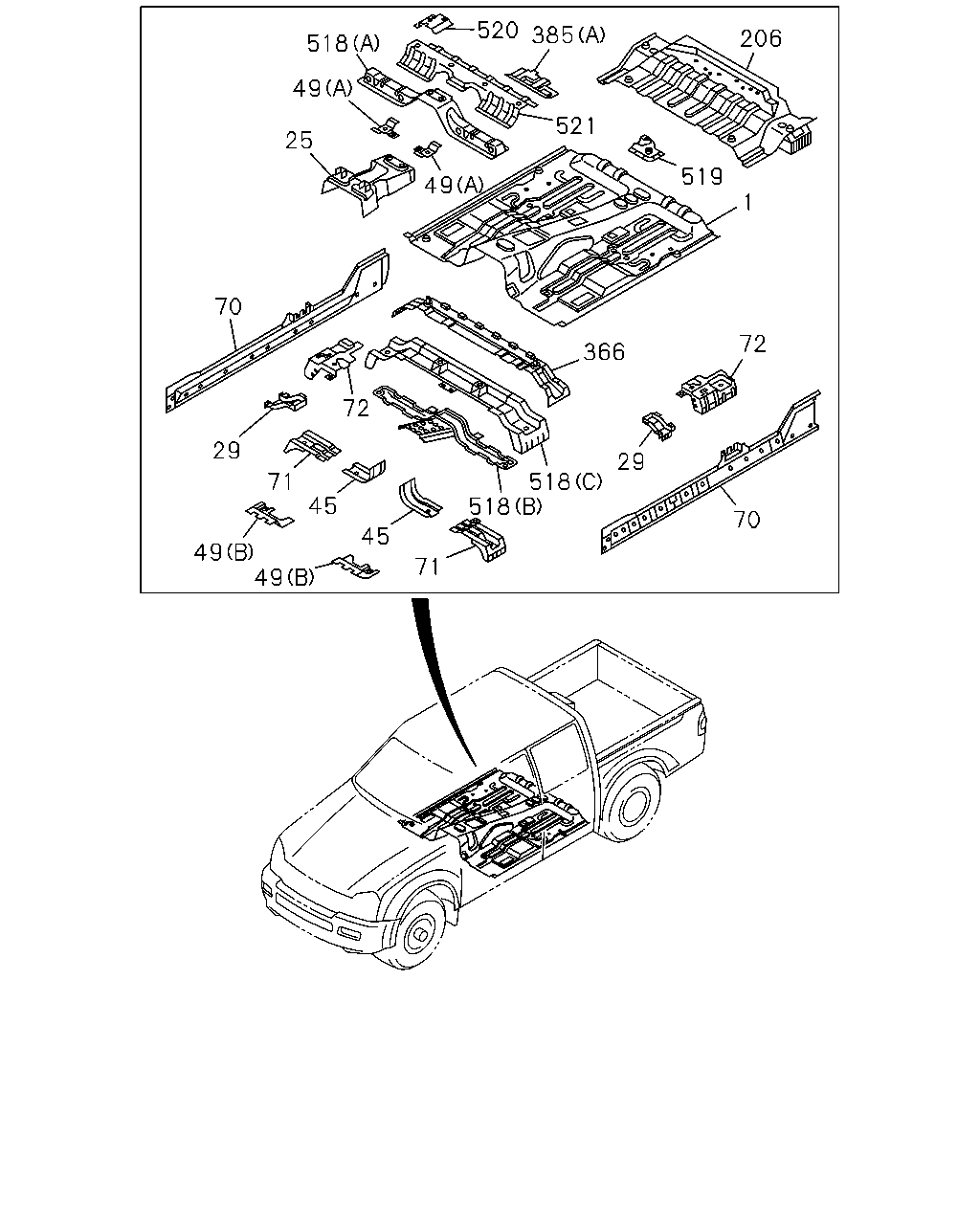

520 385 206 518 49 521 25 519 49 1 70 72 366 72 29 29 518 518 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97235-751-4	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0405-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97235-752-5	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0405-	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT (B)	8-97334-435-0	01	1	1008-1008					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	1009-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0912-1003				●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
206	16.545 PANEL; FLOOR BOARD RR	8-97324-176-5	01	1	0306-0706					●	●
206	16.545 PANEL; FLOOR BOARD RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-97324-176-5	01	1	0707-0709					●	●
206	16.545 PANEL; FLOOR BOARD RR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-98090-608-0	01	1	0707-0709					●	●
206	16.545 PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	0710-					●	●
366	16.674 BAR ASM; FRT SEAT MTG	8-93333-631-3	01	1	0306-					●	●
385	16.545 BRACKET (A)	8-97326-676-2	01	1	0306-1003	●	●	●	●	●	●
385	16.545 BRACKET 4JH1-TC ENG(RDM) (A)	8-97326-676-2	01	1	1004-	●	●	●	●	●	●
385	16.545 BRACKET C24SE ENG(LG1) MEXICO EQUIPMENT(E11) (B)	8-92184-846-0	01	1	0610-0809			●		●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0609			●	●	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0609	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0306-	●	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0306-0910	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0911-0911	●	●
521	16.545 BRACKET; RR STORAGE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97259-225-3	01	1	0911-0911					●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0912-	●	●

385 521 518 49 25 519 49 70 1 72 518 72 29 71 29 45 45 70 49 49 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97235-751-4	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0405-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97235-752-5	01	1	0306-0404	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0405-	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT (B)	8-97334-435-0	01	1	1008-1008					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	1009-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	1008-					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0306-0609				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (A)	8-97333-851-1	02	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (A)	8-97333-851-1	02	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-435-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-435-0	01	1	0912-1003				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0710-0904					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0710-0904				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0905-0910				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) PLANT - ISUZU,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0911-0911				●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) (B)	8-97334-434-0	01	1	0912-1003					●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(LX5) FRONT CONSOLE<D55> (B)	8-97334-434-0	01	1	0912-1003				●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
385	16.545 BRACKET (A)	8-97326-676-2	01	1	0306-1003	●	●	●	●	●	●
385	16.545 BRACKET 4JH1-TC ENG(RDM) (A)	8-97326-676-2	01	1	1004-	●	●	●	●	●	●
385	16.545 BRACKET C24SE ENG(LG1) MEXICO EQUIPMENT(E11) (B)	8-92184-846-0	01	1	0610-0809			●		●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0609			●	●	●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TCENG(RDM) BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0609	●	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0306-0910	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0911-0911	●	●
521	16.545 BRACKET; RR STORAGE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97259-225-3	01	1	0911-0911					●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0912-	●	●

385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
385	16.545 BRACKET (A)	8-97326-676-2	01	1	0306-1003	●	●	●	●	●	●
385	16.545 BRACKET 4JH1-TC ENG(RDM) (A)	8-97326-676-2	01	1	1004-	●	●	●	●	●	●
385	16.545 BRACKET C24SE ENG(LG1) MEXICO EQUIPMENT(E11) (B)	8-92184-846-0	01	1	0610-0809			●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
