Sayfa 6-35 - Isuzu EPC

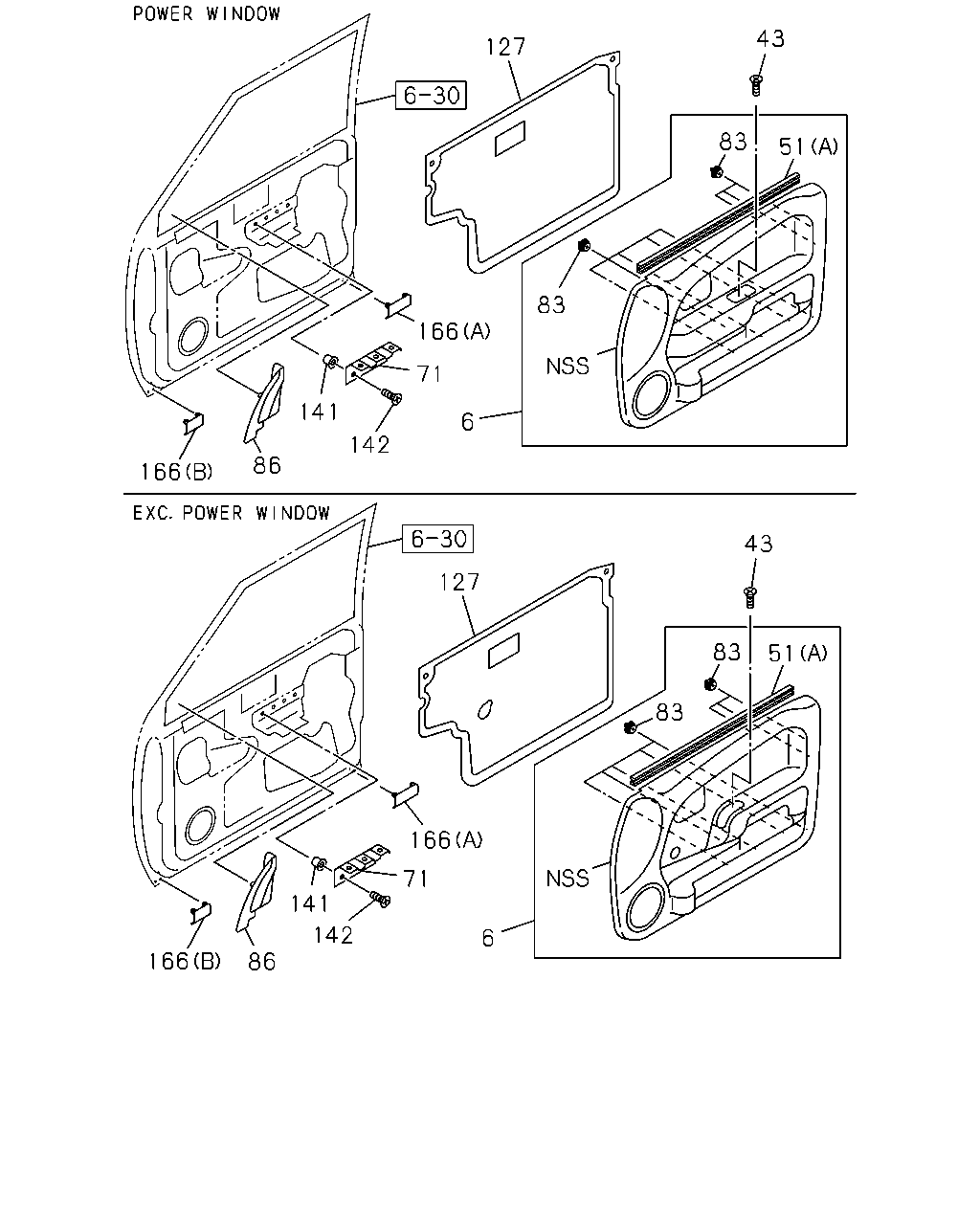

6-35 — FRONT DOOR TRIM (#74021) — 148 parça

43 127 83 51 83 166 71 141 6 142 86 166 43 127 83 51 83 166 71 141 142 6 166 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-258-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-259-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-256-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-257-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-260-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-261-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> BEIGE	8-97403-697-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> BEIGE	8-97403-699-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-702-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-703-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-700-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-701-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-708-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-709-0	01	1	1008-	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-260-0	01	1	0810-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-261-0	01	1	0810-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-708-0	01	1	0810-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-709-0	01	1	0810-1003	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> GRAY	8-97401-141-0	01	1	0509-0609				●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CHEVROLET EQUIPMENT(8JF) GRAY	8-97401-141-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97401-141-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-705-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-705-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-705-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> GRAY	8-97401-140-0	01	1	0509-0609				●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CHEVROLET EQUIPMENT(8JF) GRAY	8-97401-140-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97401-140-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-704-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-704-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-704-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-570-0	01	1	0306-0508	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-569-0	01	1	0306-0508	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-566-0	01	1	0306-0609	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-698-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-698-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-698-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-565-0	01	1	0306-0609	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-696-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-696-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-696-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> DARK GRAY	8-97396-574-0	01	1	0306-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> EXC. CHEVROLET EQUIPMENT(8JF) GRAY	8-97400-816-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97400-816-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-715-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-715-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-715-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> DARK GRAY	8-97396-573-0	01	1	0306-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> EXC. CHEVROLET EQUIPMENT(8JF) GRAY	8-97400-815-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97400-815-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-714-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-714-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-714-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY	8-97396-572-0	01	1	0306-0402	●	●	●			●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY	8-97396-572-0	01	1	0403-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> EXC. CHEVROLET EQUIPMENT(8JF) GRAY	8-97398-504-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> GRAY	8-97398-504-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-711-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-711-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-711-0	01	1	1004-				●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY	8-97403-711-0	01	1	1004-	●	●	●			●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY	8-97396-571-0	01	1	0306-0402	●	●	●			●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY	8-97396-571-0	01	1	0403-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> EXC. CHEVROLET EQUIPMENT(8JF) GRAY	8-97398-503-0	01	1	0509-0609	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> GRAY	8-97398-503-0	01	1	0509-0609					●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-710-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-710-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-710-0	01	1	1004-				●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY	8-97403-710-0	01	1	1004-	●	●	●			●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-568-0	01	1	0306-0402	●	●	●			●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> DARK GRAY	8-97396-568-0	01	1	0403-0508				●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-568-0	01	1	0403-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> GRAY	8-97401-139-0	01	1	0509-0609				●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97401-139-0	01	1	0509-0609	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-713-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-713-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-713-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-567-0	01	1	0306-0402	●	●	●			●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> DARK GRAY	8-97396-567-0	01	1	0403-0508				●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97396-567-0	01	1	0403-0508	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> GRAY	8-97401-138-0	01	1	0509-0609				●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97401-138-0	01	1	0509-0609	●	●	●		●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-712-0	01	1	0610-1003				●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-712-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-712-0	01	1	1004-	●	●	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-703-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-702-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-701-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> LIGHT BEIGE	8-97403-700-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> BEIGE	8-97403-699-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN MED.CASHMERE(136) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> BEIGE	8-97403-697-0	01	1	0610-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-259-0	01	1	0710-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> SEAT COLOR RED<6SJ> RED	8-97418-454-0	01	1	1004-	●	●	●			●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-258-0	01	1	0710-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> SEAT COLOR RED<6SJ> RED	8-97418-453-0	01	1	1004-	●	●	●			●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-257-0	01	1	0710-1003	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97413-256-0	01	1	0710-1003	●	●	●
43	16.165 SCREW; DOOR POCKET 12.182 M5X14	8-94152-495-0	04	1	0306-0504	●	●	●	●	●	●
43	16.165 SCREW; DOOR POCKET 12.182 M5X14	8-94152-495-0	04	1	0505-0609				●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0505-0609	●	●	●		●	●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0610-	●	●	●	●	●	●

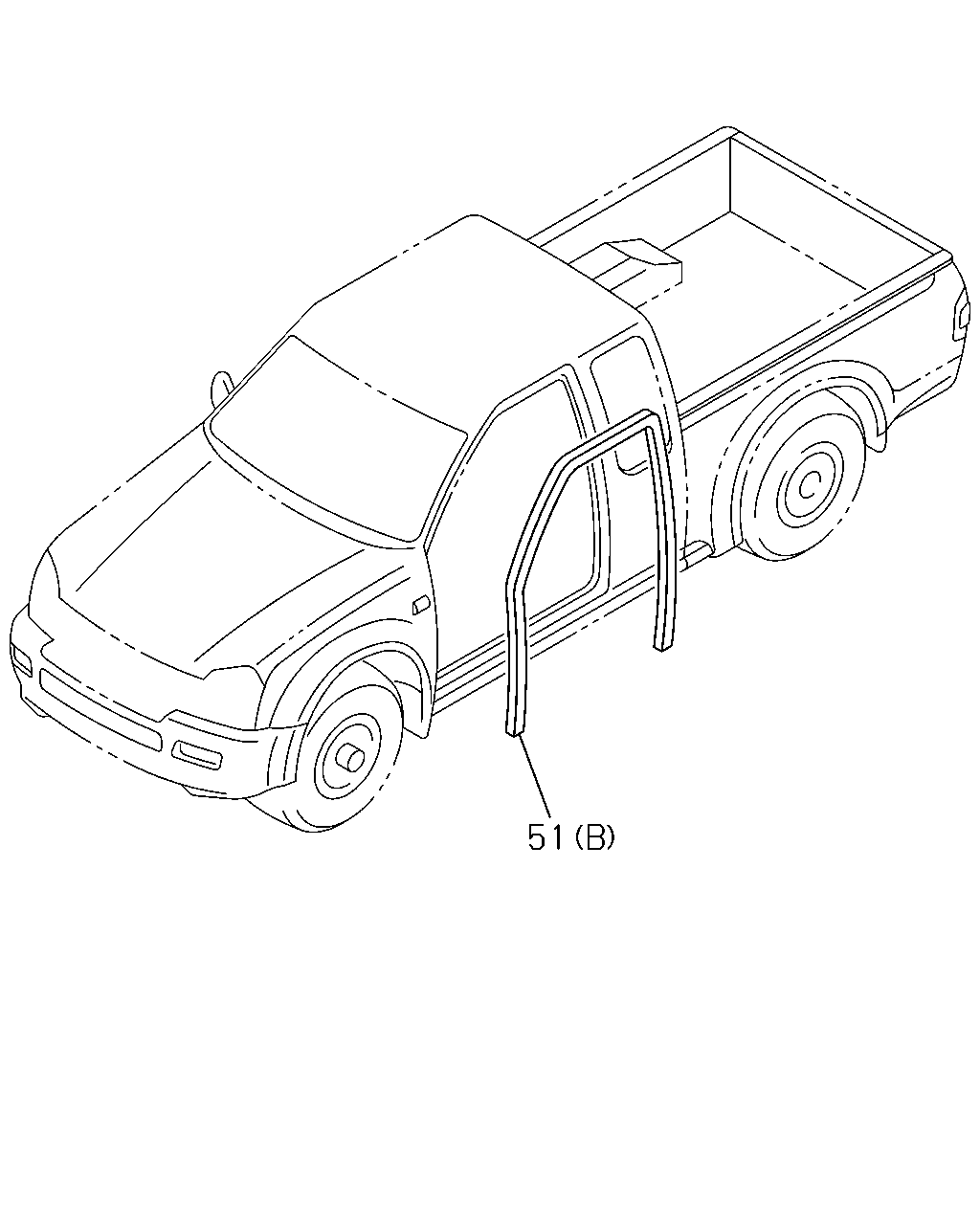

51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	0306-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	0306-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97294-029-1	02	1	0306-0412		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97294-029-1	02	1	0306-0412	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97402-843-0	02	1	0501-0609		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97402-843-0	02	1	0501-0609	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	0610-		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97403-590-0	02	1	0610-	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97294-031-1	02	1	0306-0412	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97402-846-0	02	1	0501-0609	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97403-592-0	02	1	0610-	●					●
71	14.690 BRACKET; ARM REST 16.165	8-97238-106-2	02	1	0306-	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> H=16.7	8-97022-017-0	08	1	0911-0911	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> H=16.7	8-97022-017-0	08	1	0911-0911	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM H=16.7	8-97022-017-0	16	1	0306-0910	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> H=16.7	8-97022-017-0	16	1	0911-0911	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> H=16.7	8-97022-017-0	16	1	0911-0911	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR COLOR IN VERY DARK GRAY(116) ,INTERIOR COLOR IN MED.CASHMERE(136) CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM STANDARD, VAR 2<8LL> H=16.7	8-97022-017-0	16	1	0911-0911	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM H=16.7	8-97022-017-0	16	1	0911-	●	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97298-456-2	01	1	0306-	●	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97298-455-2	01	1	0306-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER	8-97360-883-0	01	1	0306-0609				●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-883-0	01	1	0306-0609	●	●	●		●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-883-0	01	1	0610-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER	8-97360-882-0	01	1	0306-0609				●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-882-0	01	1	0306-0609	●	●	●		●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-882-0	01	1	0610-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-885-0	01	1	0306-0609	●	●	●		●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-885-0	01	1	0610-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-884-0	01	1	0306-0609	●	●	●		●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-884-0	01	1	0610-	●	●	●	●	●	●
141	16.165 GROMMET; SCREW,LWR COVER 10.565	8-94152-494-0	04	1	0306-	●	●	●	●	●	●
142	16.165 SCREW; LWR COVER,DOOR TRIM 12.182 M5X14	8-94152-495-0	04	1	0306-	●	●	●	●	●	●
166	16.155 PLUG; HOLE (A)	8-98009-499-0	02	1	0508-		●	●	●	●
166	16.155 PLUG; HOLE GRADE LT(RBD) (A)	8-98009-499-0	02	1	0508-	●					●
166	16.155 PLUG; HOLE (B)	8-98009-500-0	02	1	0508-		●	●	●	●
166	16.155 PLUG; HOLE GRADE LT(RBD) (B)	8-98009-500-0	02	1	0508-	●					●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	0306-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	0306-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97294-029-1	02	1	0306-0412		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97294-029-1	02	1	0306-0412	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97402-843-0	02	1	0501-0609		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97402-843-0	02	1	0501-0609	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	0610-		●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LT(RBD) (B) DARK GRAY	8-97403-590-0	02	1	0610-	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97294-031-1	02	1	0306-0412	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97402-846-0	02	1	0501-0609	●					●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97403-592-0	02	1	0610-	●					●
