3-01 — FRONT WHEEL BRAKE (#7402) — 86 parça

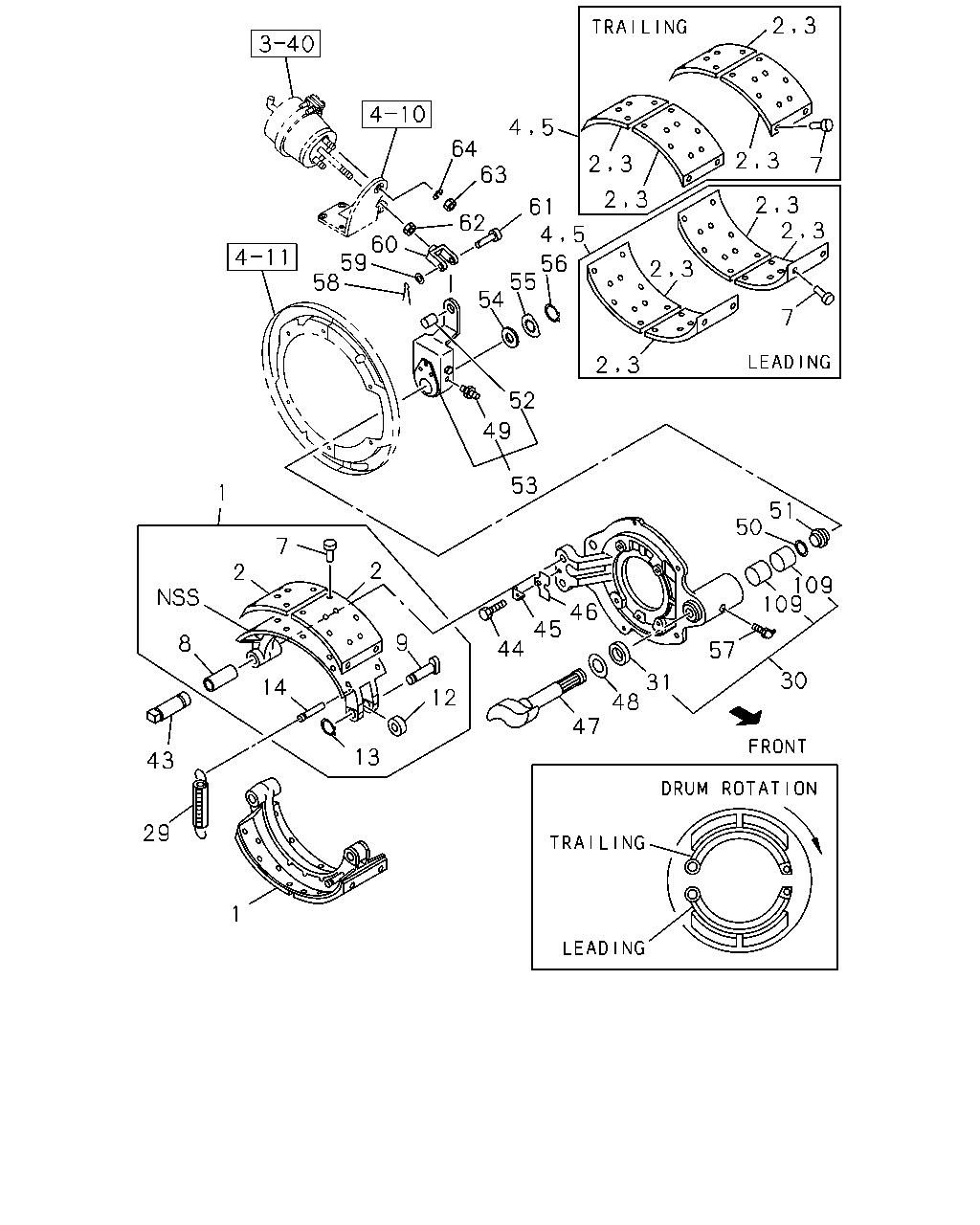

çizim 6218
64 63 7 60 59 58 61 62 56 55 54 7 52 49 53 1 51 50 7 2 2 109 109 46 45 44 9 8 57 30 31 48 14 12 47 13 43 29 1 2 3 2 3 2 3 2 3 2 3 2 3 2 3 3 2 5 4 5 4
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
LEADING 		1-47110-965-0 01 1 9812-9901
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9902-0006
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-711-0 01 1 0007-
1 SHOE; BRK,FRT
TRAILING 		1-47110-966-0 01 1 9812-9901
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9902-0006
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-712-0 01 1 0007-
1 SHOE; BRK,FRT
LEADING 		1-47110-963-0 01 1 9812-9901
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9902-0006
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-709-0 01 1 0007-
1 SHOE; BRK,FRT
TRAILING 		1-47110-964-0 01 1 9812-9901
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9902-0006
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-710-0 01 1 0007-
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-334-0 01 1 9902-
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-335-0 01 1 9902-
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-332-0 01 1 9902-
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-333-0 01 1 9902-
2 LINING; FRT BRK SHOE,STANDARD
LEADING 		1-47115-771-0 04 1 9812-9901
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9902-0006
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-793-0 04 1 0007-
2 LINING; FRT BRK SHOE,STANDARD
TRAILING 		1-47115-814-0 04 1 9812-9901
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9902-0006
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-795-0 04 1 0007-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-431-0 04 1 9902-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-432-0 04 1 9902-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> W/FOR WEAR INDICATOR HOLE 		1-47125-443-0 04 1 9902-
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING 		1-47115-772-0 04 1 9812-9901
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9902-0006
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-794-0 04 1 0007-
3 LINING; FRT BRK SHOE,OVER SIZE
TRAILING 		1-47115-815-0 04 1 9812-9901
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9902-0006
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-796-0 04 1 0007-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-433-0 04 1 9902-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-434-0 04 1 9902-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> W/FOR WEAR INDICATOR HOLE 		1-47125-444-0 04 1 9902-
4 LINING SET; FRT BRK,STANDARD
LEADING 		1-88302-923-0 01 1 9812-9901
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9902-0006
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-497-0 01 1 0007-
4 LINING SET; FRT BRK,STANDARD
TRAILING 		1-88302-931-0 01 1 9812-9901
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9902-0006
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-499-0 01 1 0007-
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-309-0 01 1 9902-
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-311-0 01 1 9902-
5 LINING SET; FRT BRK,OVER SIZE
LEADING 		1-88302-924-0 01 1 9812-9901
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9902-0006
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-498-0 01 1 0007-
5 LINING SET; FRT BRK,OVER SIZE
TRAILING 		1-88302-932-0 01 1 9812-9901
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9902-0006
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-500-0 01 1 0007-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-310-0 01 1 9902-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-312-0 01 1 9902-
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9812-
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9812-
9 PIN; SHOE HOLDER 1-09744-060-0 04 1 9812-
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 04 1 9812-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 9812-
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9812-
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 9812-
30 BRACKET; ANCHOR,FRT 1-47137-119-3 01 1 9812-
30 BRACKET; ANCHOR,FRT 1-47137-118-3 01 1 9812-
31 SEAL; OIL,CM/SHF 1-09625-228-0 02 1 9812-
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9812-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9812-
45 WASHER; LK 1-47133-011-0 02 1 9812-
46 PLATE; LOCK 1-47133-005-0 02 1 9812-
47 CAMSHAFT; FRT BRK 1-47141-052-0 01 1 9812-
47 CAMSHAFT; FRT BRK 1-47141-051-0 01 1 9812-
48 RING; SPACER,CM/SHF 1-47143-005-0 02 1 9812-
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9812-
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9812-
50 RING; FELT,CM/SHF 1-09620-009-0 02 1 9812-
51 COLLAR; RING,CM/SHF 1-47143-016-0 02 1 9812-
52 BUSHING; SLACK ADJ 1-09330-041-0 02 1 9812-
53 ADJUSTER ASM; SLACK 1-48270-044-0 01 1 9812-
53 ADJUSTER ASM; SLACK 1-48270-043-0 01 1 9812-
54 SPACER; CM/SHF 1-47143-004-0 02 1 9812-
55 PLATE; STOPPER,CM/SHF 1-47149-021-0 02 1 9812-
56 CLIP; ANCHOR PIN 9-09180-038-0 02 1 9812-
57 NIPPLE; GREASE,ANCHOR BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9812-
58 PIN; SPLIT,JAW JOINT
OD=3.7 L=28 		9-08114-028-0 02 1 9812-
59 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 9812-
60 JOINT; JAW,POWER CHAMBER 1-09768-060-1 02 1 9812-
61 PIN; JAW JOINT,POWER CHAMBER 1-09744-088-0 02 1 9812-
62 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 9812-
63 NUT; POWER CHAMBER
M16 		9-99110-416-0 04 1 9812-
64 WASHER; LK,POWER CHAMBER
ID=16.2 		9-09150-516-0 04 1 9812-
109 BUSHING; CM/SHF,FRT BRK 1-47146-003-1 04 1 9812-
