◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#74019) — 100 parça

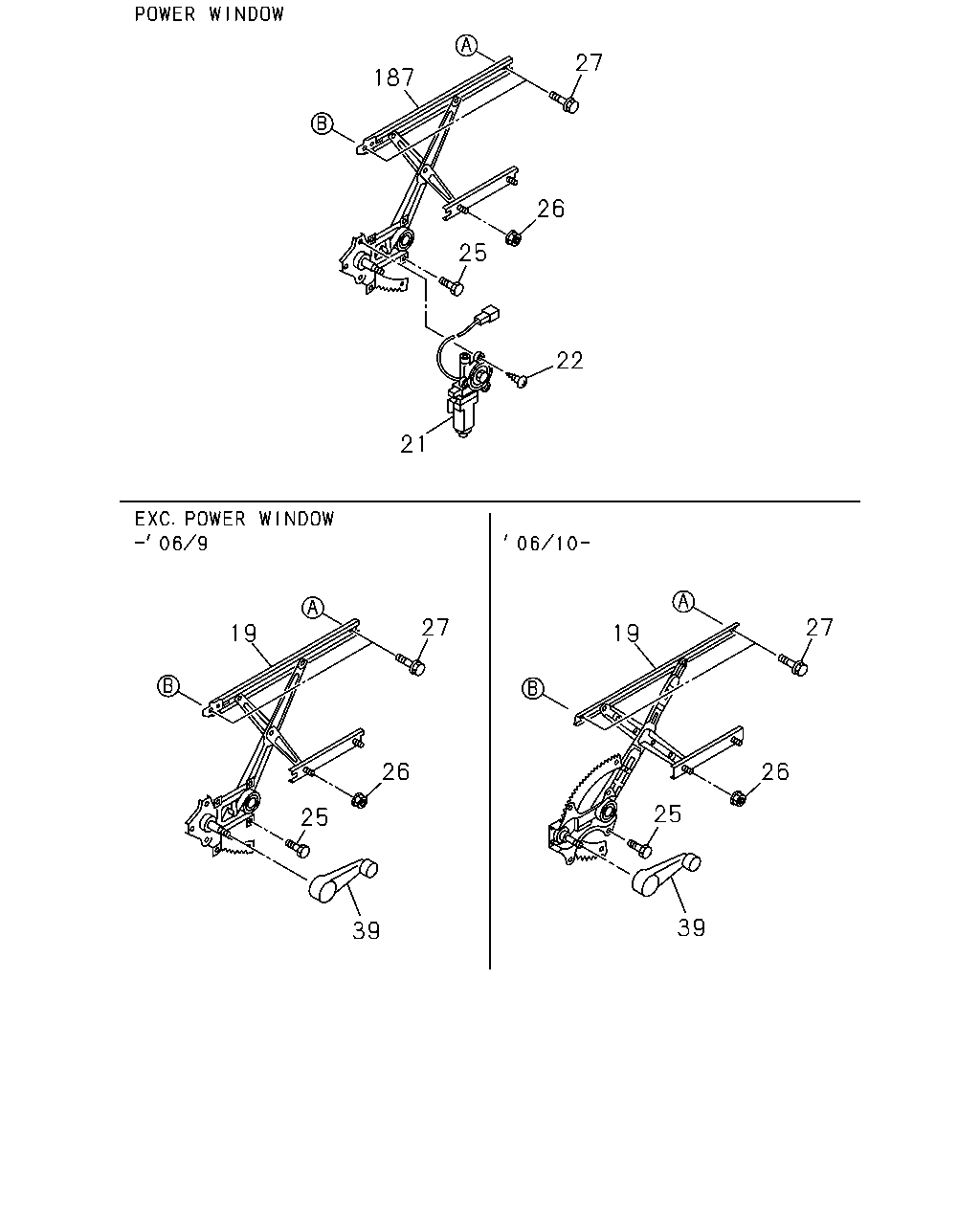

çizim 130637
27 187 26 25 22 21 27 27 19 19 26 26 25 25 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-875-2 01 1 0306-0609 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-875-2 01 1 0306-0609 ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-165-2 01 1 0610-0803 ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98111-489-1 01 1 0804- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-873-2 01 1 0306-0609 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-873-2 01 1 0306-0609 ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-164-2 01 1 0610-0803 ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98111-488-1 01 1 0804- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-233-0 01 1 0306-0609 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-802-0 01 1 0610-0908 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98152-287-0 01 1 0909-1107 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98196-060-0 01 1 1108- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-232-0 01 1 0306-0609 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-801-0 01 1 0610-0908 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98152-286-0 01 1 0909-1107 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98196-059-0 01 1 1108- ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97351-770-0 06 1 0306-0609 ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-809-0 06 1 0610- ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 06 1 0306-0609 ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0610-1105 ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1106- ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-97943-101-0 04 1 0306-0610 ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 0611- ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 0306-0609 ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.765 M6X8 FLANGE 		8-98048-996-0 04 1 0610-1105 ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1106- ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DARK GRAY 		8-97298-454-3 02 1 0306-0609 ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97298-454-3 02 1 0306-0609 ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 0610-1003 ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR COLOR IN MED.CASHMERE(136) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 0610-1003 ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 1004-1007 ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 1008- ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR IN MED.CASHMERE(136) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 1008- ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-002-0 01 1 0306-0609 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-811-3 01 1 0610- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-004-0 01 1 0306-0609 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-810-3 01 1 0610- ● ● ● ● ● ●

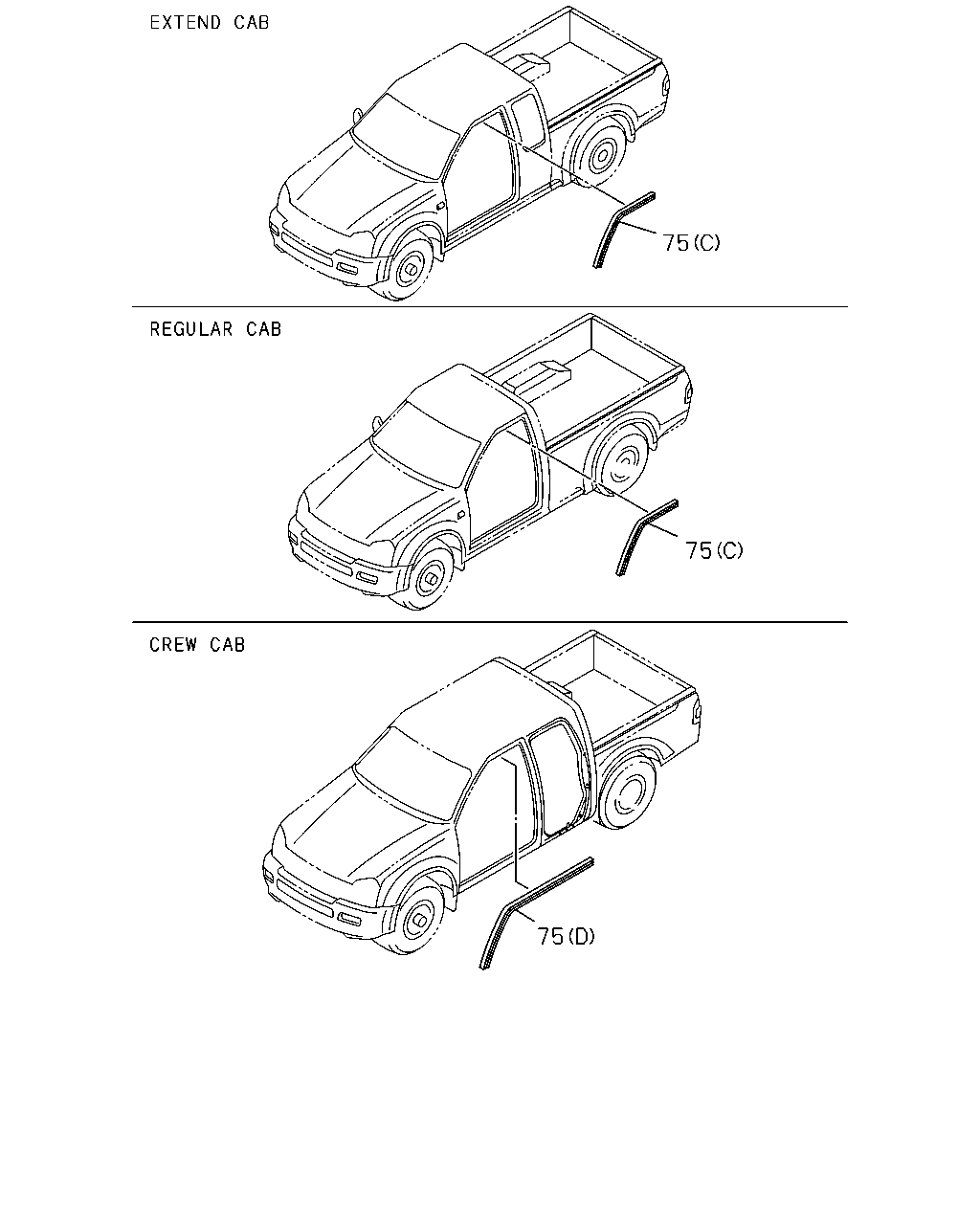

çizim 131026
75 75 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0306- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0306-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0306- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0306-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0306-0412 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0501- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0306-0412 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0501- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0306-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0306-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0501- ● ●

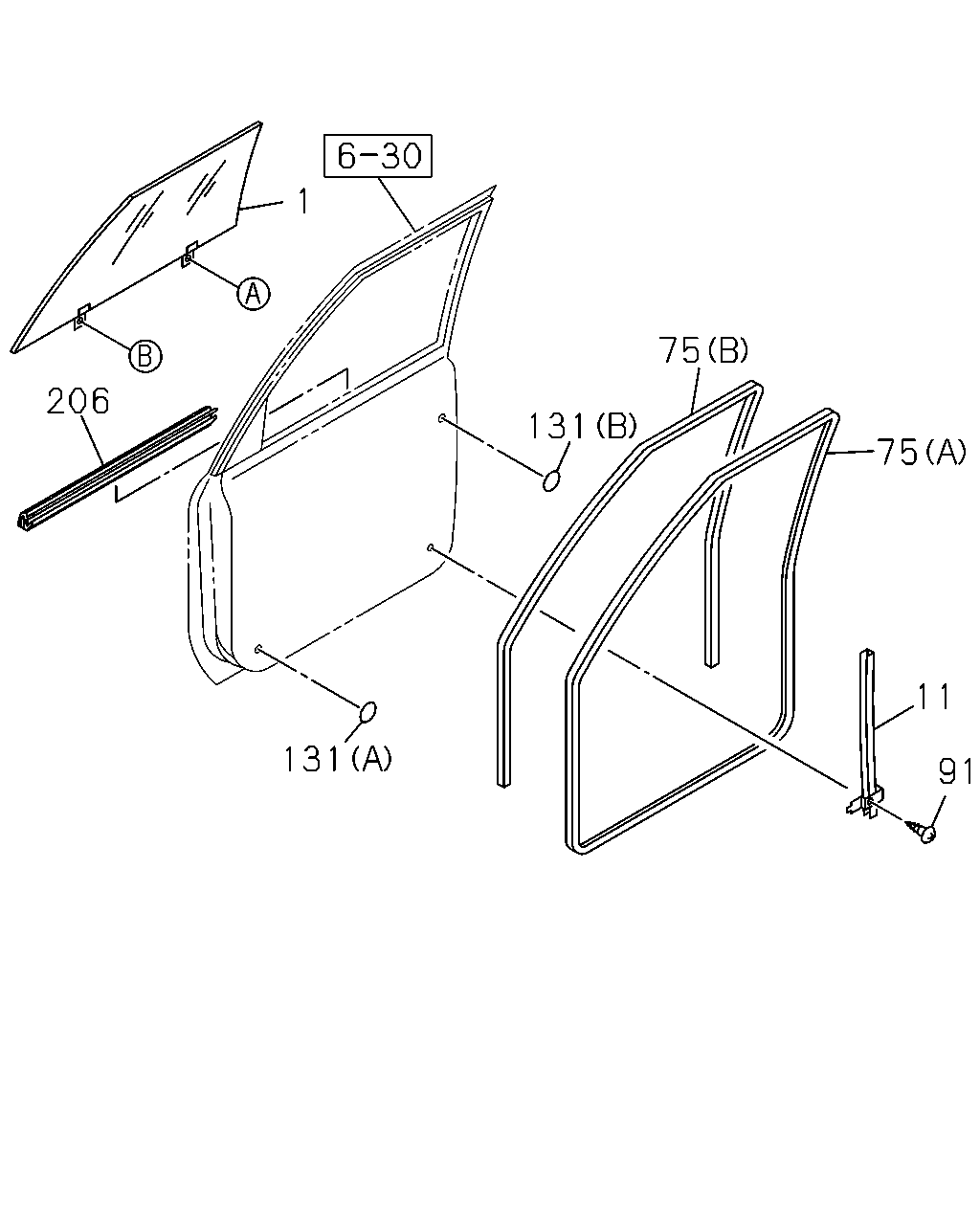

çizim 131087
1 75 206 131 75 11 131 91
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.180 GLASS; FRT DOOR 8-97236-032-2 01 1 0306-0808 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-013-0 01 1 0809- ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97236-028-2 01 1 0306-0808 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-012-0 01 1 0809- ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-126-1 01 1 0306-0709 ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-126-1 01 1 0710- ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0306-0604 ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ISRAEL EQUIPMENT(2G1) 		8-97241-127-1 01 1 0306-0604 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-127-1 01 1 0306-0604 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0605-0709 ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-127-1 01 1 0605-0709 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1) 		8-97241-127-1 01 1 0605-0709 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0710- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. AUTO DOOR LOCK<AU4> 		8-97241-127-1 01 1 0710- ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. SAUDI ARABIA EQUIPMENT(GH3), ISRAEL EQUIPMENT(2G1) 		8-97241-127-1 01 1 0710- ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> ISRAEL EQUIPMENT(2G1) 		8-97315-865-1 01 1 0306-0604 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) 		8-97315-865-1 01 1 0605-0709 ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-97315-865-1 01 1 0710- ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(GH3),ISRAEL EQUIPMENT(2G1) 		8-97315-865-1 01 1 0710- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0306- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0306-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0306- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0306-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0306-0412 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0501- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0306-0412 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0501- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0306-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0306-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0501- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 0306-0609 ● ● ● ● ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0610- ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0306- ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0306- ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> 		8-98152-889-0 01 1 1102- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> 		8-98152-890-0 01 1 1102- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-716-0 01 1 0306-0410 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98003-176-0 01 1 0411-0412 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-222-0 01 1 0501-1101 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-222-0 01 1 1102- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-222-0 01 1 1102- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-715-0 01 1 0306-0410 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98003-175-0 01 1 0411-0412 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-221-0 01 1 0501-1101 ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-221-0 01 1 1102- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-221-0 01 1 1102- ● ● ●
