◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#74014) — 37 parça

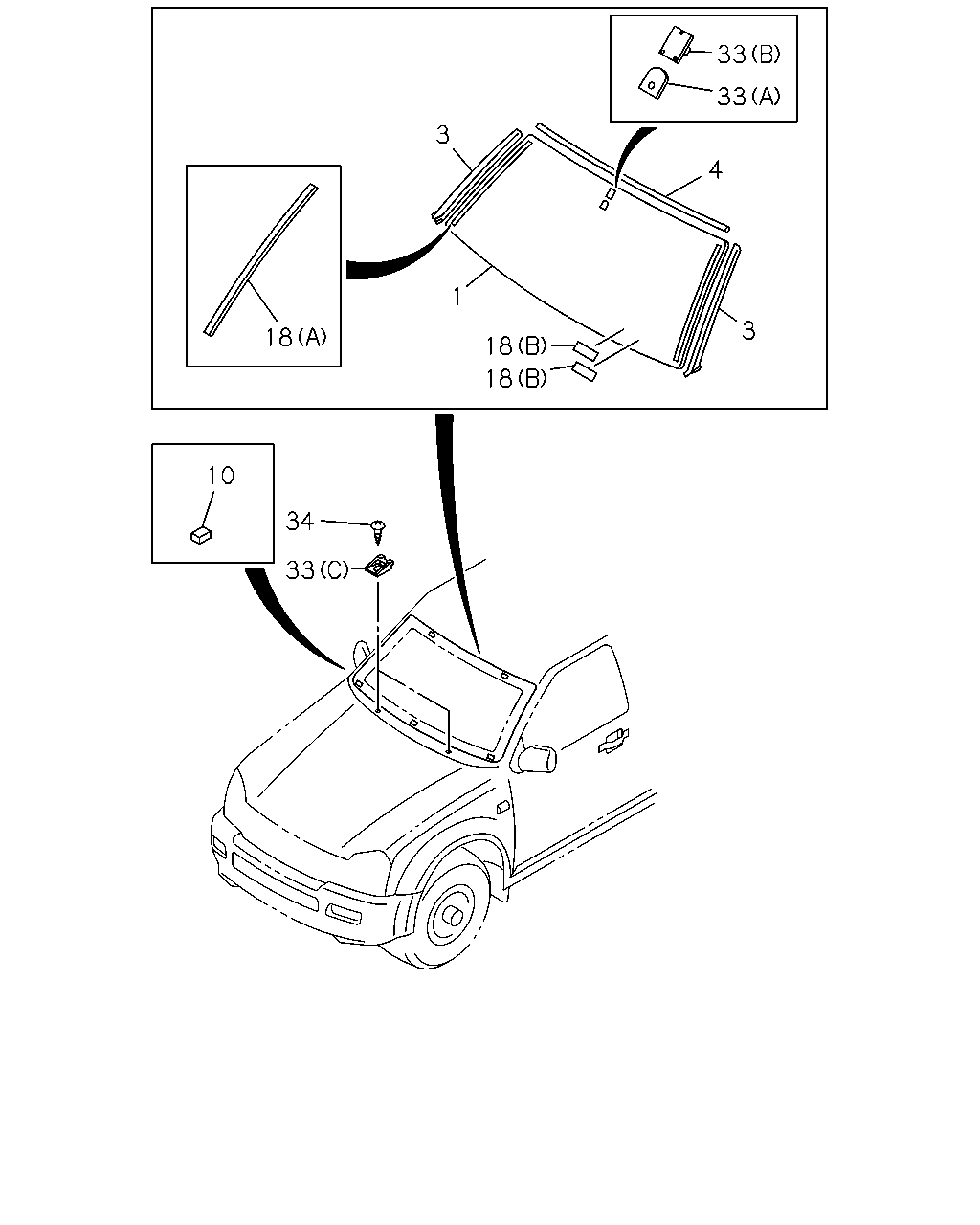

çizim 126348
33 33 3 4 1 3 18 18 18 10 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97331-593-1 01 1 0306-0609 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-97331-593-1 01 1 0610-0808 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-276-0 01 1 0809-0809 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-276-0 01 1 0810- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31>, SAUDI ARABIA EQUIPMENT(GH3) 		8-97331-594-1 01 1 0306-0609 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31>, MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-97331-594-1 01 1 0610-0808 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31>, MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-277-0 01 1 0809-0809 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31>, SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-277-0 01 1 0810- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> SAUDI ARABIA EQUIPMENT(GH3) 		8-97351-453-1 01 1 0306-0609 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-97351-453-1 01 1 0610-0808 ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> SAUDI ARABIA EQUIPMENT(GH3) 		8-97351-453-1 01 1 0610-0808 ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-278-0 01 1 0809-0809 ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-278-0 01 1 0809-0809 ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> SAUDI ARABIA EQUIPMENT(GH3) 		8-98134-278-0 01 1 0810- ● ● ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-97351-454-1 01 1 0306-0609 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-97351-454-1 01 1 0610-0808 ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-97351-454-1 01 1 0610-0808 ● ●
1 16.005 GLASS; WINDSHIELD
MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98134-279-0 01 1 0809-0809 ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98134-279-0 01 1 0809-0809 ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98134-279-0 01 1 0810- ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97234-878-1 01 1 0306-0511 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98030-884-0 01 1 0512- ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97234-877-1 01 1 0306-0510 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98030-883-0 01 1 0511- ● ● ● ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-97239-342-0 01 1 0306- ● ● ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 05 1 0306- ● ● ● ● ● ●
18 16.041 SEAL; WINDSHIELD
(A) 		8-97367-390-0 02 1 0306- ● ● ● ● ● ●
18 16.041 SEAL; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-97241-405-0 02 1 0306-0609 ● ● ● ●
18 16.041 SEAL; WINDSHIELD
MEXICO EQUIPMENT(E11),SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-97241-405-0 02 1 0610-0809 ● ●
18 16.041 SEAL; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-97241-405-0 02 1 0610-0809 ● ●
18 16.041 SEAL; WINDSHIELD
SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-97241-405-0 02 1 0810- ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
(C) 		8-94434-771-0 02 1 0306- ● ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A) 		8-15954-649-0 01 1 0306- ● ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B) 		8-97331-592-0 01 1 0306- ● ● ● ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
10.027 M6X10 		9-09829-194-0 02 1 0306-0612 ● ● ● ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X10 		8-98062-143-0 02 1 0701-1003 ● ● ● ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X10 		8-98167-450-0 02 1 1004- ● ● ● ● ● ●
