6-03 — RADIATOR GRILLE (#74012) — 754 parça

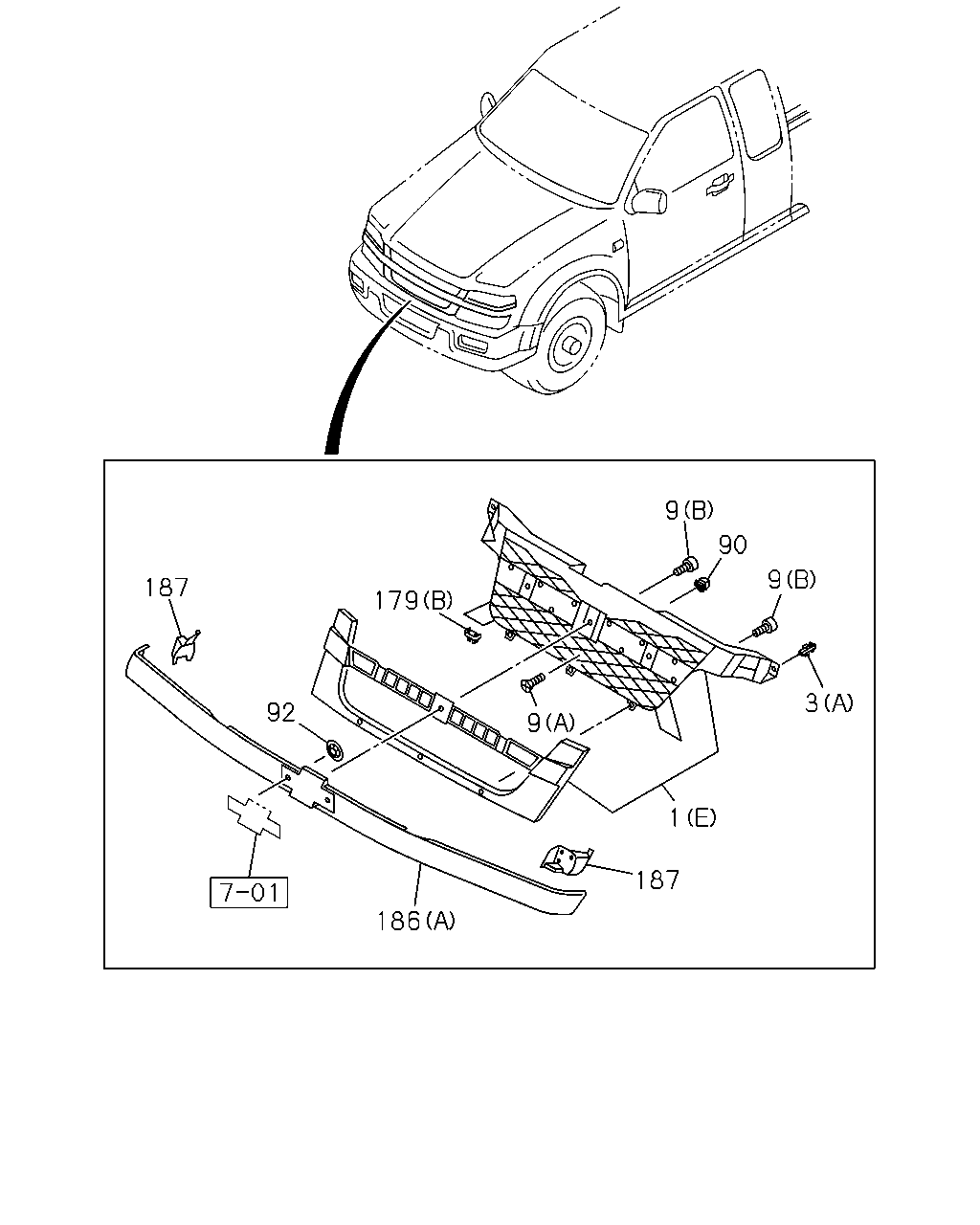

çizim 126501
9 90 9 187 179 3 92 9 1 187 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 1008- ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98109-369-1 01 1 0911-0911 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 0912-1003 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (J) PLATED 		8-98159-148-0 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CHARDONNAY GOLD MET(511), BODY COLOR NEBULA GRAY MICA(520),BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV>, CHEVROLET EQUIPMENT(8JF) (J) SILVER 		8-98111-487-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED 		8-97331-613-0 01 1 0306-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED 		8-97331-613-0 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) PHILIPPINE ISLANDS EQUIPMENT(B15) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F) 		8-98012-479-1 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (H) 		8-98012-516-2 01 1 1004-1007 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (H) 		8-98012-516-2 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED 		8-97367-361-2 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0911-0912 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1001-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 1008- ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (G) 		8-98012-517-2 01 1 0610-0610 ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0506-0609 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97405-678-0 01 1 0610-0709 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) WHITE 		8-97400-132-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) WHITE 		8-97400-132-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97400-128-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97400-128-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) RED 		8-97400-130-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GOLD 		8-97401-236-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) GOLD 		8-97401-236-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GRAY 		8-97400-129-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97403-632-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) SILVER 		8-97401-238-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) SILVER 		8-97401-238-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) RED 		8-97403-630-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) BLUE 		8-97403-634-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) BLUE 		8-97403-634-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0306-0508 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 08 1 0509-0709 ● ● ●
3 01.269 CLIP; GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 04 1 0509-0609 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 0701-1003 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> (C) 		8-97182-223-0 02 1 1004-1007 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 1008- ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 1008- ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0911-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (D) 		8-98070-852-0 17 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0306-0609 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0701-0910 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 0911-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) 		8-98070-852-0 13 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0610-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0710-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0710- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 01 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0306-0609 ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0710- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0610-0709 ● ● ●
92 01.269 STOPPER; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 		8-97182-223-0 02 1 0509-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> (A) 		8-97367-166-0 02 1 0306-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97367-166-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
EXC. CHEVROLET EQUIPMENT(8JF) 07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0710- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0306-0505 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0509-0609 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 0610-0910 ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 0911-1003 ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B) 		8-98012-651-0 01 1 1004-1007 ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (B) 		8-98012-651-0 01 1 1004-1007 ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 1008- ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) WHITE 		8-97400-159-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE 		8-97400-159-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) BLACK 		8-97400-147-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLACK 		8-97400-147-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) RED 		8-97400-149-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED 		8-97403-638-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) GOLD 		8-97401-240-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD 		8-97401-240-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) GRAY 		8-97400-148-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (A) DARK GRAY 		8-97405-680-1 01 1 0610-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY 		8-97403-641-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) SILVER 		8-97401-241-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER 		8-97401-241-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) BLUE 		8-97403-644-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE 		8-97403-644-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646), BODYCOLOR FOXFIRE RED MICA(658),BODY COL OR LIGHT PEWTER MET(684),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLOR IM PERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SIL VER MET(936) BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) PLATED 		8-97365-803-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) PLATED 		8-97365-803-1 01 1 0610-0709 ● ● ●
187 01.266 PIECE; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 		8-97365-806-0 01 1 0509-0709 ● ● ●
187 01.266 PIECE; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 		8-97365-807-0 01 1 0509-0709 ● ● ●

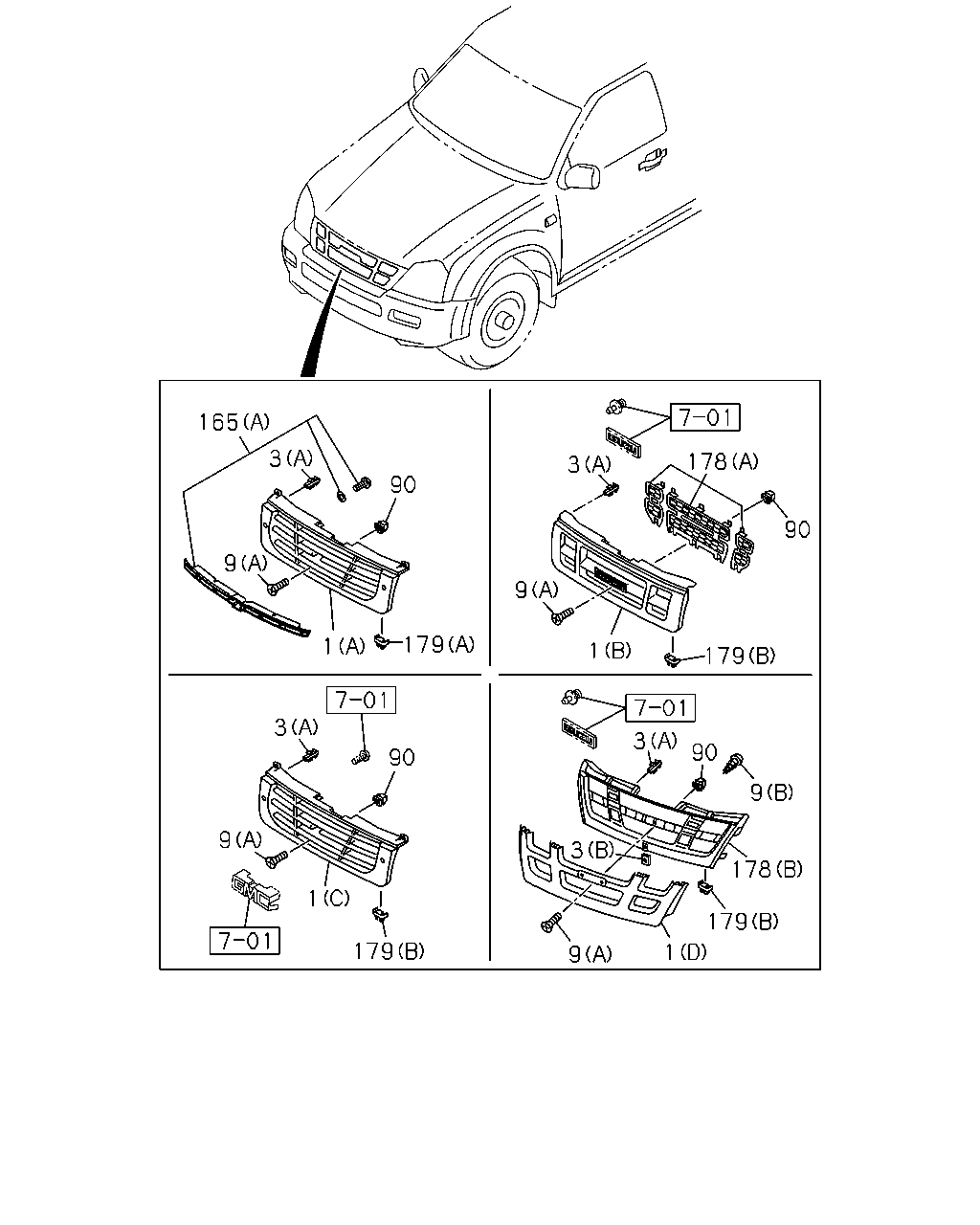

çizim 126595
165 3 178 3 90 90 9 9 179 1 1 179 3 3 90 90 9 9 3 178 1 179 179 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 1008- ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98109-369-1 01 1 0911-0911 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 0912-1003 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (J) PLATED 		8-98159-148-0 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CHARDONNAY GOLD MET(511), BODY COLOR NEBULA GRAY MICA(520),BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV>, CHEVROLET EQUIPMENT(8JF) (J) SILVER 		8-98111-487-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED 		8-97331-613-0 01 1 0306-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED 		8-97331-613-0 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) PHILIPPINE ISLANDS EQUIPMENT(B15) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F) 		8-98012-479-1 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (H) 		8-98012-516-2 01 1 1004-1007 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (H) 		8-98012-516-2 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED 		8-97367-361-2 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0911-0912 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1001-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 1008- ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (G) 		8-98012-517-2 01 1 0610-0610 ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0506-0609 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97405-678-0 01 1 0610-0709 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) WHITE 		8-97400-132-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) WHITE 		8-97400-132-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97400-128-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97400-128-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) RED 		8-97400-130-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GOLD 		8-97401-236-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) GOLD 		8-97401-236-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GRAY 		8-97400-129-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97403-632-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) SILVER 		8-97401-238-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) SILVER 		8-97401-238-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) RED 		8-97403-630-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) BLUE 		8-97403-634-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) BLUE 		8-97403-634-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0306-0508 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 08 1 0509-0709 ● ● ●
3 01.269 CLIP; GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 04 1 0509-0609 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 0701-1003 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> (C) 		8-97182-223-0 02 1 1004-1007 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 1008- ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 1008- ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0911-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (D) 		8-98070-852-0 17 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0306-0609 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0701-0910 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 0911-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) 		8-98070-852-0 13 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0610-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0710-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0710- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 01 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0306-0609 ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0710- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0610-0709 ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 1008- ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> (A) 		8-97333-542-2 01 1 0306-0508 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97333-542-2 01 1 0509-0609 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-652-0 01 1 0610-0709 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 0710-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 1008- ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 0911-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) 		8-98109-370-1 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (A) 		8-97331-458-0 01 1 0306-0508 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) 		8-97331-458-0 01 1 0509-0609 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX>,BRIGHT RAD GRILL E<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0710-1003 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (C) 		8-98012-483-2 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 0710-1003 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> (A) 		8-97367-166-0 02 1 0306-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97367-166-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
EXC. CHEVROLET EQUIPMENT(8JF) 07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0710- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0306-0505 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0509-0609 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0610-0709 ● ● ●

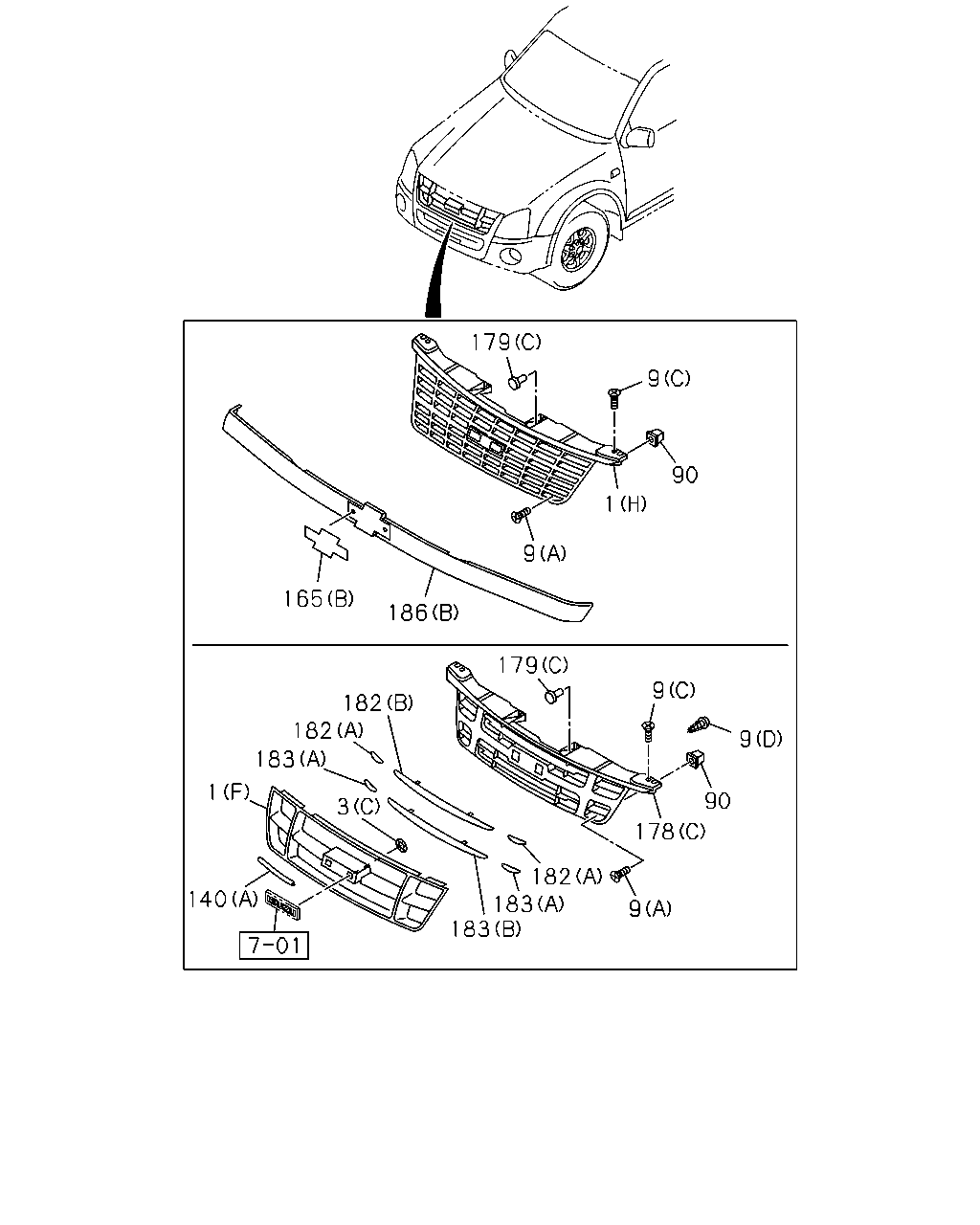

çizim 126626
179 9 90 1 9 165 186 179 9 182 182 9 183 1 90 3 178 182 183 183 140 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 1008- ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98109-369-1 01 1 0911-0911 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 0912-1003 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (J) PLATED 		8-98159-148-0 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CHARDONNAY GOLD MET(511), BODY COLOR NEBULA GRAY MICA(520),BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV>, CHEVROLET EQUIPMENT(8JF) (J) SILVER 		8-98111-487-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED 		8-97331-613-0 01 1 0306-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED 		8-97331-613-0 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) PHILIPPINE ISLANDS EQUIPMENT(B15) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F) 		8-98012-479-1 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (H) 		8-98012-516-2 01 1 1004-1007 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (H) 		8-98012-516-2 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED 		8-97367-361-2 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0911-0912 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1001-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 1008- ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (G) 		8-98012-517-2 01 1 0610-0610 ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0506-0609 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97405-678-0 01 1 0610-0709 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) WHITE 		8-97400-132-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) WHITE 		8-97400-132-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97400-128-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97400-128-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) RED 		8-97400-130-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GOLD 		8-97401-236-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) GOLD 		8-97401-236-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GRAY 		8-97400-129-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97403-632-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) SILVER 		8-97401-238-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) SILVER 		8-97401-238-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) RED 		8-97403-630-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) BLUE 		8-97403-634-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) BLUE 		8-97403-634-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0306-0508 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 08 1 0509-0709 ● ● ●
3 01.269 CLIP; GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 04 1 0509-0609 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 0701-1003 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> (C) 		8-97182-223-0 02 1 1004-1007 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 1008- ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 1008- ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0911-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (D) 		8-98070-852-0 17 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0306-0609 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0701-0910 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 0911-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) 		8-98070-852-0 13 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0610-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0710-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0710- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 01 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0306-0609 ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0710- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0610-0709 ● ● ●

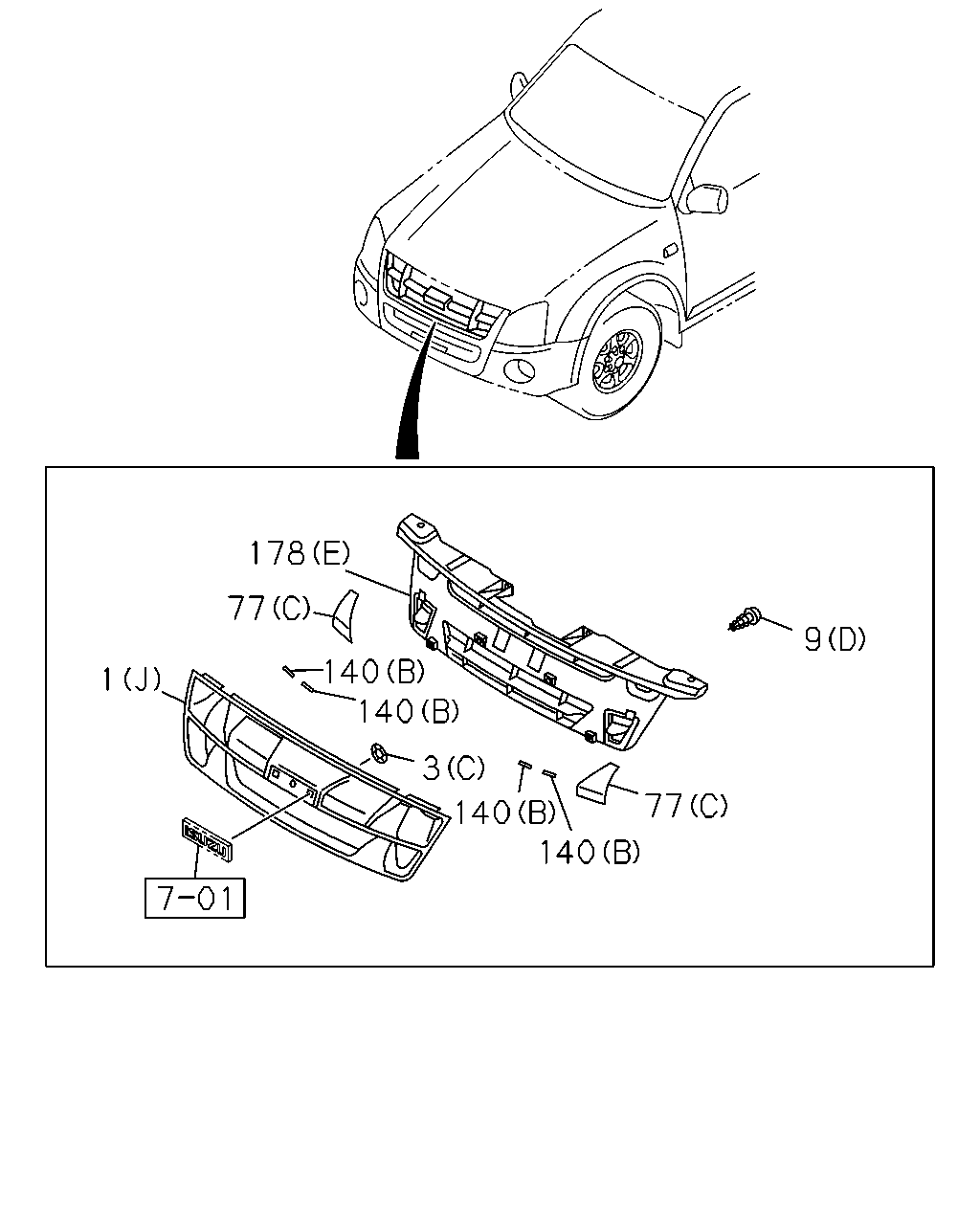

140 01.266 SEAL; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 0911-1003 ● ● ●
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-98130-916-0 04 1 1004-1007 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 1008- ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 1008- ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98070-854-0 01 1 0701-1003 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> (A) 		8-98070-854-0 01 1 1004-1007 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98070-854-0 01 1 1008- ● ● ● ● ● ●

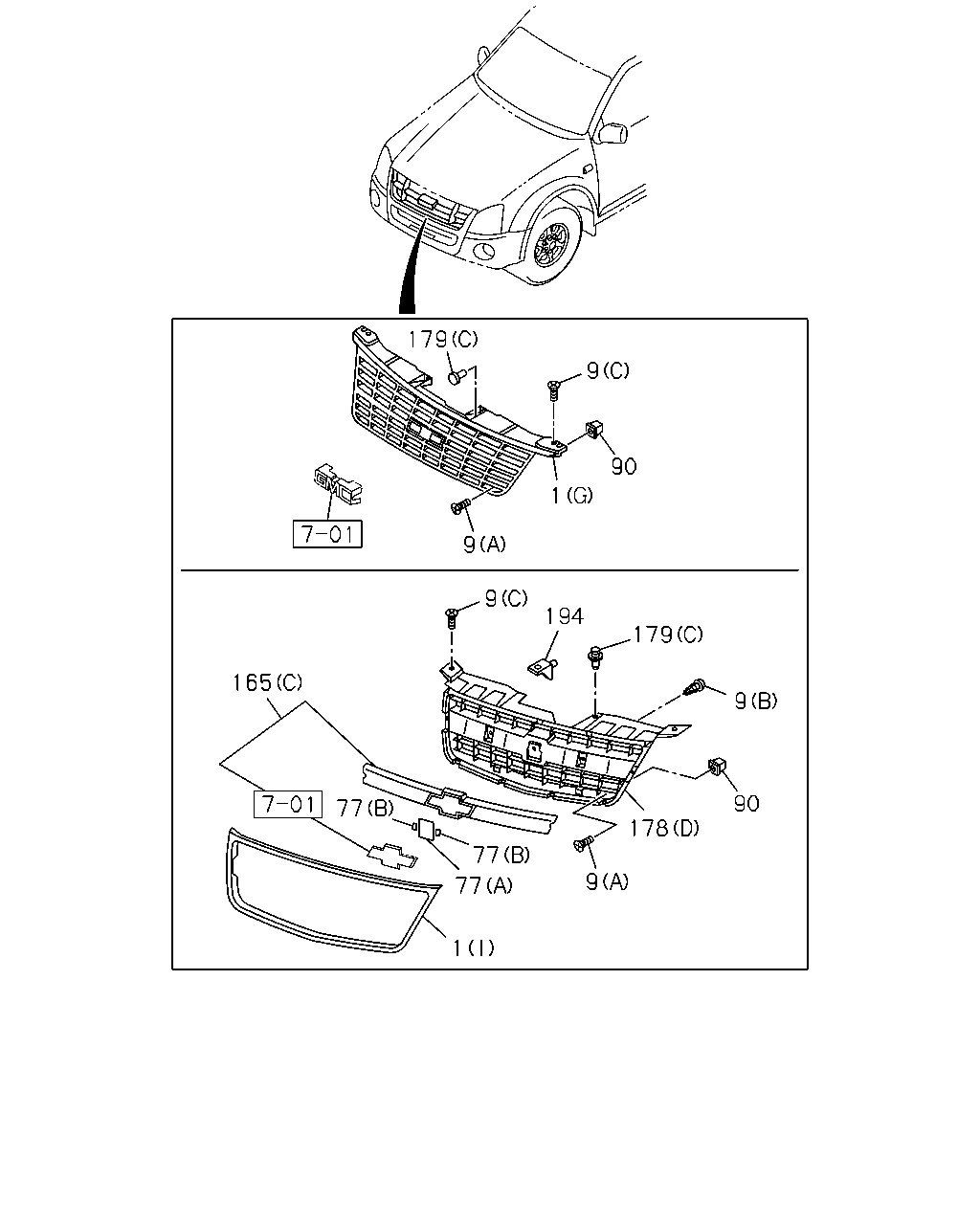

165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 1008- ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> (A) 		8-97333-542-2 01 1 0306-0508 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97333-542-2 01 1 0509-0609 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-652-0 01 1 0610-0709 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 0710-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 1008- ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 0911-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) 		8-98109-370-1 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (A) 		8-97331-458-0 01 1 0306-0508 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) 		8-97331-458-0 01 1 0509-0609 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX>,BRIGHT RAD GRILL E<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0710-1003 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (C) 		8-98012-483-2 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 0710-1003 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> (A) 		8-97367-166-0 02 1 0306-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97367-166-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
EXC. CHEVROLET EQUIPMENT(8JF) 07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0710- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0306-0505 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0509-0609 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0610-0709 ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-484-0 01 1 0610-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B) 		8-98012-484-0 01 1 1004-1007 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-484-0 01 1 1008- ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-486-0 01 1 0610-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A) 		8-98012-486-0 01 1 1004-1007 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-486-0 01 1 1008- ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-485-0 01 1 0610-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A) 		8-98012-485-0 01 1 1004-1007 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-485-0 01 1 1008- ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-491-0 01 1 0610-0709 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-491-0 01 1 0610-0709 ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-491-0 01 1 0710-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B) 		8-98012-491-0 01 1 1004-1007 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-491-0 01 1 1008- ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-493-0 01 1 0610-0709 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-493-0 01 1 0610-0709 ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-493-0 01 1 0710-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A) 		8-98012-493-0 01 1 1004-1007 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-493-0 01 1 1008- ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-492-0 01 1 0610-0709 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-492-0 01 1 0610-0709 ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-492-0 01 1 0710-1003 ● ● ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A) 		8-98012-492-0 01 1 1004-1007 ● ● ● ●
182 01.266 MOLDING; RAD GRILLE,UPR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-492-0 01 1 1008- ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-487-0 01 1 0610-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B) 		8-98012-487-0 01 1 1004-1007 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-487-0 01 1 1008- ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-489-0 01 1 0610-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A) 		8-98012-489-0 01 1 1004-1007 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-489-0 01 1 1008- ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-488-0 01 1 0610-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A) 		8-98012-488-0 01 1 1004-1007 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-488-0 01 1 1008- ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-494-0 01 1 0610-0709 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-494-0 01 1 0610-0709 ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-494-0 01 1 0710-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B) 		8-98012-494-0 01 1 1004-1007 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-494-0 01 1 1008- ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-496-0 01 1 0610-0709 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-496-0 01 1 0610-0709 ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-496-0 01 1 0710-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A) 		8-98012-496-0 01 1 1004-1007 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-496-0 01 1 1008- ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-495-0 01 1 0610-0709 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-495-0 01 1 0610-0709 ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-495-0 01 1 0710-1003 ● ● ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A) 		8-98012-495-0 01 1 1004-1007 ● ● ● ●
183 01.266 MOLDING; RAD GRILLE,LWR
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98012-495-0 01 1 1008- ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 0610-0910 ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 0911-1003 ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B) 		8-98012-651-0 01 1 1004-1007 ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (B) 		8-98012-651-0 01 1 1004-1007 ● ● ● ●
186 01.266 BAR; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-651-0 01 1 1008- ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) WHITE 		8-97400-159-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE 		8-97400-159-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) BLACK 		8-97400-147-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLACK 		8-97400-147-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) RED 		8-97400-149-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED 		8-97403-638-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) GOLD 		8-97401-240-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD 		8-97401-240-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) GRAY 		8-97400-148-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (A) DARK GRAY 		8-97405-680-1 01 1 0610-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY 		8-97403-641-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) SILVER 		8-97401-241-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER 		8-97401-241-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) (A) BLUE 		8-97403-644-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE 		8-97403-644-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ZENITH BLUE MICA(646), BODYCOLOR FOXFIRE RED MICA(658),BODY COL OR LIGHT PEWTER MET(684),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLOR IM PERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SIL VER MET(936) BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) PLATED 		8-97365-803-1 01 1 0509-0609 ● ● ●
186 01.266 BAR; RAD GRILLE
BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) PLATED 		8-97365-803-1 01 1 0610-0709 ● ● ●
çizim 126663
179 9 90 1 9 9 194 179 165 9 90 77 178 77 9 77 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 1008- ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98109-369-1 01 1 0911-0911 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 0912-1003 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (J) PLATED 		8-98159-148-0 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CHARDONNAY GOLD MET(511), BODY COLOR NEBULA GRAY MICA(520),BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV>, CHEVROLET EQUIPMENT(8JF) (J) SILVER 		8-98111-487-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED 		8-97331-613-0 01 1 0306-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED 		8-97331-613-0 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) PHILIPPINE ISLANDS EQUIPMENT(B15) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F) 		8-98012-479-1 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (H) 		8-98012-516-2 01 1 1004-1007 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (H) 		8-98012-516-2 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED 		8-97367-361-2 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0911-0912 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1001-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 1008- ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (G) 		8-98012-517-2 01 1 0610-0610 ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0506-0609 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97405-678-0 01 1 0610-0709 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) WHITE 		8-97400-132-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) WHITE 		8-97400-132-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97400-128-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97400-128-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) RED 		8-97400-130-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GOLD 		8-97401-236-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) GOLD 		8-97401-236-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GRAY 		8-97400-129-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97403-632-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) SILVER 		8-97401-238-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) SILVER 		8-97401-238-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) RED 		8-97403-630-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) BLUE 		8-97403-634-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) BLUE 		8-97403-634-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 1008- ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0911-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (D) 		8-98070-852-0 17 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0306-0609 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0701-0910 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 0911-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) 		8-98070-852-0 13 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0610-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0710-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0710- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 01 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (A) 		8-98090-942-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (B) 		8-98090-943-0 02 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (A) 		8-98090-942-0 01 1 0710-1003 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-020-0 01 1 1004-1007 ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98139-020-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-020-0 01 1 1008- ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (B) 		8-98090-943-0 02 1 0710-1003 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-116-0 01 1 1004-1007 ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98139-116-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-116-0 01 1 1008- ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0306-0609 ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0610-0709 ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0710- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0610-0709 ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 1008- ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> (A) 		8-97333-542-2 01 1 0306-0508 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97333-542-2 01 1 0509-0609 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98012-652-0 01 1 0610-0709 ● ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (C) 		8-98040-604-1 01 1 0710-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 1008- ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 0911-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) 		8-98109-370-1 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (A) 		8-97331-458-0 01 1 0306-0508 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) 		8-97331-458-0 01 1 0509-0609 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX>,BRIGHT RAD GRILL E<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0710-1003 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (C) 		8-98012-483-2 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 0710-1003 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> (A) 		8-97367-166-0 02 1 0306-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) 		8-97367-166-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
EXC. CHEVROLET EQUIPMENT(8JF) 07.832 (C) 		8-97301-188-0 02 1 0610-0709 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 (C) 		8-97301-188-0 02 1 0710- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0306-0505 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0506-0508 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
ISUZU BRAND<7WL> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B) 		8-97350-904-0 02 1 0509-0609 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0509-0609 ● ● ●
179 01.269 RETAINER; GRILLE,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97350-904-0 02 1 0610-0709 ● ● ●
194 01.269 SUPPORT; GRILLE,RAD
CHEVROLET BRAND<RWE> CHEVROLET EQUIPMENT(8JF) 		8-98040-586-0 02 1 1008- ● ● ●
194 01.269 SUPPORT; GRILLE,RAD
CHEVROLET BRAND<RWE> CHEVROLET EQUIPMENT(8JF) 		8-98040-586-0 02 1 0710-1003 ● ● ●
çizim 126664
178 77 9 140 140 1 3 77 140 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 1008- ● ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 1008- ● ●
1 01.266 GRILLE; RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLEASE PAINT TO MATCH BODY COLOR 		8-98138-134-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98109-369-1 01 1 0911-0911 ● ● ●
1 01.266 GRILLE; RAD
PHILIPPINE ISLANDS EQUIPMENT(B15) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 0912-1003 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (J) PLATED 		8-98159-148-0 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (J) PLATED 		8-98159-148-0 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CHARDONNAY GOLD MET(511), BODY COLOR NEBULA GRAY MICA(520),BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV>, CHEVROLET EQUIPMENT(8JF) (J) SILVER 		8-98111-487-0 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>,CHEVROLET EQUIPMENT(8JF) (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97333-541-2 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0306-0508 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR 		8-97331-457-0 01 1 0509-0609 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED 		8-97331-613-0 01 1 0306-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED 		8-97331-613-0 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0610-0910 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) PHILIPPINE ISLANDS EQUIPMENT(B15) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 0911-1003 ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F) 		8-98012-479-1 01 1 1004-1007 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> EXC. COLOR KEYED BUMPER(VT4), CHEVROLET EQUIPMENT(8JF) (F) 		8-98012-479-1 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 0911-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (H) 		8-98012-516-2 01 1 1004-1007 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1) (H) 		8-98012-516-2 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> EXC. ISRAEL EQUIPMENT(2G1),CHEVROLET EQUIPMENT(8JF) (H) 		8-98012-516-2 01 1 1008- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED 		8-97367-361-2 01 1 0509-0609 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0610-0910 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 0911-0912 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1001-1003 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (F) PLATED 		8-98012-482-1 01 1 1004-1007 ● ● ● ●
1 01.266 GRILLE; RAD
GRADE DX(RBA) COLOR KEYED BUMPER(VT4) BRIGHT RAD GRILLE<V22> ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (F) PLATED 		8-98012-482-1 01 1 1008- ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> EXC. CHEVROLET EQUIPMENT(8JF) (G) 		8-98012-517-2 01 1 0610-0610 ● ● ● ●
1 01.266 GRILLE; RAD
GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0506-0609 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97405-678-0 01 1 0610-0709 ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (I) PLATED 		8-98040-601-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) WHITE 		8-97400-132-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) WHITE 		8-97400-132-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) DARK GRAY 		8-97400-128-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97400-128-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA(658) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) RED 		8-97400-130-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GOLD 		8-97401-236-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET(688) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) GOLD 		8-97401-236-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET(684) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) GRAY 		8-97400-129-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.(505) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) DARK GRAY 		8-97403-632-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) SILVER 		8-97401-238-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET(936) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) SILVER 		8-97401-238-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA(504) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) RED 		8-97403-630-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> CHEVROLET EQUIPMENT(8JF) (I) 		8-98040-602-2 01 1 0710-1003 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (E) BLUE 		8-97403-634-0 01 1 0509-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ZENITH BLUE MICA(646) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (E) BLUE 		8-97403-634-0 01 1 0610-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0306-0508 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 08 1 0509-0709 ● ● ●
3 01.269 CLIP; GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-97350-903-0 04 1 0509-0609 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 0701-1003 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> (C) 		8-97182-223-0 02 1 1004-1007 ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-97182-223-0 02 1 1008- ● ● ● ● ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97317-633-0 01 1 0509-0609 ● ●
3 01.269 CLIP; GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97317-633-0 01 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 1008- ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0911-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (D) 		8-98070-852-0 17 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0306-0609 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 03 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 03 1 0704-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 17 1 0701-0910 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 0911-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) 		8-98070-852-0 13 1 1004-1007 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98070-852-0 13 1 1008- ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97370-062-0 09 1 0509-0609 ● ●
9 01.269 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97370-062-0 09 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0610-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0710-1003 ● ● ●
9 01.269 SCREW; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (B) 		8-97370-062-0 14 1 0509-0609 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98018-511-0 02 1 0610-0610 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98049-358-0 02 1 0611-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0710- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) 08.900 (A) M5X16 		8-94380-268-0 01 1 0610-0703 ● ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET EQUIPMENT(8JF) (A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (A) 		8-98090-942-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (B) 		8-98090-943-0 02 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (A) 		8-98090-942-0 01 1 0710-1003 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-020-0 01 1 1004-1007 ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98139-020-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-020-0 01 1 1008- ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) 17.505 (B) 		8-98090-943-0 02 1 0710-1003 ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-116-0 01 1 1004-1007 ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98139-116-0 01 1 1008- ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
GRADE LT(RBD) ISRAEL EQUIPMENT(2G1) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) 		8-98139-116-0 01 1 1008- ●
140 01.266 SEAL; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 0911-1003 ● ● ●
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-98130-916-0 04 1 1004-1007 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 1008- ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (B) 		8-98130-916-0 04 1 1008- ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98070-854-0 01 1 0701-1003 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> (A) 		8-98070-854-0 01 1 1004-1007 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (A) 		8-98070-854-0 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 1008- ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 0911-1003 ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) 		8-98109-370-1 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
GRADE LT(RBD) PHILIPPINE ISLANDS EQUIPMENT(B15) BODY COLOR KEYED RAD GRILLE<TL1> KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98109-370-1 01 1 1008- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (A) 		8-97331-458-0 01 1 0306-0508 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) 		8-97331-458-0 01 1 0509-0609 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-97367-363-3 01 1 0509-0609 ● ●
178 01.269 GRILLE; INNER,RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) 		8-97367-363-3 01 1 0509-0609 ● ● ●
178 01.269 GRILLE; INNER,RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BASEVEHICLE GRILLE<VWX>,BRIGHT RAD GRILL E<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ● ● ●
178 01.269 GRILLE; INNER,RAD
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0610-0709 ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 0710-1003 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> (C) 		8-98012-483-2 01 1 1004-1007 ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> EXC. CHEVROLET EQUIPMENT(8JF) (C) 		8-98012-483-2 01 1 1008- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> CHEVROLET EQUIPMENT(8JF) (D) 		8-98040-603-2 01 1 0710-1003 ● ● ●
çizim 126665
12 13 12 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 0610-1007 ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 0610-1007 ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 1008- ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 1008- ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 1008- ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-353-0 01 1 0306-0402 ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-97943-353-0 01 1 0306-0402 ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 0403-0508 ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-97943-919-0 01 1 0403-0508 ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 0509-0609 ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-97943-919-0 01 1 0509-0609 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 0610-0709 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) SKID PLATE<7WE> (B) 		8-97943-919-0 01 1 0610-0709 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 0710-1003 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) SKID PLATE<7WE> (B) 		8-97943-919-0 01 1 0710-1003 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 1004-1007 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (B) 		8-97943-919-0 01 1 1004-1007 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 1008- ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) (B) 		8-97943-919-0 01 1 1008- ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97942-919-0 01 1 0306-0609 ● ● ●
12 01.274 PLATE; SKID,RAD
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97942-919-0 01 1 0610- ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97945-193-0 01 1 0610-1007 ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) (B) 		8-97945-193-0 01 1 0610-1007 ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97945-193-0 01 1 1008- ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97945-193-0 01 1 1008- ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97943-077-0 04 1 0306-0609 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97943-077-0 04 1 0306-0609 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0610-1007 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0610-1007 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0610-1007 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 1008- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 1008- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 1008- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97943-077-0 02 1 0306-0609 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0610- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
