1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>
(B)
|
8-98007-151-4 |
01 |
1 |
0610-1003 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4)
(B)
|
8-98007-151-4 |
01 |
1 |
0610-1003 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>,CHEVROLET
EQUIPMENT(8JF)
(B)
|
8-98007-151-4 |
01 |
1 |
0610-1003 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4),CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-151-4 |
01 |
1 |
0610-1003 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4)
(B)
|
8-98007-151-4 |
01 |
1 |
1004-1007 |
● |
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>
(B)
|
8-98007-151-4 |
01 |
1 |
1008-1009 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4)
(B)
|
8-98007-151-4 |
01 |
1 |
1008-1009 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>,CHEVROLET
EQUIPMENT(8JF)
(B)
|
8-98007-151-4 |
01 |
1 |
1008-1009 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4),CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-151-4 |
01 |
1 |
1008-1009 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>
(B)
|
8-98158-611-0 |
01 |
1 |
1010- |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4)
(B)
|
8-98158-611-0 |
01 |
1 |
1010- |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>,CHEVROLET
EQUIPMENT(8JF)
(B)
|
8-98158-611-0 |
01 |
1 |
1010- |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4),CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98158-611-0 |
01 |
1 |
1010- |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0306-0508 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
KD-PREPARATORY PACK VAR4<7TV>
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0306-0508 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
KD-PREPARATORY PACK VAR4<7TV>
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0306-0508 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0509-0609 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. FACE LIFT MODEL<TX7>,COLOR
KEYEDBUMPER(VT4),KD-PREPARATORY PACK VAR4
<7TV>,CHEVROLET EQUIPMENT(8JF)
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
KD-PREPARATORY PACK VAR4<7TV>
EXC. FACE LIFT MODEL<TX7>,CHEVROLET
EQUIPMENT(8JF)
(A) W/HOLE
GRAY
|
8-97235-966-2 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0306-0508 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0306-0508 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4),KD-PREPARATORY PACK
VAR4<7TV>
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0306-0508 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0509-0609 |
● |
|
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>,FACE LIFT
MODEL<TX7>,CHEVROLET EQUIPMENT(8JF)
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. OVER FENDER<B74>,FACE LIFT
MODEL<TX7>,COLOR KEYED BUMPER(VT4),
KD-PREPARATORY PACK VAR4<7TV>,CHEVROLET EQUI
PMENT(8JF)
(A) WO/HOLE
GRAY
|
8-97235-962-2 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
(B)
|
8-98007-153-2 |
01 |
1 |
0610-1003 |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-153-2 |
01 |
1 |
0610-1003 |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-153-2 |
01 |
1 |
1004-1007 |
● |
|
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-153-2 |
01 |
1 |
1004-1007 |
|
|
|
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-153-2 |
01 |
1 |
1008-1009 |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-153-2 |
01 |
1 |
1008-1009 |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98158-615-0 |
01 |
1 |
1010- |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98158-615-0 |
01 |
1 |
1010- |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-155-2 |
01 |
1 |
0610-1003 |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-155-2 |
01 |
1 |
0610-1003 |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
(B)
|
8-98007-155-2 |
01 |
1 |
0610-1003 |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-155-2 |
01 |
1 |
0610-1003 |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-155-2 |
01 |
1 |
1004-1007 |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-155-2 |
01 |
1 |
1004-1007 |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-155-2 |
01 |
1 |
1008-1009 |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98007-155-2 |
01 |
1 |
1008-1009 |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
(B)
|
8-98007-155-2 |
01 |
1 |
1008-1009 |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98007-155-2 |
01 |
1 |
1008-1009 |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98158-618-0 |
01 |
1 |
1010- |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98158-618-0 |
01 |
1 |
1010- |
|
● |
|
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
KD-PREPARATORY PACK VAR4<7TV>
(B)
|
8-98158-618-0 |
01 |
1 |
1010- |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4)
(B)
|
8-98158-618-0 |
01 |
1 |
1010- |
|
|
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
FACE LIFT MODEL<TX7>
EXC. OVER FENDER<B74>,COLOR KEYED
BUMPER(VT4),KD-PREPARATORY PACK
VAR4<7TV>,CHEVROLET EQUIPMENT(8JF)
(A)
GRAY
|
8-97367-038-4 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
FACE LIFT MODEL<TX7>
KD-PREPARATORY PACK VAR4<7TV>
EXC. OVER FENDER<B74>,CHEVROLET
EQUIPMENT(8JF)
(A)
GRAY
|
8-97367-038-4 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
FACE LIFT MODEL<TX7>
EXC. COLOR KEYED BUMPER(VT4),
KD-PREPARATORY PACK VAR4<7TV>,CHEVROLET EQUIP
MENT(8JF)
(A)
GRAY
|
8-97367-040-4 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
FACE LIFT MODEL<TX7>
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
(A)
GRAY
|
8-97367-040-4 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
LOW COST VARIANT PARTS PACKAGE<WNF>
CHEVROLET EQUIPMENT(8JF)
EXC. HIGH RIDE SUSPENSION(7YC)
(C)
|
8-98040-587-2 |
01 |
1 |
0710-0711 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
LOW COST VARIANT PARTS PACKAGE<WNF>
CHEVROLET EQUIPMENT(8JF)
EXC. HIGH RIDE SUSPENSION(7YC)
(C)
|
8-98040-587-2 |
01 |
1 |
0712-0809 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
CHEVROLET EQUIPMENT(8JF)
EXC. COLOR KEYED BUMPER(VT4),HIGH
RIDE SUSPENSION(7YC)
(C)
|
8-98040-587-2 |
01 |
1 |
0712-0809 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
CHEVROLET EQUIPMENT(8JF)
EXC. COLOR KEYED BUMPER(VT4),HIGH
RIDE SUSPENSION(7YC)
(C)
|
8-98040-587-2 |
01 |
1 |
0810-1003 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
EXC. OVER FENDER<B74>,KD-PREPARATORY
PACK VAR4<7TV>,CHEVROLET
EQUIPMENT(8JF)
(B)
PRIMER
|
8-98049-885-0 |
01 |
1 |
0610-1009 |
● |
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
(B)
PRIMER
|
8-98049-886-0 |
01 |
1 |
0610-1009 |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
(B)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98049-887-0 |
01 |
1 |
0610-1009 |
|
● |
|
|
● |
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. LOW COST VARIANT PARTS
PACKAGE<WNF>,HIGH RIDE SUSPENSION(7YC)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-754-0 |
01 |
1 |
0710-0910 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. HIGH RIDE SUSPENSION(7YC)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-754-0 |
01 |
1 |
0911- |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. OVER FENDER<B74>,KD-PREPARATORY
PACK VAR4<7TV>
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97378-682-0 |
01 |
1 |
0509-0709 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-234-0 |
01 |
1 |
0710-0710 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-234-0 |
01 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-234-1 |
01 |
1 |
0711- |
|
● |
● |
|
|
|
| |
1 |

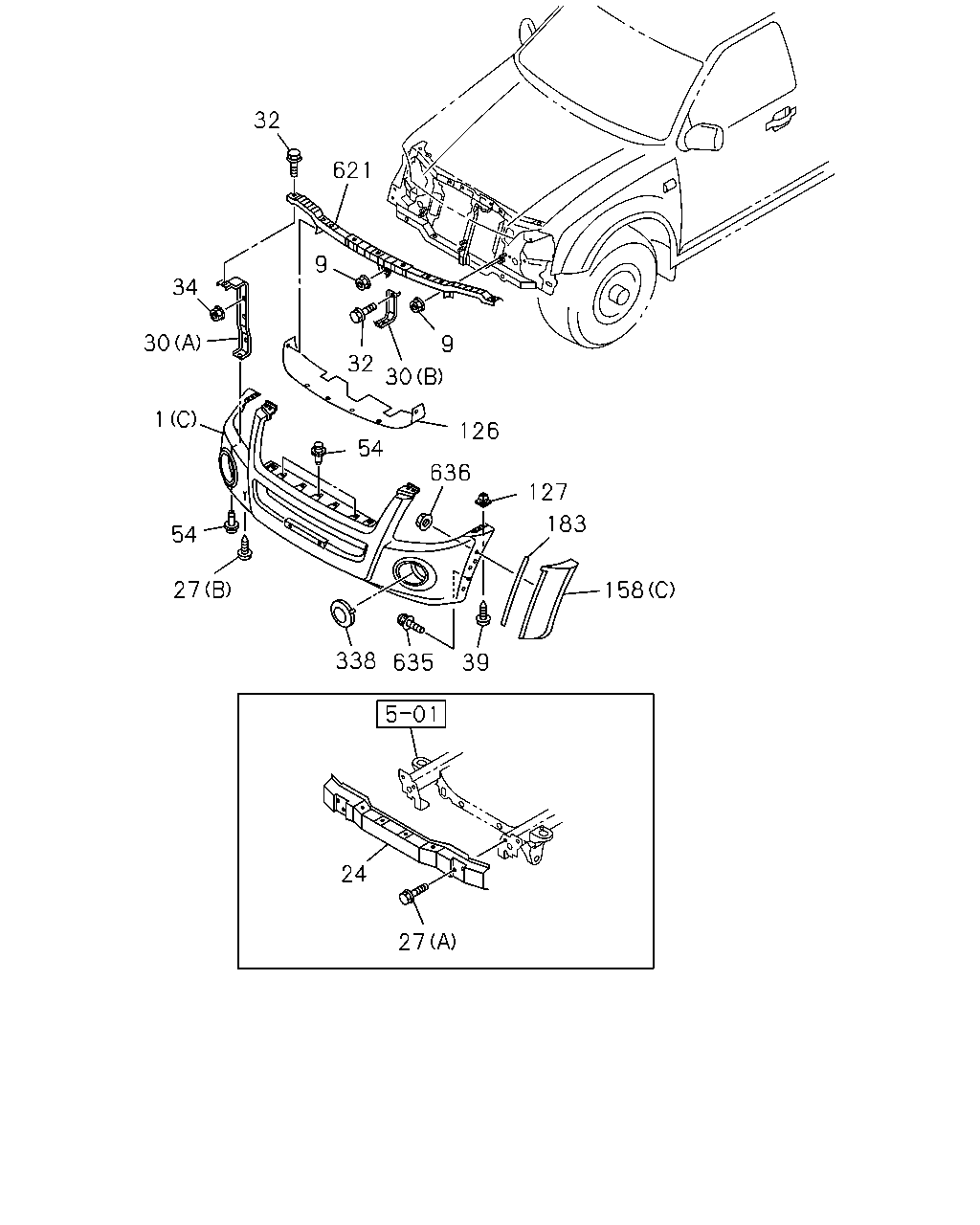

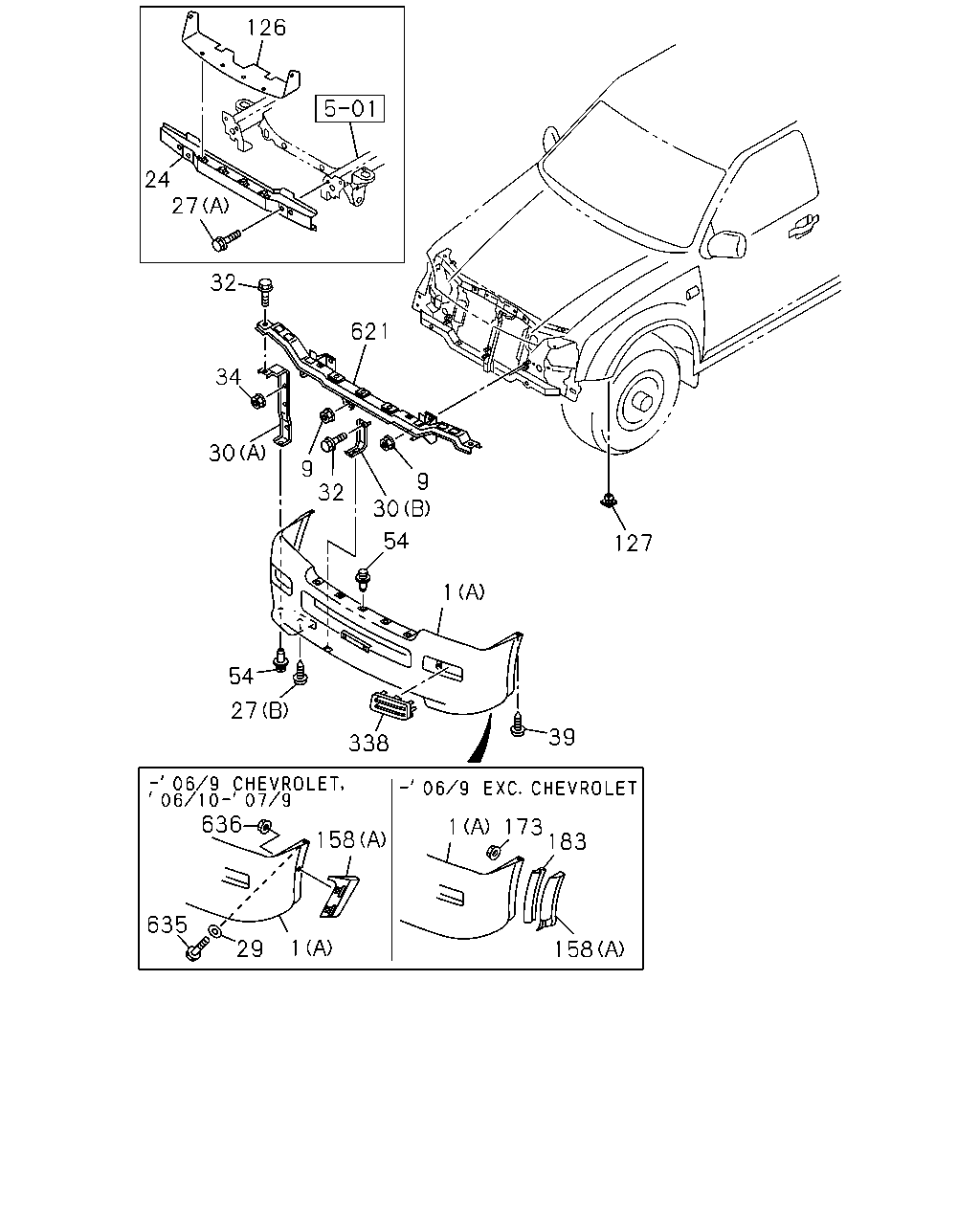

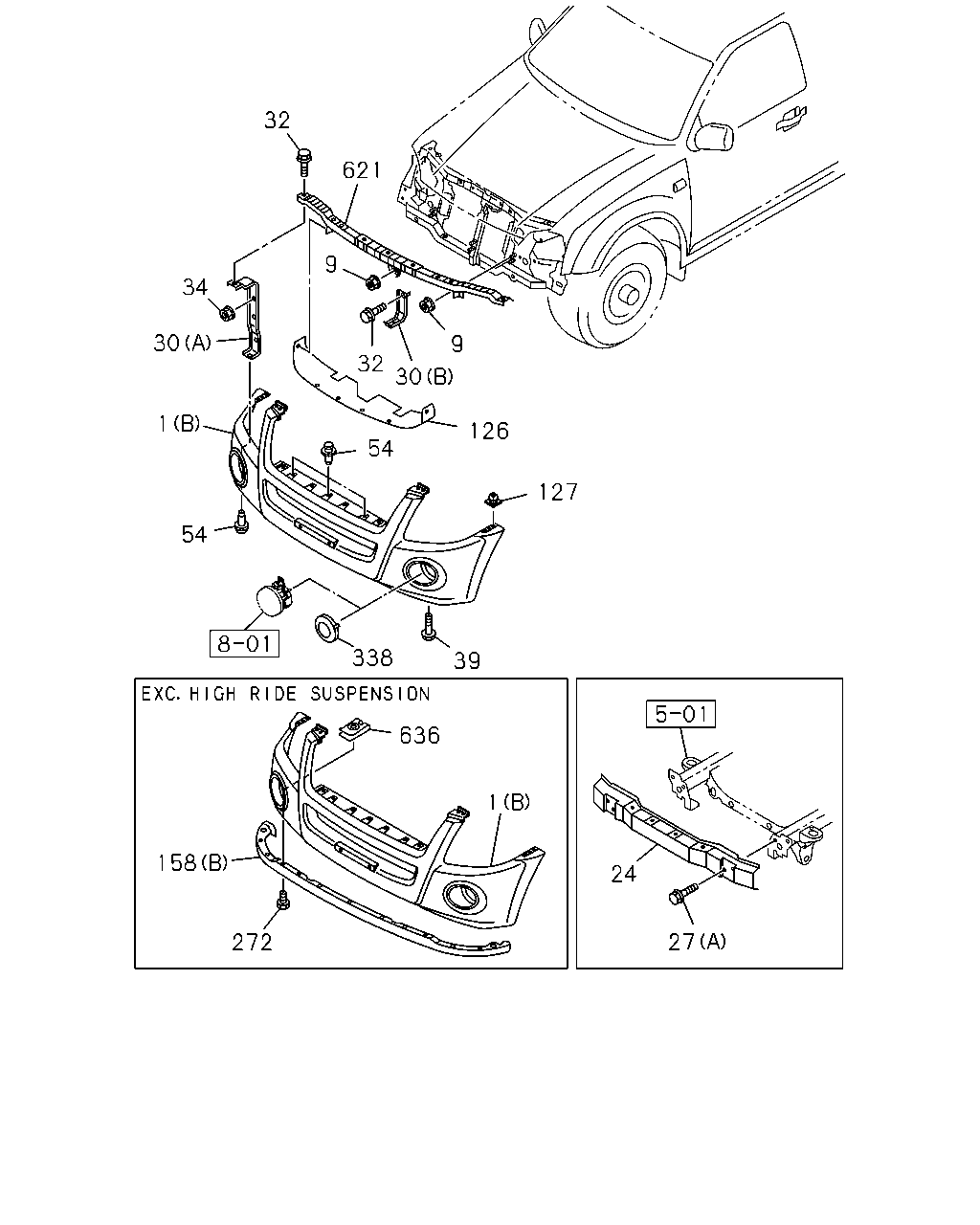

07.831 BUMPER ASM; FRT
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-234-1 |
01 |
1 |
0711- |
|
|
|
|
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
EXC. OVER FENDER<B74>
(A) WO/HOLE
PLEASE PAINT TO MATCH BODY COLOR
|
8-97330-921-0 |
01 |
1 |
0306-0508 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
EXC. OVER FENDER<B74>,FACE LIFT
MODEL<TX7>,KD-PREPARATORY PACK VAR4<7TV>,C
HEVROLET EQUIPMENT(8JF)
(A) WO/HOLE
PLEASE PAINT TO MATCH BODY COLOR
|
8-97330-921-0 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
(A) W/HOLE
PLEASE PAINT TO MATCH BODY COLOR
|
8-97330-923-0 |
01 |
1 |
0306-0405 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>
(A) W/HOLE
PLEASE PAINT TO MATCH BODY COLOR
|
8-97330-923-0 |
01 |
1 |
0406-0508 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. FACE LIFT MODEL<TX7>,
KD-PREPARATORY PACK VAR4<7TV>,CHEVROLET
EQUIPMENT(8JF)
(A) W/HOLE
PLEASE PAINT TO MATCH BODY COLOR
|
8-97330-923-0 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
FACE LIFT MODEL<TX7>
COLOR KEYED BUMPER(VT4)
EXC. OVER FENDER<B74>,KD-PREPARATORY
PACK VAR4<7TV>,CHEVROLET
EQUIPMENT(8JF)
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97370-063-0 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
FACE LIFT MODEL<TX7>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97370-064-0 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97378-683-0 |
01 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4)
EXC. OVER FENDER<B74>,KD-PREPARATORY
PACK VAR4<7TV>,CHEVROLET
EQUIPMENT(8JF)
(B)
PRIMER
|
8-98158-613-0 |
01 |
1 |
1010- |
● |
● |
● |
|
|
|
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
(B)
PRIMER
|
8-98158-617-0 |
01 |
1 |
1010- |
● |
|
● |
● |
|
● |
| |
1 |
07.831 BUMPER ASM; FRT
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
(B)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98158-620-0 |
01 |
1 |
1010- |
|
● |
|
|
● |
|
| |
9 |
07.840 NUT; REINF,FRT BUMPER
01.062
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
0306- |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-97351-934-0 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-97351-934-0 |
01 |
1 |
0509-0609 |
● |
|
|
|
|
|
| |
24 |
07.869 BAR; FRT BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
EXC. FACE LIFT MODEL<TX7>
|
8-97351-934-0 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97351-934-0 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97351-934-0 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
|
8-97235-867-2 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42)
|
8-97235-867-2 |
01 |
1 |
0509-0609 |
● |
|
|
|
|
|
| |
24 |
07.869 BAR; FRT BUMPER
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
EXC. FACE LIFT MODEL<TX7>
|
8-97235-867-2 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42)
EXC. FACE LIFT MODEL<TX7>
|
8-97235-867-2 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
FACE LIFT MODEL<TX7>
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-97367-044-0 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
FACE LIFT MODEL<TX7>
|
8-97367-044-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97367-044-0 |
01 |
1 |
0610-0709 |
● |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-97367-044-0 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97367-044-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
● |
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
CHEVROLET EQUIPMENT(8JF)
07.874
(B)
M6X20 TAPPING W/PL WASHER
|
8-98167-444-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
(A)
M10X25 FLANGE
|
0-28661-025-0 |
04 |
1 |
0306- |
● |
● |
● |
● |
● |
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
08.155
(B)
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
02 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
CHEVROLET EQUIPMENT(8JF)
08.155
(B)
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
02 |
1 |
0610-0612 |
|
● |
● |
|
|
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
CHEVROLET EQUIPMENT(8JF)
(B)
M6X20 TAPPING
|
8-98052-950-0 |
02 |
1 |
0701-1003 |
|
● |
● |
|
|
● |
| |
29 |
07.833 WASHER; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
|
8-97378-688-0 |
02 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
(A)
|
8-98040-598-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98040-600-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(A)
|
8-97236-049-0 |
02 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(A)
|
8-98007-158-0 |
02 |
1 |
0610-1003 |
● |
|
|
● |
● |
|
| |
30 |
07.869 BRACKET; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
(A)
|
8-98007-158-0 |
02 |
1 |
0610-1003 |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(A)
|
8-98007-158-0 |
02 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(A)
|
8-98007-158-0 |
02 |
1 |
1008- |
● |
|
|
● |
● |
|
| |
30 |
07.869 BRACKET; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
(A)
|
8-98007-158-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(B)
|
8-97236-050-1 |
02 |
1 |
0306-0709 |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(B)
|
8-97236-050-1 |
02 |
1 |
0710-1003 |
● |
|
|
● |
● |
|
| |
30 |
07.869 BRACKET; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-97236-050-1 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(B)
|
8-97236-050-1 |
02 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(B)
|
8-97236-050-1 |
02 |
1 |
1008- |
● |
|
|
● |
● |
|
| |
30 |
07.869 BRACKET; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
(B)
|
8-97236-050-1 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
(A)
|
8-97363-450-0 |
02 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
(A)
|
8-98040-598-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98040-600-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
32 |
07.874 BOLT; BRKT,BUMPER
02.343
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0306- |
● |
● |
● |
● |
● |
● |
| |
34 |
07.874 NUT; BRKT,BUMPER
01.062
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
0306- |
● |
● |
● |
● |
● |
● |
| |
39 |
07.874 BOLT; BUMPER TO BODY
08.155
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
02 |
1 |
0306-0612 |
● |
● |
● |
● |
● |
● |
| |
39 |
07.874 BOLT; BUMPER TO BODY
07.833
M6X20 TAPPING
|
8-98052-950-0 |
02 |
1 |
0701-1003 |
● |
● |
● |
● |
● |
● |
| |
39 |
07.874 BOLT; BUMPER TO BODY
M6X20 TAPPING W/PL WASHER
|
8-98167-444-0 |
02 |
1 |
1004- |
● |
● |
● |
● |
● |
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97301-188-0 |
08 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
|
8-97301-188-0 |
09 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
|
8-97301-188-0 |
07 |
1 |
0610-1003 |
● |
|
|
● |
● |
|
| |
54 |
07.832 RETAINER; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-97301-188-0 |
07 |
1 |
0610-1003 |
|
● |
● |
|
|
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
|
8-97301-188-0 |
07 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
|
8-97301-188-0 |
07 |
1 |
1008- |
● |
|
|
● |
● |
|
| |
54 |
07.832 RETAINER; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-97301-188-0 |
07 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97301-188-0 |
09 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
54 |
07.832 RETAINER; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97301-188-0 |
08 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-97334-385-0 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-97334-385-0 |
01 |
1 |
0509-0510 |
● |
|
|
|
|
|
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
EXC. FACE LIFT MODEL<TX7>
|
8-97334-385-0 |
01 |
1 |
0509-0510 |
|
● |
● |
● |
● |
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-98030-948-0 |
01 |
1 |
0511-0609 |
● |
|
|
|
|
|
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
EXC. FACE LIFT MODEL<TX7>
|
8-98030-948-0 |
01 |
1 |
0511-0609 |
|
● |
● |
● |
● |
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
CHEVROLET EQUIPMENT(8JF)
|
8-98030-948-0 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
FACE LIFT MODEL<TX7>
|
8-97367-045-0 |
01 |
1 |
0509-0510 |
|
● |
● |
● |
● |
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
FACE LIFT MODEL<TX7>
|
8-98030-942-0 |
01 |
1 |
0511-0609 |
|
● |
● |
● |
● |
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-98007-149-1 |
01 |
1 |
0610-0709 |
● |
|
|
● |
● |
|
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-98007-149-1 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
126 |
07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60),
COOLER WO/HEATER(C65)
|
8-98007-149-1 |
01 |
1 |
0710- |
● |
● |
● |
● |
● |
● |
| |
127 |
07.829 NUT; FRT BUMPER
09.190
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
0306- |
● |
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4)
(A)
GRAY
|
8-97331-863-1 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(A)
GRAY
|
8-97331-863-1 |
01 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97378-684-0 |
01 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4)
(A)
GRAY
|
8-97331-862-1 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
CHEVROLET EQUIPMENT(8JF)
(A)
GRAY
|
8-97331-862-1 |
01 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98025-265-2 |
01 |
1 |
0610-0709 |
● |
|
|
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC),
CHEVROLET EQUIPMENT(8JF)
(B)
|
8-98025-265-2 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98025-265-2 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-242-0 |
01 |
1 |
0710-0710 |
|
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-242-0 |
01 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-242-1 |
01 |
1 |
0711- |
|
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-242-1 |
01 |
1 |
0711- |
|
|
|
|
|
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-241-0 |
01 |
1 |
0710-0710 |
|
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-241-0 |
01 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
HIGH RIDE SUSPENSION(7YC)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-241-1 |
01 |
1 |
0711- |
|
● |
● |
|
|
|
| |
158 |
07.833 EXTENSION; FRT BUMPER
CHEVROLET BRAND<RWE>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
(C)
PLEASE PAINT TO MATCH BODY COLOR
|
8-98088-241-1 |
01 |
1 |
0711- |
|
|
|
|
|
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
(A)
PRIMER
|
8-97331-852-1 |
01 |
1 |
0306-0508 |
|
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. CHEVROLET EQUIPMENT(8JF)
(A)
PRIMER
|
8-97331-852-1 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
(A)
PRIMER
|
8-97331-851-1 |
01 |
1 |
0306-0508 |
|
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. CHEVROLET EQUIPMENT(8JF)
(A)
PRIMER
|
8-97331-851-1 |
01 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
158 |
07.833 EXTENSION; FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
(A)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97378-685-0 |
01 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
173 |
07.874 NUT; EXT
OVER FENDER<B74>
01.062
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
0306-0508 |
● |
● |
● |
|
|
|
| |
173 |
07.874 NUT; EXT
01.062
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
0306-0508 |
|
|
|
● |
● |
● |
| |
173 |
07.874 NUT; EXT
OVER FENDER<B74>
EXC. CHEVROLET EQUIPMENT(8JF)
01.062
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR TORNADE RED MICA(504)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
RED
|
8-97413-203-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR ROYAL GRAY MET.(505)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
DARK GRAY
|
8-97413-204-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR IMPUL BLUE MET.(509)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
BLUE
|
8-97413-205-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR MISTY ONYX MICA(518)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
SILVER
|
8-97419-983-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR BLACK SAPPHIRE MICA(685)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
BLACK
|
8-97413-206-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR ALPINE WHITE(877)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
WHITE
|
8-97413-208-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR STERLING SILVER MET(936)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
SILVER
|
8-97413-209-0 |
02 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR MISTY ONYX MICA(518)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
SILVER
|
8-97419-983-0 |
02 |
1 |
1002-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0410-0410 |
● |
|
|
|
|
|
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
KD-PREPARATORY PACK VAR4<7TV>
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0410-0410 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
KD-PREPARATORY PACK VAR4<7TV>
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0410-0410 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
EXC. CHEVROLET EQUIPMENT(8JF)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0410-0508 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4),
KD-PREPARATORY PACK VAR4<7TV>,CHEVROLET EQUIP
MENT(8JF)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
KD-PREPARATORY PACK VAR4<7TV>
EXC. CHEVROLET EQUIPMENT(8JF)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR CHAMONIX GREEN MET(644),
BODY COLOR GLACIER BLUE MET(645),BODY
COLOR ZENITH BLUE MICA(646),BODY COLOR
FOXFIRE RED MICA(658),BODY COLOR BLA
CK SAPPHIRE MICA(685)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0509-0609 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
OVER FENDER<B74>
EXC. COLOR KEYED BUMPER(VT4)
GRAY
|
8-97331-850-0 |
02 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR CAPE BLUE MET(612),BODY
COLOR CHAMONIX GREEN MET(644),BODY
COLOR GLACIER BLUE MET(645),BODY COLOR FO
XFIRE RED MICA(658),BODY COLOR MAGMA
RED(675),BODY COLOR ASTRAL
SILVER(718)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0306-0405 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR CAPE BLUE MET(612),BODY
COLOR CHAMONIX GREEN MET(644),BODY
COLOR GLACIER BLUE MET(645),BODY COLOR ZE
NITH BLUE MICA(646),BODY COLOR
FOXFIRE RED MICA(658),BODY COLOR MAGMA
RED(675),BODY COLOR BLACK SAPPHIRE
MICA(685)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
DARK GRAY
|
8-97393-892-0 |
02 |
1 |
0406-0410 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR QUARTS GRAY MET(642),BODY
COLOR ALPINE WHITE(877)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
LIGHT GRAY
|
8-97396-033-0 |
02 |
1 |
0306-0410 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR QUARTS GRAY MET(642),BODY
COLOR MAGMA RED(675),BODY COLOR
ASTRAL SILVER(718),BODY COLOR ALPINE WHITE
(877)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>
LIGHT GRAY
|
8-97396-033-0 |
02 |
1 |
0410-0508 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR QUARTS GRAY MET(642),BODY
COLOR ALPINE WHITE(877),BODY COLOR
STERLING SILVER MET(936)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
LIGHT GRAY
|
8-97396-033-0 |
02 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR SANDAL WOOD MET(643)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
BEIGE
|
8-97393-894-0 |
02 |
1 |
0306-0410 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR SANDAL WOOD MET(643)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>
BEIGE
|
8-97393-894-0 |
02 |
1 |
0410-0508 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR IMPERIAL BLOND MET(688)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
EXC. KD-PREPARATORY PACK VAR4<7TV>,
CHEVROLET EQUIPMENT(8JF)
BEIGE
|
8-97393-894-0 |
02 |
1 |
0509-0609 |
|
● |
● |
● |
● |
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR ALPINE WHITE(877)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
WHITE
|
8-97413-208-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR BLACK SAPPHIRE MICA(685)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
BLACK
|
8-97413-206-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR IMPERIAL BLOND MET(688)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
GOLD
|
8-97413-207-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR IMPUL BLUE MET.(509)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
BLUE
|
8-97413-205-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR ROYAL GRAY MET.(505)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
DARK GRAY
|
8-97413-204-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR STERLING SILVER MET(936)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
SILVER
|
8-97413-209-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
183 |
07.832 FINISHER; FRT BUMPER
BODY COLOR TORNADE RED MICA(504)
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
RED
|
8-97413-203-0 |
02 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96>
|
8-97363-449-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
CHEVROLET EQUIPMENT(8JF)
EXC. FOG LAMP<T96>
|
8-97363-449-0 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96>
|
8-97363-448-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
CHEVROLET EQUIPMENT(8JF)
EXC. FOG LAMP<T96>
|
8-97363-448-0 |
01 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96>
|
8-98007-157-1 |
02 |
1 |
0610-0709 |
● |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96>,CHEVROLET
EQUIPMENT(8JF)
|
8-98007-157-1 |
02 |
1 |
0610-0709 |
|
● |
● |
|
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96>
|
8-98007-157-1 |
02 |
1 |
0710- |
● |
● |
● |
● |
● |
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-98040-596-0 |
01 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-97235-872-3 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
● |
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-97235-872-3 |
01 |
1 |
0509-0609 |
● |
|
|
|
|
|
| |
621 |
07.831 SUPPORT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7>,CHEVROLET
EQUIPMENT(8JF)
|
8-97235-872-3 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7>
|
8-97235-872-3 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
|
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-98007-150-3 |
01 |
1 |
0610-0702 |
● |
|
|
● |
● |
|
| |
621 |
07.831 SUPPORT; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-98007-150-3 |
01 |
1 |
0610-0702 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-98060-773-0 |
01 |
1 |
0703-1003 |
● |
|
|
● |
● |
|
| |
621 |
07.831 SUPPORT; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-98060-773-0 |
01 |
1 |
0703-1003 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-98060-773-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
|
8-98060-773-0 |
01 |
1 |
1008- |
● |
|
|
● |
● |
|
| |
621 |
07.831 SUPPORT; FRT BUMPER
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-98060-773-0 |
01 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-97363-447-3 |
01 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
CHEVROLET EQUIPMENT(8JF)
|
8-98040-596-0 |
01 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
FACE LIFT MODEL<TX7>
EXC. CHEVROLET EQUIPMENT(8JF)
|
8-97367-043-1 |
01 |
1 |
0509-0609 |
|
● |
● |
|
|
● |
| |
621 |
07.831 SUPPORT; FRT BUMPER
FACE LIFT MODEL<TX7>
|
8-97367-043-1 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
|
| |
635 |
07.833 BOLT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
|
8-98088-474-0 |
06 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
635 |
07.833 BOLT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
|
8-97378-686-0 |
02 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
635 |
07.833 BOLT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
|
8-98088-474-0 |
06 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
| |
636 |
07.833 NUT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
|
8-97378-687-0 |
04 |
1 |
1008- |
|
● |
● |
|
|
● |
| |
636 |
07.833 NUT; EXT,FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-841-0 |
12 |
1 |
0610-0612 |
● |
|
|
|
|
|
| |
636 |
07.833 NUT; EXT,FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC),
CHEVROLET EQUIPMENT(8JF)
|
8-98007-841-0 |
12 |
1 |
0610-0612 |
|
● |
● |
|
|
|
| |
636 |
07.833 NUT; EXT,FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98072-786-0 |
12 |
1 |
0701-0709 |
● |
|
|
|
|
|
| |
636 |
07.833 NUT; EXT,FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC),
CHEVROLET EQUIPMENT(8JF)
|
8-98072-786-0 |
12 |
1 |
0701-0709 |
|
● |
● |
|
|
|
| |
636 |
07.833 NUT; EXT,FRT BUMPER
FRONT SPOILER<VP1>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98072-786-0 |
12 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
636 |
07.833 NUT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
EXC. KD-PREPARATORY PACK VAR4<7TV>
|
8-97378-687-0 |
06 |
1 |
0509-0709 |
|
● |
● |
|
|
● |
| |
636 |
07.833 NUT; EXT,FRT BUMPER
OVER FENDER<B74>
COLOR KEYED BUMPER(VT4)
CHEVROLET EQUIPMENT(8JF)
|
8-97378-687-0 |
04 |
1 |
0710-1003 |
|
● |
● |
|
|
● |
