5-40 — ENGINE ROOM INSULATOR (#74010) — 59 parça

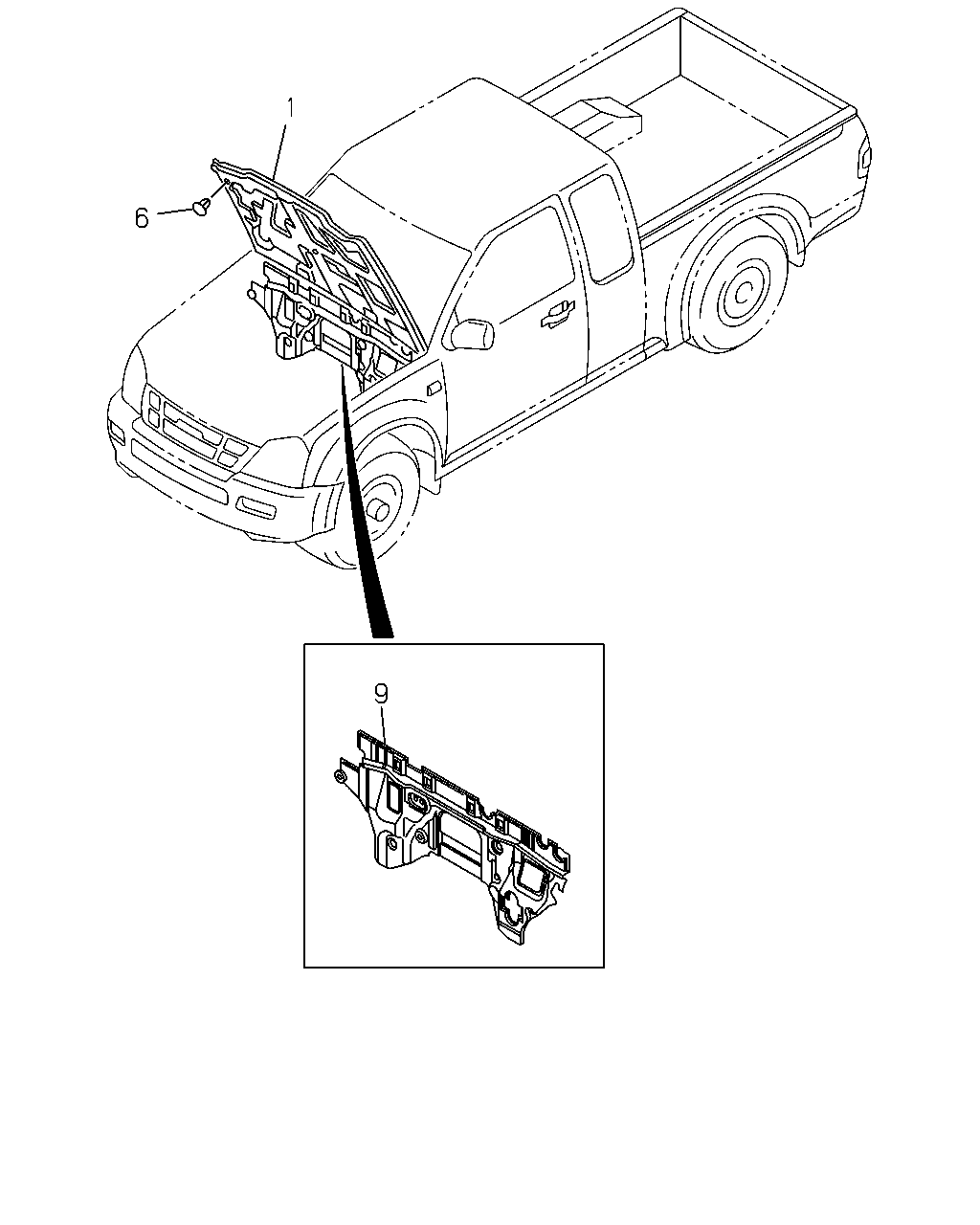

1 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) CHEVROLET EQUIPMENT(8JF)	8-97361-321-0	01	1	1008-	●	●	●
1	08.021 INSULATION; ENG HOOD 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97361-321-0	01	1	0306-0609	●	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB) CHEVROLET EQUIPMENT(8JF)	8-97361-321-0	01	1	0610-0809	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) CHEVROLET EQUIPMENT(8JF)	8-97361-321-0	01	1	0810-1003	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM)	8-98007-122-3	01	1	0610-1003				●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. CHEVROLET EQUIPMENT(8JF)	8-98007-122-3	01	1	0610-1003	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM)	8-98007-122-3	01	1	1004-1007	●	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM)	8-98007-122-3	01	1	1008-				●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. CHEVROLET EQUIPMENT(8JF)	8-98007-122-3	01	1	1008-	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCX ENG(LS0)	8-98007-123-3	01	1	0610-1007	●	●	●			●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCX ENG(LS0)	8-98007-123-3	01	1	1008-	●					●
1	08.021 INSULATION; ENG HOOD 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98007-123-3	01	1	1008-		●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) CHEVROLET EQUIPMENT(8JF) ID=6.2 L=11.4	8-97808-623-0	12	1	1008-	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) ID=6.2 L=11.4	8-97808-623-0	12	1	0306-0609	●	●	●	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) ID=6.2 L=11.4	8-97808-623-0	13	1	0610-1003				●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. CHEVROLET EQUIPMENT(8JF) ID=6.2 L=11.4	8-97808-623-0	13	1	0610-1003	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) ID=6.2 L=11.4	8-97808-623-0	13	1	1004-1007	●	●	●	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) ID=6.2 L=11.4	8-97808-623-0	13	1	1008-				●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. CHEVROLET EQUIPMENT(8JF) ID=6.2 L=11.4	8-97808-623-0	13	1	1008-	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG(LS0) ID=6.2 L=11.4	8-97808-623-0	14	1	0610-1007	●	●	●			●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG(LS0) ID=6.2 L=11.4	8-97808-623-0	14	1	1008-	●					●
6	08.021 CLIP; ENG HOOD INSULATION 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=6.2 L=11.4	8-97808-623-0	14	1	1008-		●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB) CHEVROLET EQUIPMENT(8JF) ID=6.2 L=11.4	8-97808-623-0	12	1	0610-0809	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) CHEVROLET EQUIPMENT(8JF) ID=6.2 L=11.4	8-97808-623-0	12	1	0810-1003	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97368-044-0	01	1	0306-0609	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM)	8-97368-044-0	01	1	0610-1007	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM)	8-97368-044-0	01	1	1008-	●	●	●	●	●	●

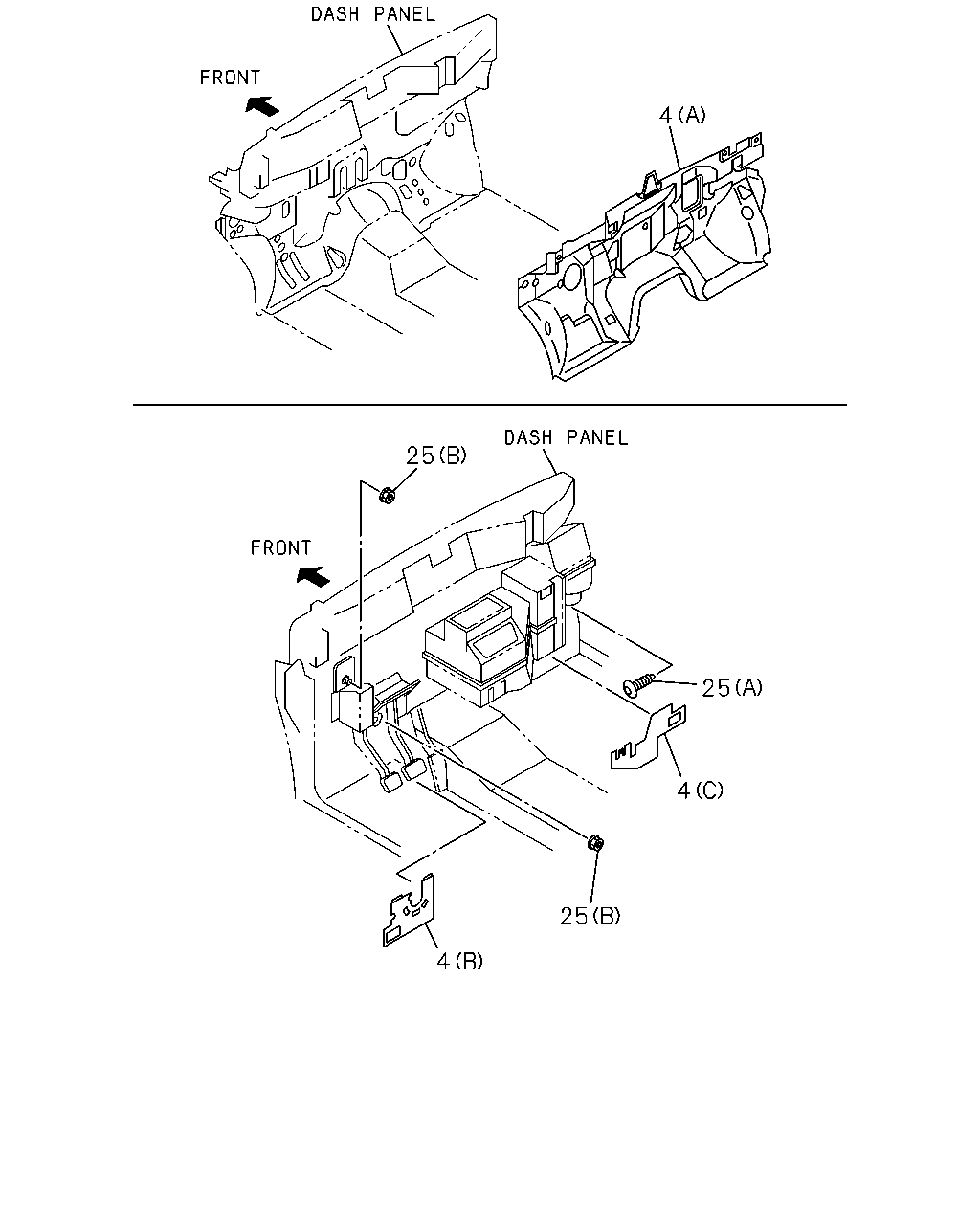

4 25 25 4 25 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) (A)	8-97369-014-0	01	1	0306-0411	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) (A)	8-98003-295-0	01	1	0412-0504	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) (A)	8-98013-153-0	01	1	0505-0609	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCS ENG(LFB) (A)	8-98008-907-0	01	1	0610-	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JH1-TC ENG(RDM) (A)	8-97367-925-0	01	1	0306-0504	●		●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97367-925-0	01	1	0306-0504		●
4	08.021 INSULATION; DASH PNL,INNER 4JH1-TC ENG(RDM) (A)	8-98013-152-0	01	1	0505-0508	●		●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-98013-152-0	01	1	0505-0508		●
4	08.021 INSULATION; DASH PNL,INNER 4JH1-TC ENG(RDM) (A)	8-98013-152-0	01	1	0509-0609	●		●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-98013-152-0	01	1	0509-0609		●
4	08.021 INSULATION; DASH PNL,INNER 4JH1-TC ENG(RDM) (A)	8-98034-297-0	01	1	0610-1007				●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (A)	8-98034-297-0	01	1	0610-1007	●					●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) EXC. ISRAEL EQUIPMENT(2G1) (A)	8-98034-297-0	01	1	0610-1007		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JH1-TC ENG(RDM) (A)	8-98034-297-0	01	1	1008-				●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (A)	8-98034-297-0	01	1	1008-	●					●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) EXC. ISRAEL EQUIPMENT(2G1) (A)	8-98034-297-0	01	1	1008-		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-T ENG(LP0) (A)	8-98035-726-0	01	1	0610-0709				●	●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0) (A)	8-98035-726-0	01	1	0610-0709	●	●	●			●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) (A)	8-98035-726-0	01	1	0710-1003	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0) (A)	8-98035-726-0	01	1	1004-1007	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) (A)	8-98035-726-0	01	1	1008-	●	●	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B)	8-98009-422-0	01	1	0610-1007		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B)	8-98009-422-0	01	1	1008-		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A)	8-98056-378-0	01	1	0610-0709		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A)	8-98097-792-0	01	1	0710-1007		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (A)	8-98097-792-0	01	1	1008-		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (C)	8-98065-223-0	01	1	0610-1007		●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (C)	8-98065-223-0	01	1	1008-		●	●
25	16.802 CLIP; DASH INSULATION 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> 08.820 (A) OD=25	8-94279-810-0	01	1	0610-1007		●	●
25	16.802 CLIP; DASH INSULATION 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> 08.820 (A) OD=25	8-94279-810-0	01	1	1008-		●	●
25	16.802 CLIP; DASH INSULATION 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B)	8-97379-175-0	03	1	0610-1007		●	●
25	16.802 CLIP; DASH INSULATION 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) ISRAEL EQUIPMENT(2G1) ISUZU BRAND<7WL> (B)	8-97379-175-0	03	1	1008-		●	●
