◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#74009) — 59 parça

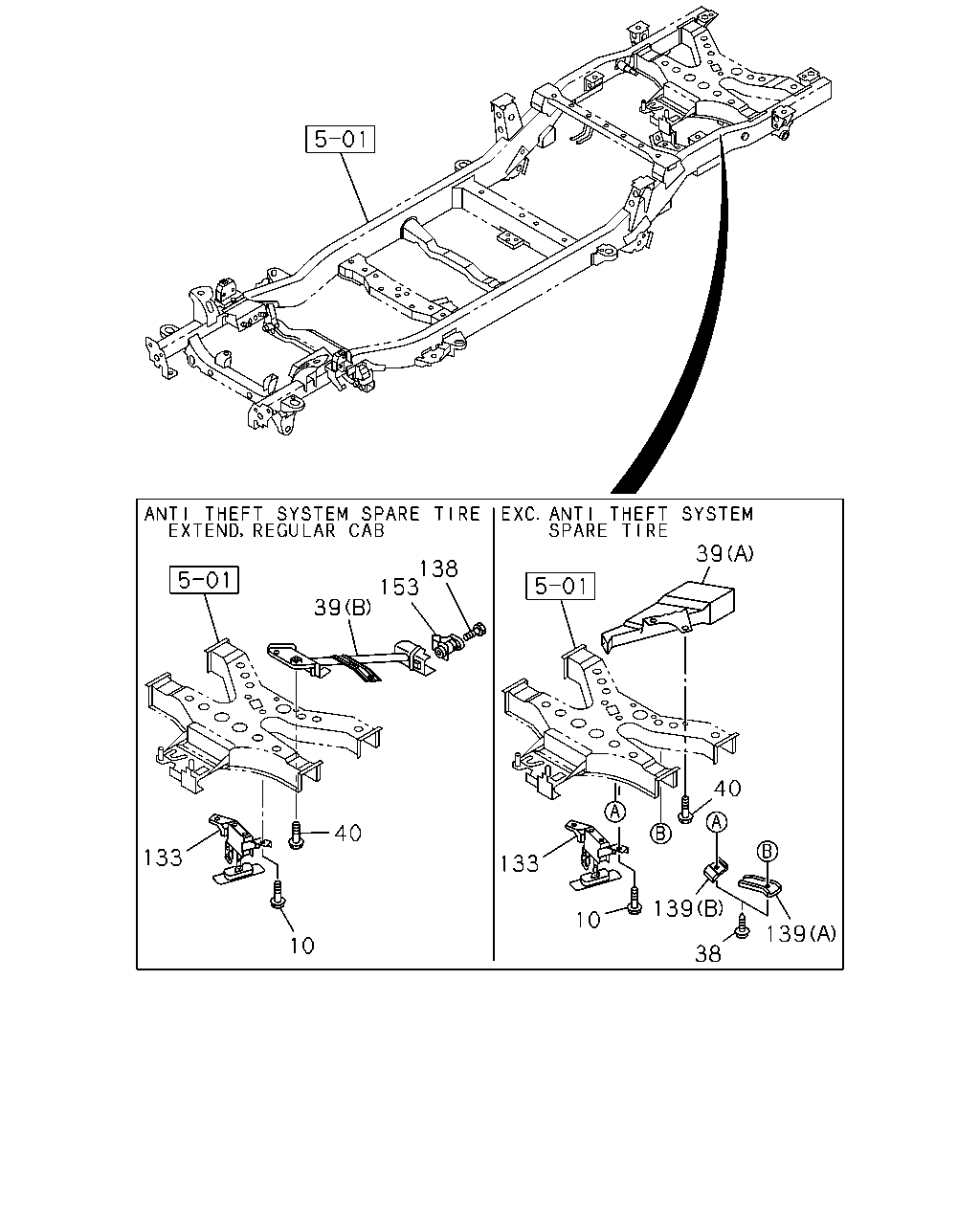

çizim 126109
39 138 153 39 40 40 133 133 139 10 139 10 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0306-0509 ● ● ● ● ● ●
10 07.632 BOLT; TIRE HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0510- ● ● ● ● ● ●
38 07.629 BOLT; STOPPER
DISC WHEEL 16X7-38 ALUMI(PX0) M6X20 TAPPING 		8-98048-999-0 02 1 1004- ● ● ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97360-831-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97945-299-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97943-469-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97943-469-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-303-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-303-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-97360-832-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-97945-300-0 01 1 0610- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97943-470-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97943-470-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-304-0 01 1 0610- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-304-0 01 1 0610- ● ●
40 07.629 BOLT; GUIDE TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0306-0509 ● ● ● ● ● ●
40 07.629 BOLT; GUIDE TO FRAME
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0510- ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97262-014-1 01 1 0306-0609 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97945-344-0 01 1 0610- ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97215-333-1 01 1 0306-0507 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97215-333-1 01 1 0306-0507 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97944-941-0 01 1 0508- ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97944-941-0 01 1 0508- ● ● ● ● ● ●
138 07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 16.549 M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 0306-0703 ● ● ● ● ● ●
138 07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 0704- ● ● ● ● ● ●
139 07.629 STOPPER; SPARE TIRE
DISC WHEEL 16X7-38 ALUMI(PX0) (A) 		8-98118-491-1 01 1 1004- ● ● ● ● ● ●
139 07.629 STOPPER; SPARE TIRE
DISC WHEEL 16X7-38 ALUMI(PX0) (B) 		8-98118-492-1 01 1 1004- ● ● ● ● ● ●
153 07.675 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 0306- ● ● ● ● ● ●

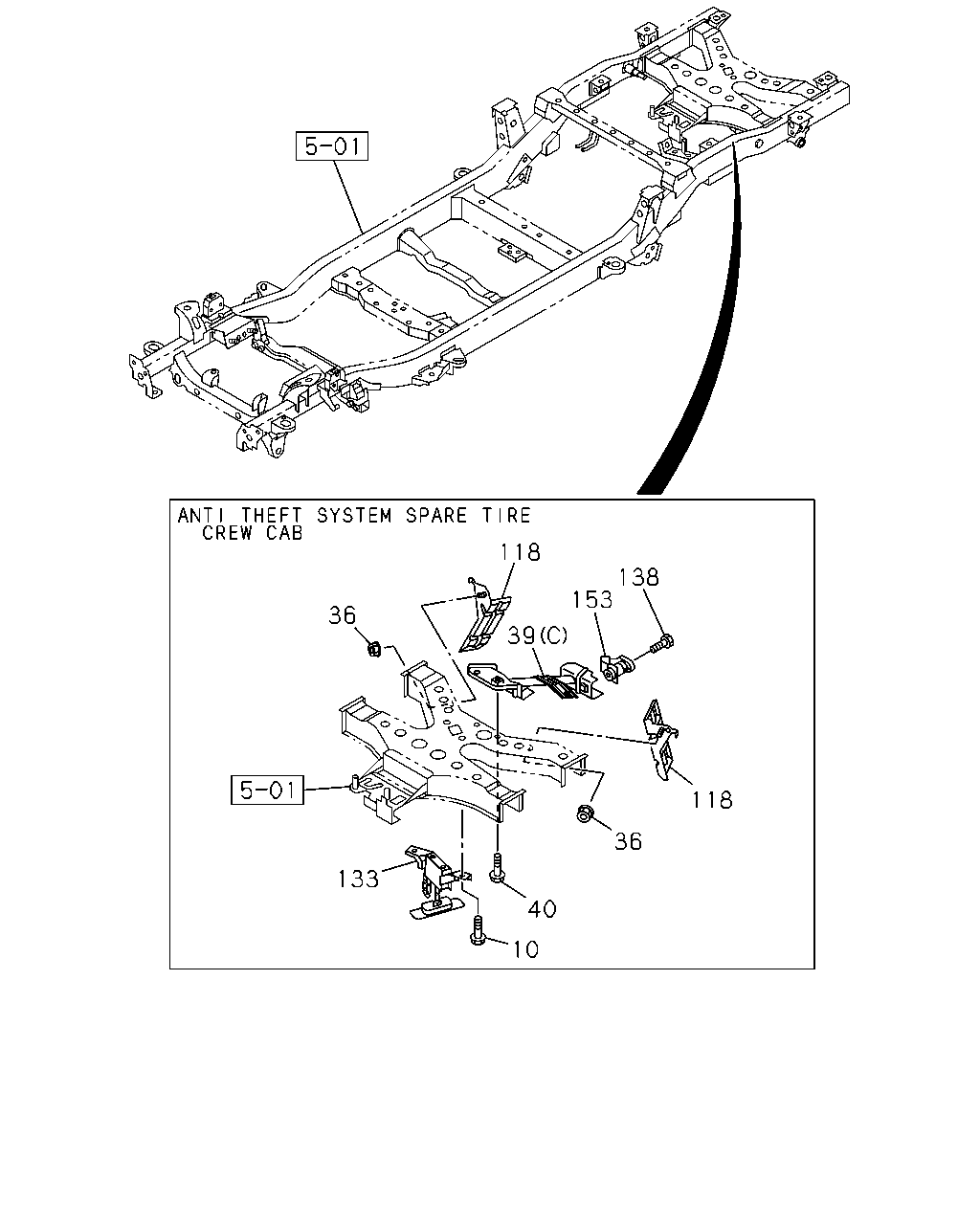

çizim 126252
118 138 153 36 39 118 36 133 40 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0306-0509 ● ● ● ● ● ●
10 07.632 BOLT; TIRE HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0510- ● ● ● ● ● ●
36 07.629 NUT; SPARE TIRE
FRT&RR 245/70R16(BSW) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0306-0508 ● ●
36 07.629 NUT; SPARE TIRE
FRT&RR 245/70R16(QCQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0509- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97360-831-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97945-299-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97943-469-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97943-469-0 01 1 0306-0609 ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-303-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-303-0 01 1 0610- ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-97360-832-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-97945-300-0 01 1 0610- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97943-470-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97943-470-0 01 1 0306-0609 ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-304-0 01 1 0610- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-304-0 01 1 0610- ● ●
40 07.629 BOLT; GUIDE TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0306-0509 ● ● ● ● ● ●
40 07.629 BOLT; GUIDE TO FRAME
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0510- ● ● ● ● ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(BSW) 		8-97259-558-1 01 1 0306-0508 ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(QCQ) 		8-97259-558-1 01 1 0509- ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(BSW) 		8-97259-559-1 01 1 0306-0508 ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(QCQ) 		8-97259-559-1 01 1 0509- ● ●
133 07.629 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97262-014-1 01 1 0306-0609 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97945-344-0 01 1 0610- ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97215-333-1 01 1 0306-0507 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97215-333-1 01 1 0306-0507 ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97944-941-0 01 1 0508- ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97944-941-0 01 1 0508- ● ● ● ● ● ●
138 07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 16.549 M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 0306-0703 ● ● ● ● ● ●
138 07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 0704- ● ● ● ● ● ●
153 07.675 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 0306- ● ● ● ● ● ●
