◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#74008) — 75 parça

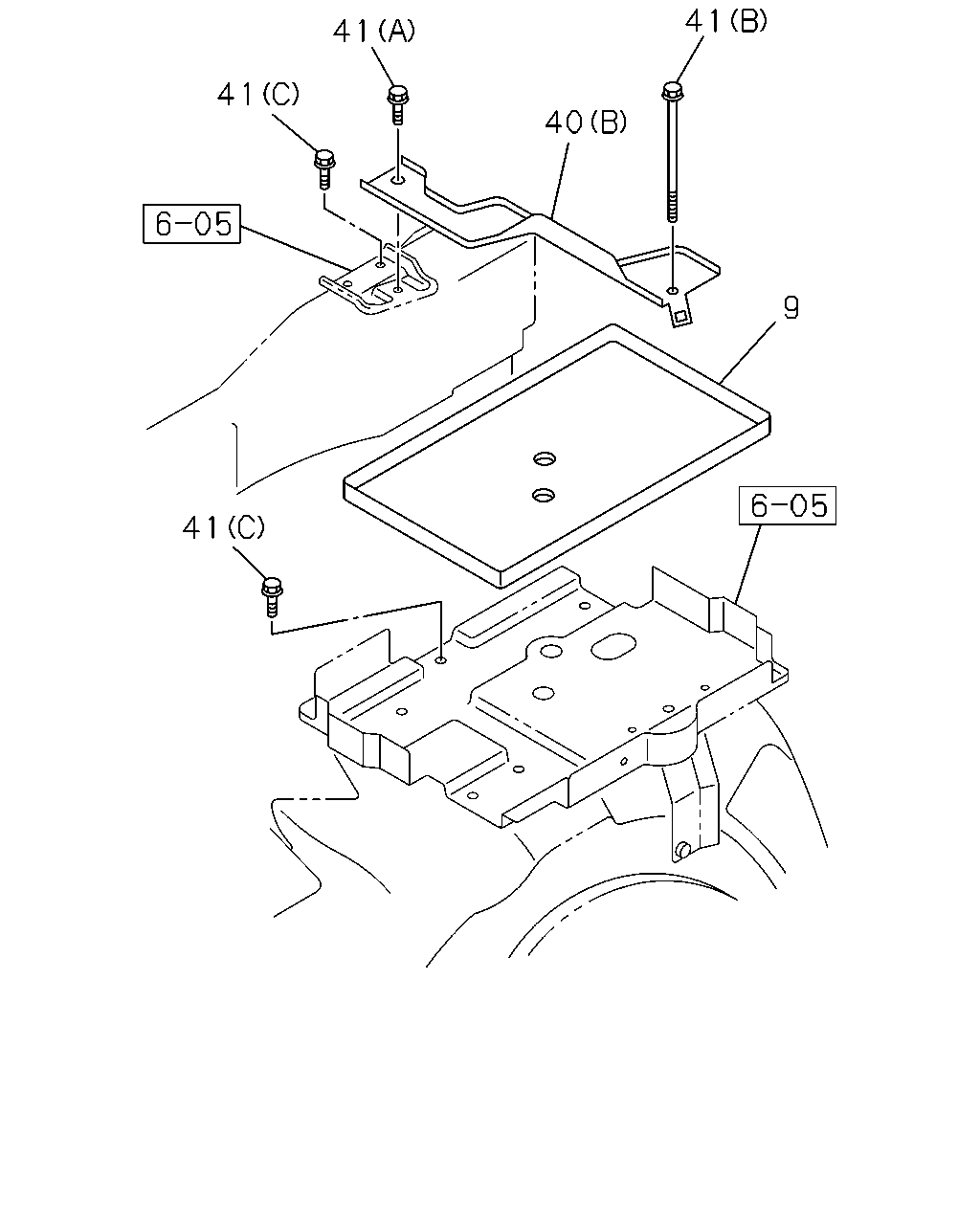

çizim 185202
41 41 41 40 9 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0306- ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0306-0609 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 0306-0609 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0610-0709 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0710-1003 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 0710-1003 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 1004-1007 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 1008- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 1008- ● ●
9 02.333 SEAT; BATTERY
BATTERY 46B24L(TQ6) 		8-97328-059-0 01 1 0306- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97328-060-0 02 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0306-0609 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-97357-407-0 01 1 0610-0709 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0610-0709 ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0710-1003 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-97357-407-0 01 1 1004-1007 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 1004-1007 ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 1008- ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 46B24L(TQ6) (A) 		8-97352-945-0 01 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-97317-600-0 01 1 0306- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-1007 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-1007 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97308-979-0 02 1 0306-0411 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97378-041-0 02 1 0412- ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0306-0601 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 02 1 0602- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 06 1 0306-0601 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 06 1 0602-0609 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 05 1 0610- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE 		8-97308-979-0 01 1 0306-0411 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE 		8-97378-041-0 01 1 0412- ● ● ● ●

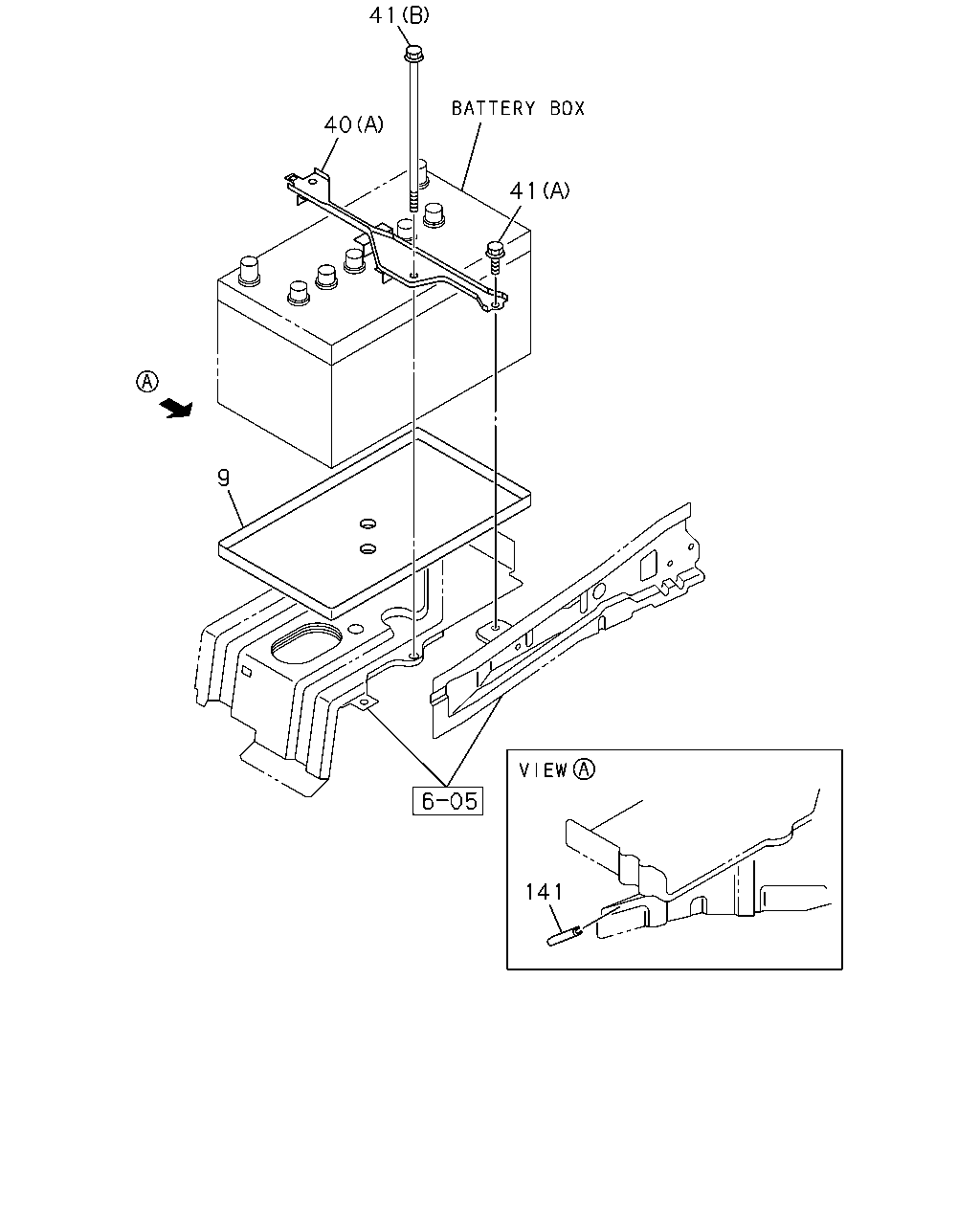

çizim 185206
41 40 41 9 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0306- ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0306-0609 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 0306-0609 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0610-0709 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0710-1003 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 0710-1003 ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 1004-1007 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 1008- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 1008- ● ●
9 02.333 SEAT; BATTERY
BATTERY 46B24L(TQ6) 		8-97328-059-0 01 1 0306- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97328-060-0 02 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0306-0609 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-97357-407-0 01 1 0610-0709 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0610-0709 ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 0710-1003 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-97357-407-0 01 1 1004-1007 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 1004-1007 ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) 		8-97357-407-0 01 1 1008- ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 46B24L(TQ6) (A) 		8-97352-945-0 01 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-97317-600-0 01 1 0306- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-1007 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-1007 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97308-979-0 02 1 0306-0411 ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97378-041-0 02 1 0412- ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0306-0601 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 02 1 0602- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 06 1 0306-0601 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 06 1 0602-0609 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 05 1 0610- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE 		8-97308-979-0 01 1 0306-0411 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE 		8-97378-041-0 01 1 0412- ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0306-0609 ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0610-1007 ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 1008- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
