Sayfa 4-65B - Isuzu EPC

4-65B — REAR LEAF SPRING (#74004) — 125 parça

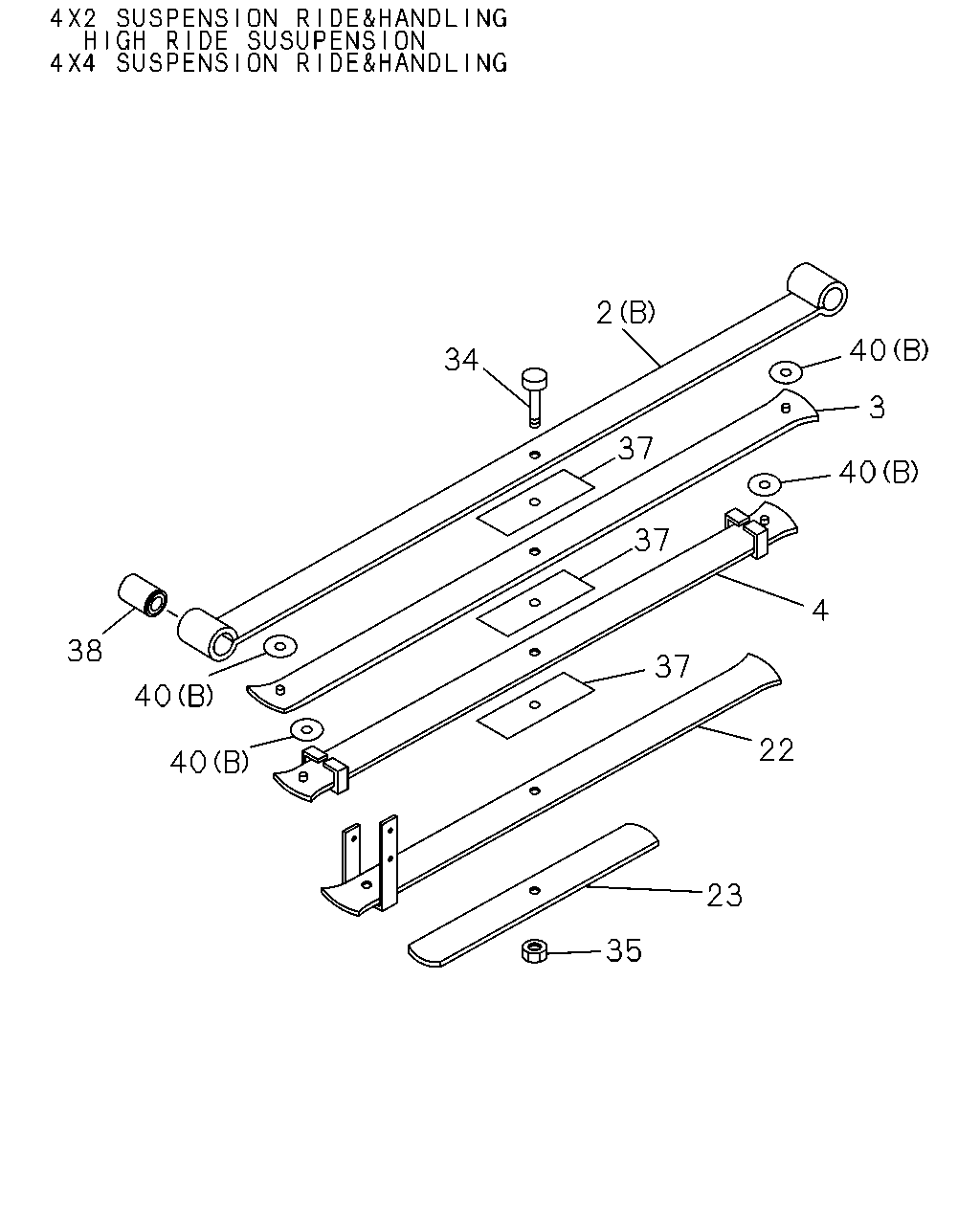

40 40 3 4 40 5 22 37 37 37 37 2 34 38 40 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97304-269-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-168-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97359-755-1, 97359755	8-97368-645-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, H = 8-97946-809-0, 97946809, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: B = 8-97359-755-1, 97359755	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97359-753-1, 97359753, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

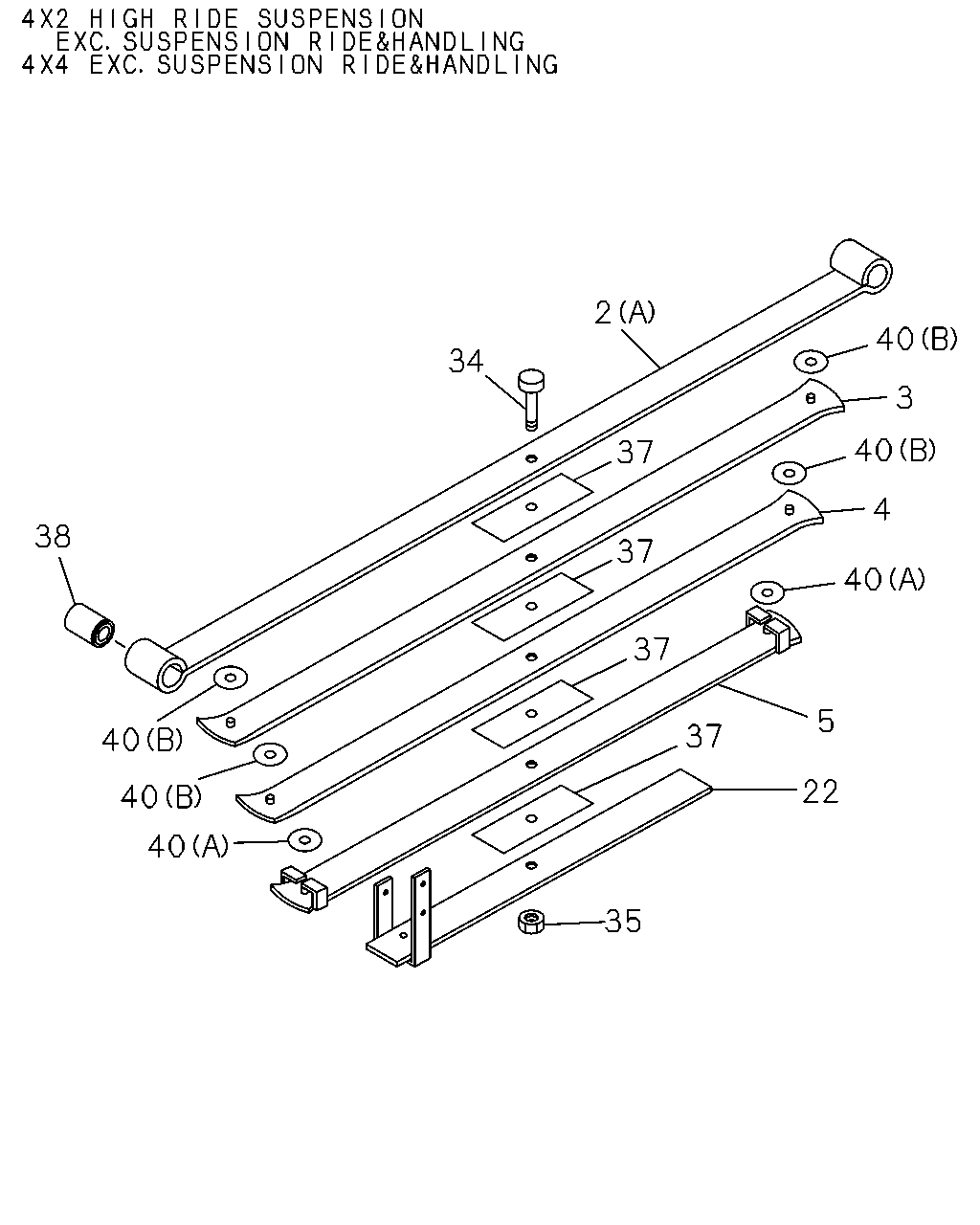

40 40 3 4 22 23 35 37 37 37 2 34 38 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97359-755-1, 97359755	8-97368-645-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, H = 8-97946-809-0, 97946809, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: B = 8-97359-755-1, 97359755	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97359-753-1, 97359753, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

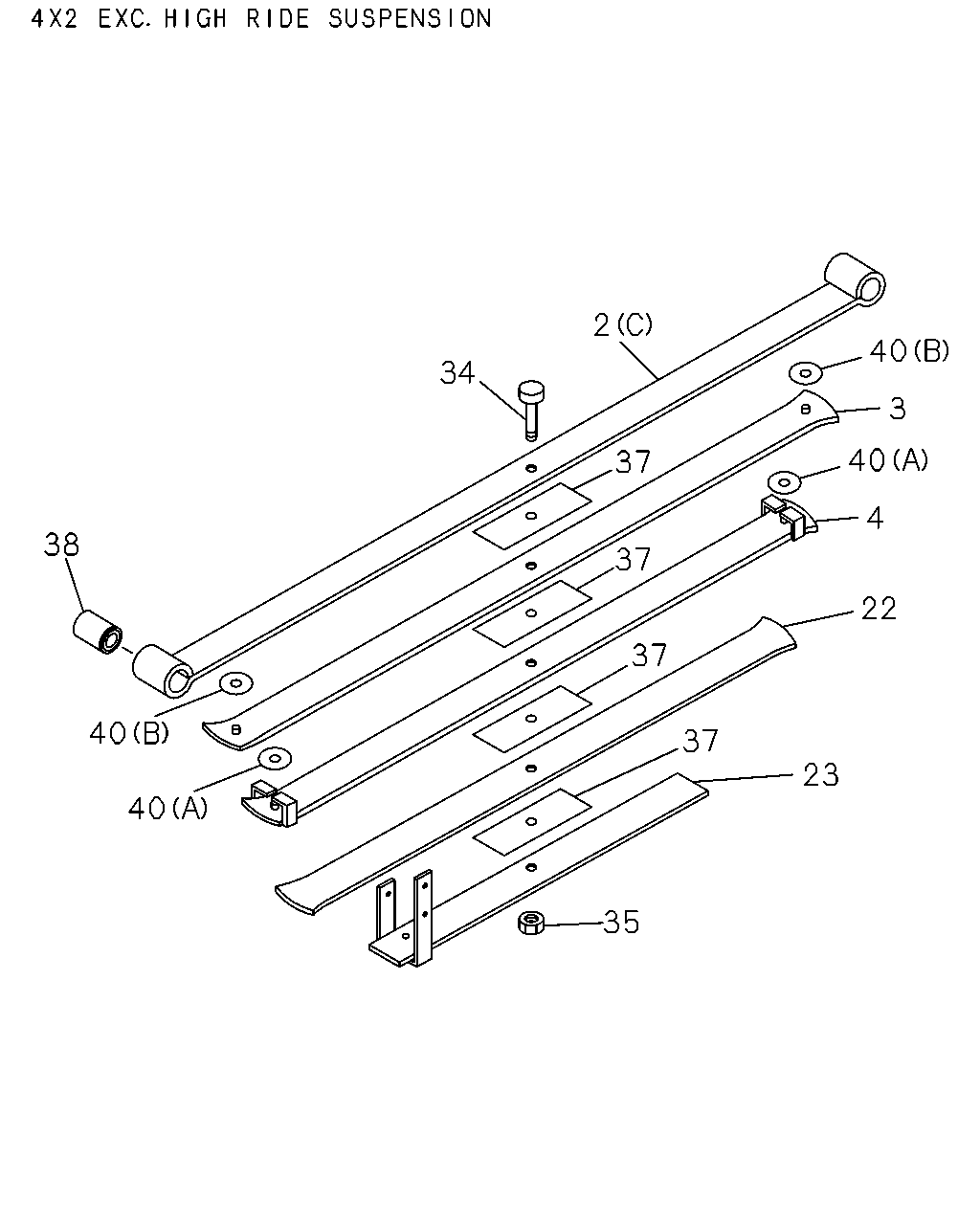

40 40 3 4 22 23 37 37 37 37 2 34 38 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97359-755-1, 97359755	8-97368-645-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97384-622-0, 97384622, L = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97359-753-1, 97359753, H = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97361-182-1, 97361182, K = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97384-624-0, 97384624, M = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, H = 8-97946-809-0, 97946809, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: B = 8-97359-755-1, 97359755	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97361-182-1, 97361182, E = 8-97384-624-0, 97384624, K = 8-97946-820-0, 97946820, M = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97359-753-1, 97359753, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97359-755-1, 97359755, C = 8-97361-182-1, 97361182, D = 8-97384-622-0, 97384622, E = 8-97384-624-0, 97384624, F = 8-97385-891-0, 97385891, J = 8-97946-816-0, 97946816, K = 8-97946-820-0, 97946820, L = 8-97946-823-0, 97946823, M = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, D = 8-97384-622-0, 97384622, F = 8-97385-891-0, 97385891, G = 8-97389-270-0, 97389270, H = 8-97946-809-0, 97946809, I = 8-97946-812-0, 97946812, J = 8-97946-816-0, 97946816, L = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-
