Sayfa 4-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶

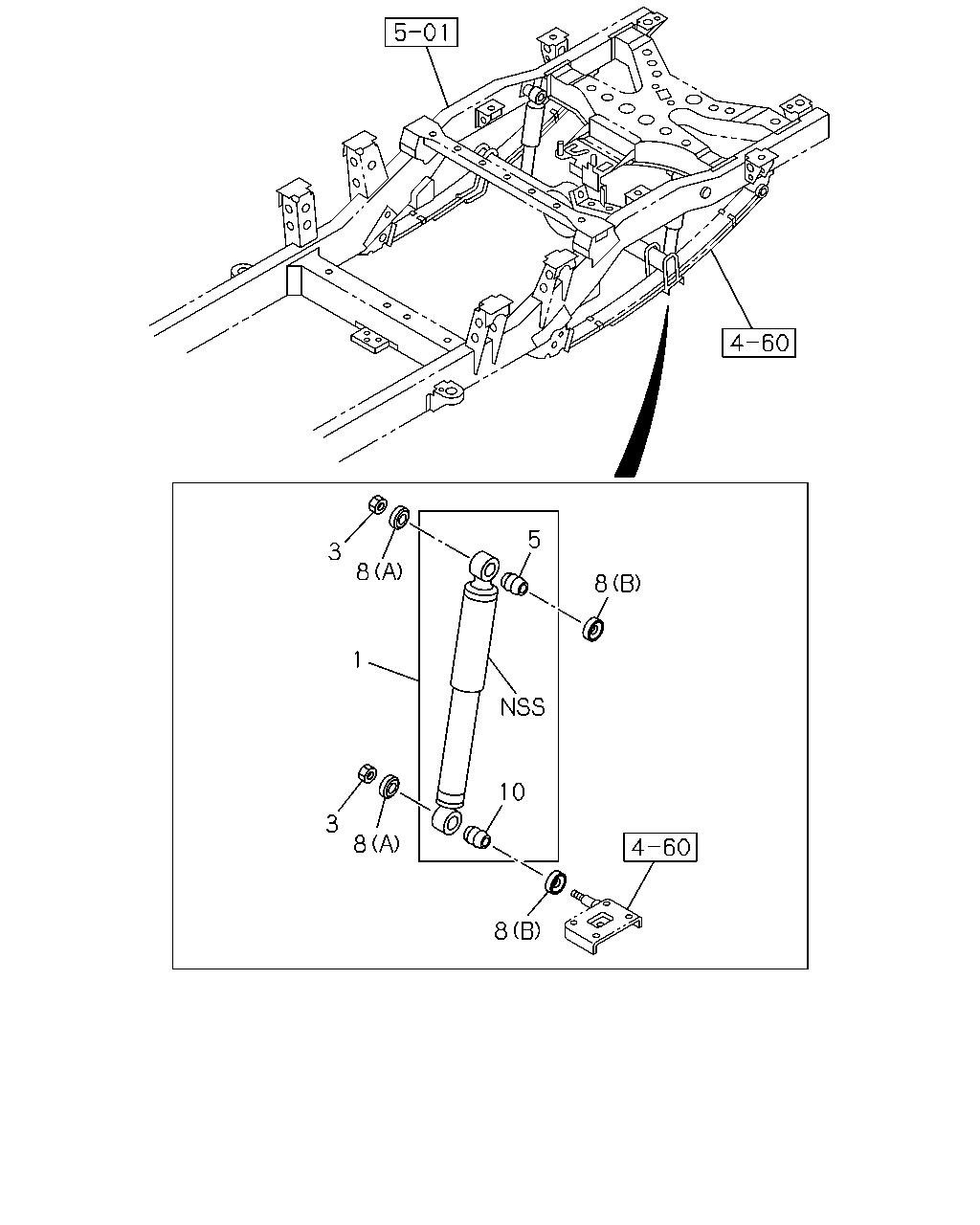

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#74002) — 58 parça

5 3 8 8 1 10 3 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0306-0602	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0306-0602				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0603-0609	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0603-0609			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0603-0609				●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-97368-599-0	02	1	0603-0609						●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98056-032-0	02	1	0610-0706	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-98056-032-0	02	1	0610-0706			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50)	8-98056-032-0	02	1	0610-0706				●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-98056-032-0	02	1	0610-0706						●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97946-665-0	02	1	0707-0910	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-97946-665-0	02	1	0707-0910			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50)	8-97946-665-0	02	1	0707-0910				●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-97946-665-0	02	1	0707-0910						●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98152-227-0	02	1	0911-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-98152-227-0	02	1	0911-			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50)	8-98152-227-0	02	1	0911-				●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50)	8-98152-227-0	02	1	0911-						●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-97368-601-0	02	1	0306-0609	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50)	8-97368-601-0	02	1	0306-0609				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-98056-034-0	02	1	0610-0706	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50)	8-98056-034-0	02	1	0610-0706				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-97946-670-0	02	1	0707-0910	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50)	8-97946-670-0	02	1	0707-0910				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-98152-228-0	02	1	0911-	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50)	8-98152-228-0	02	1	0911-				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-97368-600-0	02	1	0306-0609	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98056-033-0	02	1	0610-0706	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-668-0	02	1	0707-0910	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-222-0	02	1	0911-	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-97368-598-0	02	1	0306-0602	●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-97368-598-0	02	1	0603-0609	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-97368-598-0	02	1	0603-0609			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-98056-031-0	02	1	0610-0706	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-98056-031-0	02	1	0610-0706			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-97946-649-0	02	1	0707-0910	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-97946-649-0	02	1	0707-0910			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-98152-221-0	02	1	0911-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-98152-221-0	02	1	0911-			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC)	8-97368-603-0	02	1	0603-0609			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2>	8-97368-603-0	02	1	0603-0609						●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC)	8-98056-038-0	02	1	0610-0706			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2>	8-98056-038-0	02	1	0610-0706						●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC)	8-97946-673-0	02	1	0707-0910			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2>	8-97946-673-0	02	1	0707-0910						●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC)	8-98152-225-0	02	1	0911-			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2>	8-98152-225-0	02	1	0911-						●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC)	8-97368-602-0	02	1	0603-0609			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC)	8-98056-036-0	02	1	0610-0706			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-671-0	02	1	0707-0910			●
1	07.395 ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-220-0	02	1	0911-			●
3	07.347 NUT; S/ABS M12 FLANGE	8-97256-670-0	04	1	0306-	●	●	●	●	●	●
5	07.388 BUSHING; RUBBER,S/ABS,UPR	8-97302-810-0	02	1	0306-	●	●	●	●	●	●
8	07.347 WASHER; S/ABS (A) ID=16.5	8-94445-688-0	04	1	0306-0609	●	●	●	●	●	●
8	07.347 WASHER; S/ABS (B) ID=12.5	8-98005-969-0	04	1	0610-	●	●	●	●	●	●
8	07.347 WASHER; S/ABS (B) ID=12.5	9-51679-022-0	04	1	0306-0609	●	●	●	●	●	●
8	07.347 WASHER; S/ABS (A) ID=16.5	8-98005-970-0	04	1	0610-	●	●	●	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS	8-97302-810-0	02	1	0306-	●	●	●	●	●	●
