Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#74000) — 572 parça

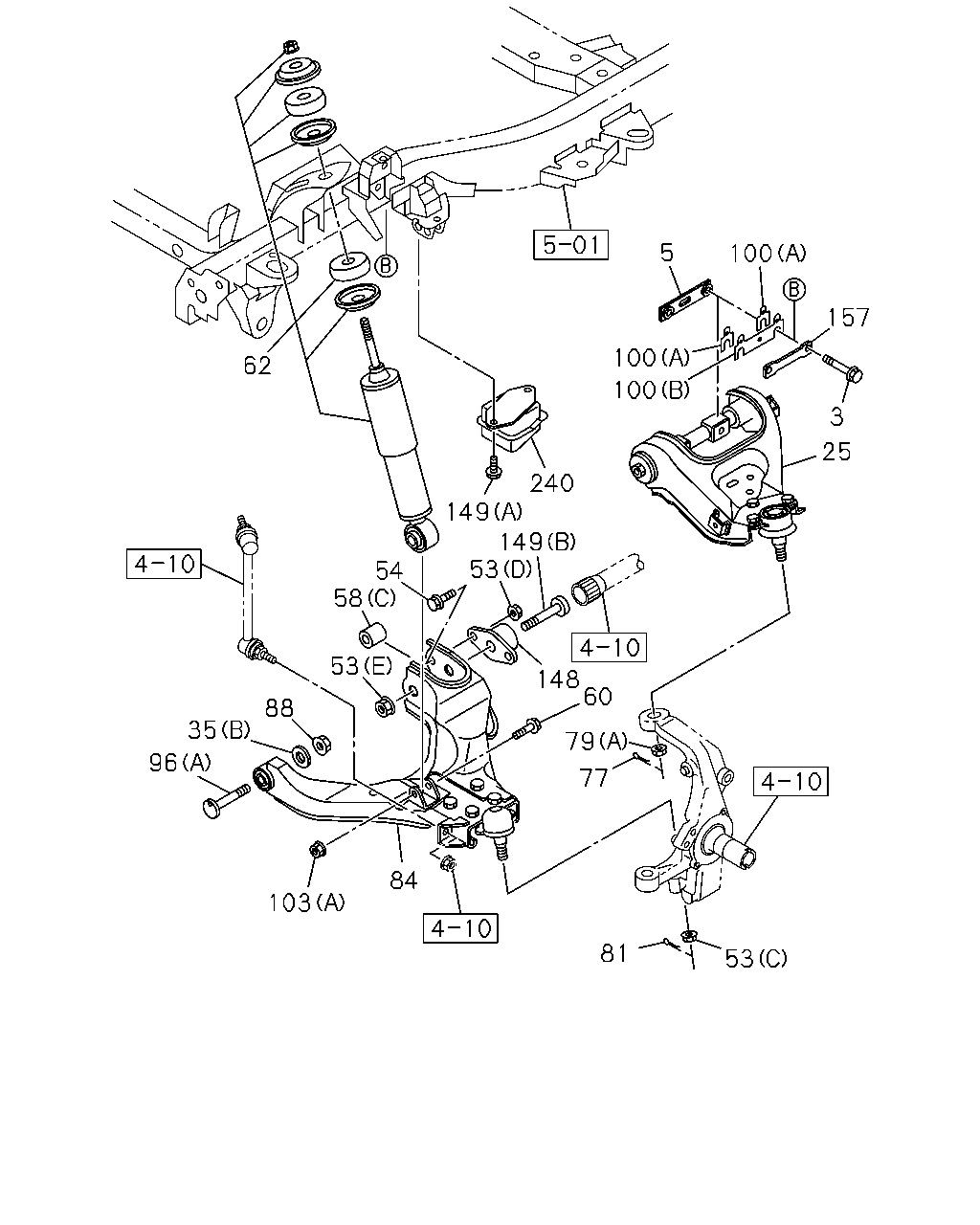

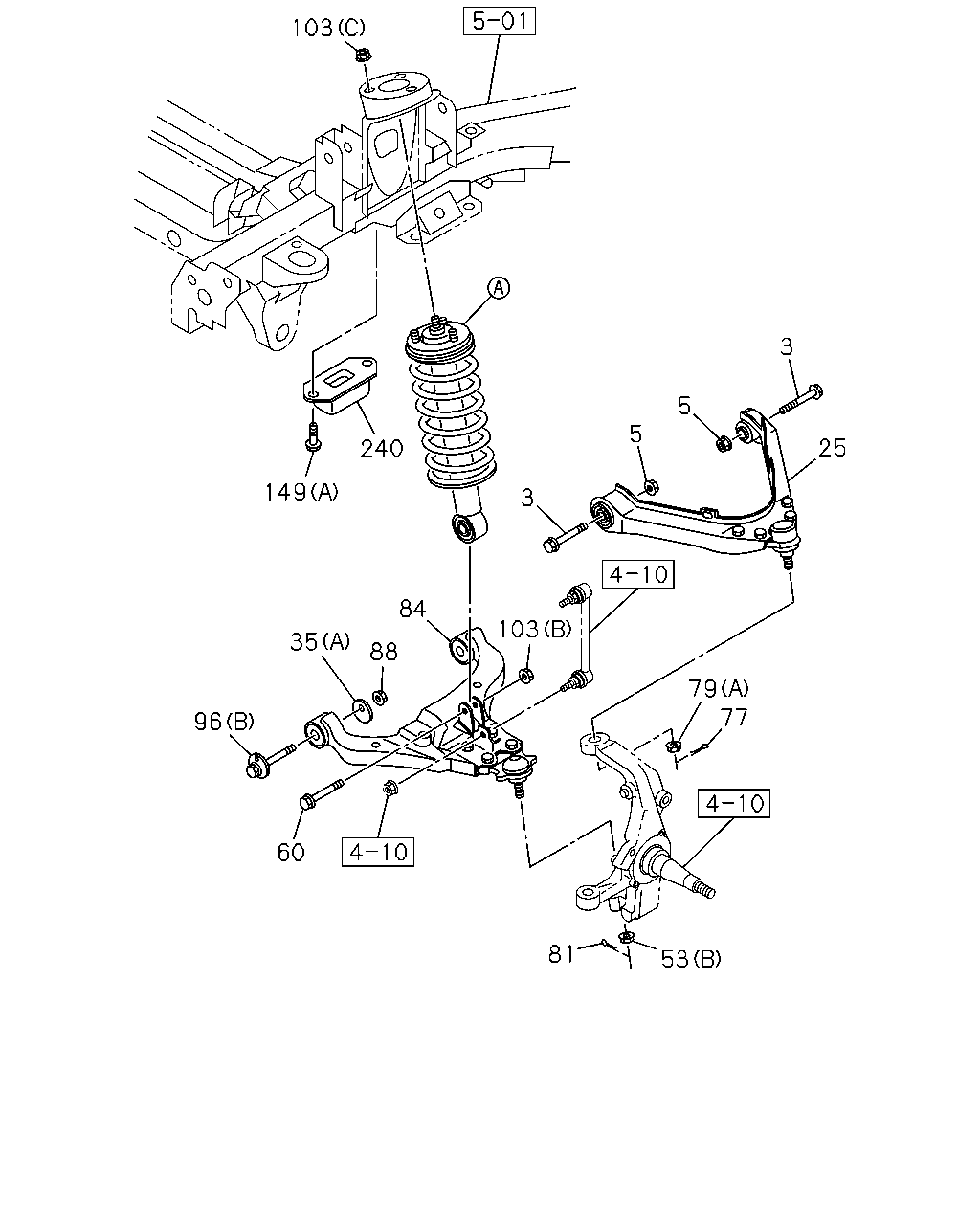

103 3 5 5 25 240 149 3 84 103 35 88 79 77 96 60 81 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.164 BOLT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-628-0	04	1	0306-	●	●	●
3	06.164 BOLT; UPR LINK TO FRAME	8-97245-628-0	04	1	0306-				●	●	●
3	06.164 BOLT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC)	8-97214-816-0	04	1	0306-	●	●	●
5	06.164 NUT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-629-0	02	1	0306-	●	●	●
5	06.164 NUT; UPR LINK TO FRAME	8-97245-629-0	02	1	0306-				●	●	●
5	06.164 NUT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0306-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-013-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-013-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-012-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-012-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-011-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-010-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0610-	●	●	●
35	06.170 PLATE; BUSHING SUPPORT HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-721-0	02	1	0306-	●	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (B)	8-97214-721-0	02	1	0306-				●	●	●
35	06.170 PLATE; BUSHING SUPPORT EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A)	8-97214-814-0	04	1	0306-	●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308	●	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18	0-91110-518-0	02	1	1309-	●	●	●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-	●	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0306-	●	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0306-				●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0306-	●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0306-	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) M12X60 FLANGE	0-29261-260-0	02	1	0306-	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29261-260-0	02	1	0306-				●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M14X69 FLANGE	8-97245-641-0	02	1	0306-	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	0306-0607	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0608-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-				●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-97245-624-0	02	1	0306-1212	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1301-	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	0306-0607	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0608-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-017-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-017-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-016-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-016-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-015-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-014-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0610-	●	●	●
88	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	02	1	0306-	●	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	02	1	0306-				●	●	●
88	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	04	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401				●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-				●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-813-0	04	1	0306-1007	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-369-0	04	1	1008-1305	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M12X37 FLANGE	8-97245-639-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X37 FLANGE	8-97245-639-0	08	1	0402-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	02	1	0306-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	02	1	0306-				●	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 07.529 (B) M14 FLANGE	8-97245-635-0	02	1	0306-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM HIGH RIDE SUSPENSION(7YC) 06.174 (B)	8-97235-908-0	02	1	0306-	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 06.174 (B)	8-97235-908-0	02	1	0306-				●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0306-	●	●	●	●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-967-0	01	1	0306-0508	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-967-0	01	1	0306-0508				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC) EXC. COUNTRY SUSPENSION(V5W)	8-97234-967-0	01	1	0509-	●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. COUNTRY SUSPENSION(V5W)	8-97234-967-0	01	1	0509-				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-966-0	01	1	0306-0508	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-966-0	01	1	0306-0508				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC) EXC. COUNTRY SUSPENSION(V5W)	8-97234-966-0	01	1	0509-	●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. COUNTRY SUSPENSION(V5W)	8-97234-966-0	01	1	0509-				●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	0306-	●	●	●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W) HIGH RIDE SUSPENSION(7YC)	8-97384-621-0	01	1	0509-			●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W)	8-97384-621-0	01	1	0509-						●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W) HIGH RIDE SUSPENSION(7YC)	8-97384-620-0	01	1	0509-			●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W)	8-97384-620-0	01	1	0509-						●

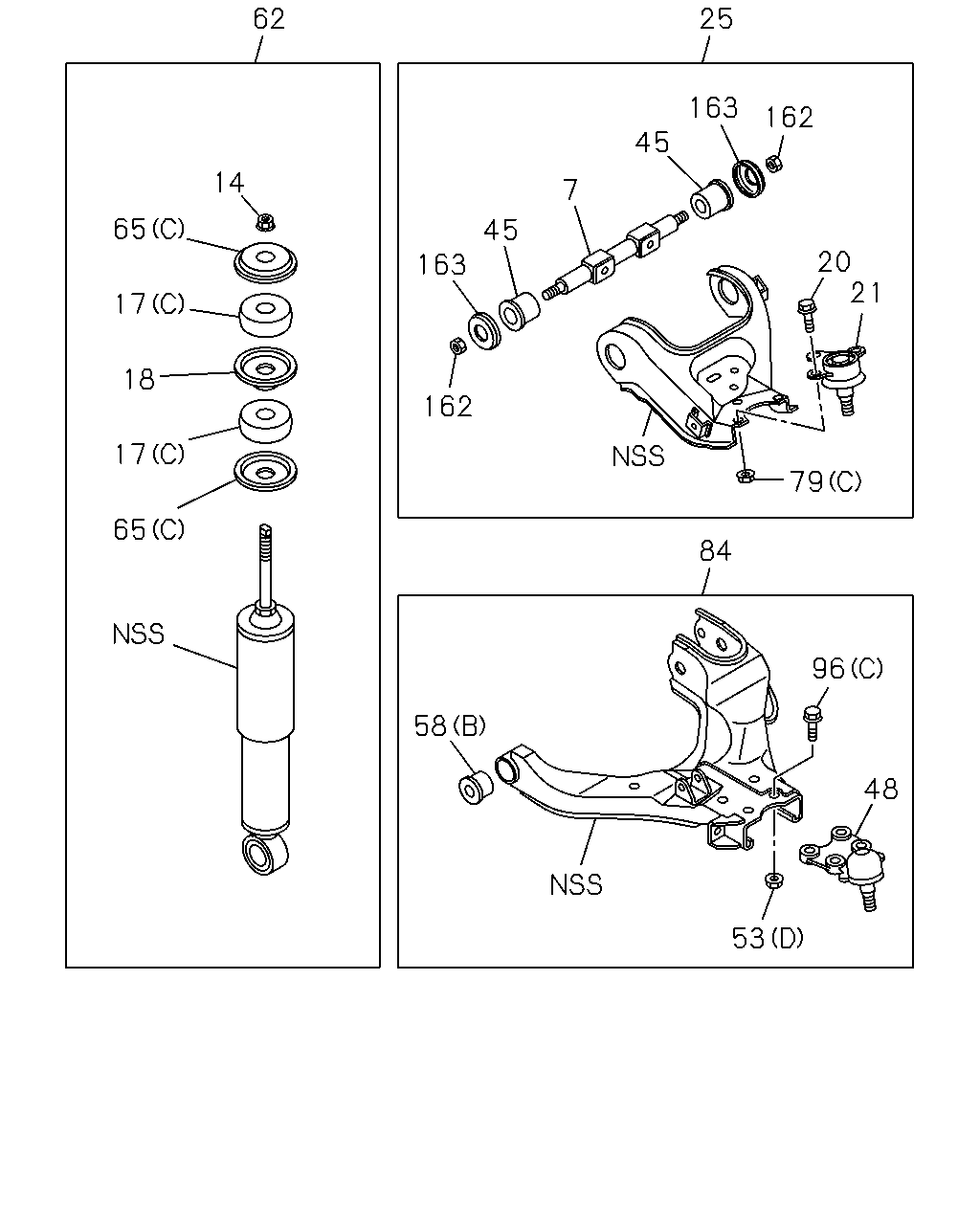

25 45 14 65 17 20 45 75 21 47 79 84 17 65 58 16 58 96 48 62 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	07.389 NUT; S/ABS,UPR HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-				●	●	●
14	07.389 NUT; S/ABS,UPR EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE	8-97236-304-0	02	1	0306-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97371-005-0	02	1	0306-0609	●	●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	0610-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-138-0	04	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0306-				●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-303-0	02	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97264-184-0	02	1	0306-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-636-0	06	1	0306-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0306-				●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE	0-28060-825-0	08	1	0306-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-019-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-97365-019-0	02	1	0306-0609				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-826-0	02	1	0610-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0610-				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-018-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-827-0	02	1	0610-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-013-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-013-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-012-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-012-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-011-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-010-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0610-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97364-175-0	04	1	0306-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0306-				●	●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	0306-	●	●	●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0306-0609	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0306-0609		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007	●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007		●	●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-	●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-			●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-067-0	02	1	0306-0802	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-801-0	02	1	0803-	●		●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-065-0	02	1	0306-0712		●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-800-0	02	1	0801-		●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-021-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97365-021-0	02	1	0306-0609				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-875-0	02	1	0610-	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0610-				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-020-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-874-0	02	1	0610-	●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308	●	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18	0-91110-518-0	02	1	1309-	●	●	●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-	●	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0306-	●	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0306-				●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0306-	●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0306-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97368-596-0	02	1	0306-0308	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97372-286-0	02	1	0309-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98056-027-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98152-215-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-299-0	02	1	0306-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98055-964-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-164-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97368-597-0	02	1	0306-0308				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97372-287-0	02	1	0309-0609				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-892-0	02	1	0911-	●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-136-1	04	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS (C)	8-97120-136-1	04	1	0306-0609				●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-98005-973-0	04	1	0610-	●	●	●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0610-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-301-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-971-0	02	1	0610-	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97246-918-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98005-972-0	02	1	0610-	●	●	●
75	07.380 BRACKET; FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-300-0	02	1	0306-0609	●	●	●
75	07.380 BRACKET; FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-829-0	02	1	0610-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-				●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-97245-624-0	02	1	0306-1212	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1301-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-017-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-017-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-016-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-016-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-015-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-014-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0610-	●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401				●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-				●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-813-0	04	1	0306-1007	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-369-0	04	1	1008-1305	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M12X37 FLANGE	8-97245-639-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X37 FLANGE	8-97245-639-0	08	1	0402-	●	●	●	●	●	●

14 65 17 75 47 17 65 65 16 62 45 79 84 25 20 45 21 58 96 48 53 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	07.389 NUT; S/ABS,UPR HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-				●	●	●
14	07.389 NUT; S/ABS,UPR EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE	8-97236-304-0	02	1	0306-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97371-005-0	02	1	0306-0609	●	●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	0610-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-138-0	04	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0306-				●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-303-0	02	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97264-184-0	02	1	0306-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-636-0	06	1	0306-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0306-				●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE	0-28060-825-0	08	1	0306-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-019-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-97365-019-0	02	1	0306-0609				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-826-0	02	1	0610-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0610-				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-018-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-827-0	02	1	0610-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-013-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-013-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-012-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-012-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-011-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-010-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0610-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97364-175-0	04	1	0306-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0306-				●	●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	0306-	●	●	●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0306-0609	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0306-0609		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007	●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007		●	●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0610-1007		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-	●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	1008-			●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-067-0	02	1	0306-0802	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-801-0	02	1	0803-	●		●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-065-0	02	1	0306-0712		●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-800-0	02	1	0801-		●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-021-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97365-021-0	02	1	0306-0609				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-875-0	02	1	0610-	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0610-				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-020-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-874-0	02	1	0610-	●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308	●	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18	0-91110-518-0	02	1	1309-	●	●	●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-	●	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0306-	●	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0306-				●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0306-	●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0306-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97368-596-0	02	1	0306-0308	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97372-286-0	02	1	0309-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98056-027-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98152-215-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-299-0	02	1	0306-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98055-964-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-164-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97368-597-0	02	1	0306-0308				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97372-287-0	02	1	0309-0609				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-892-0	02	1	0911-	●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-136-1	04	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS (C)	8-97120-136-1	04	1	0306-0609				●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-98005-973-0	04	1	0610-	●	●	●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0610-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-301-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-971-0	02	1	0610-	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97246-918-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98005-972-0	02	1	0610-	●	●	●
75	07.380 BRACKET; FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-300-0	02	1	0306-0609	●	●	●
75	07.380 BRACKET; FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-829-0	02	1	0610-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-				●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-97245-624-0	02	1	0306-1212	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1301-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-017-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-017-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-016-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-016-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-015-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-014-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0610-	●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401				●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-				●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-813-0	04	1	0306-1007	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-369-0	04	1	1008-1305	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M12X37 FLANGE	8-97245-639-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X37 FLANGE	8-97245-639-0	08	1	0402-	●	●	●	●	●	●

5 100 100 157 25 3 100 240 149 149 53 54 58 53 88 35 96 103 84 148 60 79 77 81 62 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.164 BOLT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-628-0	04	1	0306-	●	●	●
3	06.164 BOLT; UPR LINK TO FRAME	8-97245-628-0	04	1	0306-				●	●	●
3	06.164 BOLT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC)	8-97214-816-0	04	1	0306-	●	●	●
5	06.164 NUT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-629-0	02	1	0306-	●	●	●
5	06.164 NUT; UPR LINK TO FRAME	8-97245-629-0	02	1	0306-				●	●	●
5	06.164 NUT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0306-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-013-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-013-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-012-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-012-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-011-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-010-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0610-	●	●	●
35	06.170 PLATE; BUSHING SUPPORT HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-721-0	02	1	0306-	●	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (B)	8-97214-721-0	02	1	0306-				●	●	●
35	06.170 PLATE; BUSHING SUPPORT EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A)	8-97214-814-0	04	1	0306-	●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308	●	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18	0-91110-518-0	02	1	1309-	●	●	●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-	●	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0306-	●	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0306-				●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0306-	●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0306-	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-660-0	04	1	0306-	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK	8-97245-660-0	04	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0306-	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) M12X60 FLANGE	0-29261-260-0	02	1	0306-	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29261-260-0	02	1	0306-				●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M14X69 FLANGE	8-97245-641-0	02	1	0306-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97368-596-0	02	1	0306-0308	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97372-286-0	02	1	0309-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98056-027-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98152-215-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-299-0	02	1	0306-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98055-964-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-164-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97368-597-0	02	1	0306-0308				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97372-287-0	02	1	0309-0609				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-				●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	0306-0607	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0608-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-				●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-97245-624-0	02	1	0306-1212	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1301-	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	0306-0607	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0608-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-017-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-017-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-016-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-016-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-015-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-014-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0610-	●	●	●
88	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	02	1	0306-	●	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	02	1	0306-				●	●	●
88	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	04	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401				●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-				●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-813-0	04	1	0306-1007	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-369-0	04	1	1008-1305	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M12X37 FLANGE	8-97245-639-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X37 FLANGE	8-97245-639-0	08	1	0402-	●	●	●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=0.40	8-94227-053-1	AR	1	0306-0609	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	0306-0609				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=0.40	8-98005-914-0	AR	1	0610-	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-98005-914-0	AR	1	0610-				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=1.60	8-94227-054-2	AR	1	0306-0609	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	0306-0609				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=1.60	8-98005-915-0	AR	1	0610-	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-98005-915-0	AR	1	0610-				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=3.20	8-94241-885-3	AR	1	0306-0609	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	0306-0609				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=3.20	8-98005-916-0	AR	1	0610-	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-98005-916-0	AR	1	0610-				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=3.20	8-94381-376-1	AR	1	0306-0609	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-94381-376-1	AR	1	0306-0609				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=3.20	8-98005-917-0	AR	1	0610-	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-98005-917-0	AR	1	0610-				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=1.60	8-94381-377-1	AR	1	0306-0609	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-94381-377-1	AR	1	0306-0609				●	●	●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=1.60	8-98005-918-0	AR	1	0610-	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-98005-918-0	AR	1	0610-				●	●	●
103	07.347 NUT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	02	1	0306-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	02	1	0306-				●	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 07.529 (B) M14 FLANGE	8-97245-635-0	02	1	0306-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
148	06.170 ARM; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97235-902-0	02	1	0306-	●	●	●
148	06.170 ARM; LWR LINK	8-97235-902-0	02	1	0306-				●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM HIGH RIDE SUSPENSION(7YC) 06.174 (B)	8-97235-908-0	02	1	0306-	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 06.174 (B)	8-97235-908-0	02	1	0306-				●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0306-	●	●	●	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-94382-920-1	02	1	0306-0609	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94382-920-1	02	1	0306-0609				●	●	●
157	06.176 PLATE; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-98005-876-0	02	1	0610-	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-98005-876-0	02	1	0610-				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-967-0	01	1	0306-0508	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-967-0	01	1	0306-0508				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC) EXC. COUNTRY SUSPENSION(V5W)	8-97234-967-0	01	1	0509-	●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. COUNTRY SUSPENSION(V5W)	8-97234-967-0	01	1	0509-				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-966-0	01	1	0306-0508	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-966-0	01	1	0306-0508				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC) EXC. COUNTRY SUSPENSION(V5W)	8-97234-966-0	01	1	0509-	●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. COUNTRY SUSPENSION(V5W)	8-97234-966-0	01	1	0509-				●	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	0306-	●	●	●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W) HIGH RIDE SUSPENSION(7YC)	8-97384-621-0	01	1	0509-			●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W)	8-97384-621-0	01	1	0509-						●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W) HIGH RIDE SUSPENSION(7YC)	8-97384-620-0	01	1	0509-			●
240	07.395 BUMPER; LWR CONT ARM COUNTRY SUSPENSION(V5W)	8-97384-620-0	01	1	0509-						●

62 25 163 162 45 14 7 65 45 20 21 163 17 18 162 17 79 65 84 96 58 48 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	06.174 PIN; FULCRUM,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-690-0	02	1	0306-0609	●	●	●
7	06.174 PIN; FULCRUM,UPR LINK	8-97245-690-0	02	1	0306-0609				●	●	●
7	06.174 PIN; FULCRUM,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-825-0	02	1	0610-	●	●	●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0610-				●	●	●
14	07.389 NUT; S/ABS,UPR HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-				●	●	●
14	07.389 NUT; S/ABS,UPR EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE	8-97236-304-0	02	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-138-0	04	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0306-				●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-303-0	02	1	0306-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97264-184-0	02	1	0306-	●	●	●
18	07.347 WASHER; CENTERING,S/ABS HIGH RIDE SUSPENSION(7YC)	8-97120-137-0	02	1	0306-0609	●	●	●
18	07.347 WASHER; CENTERING,S/ABS	8-97120-137-0	02	1	0306-0609				●	●	●
18	07.347 WASHER; CENTERING,S/ABS HIGH RIDE SUSPENSION(7YC)	8-98005-974-0	02	1	0610-	●	●	●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0610-				●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-636-0	06	1	0306-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0306-				●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE	0-28060-825-0	08	1	0306-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-019-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-97365-019-0	02	1	0306-0609				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-826-0	02	1	0610-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0610-				●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-018-0	02	1	0306-0609	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-827-0	02	1	0610-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-013-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-013-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-012-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT	8-97365-012-0	01	1	0306-0609				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-				●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-011-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0610-	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-010-0	01	1	0306-0609	●	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0610-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97364-175-0	04	1	0306-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0306-				●	●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	0306-	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97365-021-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97365-021-0	02	1	0306-0609				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-875-0	02	1	0610-	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0610-				●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-020-0	02	1	0306-0609	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-874-0	02	1	0610-	●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308	●	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0306-1308				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18	0-91110-518-0	02	1	1309-	●	●	●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-	●	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0306-				●	●	●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0306-	●	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0306-				●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0306-	●	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0306-	●	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0306-				●	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0306-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97368-596-0	02	1	0306-0308	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97372-286-0	02	1	0309-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98056-027-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-98152-215-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-299-0	02	1	0306-0609	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98055-964-0	02	1	0610-0706	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0707-0910	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98152-164-0	02	1	0911-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97368-597-0	02	1	0306-0308				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97372-287-0	02	1	0309-0609				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-892-0	02	1	0911-	●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-136-1	04	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS (C)	8-97120-136-1	04	1	0306-0609				●	●	●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-98005-973-0	04	1	0610-	●	●	●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0610-				●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-301-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-971-0	02	1	0610-	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97246-918-0	02	1	0306-0609	●	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98005-972-0	02	1	0610-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0306-				●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	0306-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-97245-624-0	02	1	0306-1212	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1301-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-017-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-017-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97365-016-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT	8-97365-016-0	01	1	0306-0609				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-				●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-015-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0610-	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-97365-014-0	01	1	0306-0609	●	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0610-	●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X45 FLANGE	0-29261-245-0	08	1	0306-0401				●	●	●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (A) M16X95.4	8-97214-719-0	02	1	0306-				●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-813-0	04	1	0306-1007	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-369-0	04	1	1008-1305	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (C) M12X37 FLANGE	8-97245-639-0	08	1	0306-0401	●	●	●
96	06.174 BOLT; LWR LINK (C) M12X37 FLANGE	8-97245-639-0	08	1	0402-	●	●	●	●	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0306-	●	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0306-				●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-94407-707-0	04	1	0306-0609	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	0306-0609				●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-932-0	04	1	0610-	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0610-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
