Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#740) — 197 parça

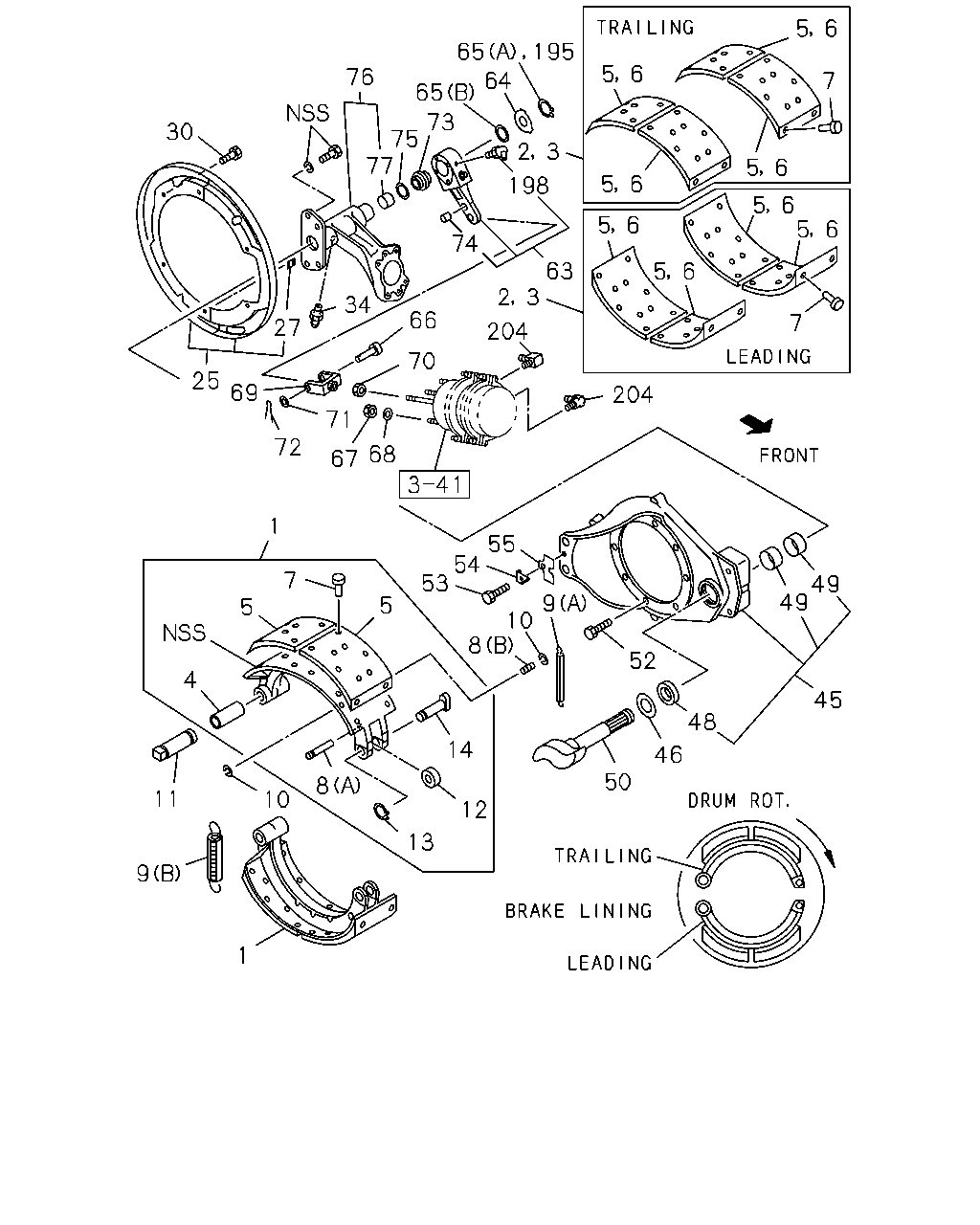

5 6 65 195 5 6 76 64 7 65 73 75 77 2 30 3 5 6 5 6 198 5 6 5 5 6 6 74 63 3 5 6 2 34 66 7 27 204 70 25 69 204 71 72 68 67 1 55 54 53 7 49 49 9 5 5 10 8 52 4 45 48 14 46 50 8 11 10 12 13 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR TRAILING	1-47110-918-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-918-0	02	1	9505-
1	SHOE; BRK,RR LEADING	1-47110-919-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-919-0	02	1	9505-
1	SHOE; BRK,RR LEADING	1-47110-916-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-916-0	02	1	9505-
1	SHOE; BRK,RR TRAILING	1-47110-917-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-917-0	02	1	9505-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-218-0	08	1	9505-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-958-0	02	1	9204-9504
2	LINING SET; RR BRK,STANDARD Z06-LEADING	1-88302-958-0	02	1	9505-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-LEADING	1-88302-958-0	02	1	9505-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-959-0	02	1	9204-9504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-959-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-156-0	02	1	9204-9504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-156-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-157-0	02	1	9204-9504
3	LINING SET; RR BRK,OVER SIZE Z06-TRAILING	1-88310-157-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-TRAILING	1-88310-157-0	02	1	9505-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9204-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-054-0	08	1	9204-9504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-054-0	08	1	9505-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-055-0	08	1	9204-9504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-055-0	08	1	9505-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-055-0	16	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-056-0	08	1	9204-9504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-056-0	08	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-057-0	08	1	9204-9504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-057-0	08	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-057-0	16	1	9505-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9204-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9204-9504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9204-9504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	08	1	9505-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9204-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9204-9504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9505-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	08	1	9505-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9204-9504
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	16	1	9505-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9204-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9204-9504
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	08	1	9505-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9204-9504
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	08	1	9505-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	9204-9504
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	08	1	9505-
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	9204-9504
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	04	1	9505-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9204-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9204-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9410-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	04	1	9204-9504
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	04	1	9505-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	04	1	9204-9504
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-120-2	04	1	9505-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9204-9504
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	04	1	9505-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9204-9504
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	04	1	9505-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	08	1	9204-9504
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	08	1	9505-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	02	1	9204-9504
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-053-0	02	1	9505-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	02	1	9204-9504
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-054-0	02	1	9505-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	9204-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9204-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9204-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9204-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	02	1	9204-9504
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-045-0	02	1	9505-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	02	1	9204-9504
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-046-0	02	1	9505-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	04	1	9204-9504
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-022-0	04	1	9505-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9204-9504
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	04	1	9505-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	02	1	9204-9504
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09180-038-0	02	1	9505-
66	PIN; JAW JOINT	1-09744-088-0	04	1	9204-9504
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	04	1	9505-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9204-9504
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	16	1	9505-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9204-9504
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	16	1	9505-
69	JOINT; JAW	1-09768-060-0	04	1	9204-9504
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	04	1	9505-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9204-9504
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	04	1	9505-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9204-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-9504
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	04	1	9505-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9204-9504
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	04	1	9505-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	04	1	9204-9504
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-003-0	04	1	9505-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9204-9504
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	04	1	9505-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9204-9504
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	04	1	9505-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	02	1	9204-9504
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-083-0	02	1	9505-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	02	1	9204-9504
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-084-0	02	1	9505-
77	BUSHING	1-47146-003-1	04	1	9204-9504
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	04	1	9505-
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	9204-9504
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	02	1	9505-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9204-9504
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9505-
204	CONNECTOR; SPR CHAMBER	1-09660-574-0	04	1	9204-9504
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-574-0	04	1	9505-

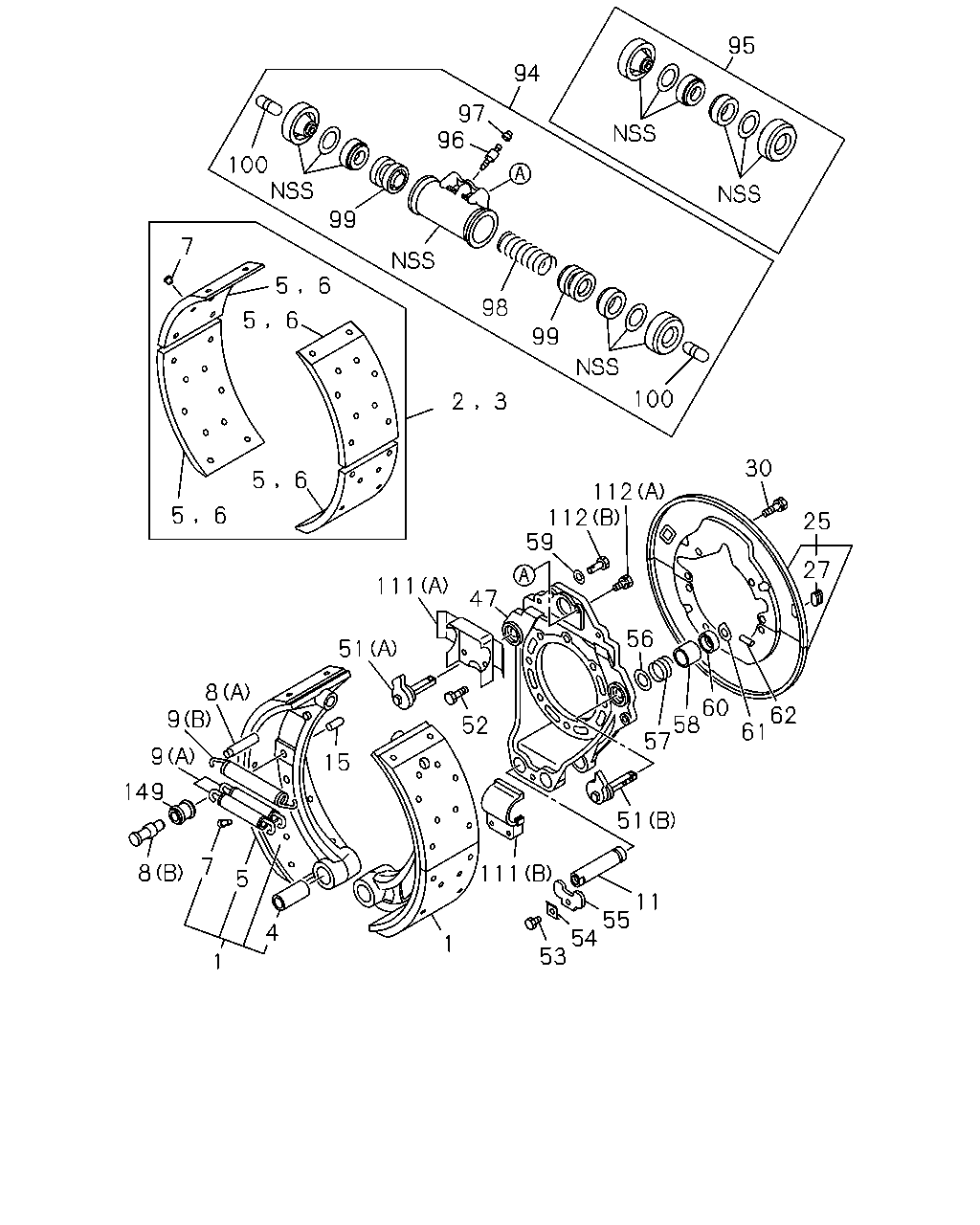

95 94 97 96 100 99 7 5 6 98 5 6 99 100 2 3 30 5 6 112 112 59 5 6 25 27 111 47 56 51 8 9 60 58 57 62 61 52 9 15 149 51 111 7 8 5 11 55 54 53 4 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR TRAILING	1-47110-918-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-918-0	02	1	9505-
1	SHOE; BRK,RR LEADING	1-47110-919-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-919-0	02	1	9505-
1	SHOE; BRK,RR LEADING	1-47110-916-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-916-0	02	1	9505-
1	SHOE; BRK,RR TRAILING	1-47110-917-0	02	1	9204-9504
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-917-0	02	1	9505-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-218-0	08	1	9505-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-958-0	02	1	9204-9504
2	LINING SET; RR BRK,STANDARD Z06-LEADING	1-88302-958-0	02	1	9505-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-LEADING	1-88302-958-0	02	1	9505-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-959-0	02	1	9204-9504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-959-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-156-0	02	1	9204-9504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-156-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-157-0	02	1	9204-9504
3	LINING SET; RR BRK,OVER SIZE Z06-TRAILING	1-88310-157-0	02	1	9505-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-TRAILING	1-88310-157-0	02	1	9505-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9204-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-054-0	08	1	9204-9504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-054-0	08	1	9505-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-055-0	08	1	9204-9504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-055-0	08	1	9505-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-055-0	16	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-056-0	08	1	9204-9504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-056-0	08	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-057-0	08	1	9204-9504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-057-0	08	1	9505-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-057-0	16	1	9505-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9204-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9204-9504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9204-9504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	08	1	9505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	08	1	9505-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9204-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9204-9504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9505-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	08	1	9505-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9204-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	08	1	9505-
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	9204-9504
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	04	1	9505-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9204-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9204-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-151-0	04	1	9505-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	04	1	9505-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	04	1	9505-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	9204-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9204-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9204-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9204-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	08	1	9505-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	08	1	9505-9506
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	08	1	9505-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	08	1	9505-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	08	1	9505-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	08	1	9505-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	08	1	9505-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-684-0	04	1	9505-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	04	1	9505-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	04	1	9505-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	04	1	9505-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	04	1	9505-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-043-0	08	1	9505-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	08	1	9505-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47159-089-0	04	1	9505-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47159-118-0	04	1	9505-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14X35	0-20801-435-0	08	1	9505-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 W/LK WASHER	0-50040-816-0	12	1	9505-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-024-0	08	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
