Sayfa 4-42A - Isuzu EPC

4-42A — POWER STEERING OIL PUMP (#73998) — 188 parça

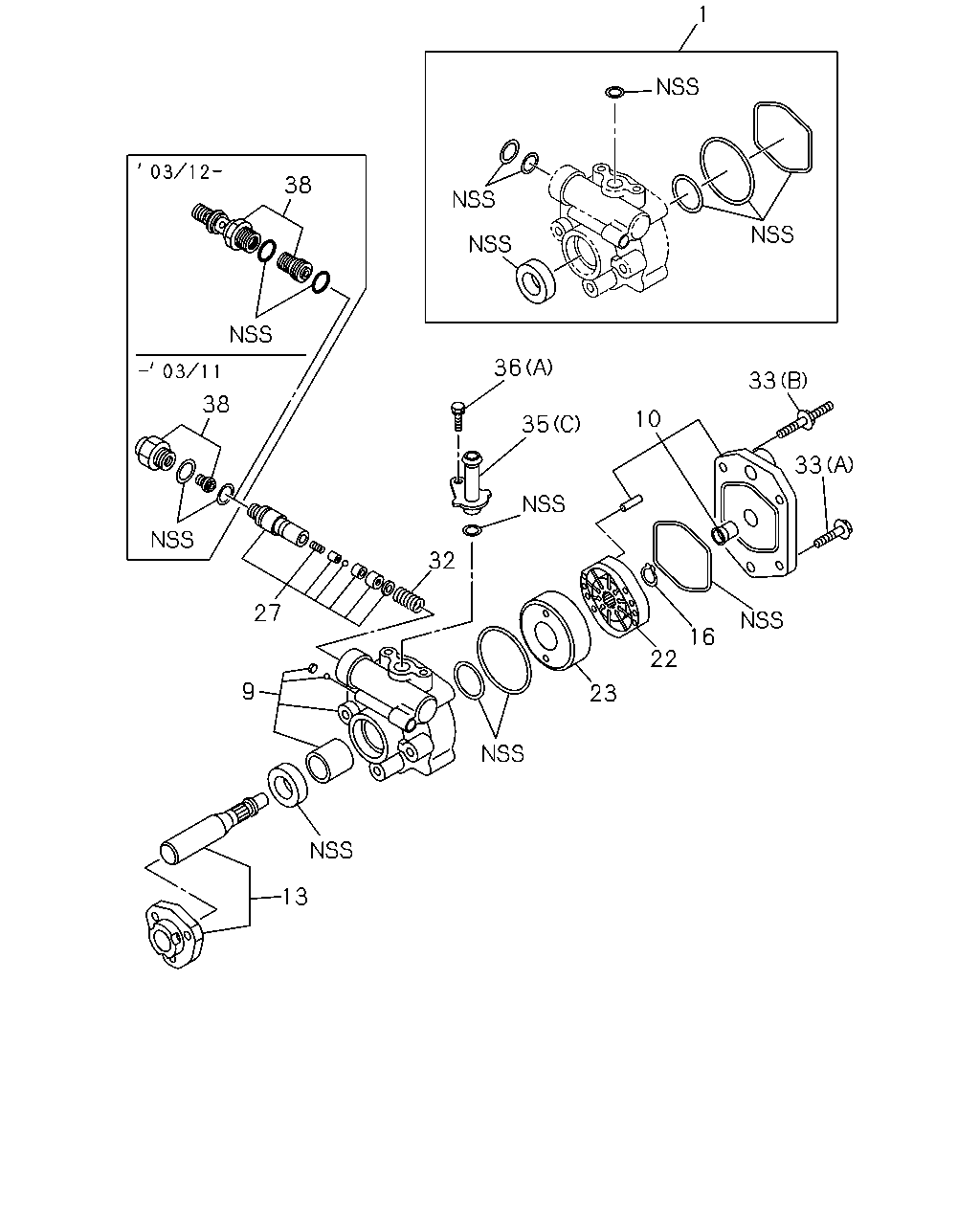

1 44 36 52 33 10 22 36 52 60 35 27 32 35 23 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602	8-97332-290-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97945-745-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, O = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-620-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: M = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, O = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, N = 8-98048-472-0, 98048472	8-97205-611-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98028-773-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: G = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: E = 8-97944-826-0, 97944826, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98033-913-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-047-0	01	1	-
52	06.635 NUT; OIL PUMP (A) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-050-0	01	1	-
52	06.635 NUT; OIL PUMP (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-051-0	01	1	-
60	06.635 WASHER; LK,OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-048-0	01	1	-

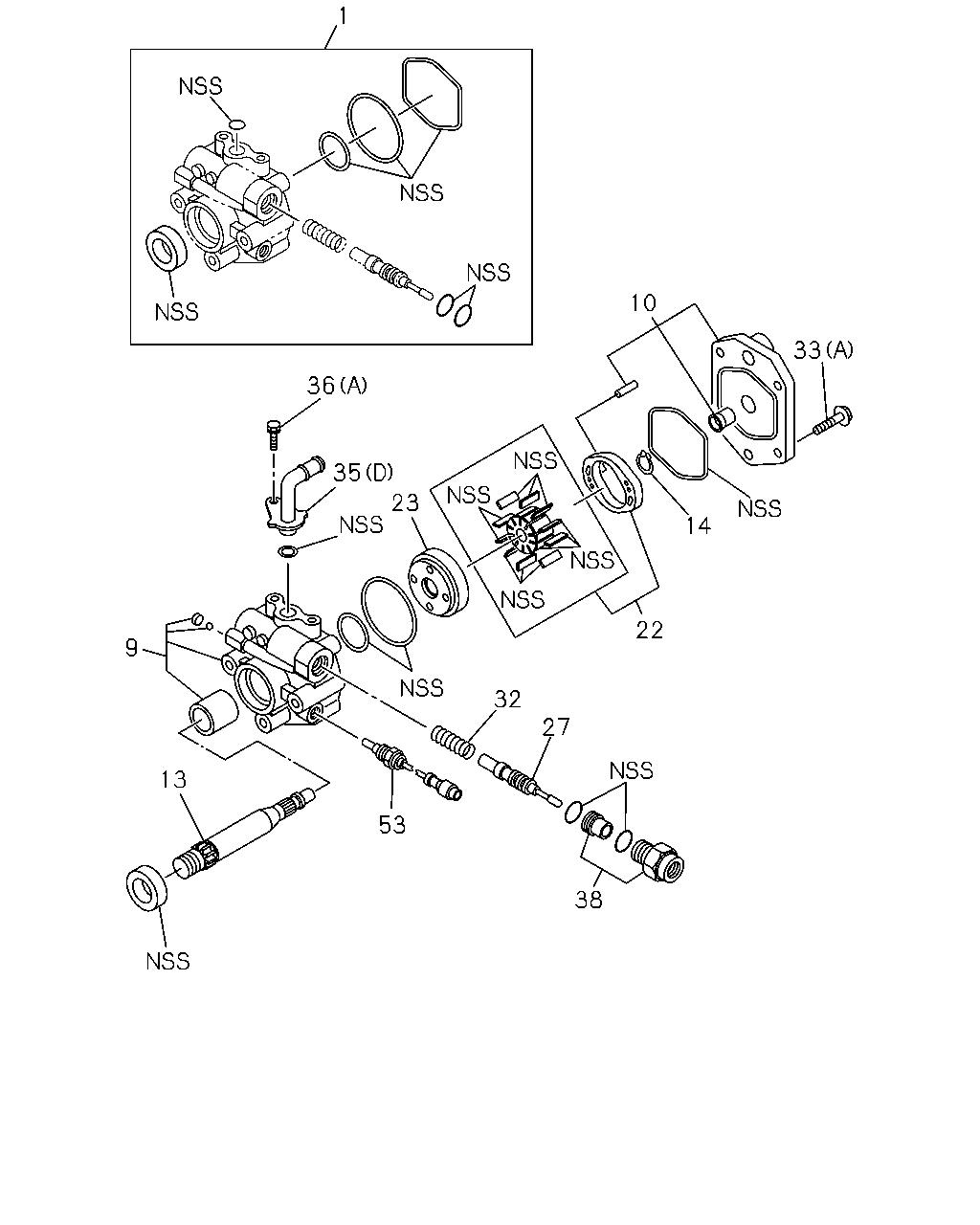

1 14 13 10 33 36 35 23 14 22 9 32 27 53 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602	8-97332-290-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97945-745-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, O = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-620-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: M = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97306-614-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, O = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, N = 8-98048-472-0, 98048472	8-97205-611-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98028-773-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: G = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: E = 8-97944-826-0, 97944826, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98033-913-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-627-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, J = 8-97946-604-0, 97946604	8-98033-712-0	01	1	-

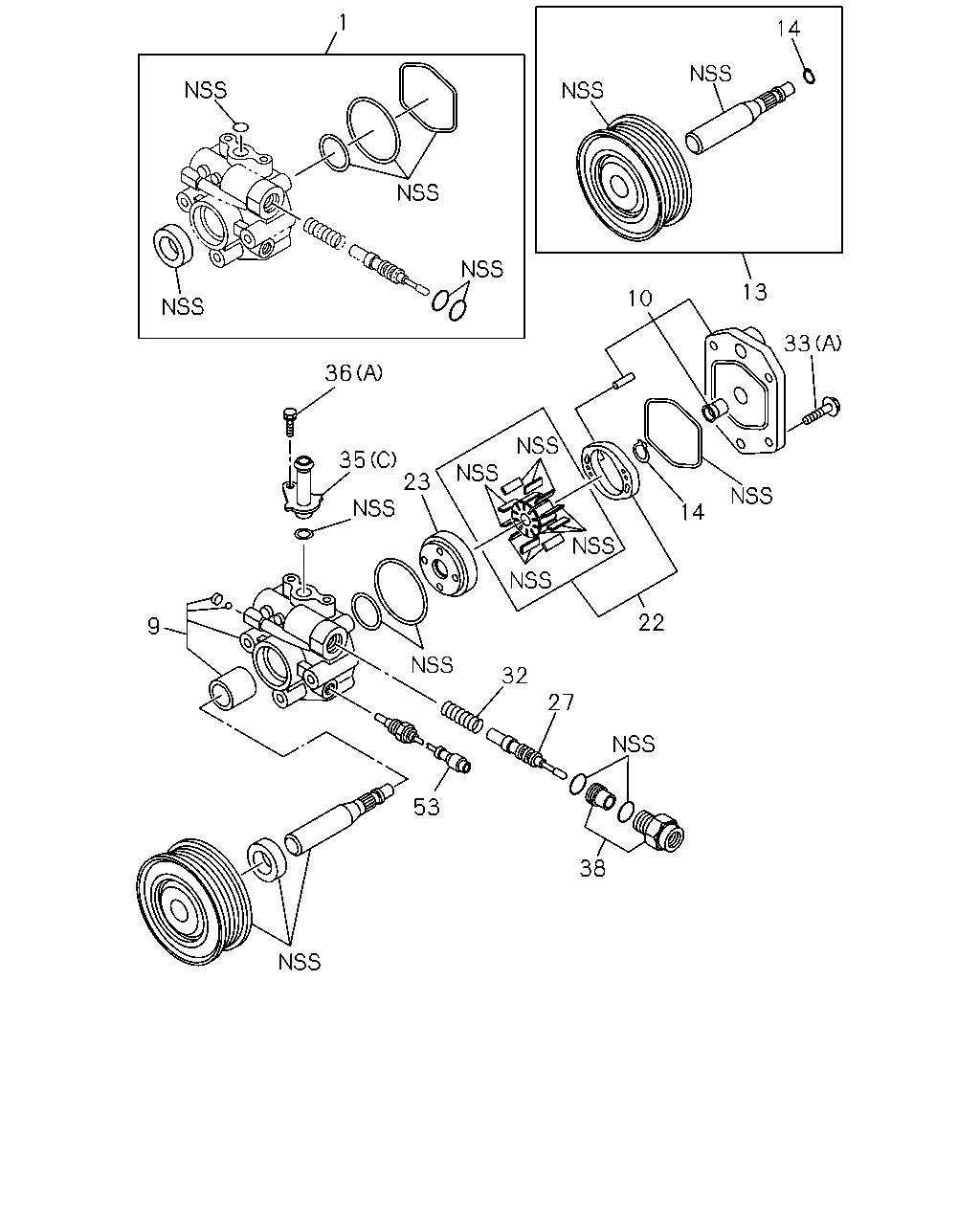

1 10 33 36 35 23 14 22 9 32 27 13 53 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602	8-97332-290-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97945-745-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, O = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-620-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: M = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97306-614-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, O = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, N = 8-98048-472-0, 98048472	8-97205-611-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98028-773-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: G = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: E = 8-97944-826-0, 97944826, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98033-913-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-627-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, J = 8-97946-604-0, 97946604	8-98033-712-0	01	1	-

1 38 36 33 38 10 35 33 32 27 16 22 9 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602	8-97332-290-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97945-745-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, O = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97205-620-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: M = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963, J = 8-97946-604-0, 97946604	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97306-614-0	01	1	-

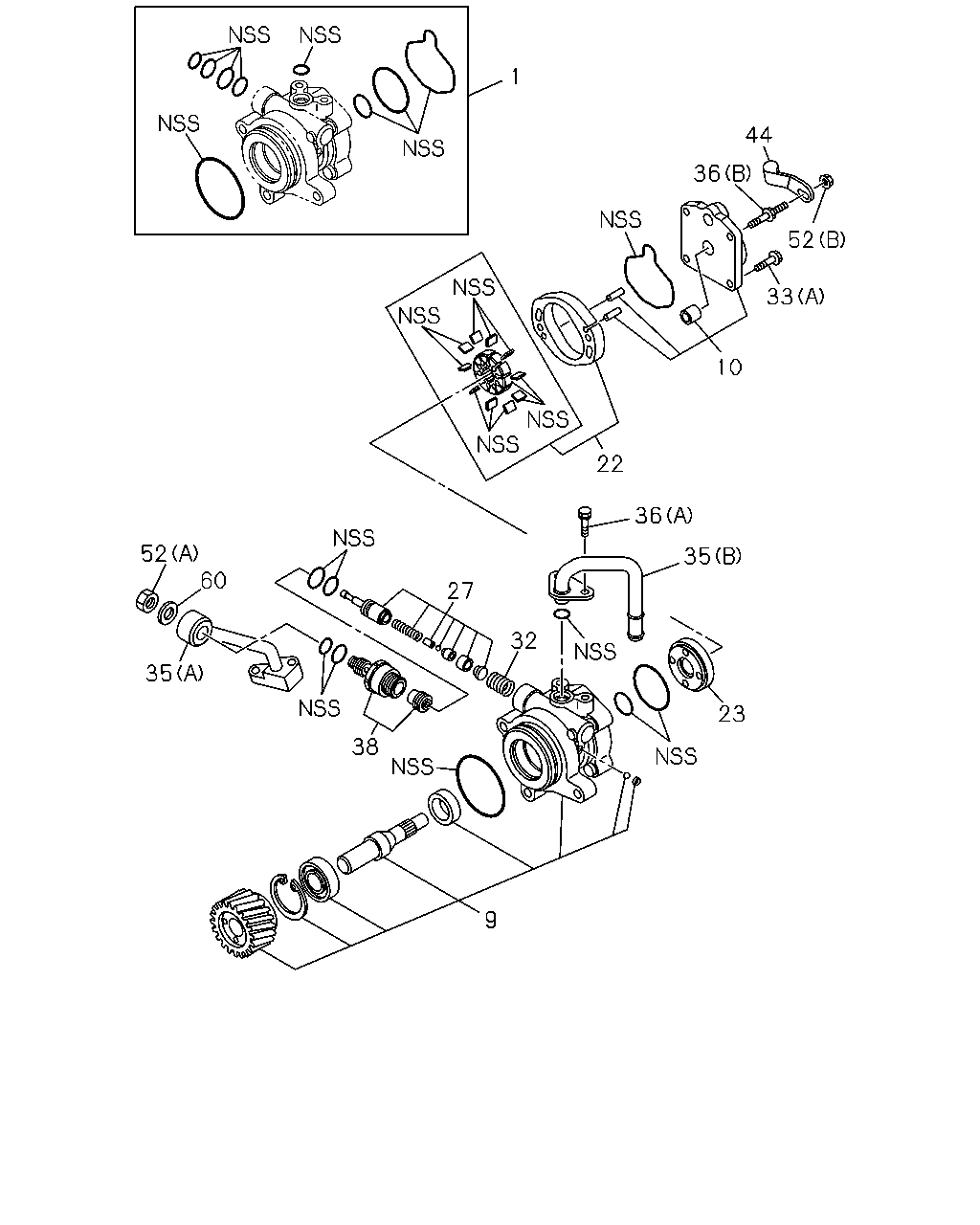

16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, O = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, N = 8-98048-472-0, 98048472	8-97205-611-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963, E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188, E = 8-97944-826-0, 97944826, F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98028-773-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: F = 8-97944-828-0, 97944828, G = 8-97944-829-0, 97944829, K = 8-97946-606-0, 97946606, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963, D = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, N = 8-98048-472-0, 98048472	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: G = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97214-995-1, 97214995, D = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: E = 8-97944-826-0, 97944826, G = 8-97944-829-0, 97944829, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, N = 8-98048-472-0, 98048472, O = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: F = 8-97944-828-0, 97944828, J = 8-97946-604-0, 97946604, K = 8-97946-606-0, 97946606	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: D = 8-97942-188-0, 97942188, F = 8-97944-828-0, 97944828, K = 8-97946-606-0, 97946606	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: G = 8-97944-829-0, 97944829, L = 8-97946-607-0, 97946607, M = 8-97946-698-0, 97946698, O = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: E = 8-97944-826-0, 97944826, H = 8-97946-602-0, 97946602, I = 8-97946-603-0, 97946603, J = 8-97946-604-0, 97946604, N = 8-98048-472-0, 98048472	8-98033-913-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
