1 |

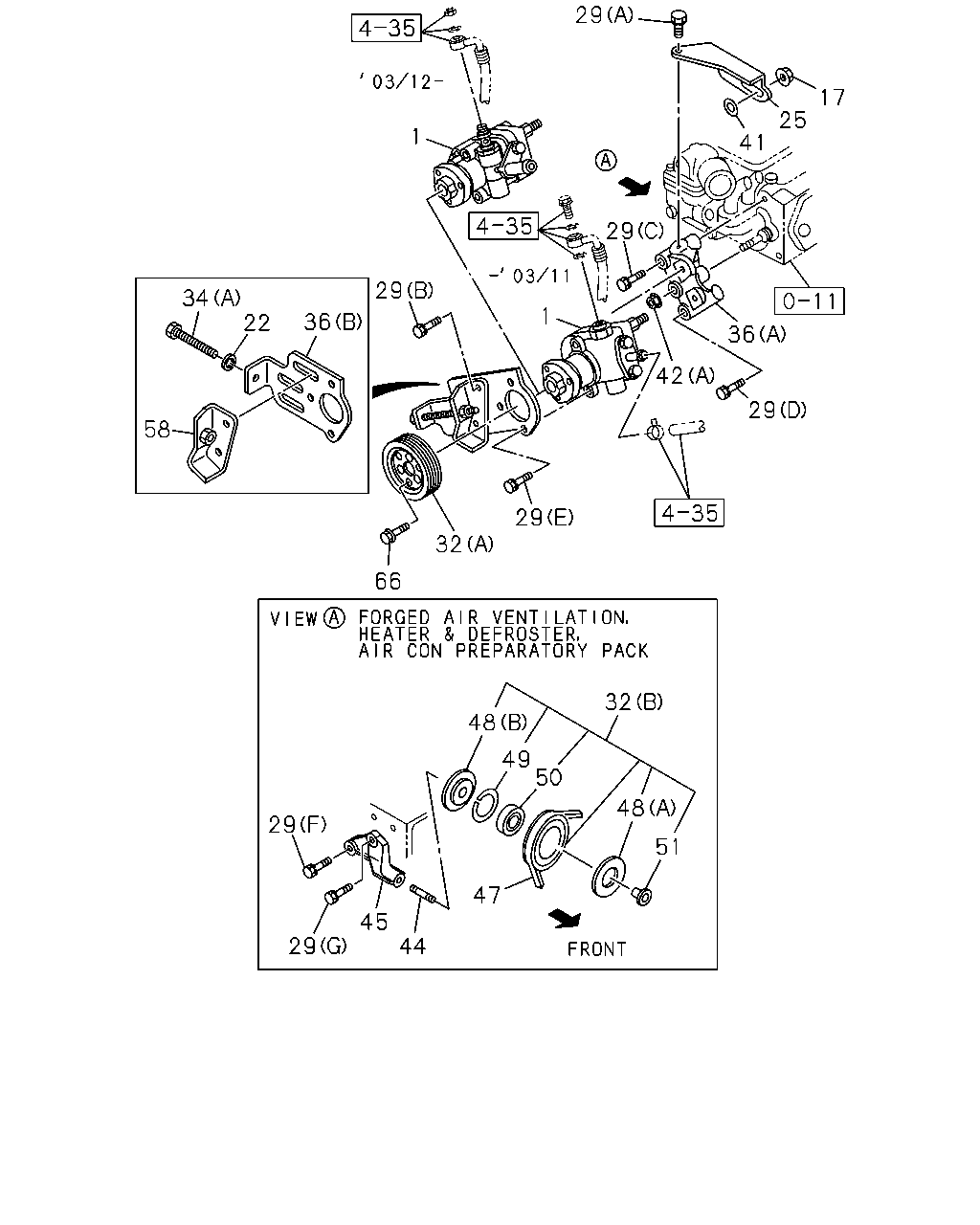

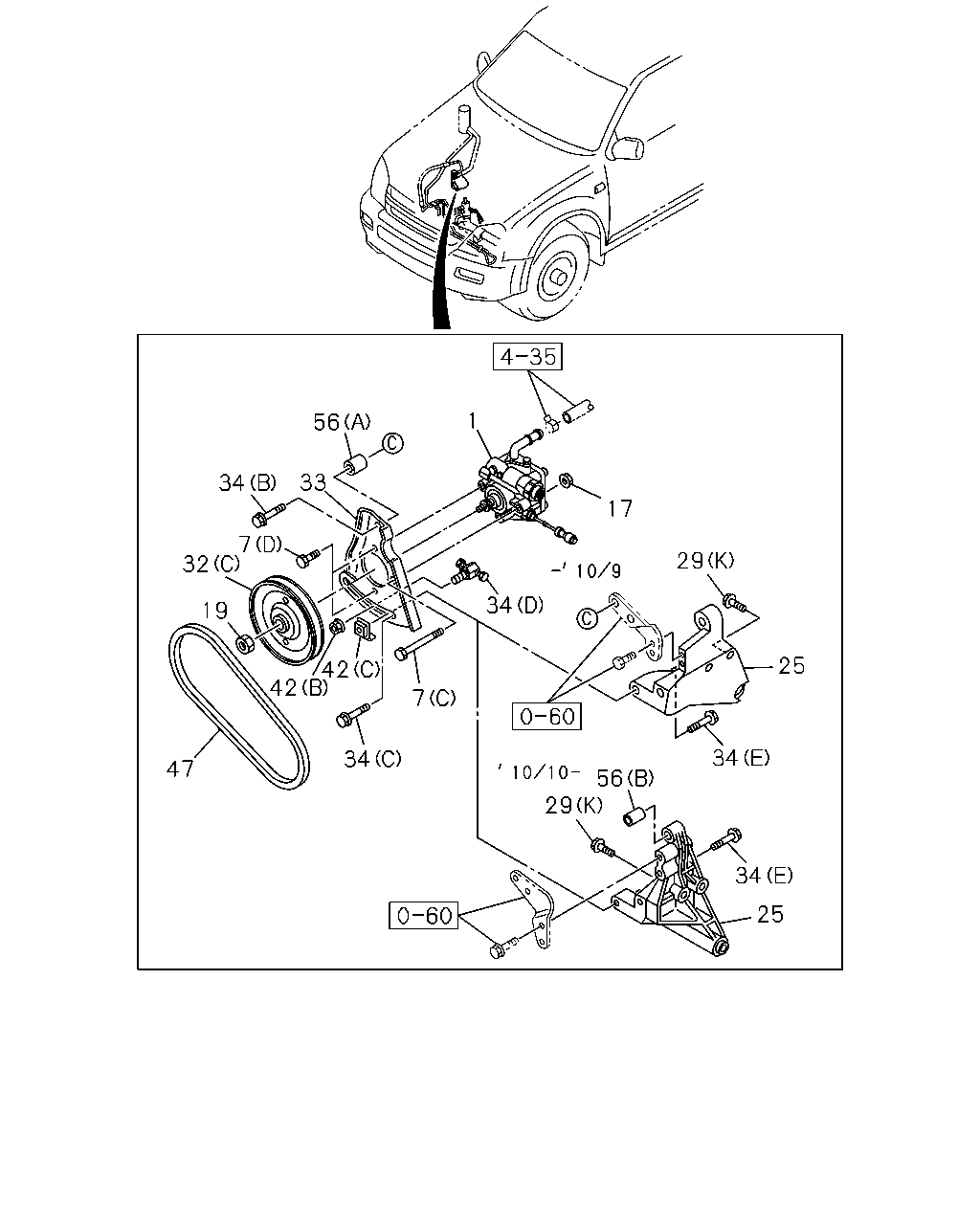

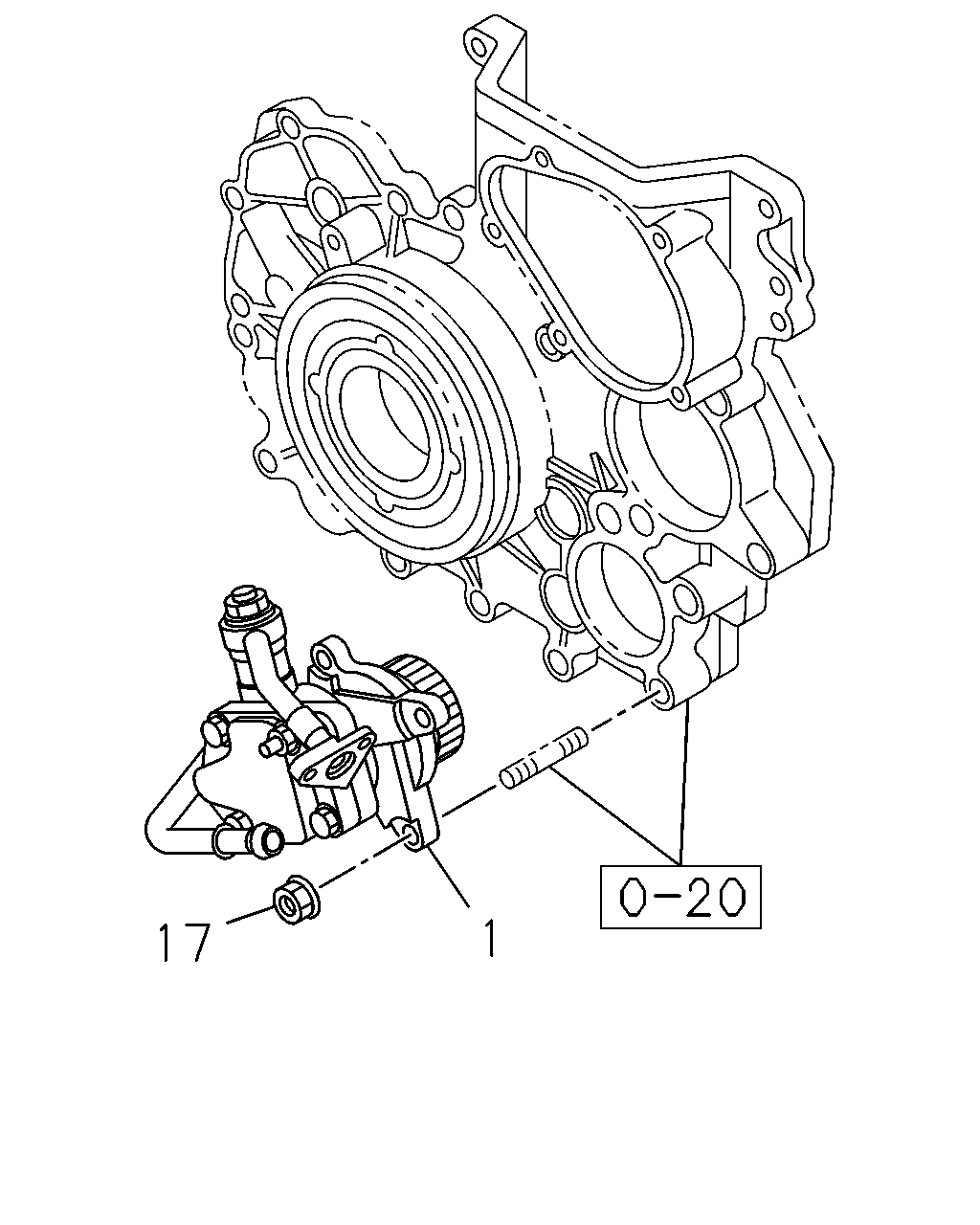

06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
POWER STEERING<N40>
|
8-97946-696-0 |
01 |
1 |
1008- |
● |
|
|
|
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
|
8-97946-696-0 |
01 |
1 |
1008- |
|
● |
|
|
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB)
POWER STEERING<N40>
|
8-98063-153-0 |
01 |
1 |
0611-0611 |
● |
|
● |
● |
● |
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCX ENG(LS0)
EURO4 SPECIFICATION<NT4>
POWER STEERING<N40>
|
8-98063-153-0 |
01 |
1 |
0611-0611 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
|
8-98063-153-0 |
01 |
1 |
0611-0611 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
|
8-98063-153-0 |
01 |
1 |
0612-0705 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB)
EGYPT EQUIPMENT(B09)
POWER STEERING<N40>
|
8-98063-153-0 |
01 |
1 |
0706-0707 |
● |
● |
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB)
EGYPT EQUIPMENT(B09)
POWER STEERING<N40>
|
8-97946-607-0 |
01 |
1 |
0708-0709 |
● |
● |
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97214-995-1 |
01 |
1 |
0306-0311 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97942-188-0 |
01 |
1 |
0312-0609 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97944-828-0 |
01 |
1 |
0610-0705 |
● |
|
● |
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97944-828-0 |
01 |
1 |
0610-0705 |
|
● |
|
|
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97946-606-0 |
01 |
1 |
0706-0711 |
● |
|
● |
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97946-606-0 |
01 |
1 |
0706-0711 |
|
● |
|
|
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97946-697-0 |
01 |
1 |
0712- |
● |
|
● |
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97946-697-0 |
01 |
1 |
0712- |
|
● |
|
|
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
EXC. EGYPT EQUIPMENT(B09)
|
8-97946-607-0 |
01 |
1 |
0706-0707 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
EXC. EGYPT EQUIPMENT(B09)
|
8-97946-698-0 |
01 |
1 |
0708-0709 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
|
8-97946-698-0 |
01 |
1 |
0710-1007 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
|
8-97946-698-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
MEXICO EQUIPMENT(E11)
POWER STEERING<N40>
|
8-98048-472-0 |
01 |
1 |
0610-0705 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
MEXICO EQUIPMENT(E11)
POWER STEERING<N40>
|
8-97946-603-0 |
01 |
1 |
0706-0711 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
MEXICO EQUIPMENT(E11)
POWER STEERING<N40>
|
8-97946-695-0 |
01 |
1 |
0712-0809 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
|
8-97214-994-1 |
01 |
1 |
0306-0604 |
● |
● |
|
● |
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
EMISSION SYSTEM R15-04<K75>,EMISSION
SYSTEM FEDERAL,TIER 0<NA5>,EMISSION
SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI
FICATION<NT1>,EURO2
SPECIFICATION<NT2>
POWER STEERING<N40>
|
8-97214-994-1 |
01 |
1 |
0605-0608 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
EMISSION SYSTEM R15-04<K75>,EMISSION
SYSTEM FEDERAL,TIER 0<NA5>,EMISSION
SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECI
FICATION<NT1>,EURO2
SPECIFICATION<NT2>
|
8-97214-994-1 |
01 |
1 |
0605-0608 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
|
8-97214-994-1 |
01 |
1 |
0609-0609 |
● |
● |
|
● |
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
EXC. MEXICO EQUIPMENT(E11)
|
8-97944-826-0 |
01 |
1 |
0610-0705 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
|
8-97944-826-0 |
01 |
1 |
0610-0705 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
EXC. MEXICO EQUIPMENT(E11)
|
8-97946-602-0 |
01 |
1 |
0706-0711 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
|
8-97946-602-0 |
01 |
1 |
0706-0711 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
EXC. MEXICO EQUIPMENT(E11)
|
8-97946-694-0 |
01 |
1 |
0712-0809 |
● |
|
|
● |
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
|
8-97946-694-0 |
01 |
1 |
0712-0809 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
C24SE ENG(LG1)
POWER STEERING<N40>
|
8-97946-694-0 |
01 |
1 |
0810- |
● |
● |
|
● |
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
POWER STEERING<N40>
|
8-97946-604-0 |
01 |
1 |
0710-0711 |
● |
|
|
|
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
|
8-97946-604-0 |
01 |
1 |
0710-0711 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
POWER STEERING<N40>
|
8-97946-696-0 |
01 |
1 |
0712-1003 |
● |
|
|
|
|
|
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
|
8-97946-696-0 |
01 |
1 |
0712-1003 |
|
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
6VE1 ENG(LX5)
POWER STEERING<N40>
|
8-97234-963-1 |
01 |
1 |
0306-0609 |
● |
● |
|
|
|
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
|
8-97944-829-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
4JJ1-TCX ENG(LS0)
EURO3 SPECIFICATION<NT3>
HEATER & DEFROSTER(C42),AIR
CONDITIONER MANUAL CONT(C60)
|
8-97944-829-0 |
01 |
1 |
0611-0611 |
● |
● |
|
● |
|
|
| |
17 |
06.606 NUT; POWER STRG PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
17 |
06.606 NUT; POWER STRG PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
17 |
06.606 NUT; POWER STRG PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
17 |
06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
POWER STEERING<N40>
01.540
M8 FLANGE
|
0-91180-208-0 |
03 |
1 |
0610-0611 |
● |
● |
● |
● |
● |
● |
| |
17 |
06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
01.540
M8 FLANGE
|
0-91180-208-0 |
03 |
1 |
0612-1007 |
● |
● |
● |
● |
● |
● |
| |
17 |
06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
01.540
M8 FLANGE
|
0-91180-208-0 |
03 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
| |
17 |
06.606 NUT; POWER STRG PUMP
C24SE ENG(LG1)
POWER STEERING<N40>
04.085
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
22 |
06.606 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
00.002
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0306-0604 |
● |
● |
● |
● |
● |
● |
| |
22 |
06.606 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0605-0609 |
● |
● |
● |
● |
● |
● |
| |
22 |
06.606 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
22 |
06.606 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
25 |
06.606 BRACKET; P/S PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97941-415-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
25 |
06.606 BRACKET; P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97941-415-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
25 |
06.606 BRACKET; P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97941-415-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
25 |
06.606 BRACKET; P/S PUMP
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5
SPEED 5S(RSQ)
|
8-92063-351-0 |
01 |
1 |
0306-1003 |
● |
● |
|
● |
|
● |
| |
25 |
06.606 BRACKET; P/S PUMP
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP)
|
8-92063-351-0 |
01 |
1 |
1004-1007 |
● |
● |
|
● |
|
● |
| |
25 |
06.606 BRACKET; P/S PUMP
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5
SPEED 5S(RSQ)
|
8-92063-351-0 |
01 |
1 |
1008-1009 |
● |
● |
|
● |
|
● |
| |
25 |
06.606 BRACKET; P/S PUMP
C24SE ENG(LG1)
|
8-92066-605-0 |
01 |
1 |
1010- |
● |
● |
|
● |
|
● |
| |
29 |

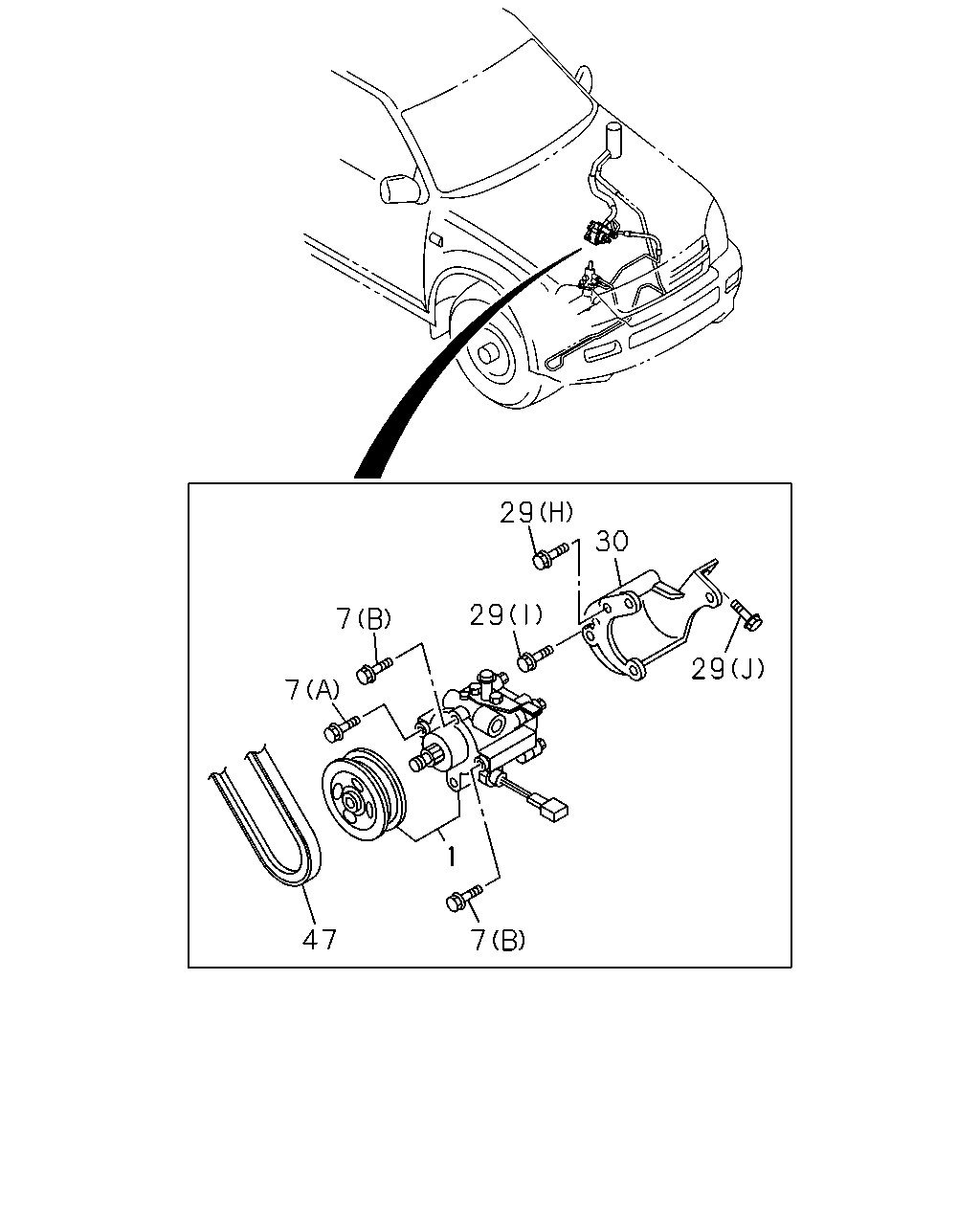

09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
POWER STEERING<N40>
00.386
(H)
M8X100 FLANGE
|
0-28050-800-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
POWER STEERING<N40>
00.683
(I)
M10X60 FLANGE
|
0-28151-060-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
POWER STEERING<N40>
01.251
(J)
M8X40 FLANGE
|
0-28660-840-0 |
02 |
1 |
1008- |
● |
● |
|
|
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
(F)
M8X30 W/LK WASHER
|
0-50540-830-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
(F)
M8X30 W/LK WASHER
|
0-50540-830-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
(G)
M10X35 W/LK WASHER
|
0-50541-035-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
(G)
M10X35 W/LK WASHER
|
0-50541-035-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(B)
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(B)
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(B)
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
04.104
(C)
M10X60 W/LK WASHER
|
0-50041-060-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
00.685
(C)
M10X60 FLANGE
|
0-28051-060-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
00.685
(C)
M10X60 FLANGE
|
0-28051-060-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(D)
M8X60 W/LK WASHER
|
0-50540-860-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(D)
M8X60 W/LK WASHER
|
0-50540-860-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(D)
M8X60 W/LK WASHER
|
0-50540-860-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(E)
M10X28 W/LK WASHER
|
8-97943-080-0 |
03 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(E)
M10X28 W/LK WASHER
|
8-97943-080-0 |
03 |
1 |
0610-0906 |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(E)
M10X28 W/LK WASHER
|
8-97943-080-0 |
03 |
1 |
0610-0906 |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(E)
M10X28 W/LK WASHER
|
8-98136-233-0 |
03 |
1 |
0907- |
● |
|
● |
● |
|
|
| |
29 |
09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(E)
M10X28 W/LK WASHER
|
8-98136-233-0 |
03 |
1 |
0907- |
|
● |
|
|
● |
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5
SPEED 5S(RSQ)
(K)
|
8-11081-925-0 |
02 |
1 |
0306-1003 |
● |
● |
|
● |
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP)
(K)
|
8-11081-925-0 |
02 |
1 |
1004-1007 |
● |
● |
|
● |
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1)
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5
SPEED 5S(RSQ)
(K)
|
8-11081-925-0 |
02 |
1 |
1008- |
● |
● |
|
● |
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
03.278
(H)
M8X100 FLANGE
|
0-28080-800-0 |
01 |
1 |
0306-0512 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
00.386
(H)
M8X100 FLANGE
|
0-28050-800-0 |
01 |
1 |
0601-0609 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
03.330
(I)
M10X60 FLANGE
|
0-28181-060-0 |
01 |
1 |
0306-0512 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
00.683
(I)
M10X60 FLANGE
|
0-28151-060-0 |
01 |
1 |
0601-0609 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
16.545
(J)
M8X40 FLANGE
|
0-28690-840-0 |
02 |
1 |
0306-0512 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
01.251
(J)
M8X40 FLANGE
|
0-28660-840-0 |
02 |
1 |
0601-0609 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
HEATER & DEFROSTER(C42),AIR
CONDITIONER MANUAL CONT(C60)
POWER STEERING<N40>
00.386
(H)
M8X100 FLANGE
|
0-28050-800-0 |
01 |
1 |
0710-1003 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
HEATER & DEFROSTER(C42),AIR
CONDITIONER MANUAL CONT(C60)
POWER STEERING<N40>
00.683
(I)
M10X60 FLANGE
|
0-28151-060-0 |
01 |
1 |
0710-1003 |
● |
● |
|
|
|
● |
| |
29 |
09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(LX5)
HEATER & DEFROSTER(C42),AIR
CONDITIONER MANUAL CONT(C60)
POWER STEERING<N40>
01.251
(J)
M8X40 FLANGE
|
0-28660-840-0 |
02 |
1 |
0710-1003 |
● |
● |
|
|
|
● |
| |
32 |
06.665 PULLEY; IDLER,P/S
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
(B)
|
8-97112-740-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
32 |
06.665 PULLEY; IDLER,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
(B)
|
8-97112-740-1 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
32 |
06.665 PULLEY; IDLER,P/S
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
|
8-97942-187-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
32 |
06.665 PULLEY; IDLER,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
|
8-97942-187-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
32 |
06.665 PULLEY; IDLER,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(A)
|
8-97942-187-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
32 |
06.665 PULLEY; IDLER,P/S
C24SE ENG(LG1)
POWER STEERING<N40>
(C)
|
8-97214-996-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
34 |
09.181 BOLT; ADJ PLATE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
M10X70
|
0-20801-070-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
34 |
09.181 BOLT; ADJ PLATE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
M10X70
|
0-20801-070-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
34 |
09.181 BOLT; ADJ PLATE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(A)
M10X70
|
0-20801-070-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
34 |
09.181 BOLT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
(B)
M10X45 FLANGE
|
0-28151-045-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
34 |
09.181 BOLT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
(C)
M10X22 FLANGE
|
8-11083-820-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
34 |
09.181 BOLT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
06.672
(D)
|
8-92064-382-2 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
34 |
09.181 BOLT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
00.683
(E)
M10X55 FLANGE
|
8-94399-863-1 |
01 |
1 |
0306-0809 |
● |
● |
|
● |
|
● |
| |
34 |
09.181 BOLT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
00.683
(E)
M10X55 FLANGE
|
8-97365-449-0 |
01 |
1 |
0810- |
● |
● |
|
● |
|
● |
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
|
8-97941-414-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(A)
|
8-97941-414-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(A)
|
8-97941-414-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
(B)
|
8-97942-483-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
(B)
|
8-97942-483-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
36 |
06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
(B)
|
8-97942-483-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
41 |
06.168 WASHER; PL,BRKT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
03.275
ID=8.5 OD=22 T=4
|
9-09851-649-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
41 |
06.168 WASHER; PL,BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
03.275
ID=8.5 OD=22 T=4
|
9-09851-649-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
41 |
06.168 WASHER; PL,BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
03.275
ID=8.5 OD=22 T=4
|
9-09851-649-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
42 |
06.672 NUT; ADJ PLATE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
01.540
(A)
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
42 |
06.672 NUT; ADJ PLATE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
01.540
(A)
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
42 |
06.672 NUT; ADJ PLATE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
01.540
(A)
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
42 |
06.672 NUT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
(B)
M10 FLANGE
|
0-91280-210-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
42 |
06.672 NUT; ADJ PLATE
C24SE ENG(LG1)
POWER STEERING<N40>
(C)
M10
|
8-92064-322-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
44 |
06.665 STUD; IDLER PULLEY
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
03.275
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
44 |
06.665 STUD; IDLER PULLEY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
03.275
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
45 |
06.655 BRACKET; IDLE PULLEY,P/S
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
|
8-94449-652-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
45 |
06.655 BRACKET; IDLE PULLEY,P/S
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
|
8-94449-652-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |

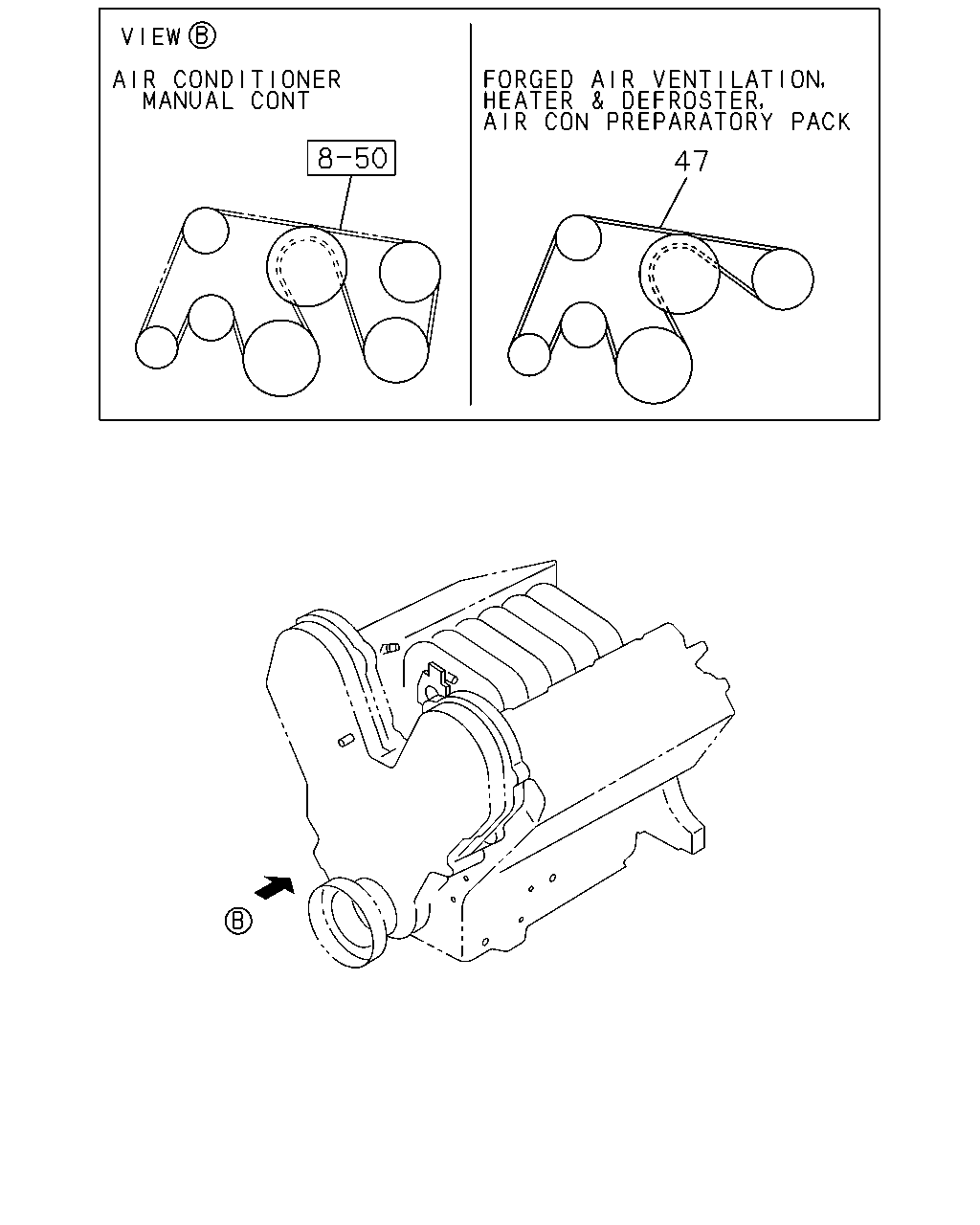

47 |
01.066 BELT; P/S PUMP
6VE1 ENG(LX5)
POWER STEERING<N40>
L=2038
|
8-97130-561-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
|
| |
47 |
01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
L=1451 MITSUBOSHI
|
1-13671-301-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
47 |
01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
L=1451 MITSUBOSHI
|
1-13671-301-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
47 |
01.066 BELT; P/S PUMP
C24SE ENG(LG1)
POWER STEERING<N40>
L=960.5
|
8-92063-695-0 |
01 |
1 |
0306- |
● |
● |
|
● |
|
● |
| |
47 |
01.066 BELT; P/S PUMP
6VE1 ENG(LX5)
HEATER & DEFROSTER(C42)
L=2038
|
8-97130-561-0 |
01 |
1 |
0306-0609 |
● |
● |
|
|
|
● |
| |
47 |
01.066 BELT; P/S PUMP
6VE1 ENG(LX5)
HEATER & DEFROSTER(C42),AIR
CONDITIONER MANUAL CONT(C60)
POWER STEERING<N40>
L=2038
|
8-97130-561-0 |
01 |
1 |
0710-1003 |
● |
● |
|
|
|
● |
| |
47 |
01.066 BELT; P/S PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
L=1399
|
5-13671-111-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
47 |
01.066 BELT; P/S PUMP
4JA1-T ENG(LP0)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
L=1399
|
5-13671-111-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
48 |
06.665 COVER; IDLER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
(B)
|
8-97092-819-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
48 |
06.665 COVER; IDLER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
(B)
|
8-97092-819-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
48 |
06.665 COVER; IDLER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
09.181
(A)
|
9-13669-603-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
48 |
06.665 COVER; IDLER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
09.181
(A)
|
9-13669-603-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
49 |
06.665 RING; SNAP,IDLER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
|
8-94175-036-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
49 |
06.665 RING; SNAP,IDLER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
|
8-94175-036-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
50 |
06.665 BEARING; IDLER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
|
8-94251-052-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
50 |
06.665 BEARING; IDLER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
|
8-94251-052-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
51 |
06.665 NUT; IDLER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C42),AIR CON PREPARATORY
PACK(C66)
POWER STEERING<N40>
|
8-97092-813-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
51 |
06.665 NUT; IDLER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
HEATER & DEFROSTER(C42),AIR CON
PREPARATORY PACK(C66)
POWER STEERING<N40>
|
8-97092-813-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
58 |
06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97941-329-0 |
01 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
58 |
06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
|
8-97941-329-0 |
01 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
58 |
06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97941-329-0 |
01 |
1 |
0610- |
|
● |
|
|
● |
● |
| |
66 |
06.672 BOLT; PULLEY
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z),
4JH1-TC ENG(RDM)
POWER STEERING<N40>
02.343
M8X12 FLANGE
|
0-28050-812-0 |
03 |
1 |
0306-0609 |
● |
● |
● |
● |
● |
● |
| |
66 |
06.672 BOLT; PULLEY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
POWER STEERING<N40>
02.343
M8X12 FLANGE
|
0-28050-812-0 |
03 |
1 |
0610- |
● |
|
● |
● |
|
|
| |
66 |
06.672 BOLT; PULLEY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
02.343
M8X12 FLANGE
|
0-28050-812-0 |
03 |
1 |
0610- |
|
● |
|
|
● |
● |
