Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#73983) — 236 parça

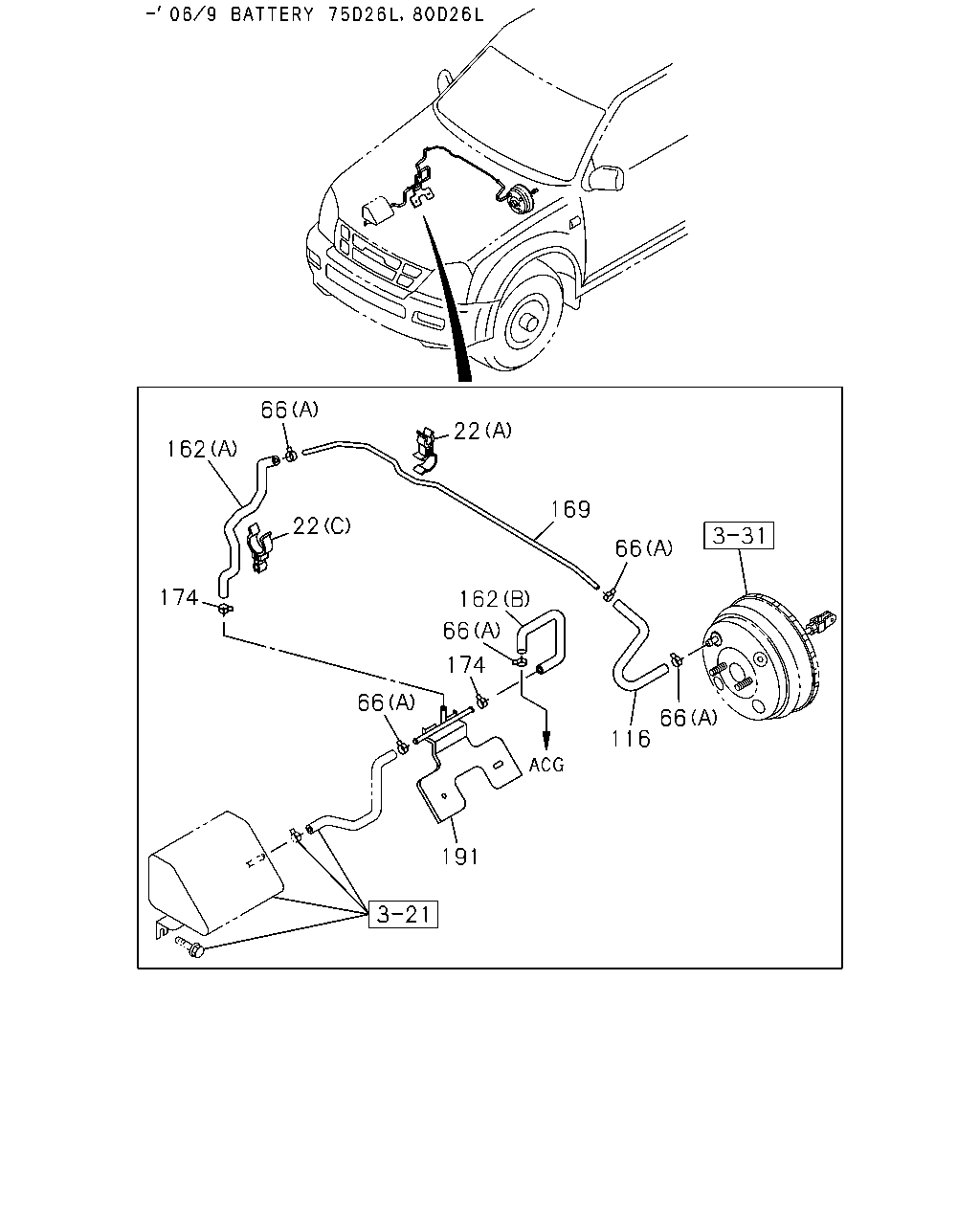

66 22 162 169 22 66 174 162 66 174 66 66 116 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0306-0401	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0402-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B)	8-97089-536-0	01	1	0610-	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0306-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0306-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	06	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	1008-	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-		●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-			●			●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	0610-0709		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	0710-1003		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	1004-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	1008-		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0604		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (A) ID=15.5	8-98035-872-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	1008-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97315-630-2	01	1	0306-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97944-835-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB)	8-97944-842-1	01	1	0610-1007	●			●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-1007		●	●		●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (C)	8-97315-632-1	01	1	0306-		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-97350-327-1	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-98059-962-0	01	1	0610-		●	●		●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB) (E)	8-98037-609-0	01	1	0610-1007	●			●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	0610-1007		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0306-0609		●	●		●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97315-612-2	01	1	0306-0609	●	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97944-846-0	01	1	0610-	●	●	●	●	●	●
174	04.930 CLIP; VAC HOSE C24SE ENG(LG1) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) ID=15.5	8-98008-097-0	02	1	0610-1007	●			●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	0610-1007		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	1008-	●	●	●	●	●	●
191	04.685 PIPE; VAC C24SE ENG(LG1)	8-97315-613-1	01	1	0306-		●	●		●	●
191	04.685 PIPE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-948-1	01	1	0306-0609		●	●		●	●

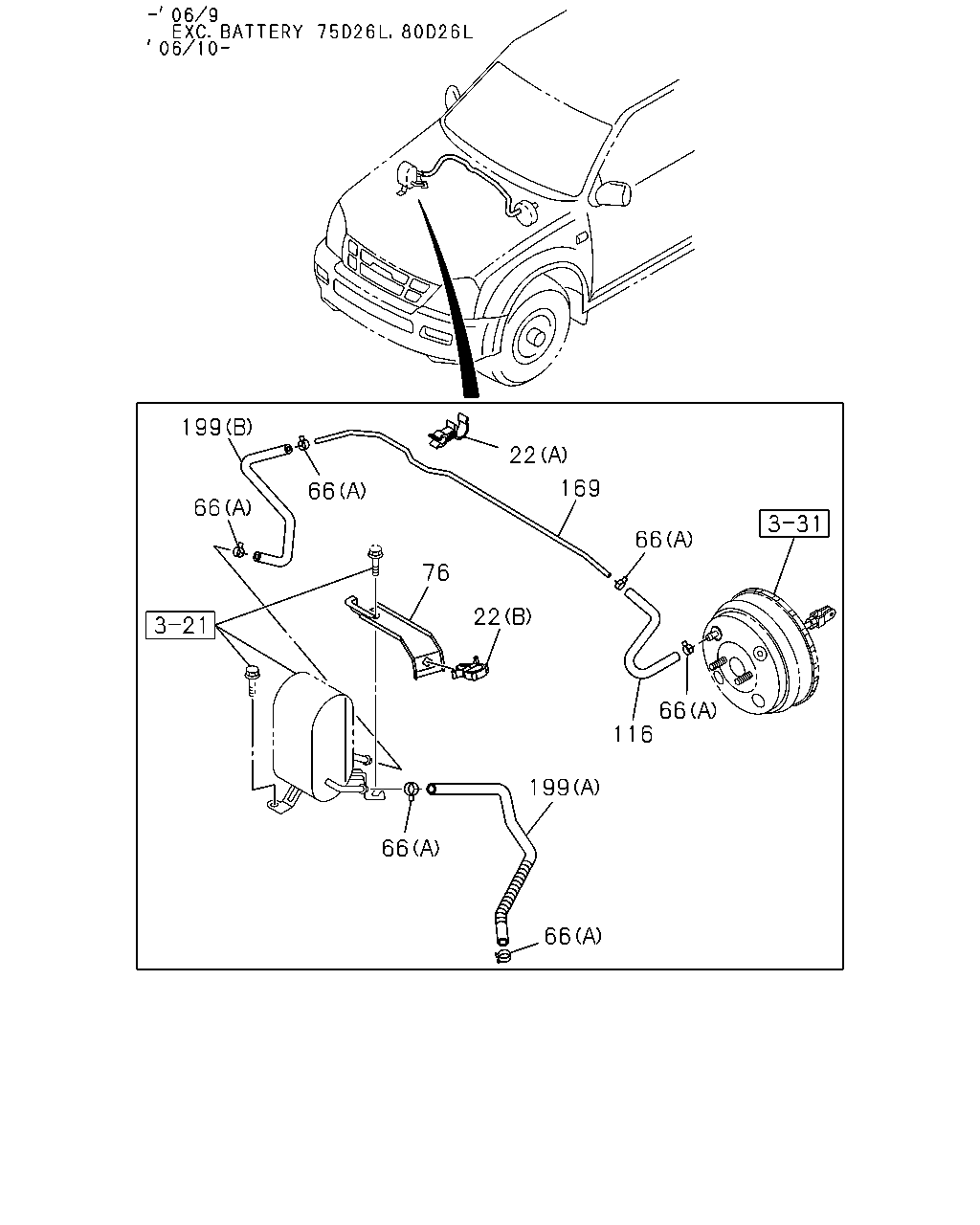

199 22 169 66 66 66 76 22 66 116 199 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0306-0401	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0402-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B)	8-97089-536-0	01	1	0610-	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0306-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0306-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	06	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	1008-	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-		●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-			●			●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	0610-0709		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	0710-1003		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	1004-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	1008-		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0604		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (A) ID=15.5	8-98035-872-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	1008-	●	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z)	8-97301-841-2	01	1	0306-0609	●	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97301-841-2	01	1	0306-0609	●	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98050-712-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97315-630-2	01	1	0306-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97944-835-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB)	8-97944-842-1	01	1	0610-1007	●			●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-1007		●	●		●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	1008-	●	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97315-612-2	01	1	0306-0609	●	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97944-846-0	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) (C)	8-97944-837-0	01	1	1008-			●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 04.931 (B)	8-97315-631-1	01	1	0306-0609	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.931 (B)	8-97315-631-1	01	1	0306-0609	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.931 (B)	8-97315-631-1	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-97365-118-0	01	1	0306-0409	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0306-0409	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) (A)	8-97365-118-0	01	1	0410-0609	●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0410-0609		●	●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9) (A)	8-97365-118-0	01	1	0410-0609					●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) (A)	8-97365-118-0	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0) (A)	8-97385-746-0	01	1	0410-0609	●	●		●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-97385-746-0	01	1	0410-0609			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0) (A)	8-97385-746-0	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) 04.931 (C)	8-97315-633-2	01	1	0306-0609			●		●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) (C)	8-97944-837-0	01	1	0710-1003			●		●	●

66 162 174 116 174 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	06	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	1008-	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-		●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-			●			●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	0610-0709		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	0710-1003		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	1004-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	1008-		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0604		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (A) ID=15.5	8-98035-872-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	1008-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97315-630-2	01	1	0306-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97944-835-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB)	8-97944-842-1	01	1	0610-1007	●			●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-1007		●	●		●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (C)	8-97315-632-1	01	1	0306-		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-97350-327-1	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-98059-962-0	01	1	0610-		●	●		●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB) (E)	8-98037-609-0	01	1	0610-1007	●			●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	0610-1007		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE C24SE ENG(LG1) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) ID=15.5	8-98008-097-0	02	1	0610-1007	●			●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	0610-1007		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	1008-	●	●	●	●	●	●

199 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	06	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	1008-	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-		●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-			●			●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	0610-0709		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	0710-1003		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	1004-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	1008-		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0604		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (A) ID=15.5	8-98035-872-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	1008-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) (C)	8-97944-837-0	01	1	1008-			●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 04.931 (B)	8-97315-631-1	01	1	0306-0609	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.931 (B)	8-97315-631-1	01	1	0306-0609	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.931 (B)	8-97315-631-1	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-97365-118-0	01	1	0306-0409	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0306-0409	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) (A)	8-97365-118-0	01	1	0410-0609	●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0410-0609		●	●			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9) (A)	8-97365-118-0	01	1	0410-0609					●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) (A)	8-97365-118-0	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0) (A)	8-97385-746-0	01	1	0410-0609	●	●		●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-97385-746-0	01	1	0410-0609			●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG(LP0) (A)	8-97385-746-0	01	1	0610-	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) 04.931 (C)	8-97315-633-2	01	1	0306-0609			●		●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 6VE1 ENG(LX5) (C)	8-97944-837-0	01	1	0710-1003			●		●	●

162 174 66 22 191 174 22 66 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0306-0401	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0402-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0306-0609	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B)	8-97089-536-0	01	1	0610-	●	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK C24SE ENG(LG1) 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0306-		●	●		●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0306-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0508	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0509-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5	8-98035-872-0	06	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (B) ID=16	8-98036-539-0	01	1	1008-	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-		●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	1008-			●			●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	0610-0709		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	0710-1003		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1) (A) ID=15.5	8-98035-872-0	02	1	1004-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC C24SE ENG(LG1),6VE1 ENG(LX5) (A) ID=15.5	8-98035-872-0	02	1	1008-		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0604		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB) (A) ID=15.5	8-98035-872-0	01	1	0610-1007	●			●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-1007		●	●		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (C)	8-97315-632-1	01	1	0306-		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-97350-327-1	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC C24SE ENG(LG1) (D)	8-98059-962-0	01	1	0610-		●	●		●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0306-0609		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB) (E)	8-98037-609-0	01	1	0610-1007	●			●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	0610-1007		●	●		●	●
162	04.931 HOSE; VAC 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (E)	8-98037-609-0	01	1	1008-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE C24SE ENG(LG1) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0609		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) ID=15.5	8-98008-097-0	02	1	0610-1007	●			●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	0610-1007		●	●		●	●
174	04.930 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	1008-	●	●	●	●	●	●
191	04.685 PIPE; VAC C24SE ENG(LG1)	8-97315-613-1	01	1	0306-		●	●		●	●
191	04.685 PIPE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-948-1	01	1	0306-0609		●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
